Диод 1N5399 1N5408 большой чип выпрямительный диод DO-15 диодный

Диод 1N5399 1N5408 большой чип выпрямительный диод DO-15 диодный

Категория: Diodes >>>
Поставщик: Shenzhen,Punuo,Industrial,Co.,Ltd.

Цена:0,006 $ - 0,007 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.67 $*	0.95 $*
Aug-15-2025	0.97 $*	0.96 $*
Jul-15-2025	0.30 $*	0.65 $*
Jun-15-2025	0.80 $*	0.67 $*
May-15-2025	0.54 $*	0.97 $*
Apr-15-2025	0.70 $*	0.6 $*
Mar-15-2025	0.67 $*	0.22 $*
Feb-15-2025	0.56 $*	0.77 $*
Jan-15-2025	0.73 $*	0.81 $*

Характеристики

Diode 1N5399 1N5408 large chip rectifier diode DO-15 1N5399 diode rectifier

Popular products

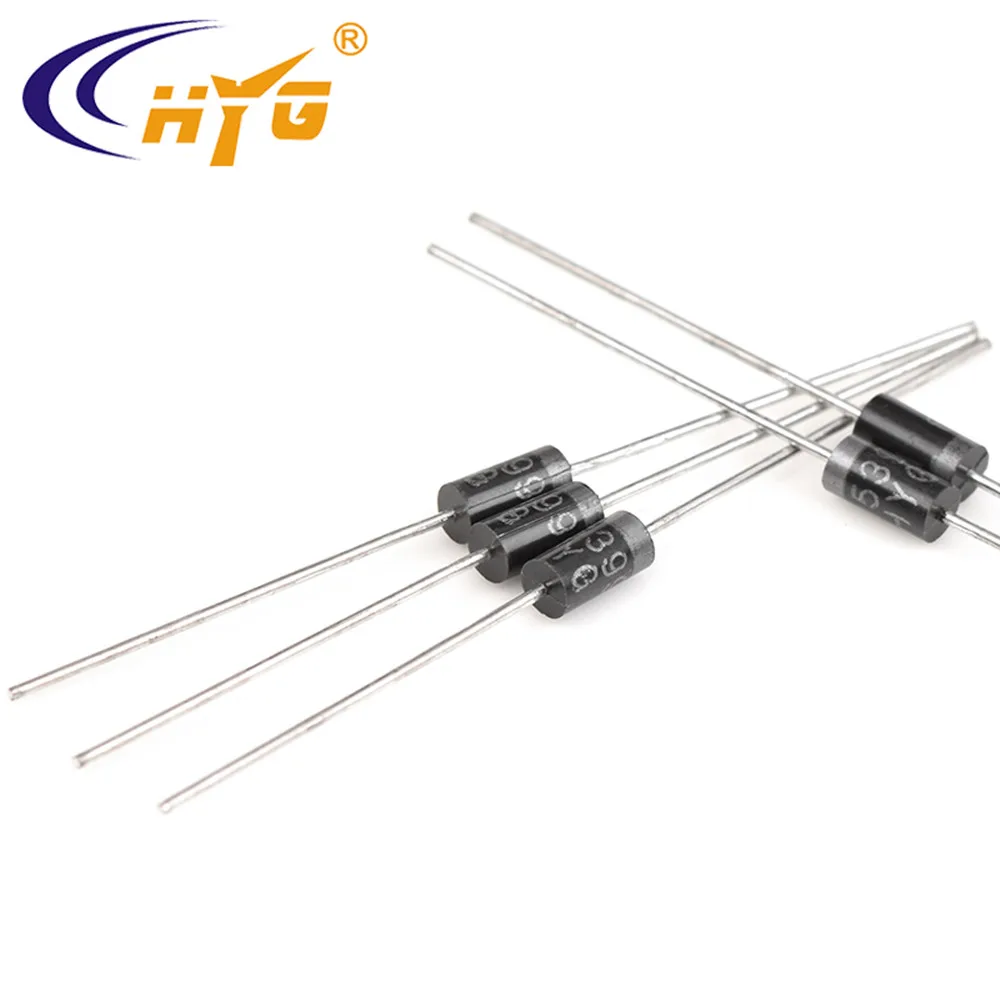

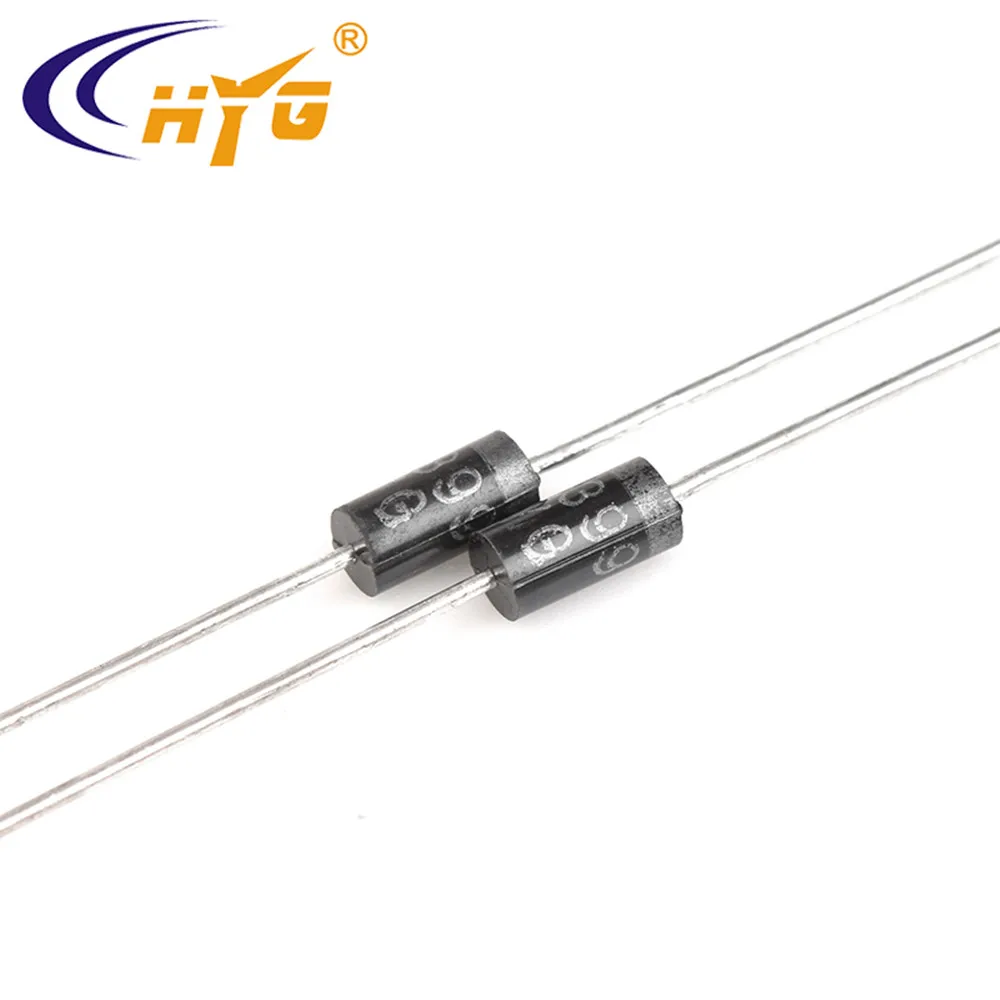

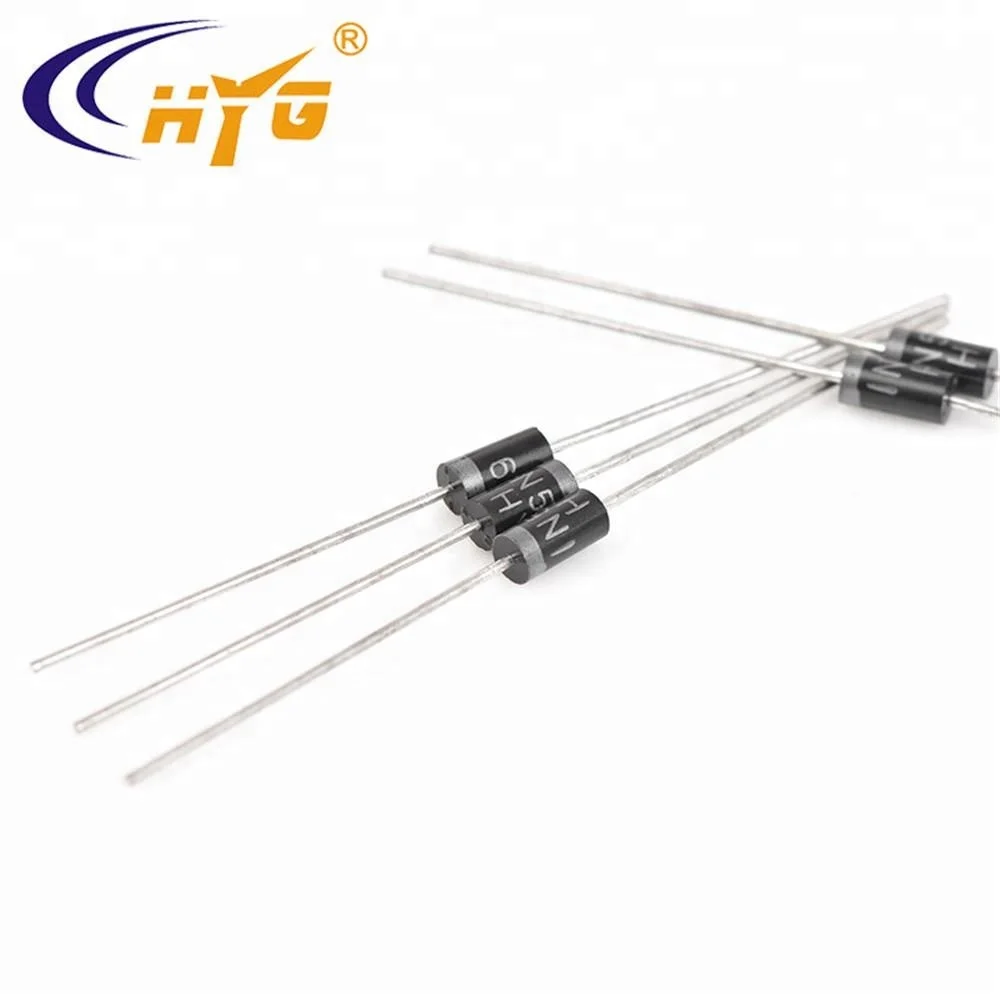

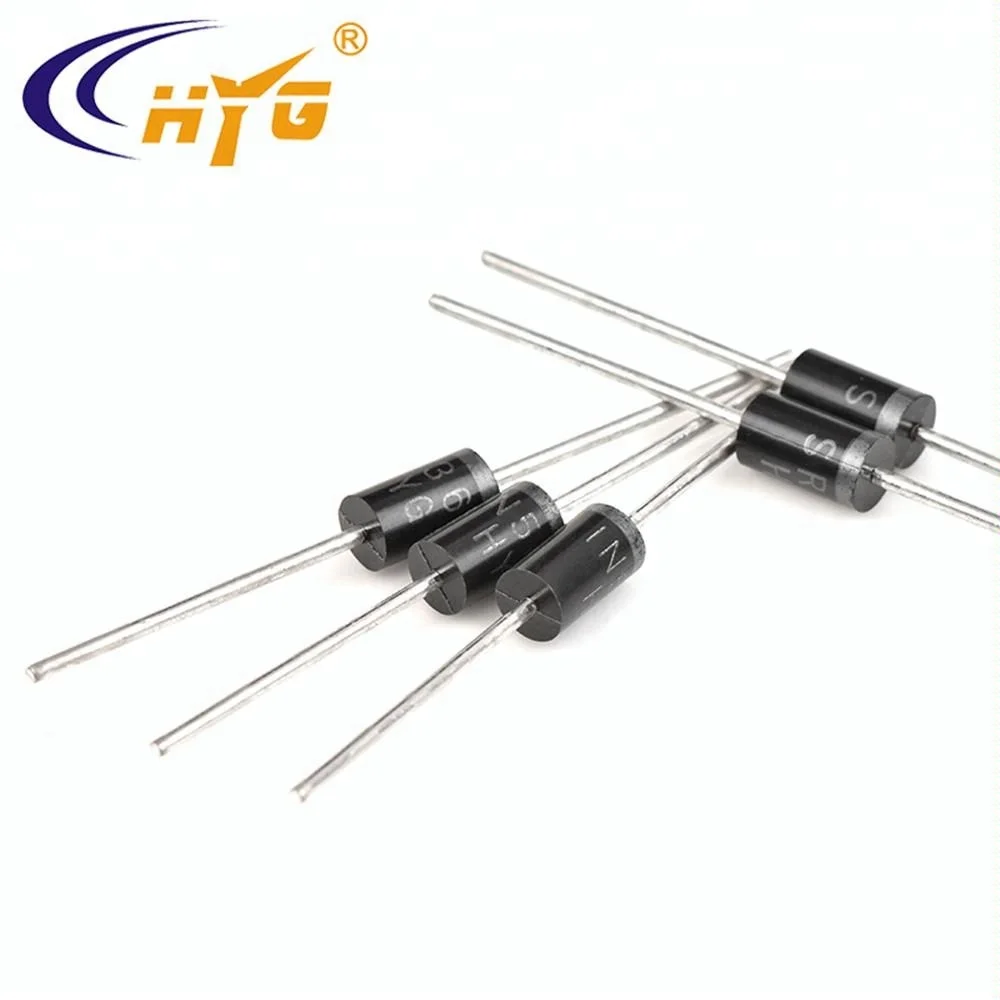

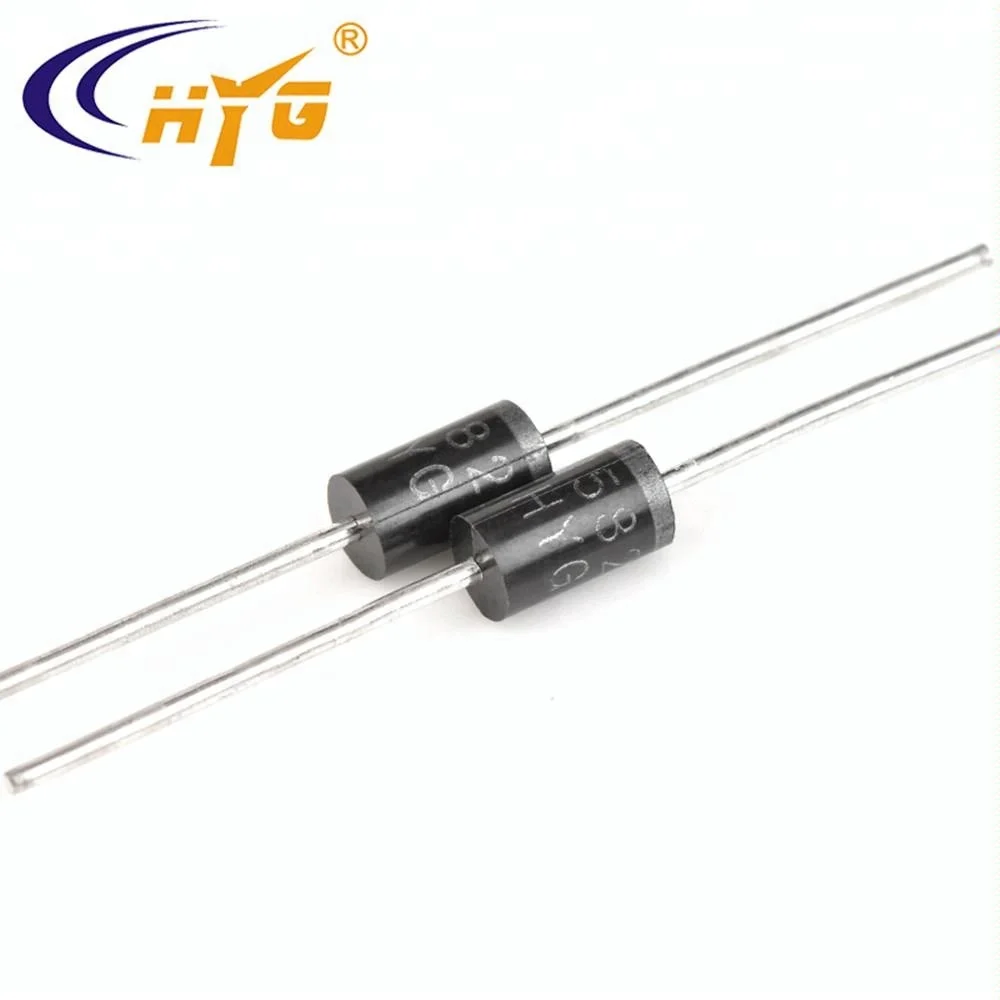

Picture Show

Product Description

Specification:

1N5391 THRU 1N5399 PLASTIC SILICON RECTIFIER VOLTAGE - 50 to 1000 Volts CURRENT - 1.5 Amperes
FEATURES
Low cost High current capability High reliability Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound 1.5 ampere operation at TL=70 ¢J with no thermal runaway Exceeds environmental standards of MIL-S-19500/228 Low leakage
MECHANICAL DATA
Case: Molded plastic , DO-15 Terminals: Plated axial leads, solderable per MIL-STD-202, Method 208 Polarity: Color band denotes cathode Mounting Position: Any Weight: 0.015 ounce, 0.4 gram

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ¢J ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
CHARACTERISTICS	1N 5391	1N 5392	1N 5393	1N 5394	1N 5395	1N 5396	1N 5397	1N 5398	1N 5399	UNITS
Maximum Recurrent Peak Reverse Voltage	50	100	200	300	400	500	600	800	1000	V
Maximum RMS Voltage	35	70	140	210	280	350	420	560	700	V
Maximum DC Blocking Voltage	50	100	200	300	400	500	600	800	1000	V
Maximum Average Forward Rectified Current .375"(9.5mm) Lead Length at TA=60 ¢J	1.5									A
Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load (JEDEC method)	50									A
Maximum Forward Voltage at 1.5A	1									V
Maximum Reverse Current Rated TA=25 ¢J DC Blocking Voltage TA=100 ¢J	5.0 100									μA
Typical Junction capacitance (Note 1)	25									PF
Typical Thermal Resistance (Note 2)	26.0									℃/W
Operating and Storage Temperature Range TJ,TSTG	"-55℃ to +100℃									℃
Notes: 1.Measured at 1 MHz and applied reverse voltage of 4.0 VDC. 2.Thermal Resistance Junction to Ambient and from junction to lead at 0.375"(9.5mm) lead length P.C.Board mounted.

1N5399 (1)

Company Information

Why choose punuo?

Shenzhen Punuo Industrial Limited, established in 1995, is a professional diode supplier in Shenzhen, China, with around 50 employees and a factory area of above 4756 square meters.

We focus on designing, researching and developing, manufacturing and selling diode, Transistor, ic, capacitance, resistance, Thyristor and so on.

Our main products are schottky diodes, fast recovery diodes, rectifier bridge heap, power supply IC, . OEM/ODM orders are available with short delivery time.

With two experienced production lines who specialized in diode in more than 22 years and a professional sales team, our main markets expand with high speed including national market and foreign markets in Europe, America, Australia and Asia, etc.

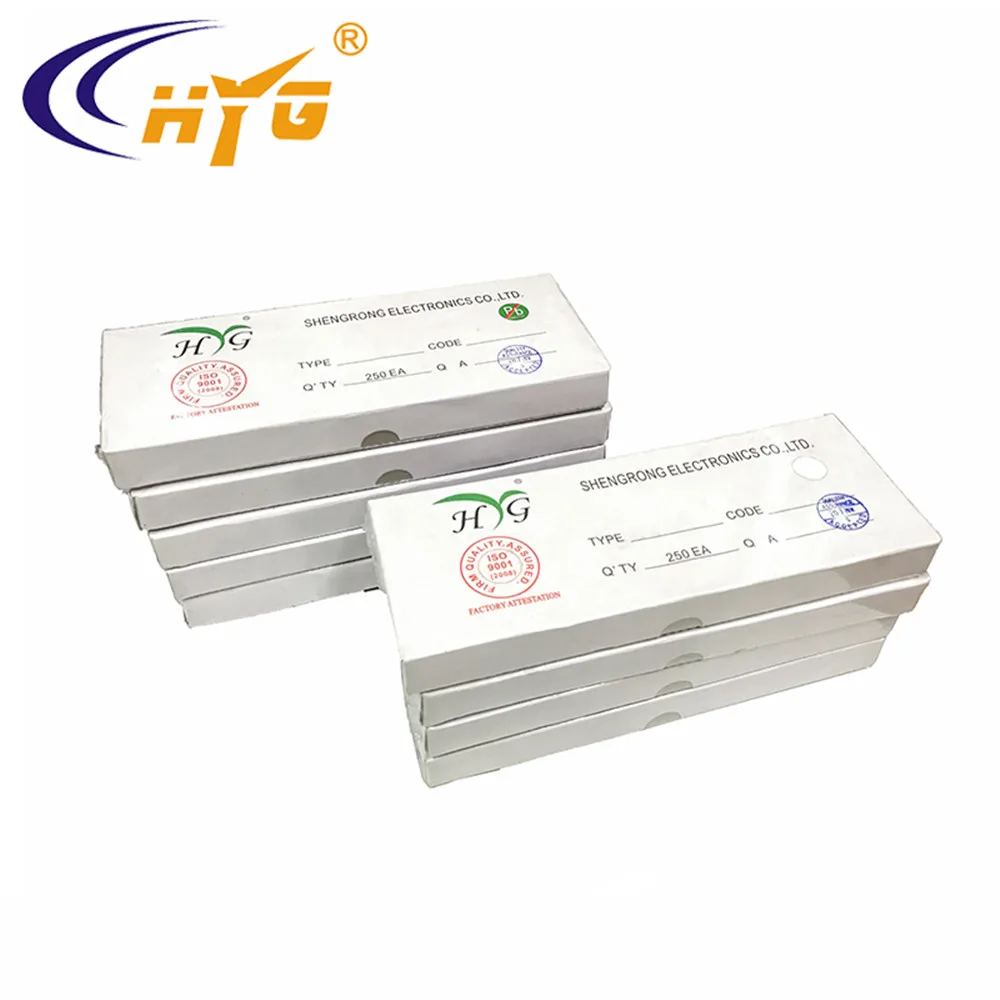

Packaging & Shipping

Standard Packaging: 500/boxes

Packaging Details: Original factory seal package

Weight: 1kg

Shipping: DHL/UPS/Fedex/EMS

Leading Time: Wihtin 2-5 working days

1.We can ship the products all the world.
2.DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.The item will be sent out with 1-3days after receiving the payment.
4.Please make sure your delivanery address d contact telephone number are correct when you bid the item.
5.You can track the situation of your product on website after they are shipped out.

Our Services

OUR SERVICE.jpg

(1) Original quantity with wholesale price
(2) Quick and Safe Delivery
(3) Experienced Service Team
(4) 24 hours OnLine Customer Service
(5) OEM customized service offered
(6) Good feedback from all over the world
(7) Full range products for choice

FAQ

How to order?

1. Let me know models, package, quantities you want to order.
2. We will email you Proforma Invoice based on your order for your information.
3. Kindly check the PI, and everything is ok, we will deliver the goods asap when we received your payment. And the shipping cost is depending on weight.

Payment:

1. We accept BANKS TRANSFER, WESTERN UNION,ESCROW, PAYPAL etc.
2. The bank fees are the responsiblity of buyer.
3. Prices we quoted are correct at this time but may be subject to change after 1 week because of the currency fluctuations and the orderd quantity.

Feedback:

1.As your feedback is very important to our development, we sincerely invite you to leave positive feedback for us if you are satisfied with our product and service. Thanks a lot for your time.
2.Our program will leave back the same feedback to you after your positive feedback.
3.Please contact us before you leave a neutral or negative feedback, we will try our best to solve the problems.
Thank you very much for your support and wish you have a nice day!

Import Taxes or Duties:

1.Import duties, taxes and other charges happened in your side are not included in the price of the item. These fees are afforded by buyer.
2.Please check with you country’s Customs office to determine what these additional costs will be before purchase.
3.Please confirmed detailed information about delivery invoice. For example, how much price we should write on the waybill invoice, or how to describe the item, etc..
