Настраиваемый Электрический Канатный подъемник 380 В 1 2 3 5 10 тонн 9 м для крана китайский
- Категория: Hoists >>>
- Поставщик: Jiangxi,Mide,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.72 $* | 0.84 $* |
| Aug-18-2025 | 0.36 $* | 0.62 $* |
| Jul-18-2025 | 0.27 $* | 0.77 $* |
| Jun-18-2025 | 0.34 $* | 0.14 $* |
| May-18-2025 | 0.95 $* | 0.67 $* |
| Apr-18-2025 | 0.47 $* | 0.73 $* |
| Mar-18-2025 | 0.95 $* | 0.43 $* |
| Feb-18-2025 | 0.69 $* | 0.67 $* |
| Jan-18-2025 | 0.40 $* | 0.43 $* |
Характеристики

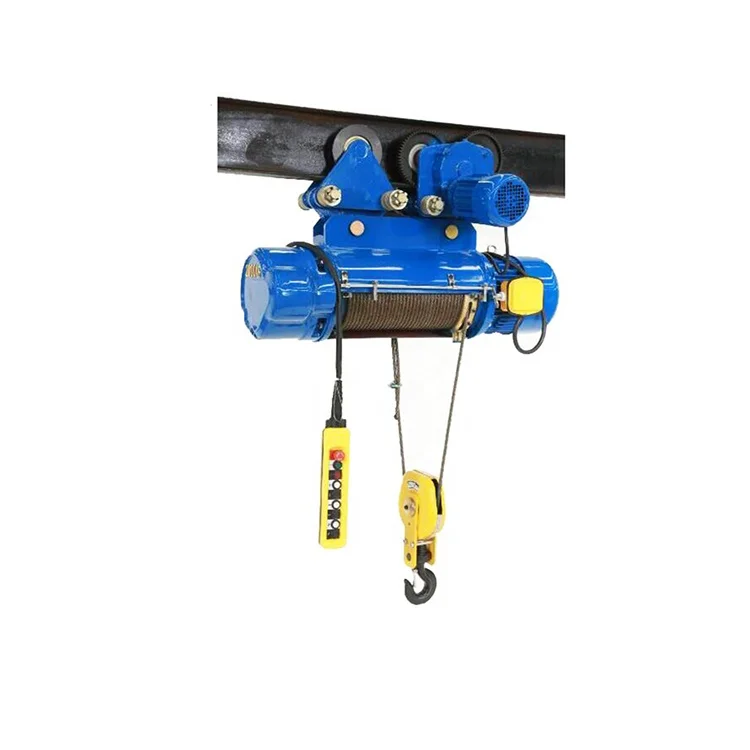

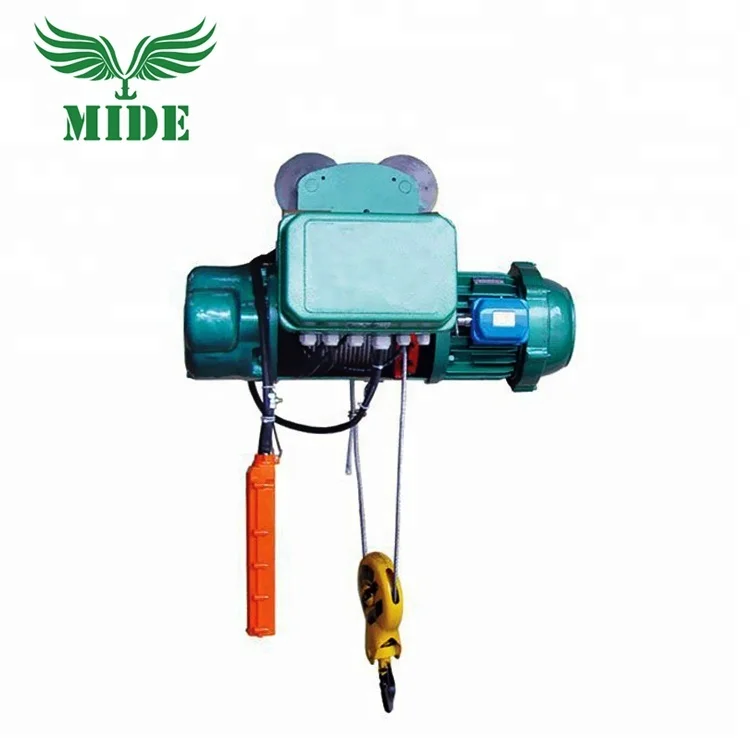

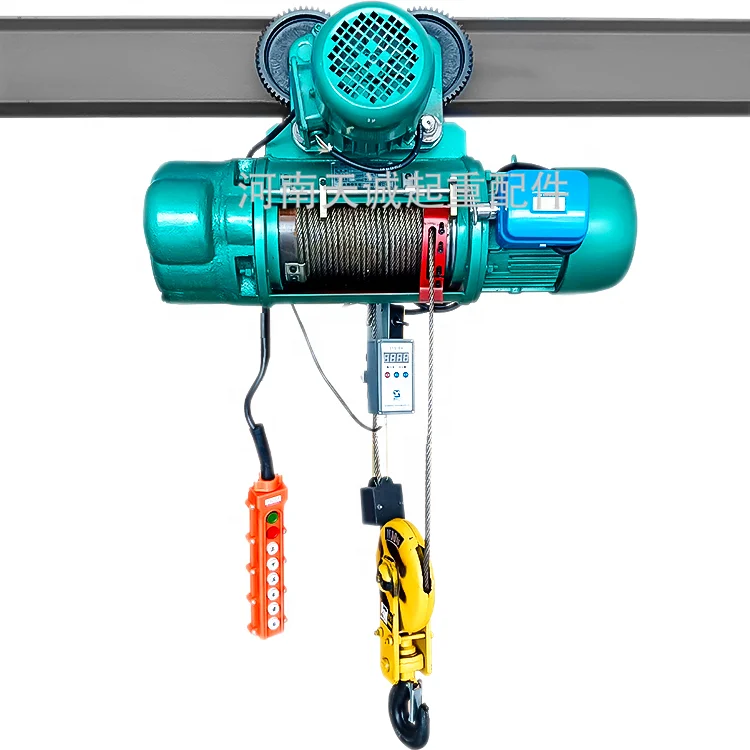

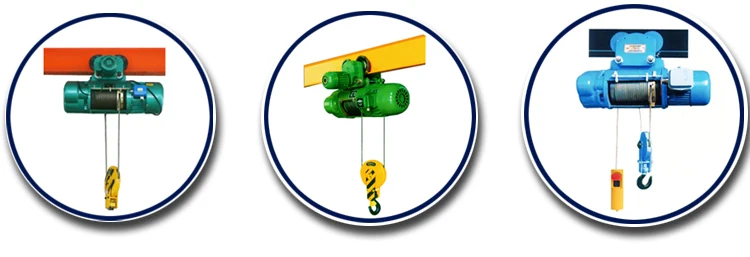

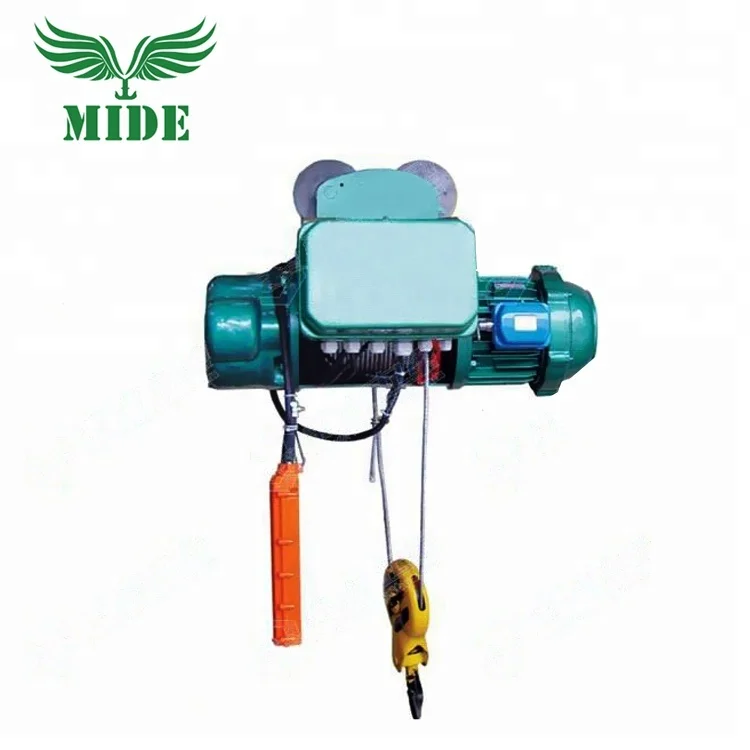

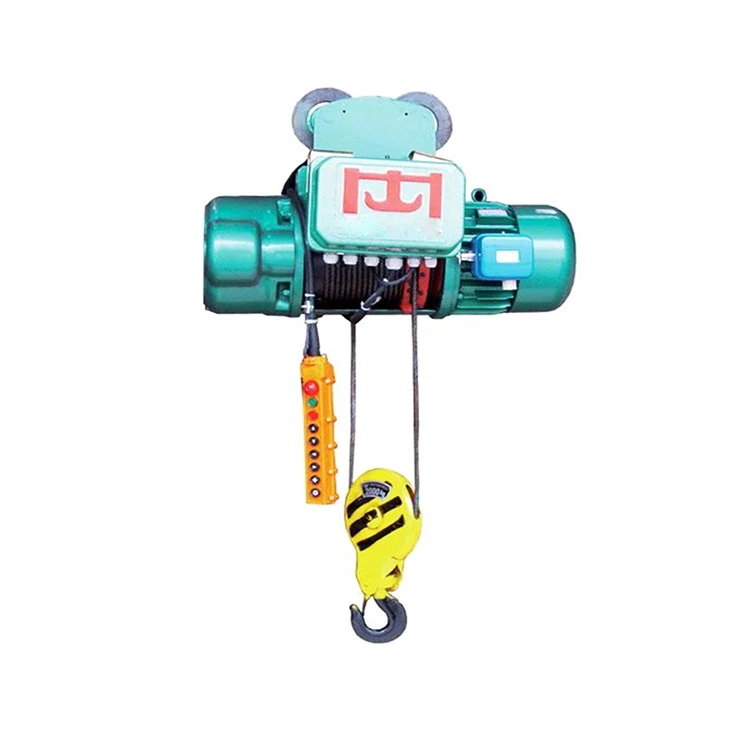

Model CD,MD Wirerope Electric Hoist is a small-sized lifting equipment,which can be mounted on singlebeam,bridge,gantry and arm cranes.With slight modification,it can also be used as a winch.It is widely used in factories,mines,harbours,warehouses,cargo storage areas and shops,es sential in raising working efficiency and improving working conditions.
Model CD Electric Hoist has only one normal speed,which can satisfy normal application.Model MD Electric Hoist provides two speeds:normal speed and low speed.At a low speed,it can do precise loading and unloading,mounding of sand box,maintenance of machine tools,etc.Thus,model MDI Electric Hoist is more widely than Model CD.
To meet the needs of lifting heavier cargo,our factory also manufactures HC20t electric hoist.
| Model | CD/MD 0.25t | CD/MD 0.5t | CD/MD 1t | CD/MD 2t | CD/MD 3t | CD/MD 5t | CD/MD 10t | |
Lifting Weight (t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | |
Lifting Height (m) | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 | |
Lifting Speed (m/min) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 7(7/0.7) | |
Running Speed | 20(30) m/min | |||||||
| Wire Rope Model | 6×19-3.6 | 6×37-4.8-180 | 6×37-7.4-180 | 6×37-11-155 | 6×37-13-170 | 6×37-15-200 | 6×37-15-200 | |
| I-beam Track Model | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 28a-63c | |
Minimum radius of circular orbit (m) | 0.8 | 1.5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 3.5-9 | |
| Lifting Motor | Motor | ZD12-4 | ZD21-4 ZDS0.2/1.5 | ZD22-4 ZDS0.2/1.5 | ZD31-4 ZDS0.4/3 | ZD41-4 ZDS0.4/4.5 | ZD41-4 ZDS0.8/7.5 | ZD51-4 ZDS1.5/13 |
| Capacity | 0.4 | 0.8 0.2/0.8 | 1.5 0.2/1.5 | 3 0.4/3 | 4.5 0.4/4.5 | 7.5 0.8/7.5 | 13 1.5/13 | |
| rotation rate | 1380 | 1380 | 1380 | 1380 | 1380 | 1400 | 1400 | |
| Power supply | 3P 380V 50HZ | |||||||
JiangXi Mide Industry Co., Ltd is engaged in export trade for all over the world, which is a joint-stock industrial enterprise, focused on the production and sale of crane and accessories. It's member unit of China Quality Inspection Association and also the vice-chairman unit of China Heavy Machinery Industry Association.
We manufacture below crane and accessories:
- Single and double beam bridge crane
- Gate-type crane
- grab, casting, explosion-proof and new single and double girder crane
- electric hoist (European)
1. Is your product customized?
Yes, because the working condition are differet, all our products are customized. So if you give us more informaton about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2. What's the information should i provide when inquiry?
The information such as the lift capacity, span, ift height, power source or other specials you give us will be more appreciated.
3. How many operation methods for my selection?
The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin(space capsule seat) control with joystick. You can choose any of them, just tell us!
4. The space of my workshop is limited, can the crane ok for mine?
For low headroom workshop, we have the special products. The detail dimension please consult our professional enfineer.
5. What's the information should i provide when inquiry?
a. How much is the maximus lifting weight of the hoist?
b. Have you installed the rails? Do you need us supply the rails? How long is it?
c. Where are the working environment?
