Factory Price Horizontal Continuous Sawdust Charcoal Carbonization Furance  Sawdust Carbonizer  Sawdust Charcoal Making Machine

The material can be from sawdust briquettes made from the agro-wastes, branches, straws, stalks etc, and regular wood logs, bamboo, coconut shells, nuts shell, jute stick, etc. This can be put into the carbonization kiln and then carbonizing. Also, the material can be kinds of bark with small size and pellets. This machine is the mulfunction kiln.



2. Introduction of rotary carbonization furnace of the Continuous Horizontal Wood Sawdust Rice Husk Carbonization Machine:

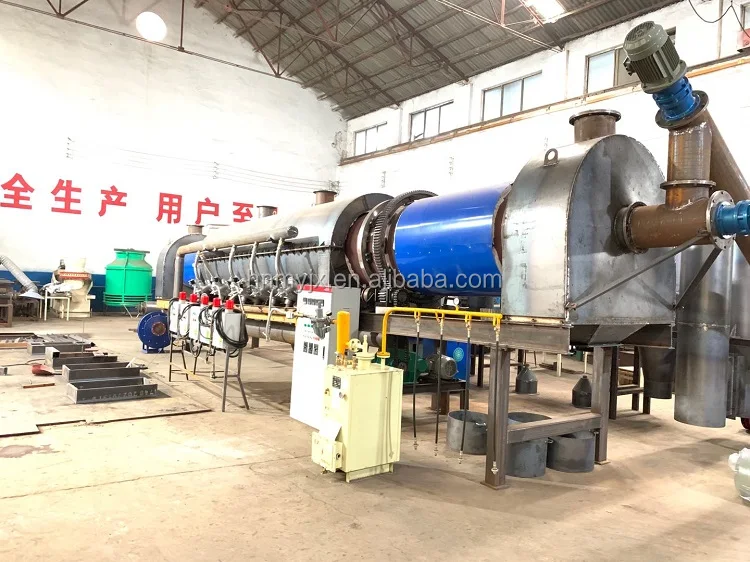

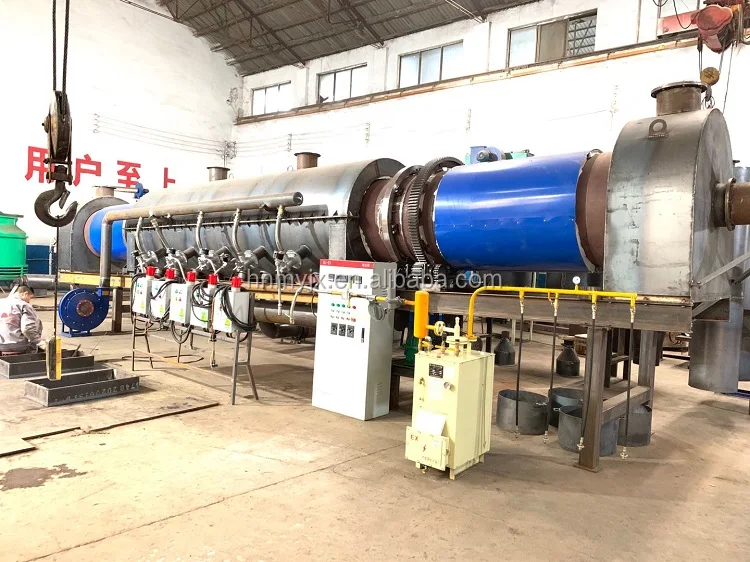

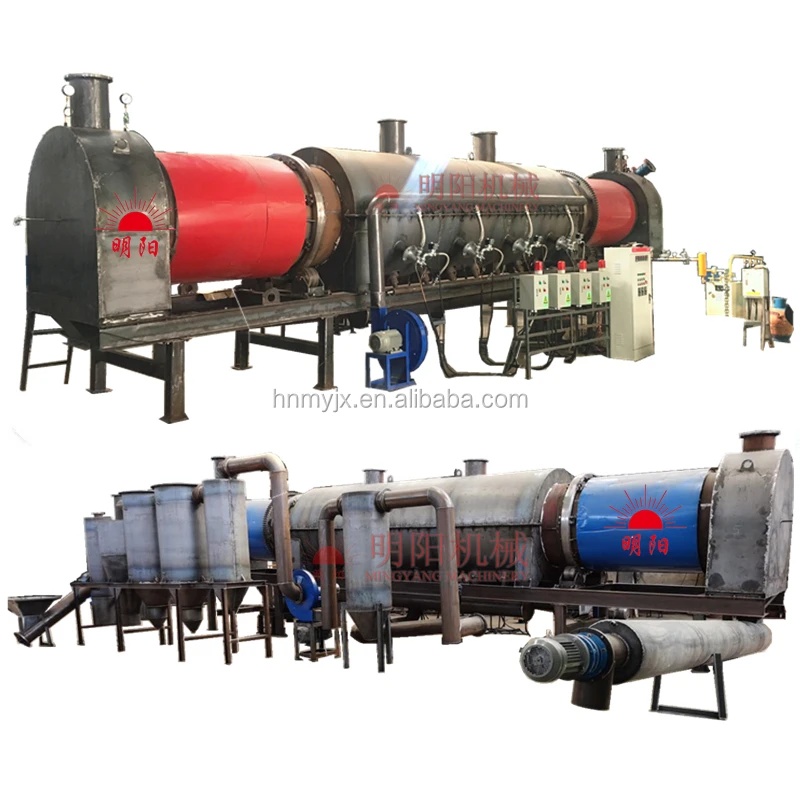

Wood sawdust carbonization stove is energy-saving type which includes furnace body, inner pot, cover, top of inner pot and smoke recycling pipe. The inner pot can be hanged outside which will save a lot of cooling time, so the productivity effect increases a lot. It is the ideal choice for mass production of charcoal. The main scope of rotary airflow carbonization furnace: sawdust, olive, peanut shells and other particles granular materials. Make raw materials into charcoal directly.

The carbon rotary kiln can use the gas recycled and there is no pollution, shunt can also dry burning boiler flue gas and so on. Truly te charcoal, gas and oil range of equipment. It's the world's most advanced carbonization furnace.



3. The specifications of the Continuous Horizontal Wood Sawdust Rice Husk Carbonization Machine

Model	capacity	Max temperature	Machine Auxiliaries
THJ 800	400-500kg/h	700 degree	gasifier,dry dust collector,air-lock valve,condenser,tar separator,draught fan,burner
THJ1000	600-800kg/h	700 degree
THJ1200	800-1000kg/h	700 degree
THJ1500	1000-1200kg/h	700 degree







 4. The working principle of the Continuous Horizontal Wood Sawdust Rice Husk Carbonization Machine

1). Use screw conveyor to transfer material.
2). Use coal gas or natural gas ignite to make hot gas.
3). Then hot gas will enter inner furnace, start working.

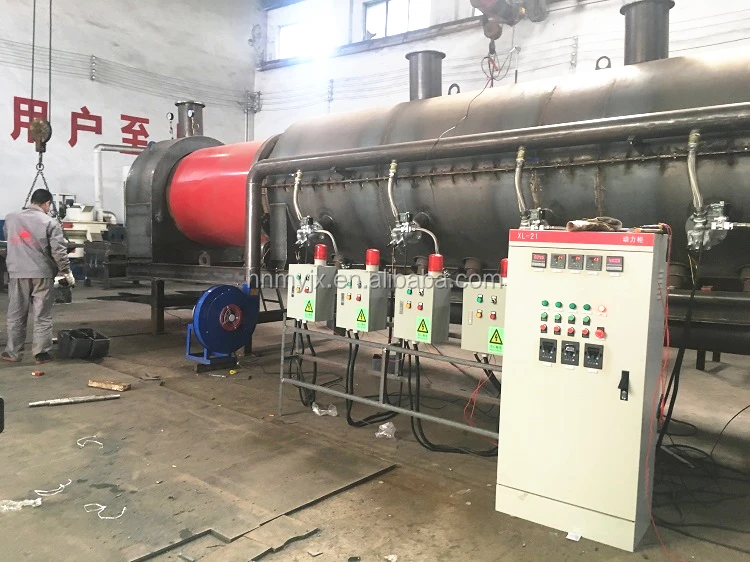

4). Rotary drum twirl speed can be adjusted by control cabinet.
5). Gas can use recycling.
6). Output screw conveyor also have cooling function, delivery the material through screw conveyor.

After you get the charcoal powder , you can make them into different shapes with differnt charcoal shaping machine :

if you want to get the ball shape  , please use this charcoal ball press machine :

if you want to get the stick shape , you need to use the charcoal briquettes machine :

if you want to get the shisha charcoal briquettes for smoking :

if you want to get the honycomb briquettes , you need use the honeycomb briquettes machine :
