Машина для производства железобетонных стеновых панелей сборная линия

Цена:*

Количество:

Product Parameters

Customized according every customer's requirements

World standard drawing:

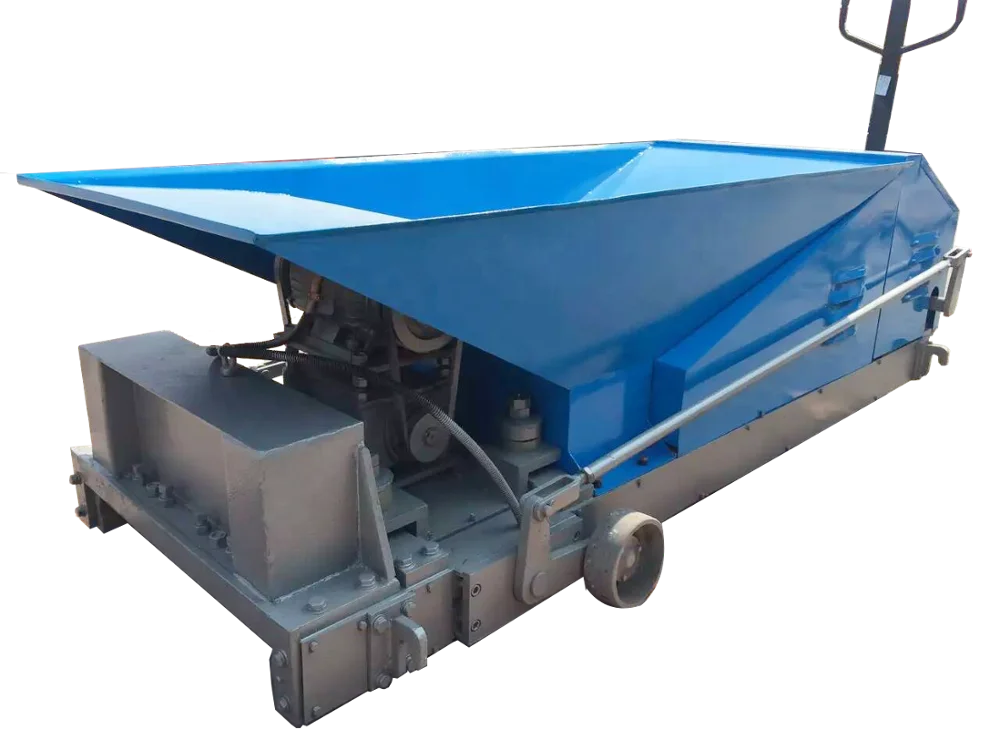

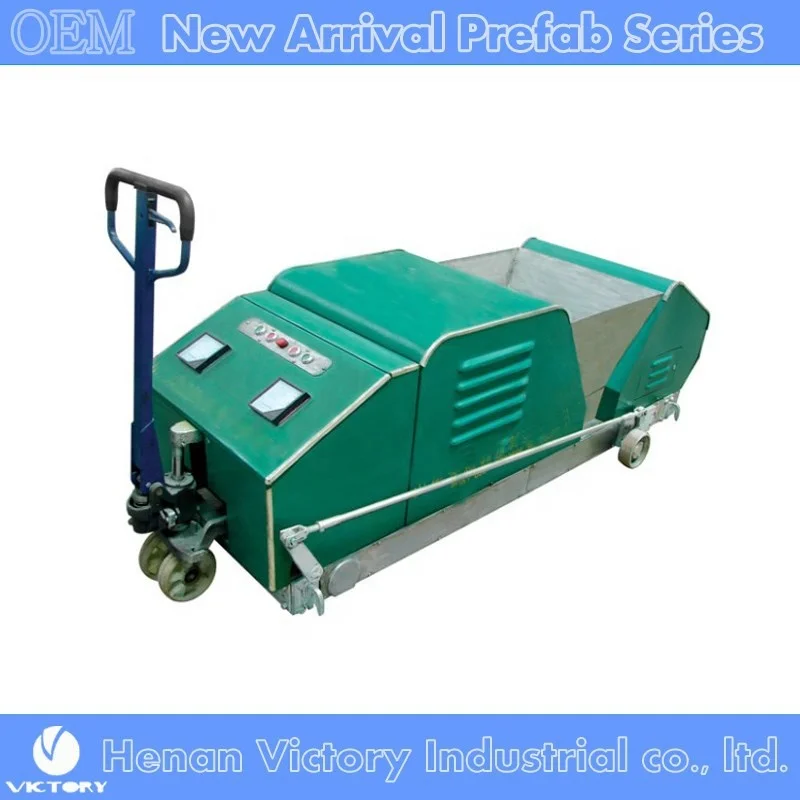

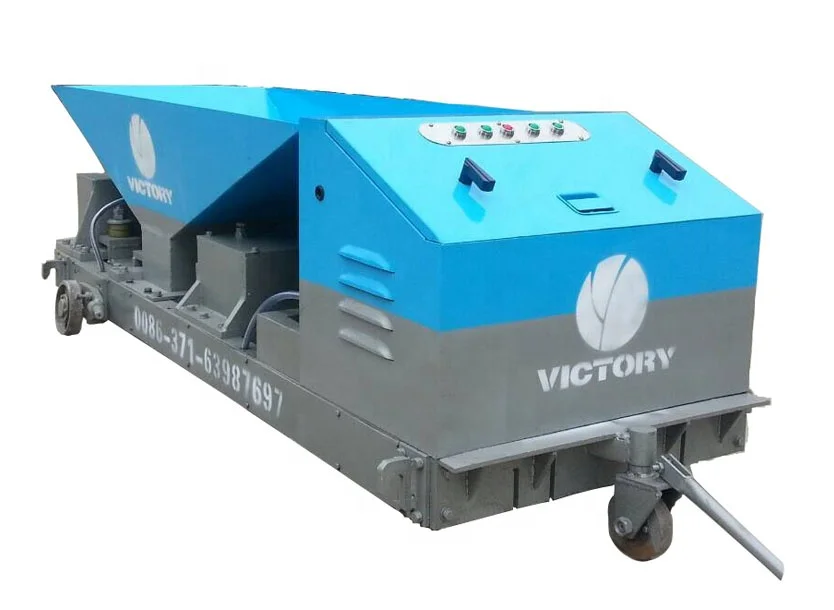

CE certificate Precast concrete partition wall panel moulding machine

	Machine Model	Details of wall panel							Power			DIM (cm)	WT (kg)
	Machine Model			thk. (cm)	Width (cm)	Hole No.	DIA (mm)	Main Motor (kw)	Vibrate motor (kw)			DIM (cm)	WT (kg)
Interior partition Wall	JQT6*60	6	60	12	32	4	0.8	236 113 72	1000
		JQT7.5*60	7.5	60	8					45
		JQT8*60	8	60	8					48
		JQT9*60	9	60	7					58
		JQT10*60	10	60	6					68
		JQT11*60	11	60	6					68
		JQT12*60	12	60	5	88	5.5	1.1	246 113 75	1200
		JQT13*60	13	60	5	88		1.1
		JQT14*60	14	60	5	88					1.2
		JQT15*60	15	60	5	100							1250
		JQT16*60	16	60	5	100							1250
Exterior Wall	JQT18*60	18	60	5	108	7.5	1.5	255 113 75	1650
Exterior Wall		JQT20*60	20	60	12	7.5	68	255 113 75	1650		2
Speed(m/min): 1.3~1.6 Screw Auger life(km): >=150

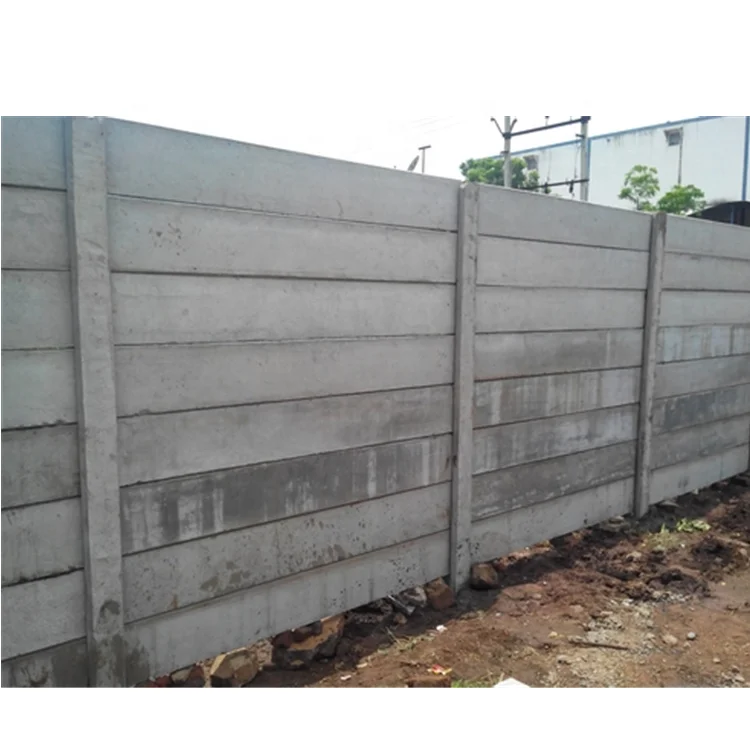

Purpose: The machine is used for the production of concrete lightweight partition wall panel

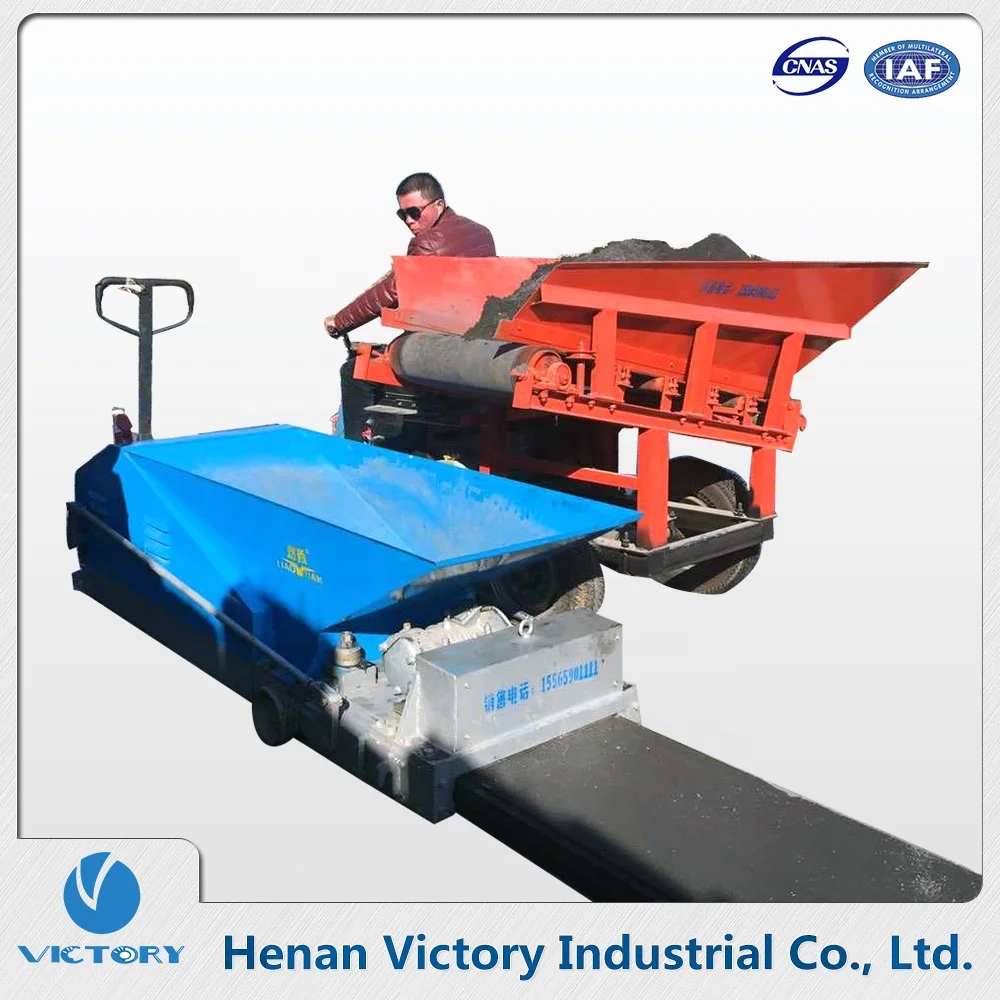

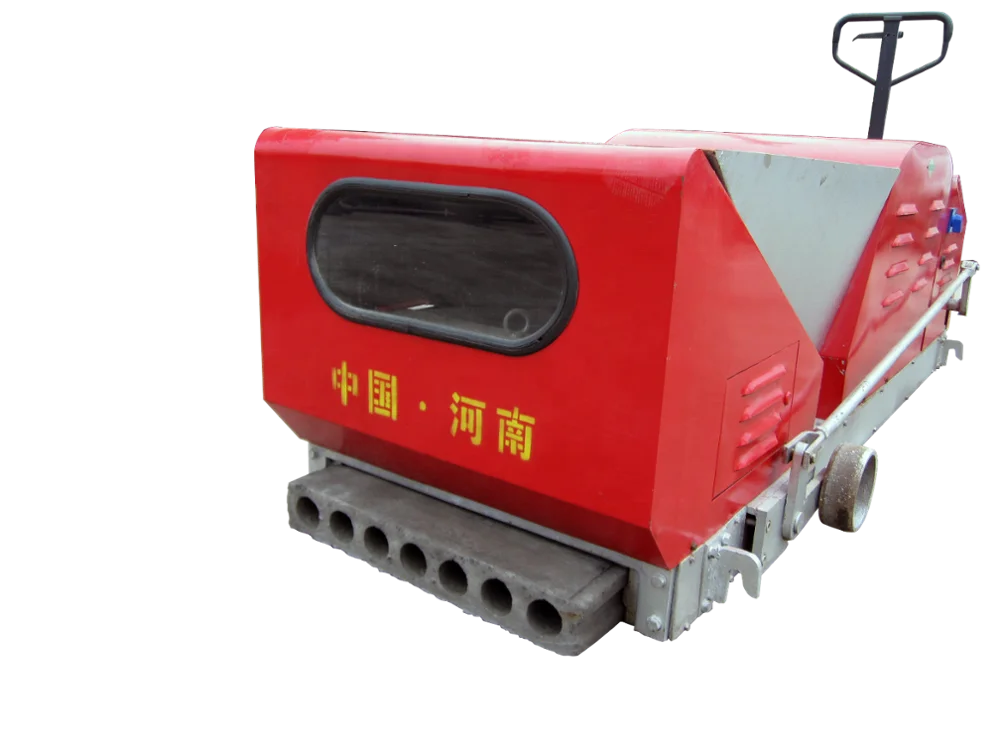

Principle: The machine adopt extrusion technology, movable forming.

Materials: The raw materials are fly ash, slag, creamsite, cinders,cinerite,

pumice,vermiculite and so on. You can choose some materials as per your local resources.

Producity: The production speed is 1.3-1.7 m per minute , 500 Sqm per shift .

Sizes: Panel width : 600mm; Panel Thickness : 75,80,90,100,120mm ,etc ; Panel length : cuting any lenght as your requirements

Reinforcement: Both sides of the wall panels can insert reinforcement wires, diameter of 1.5- 6mm
