SF-CS паллетные стеллажи холодной стрейч упаковка с капюшоном машин на поддоне в растягивающуюся плёнку машина для полиэтиленовой

Описание и отзывы

Трекер стоимости

Характеристики

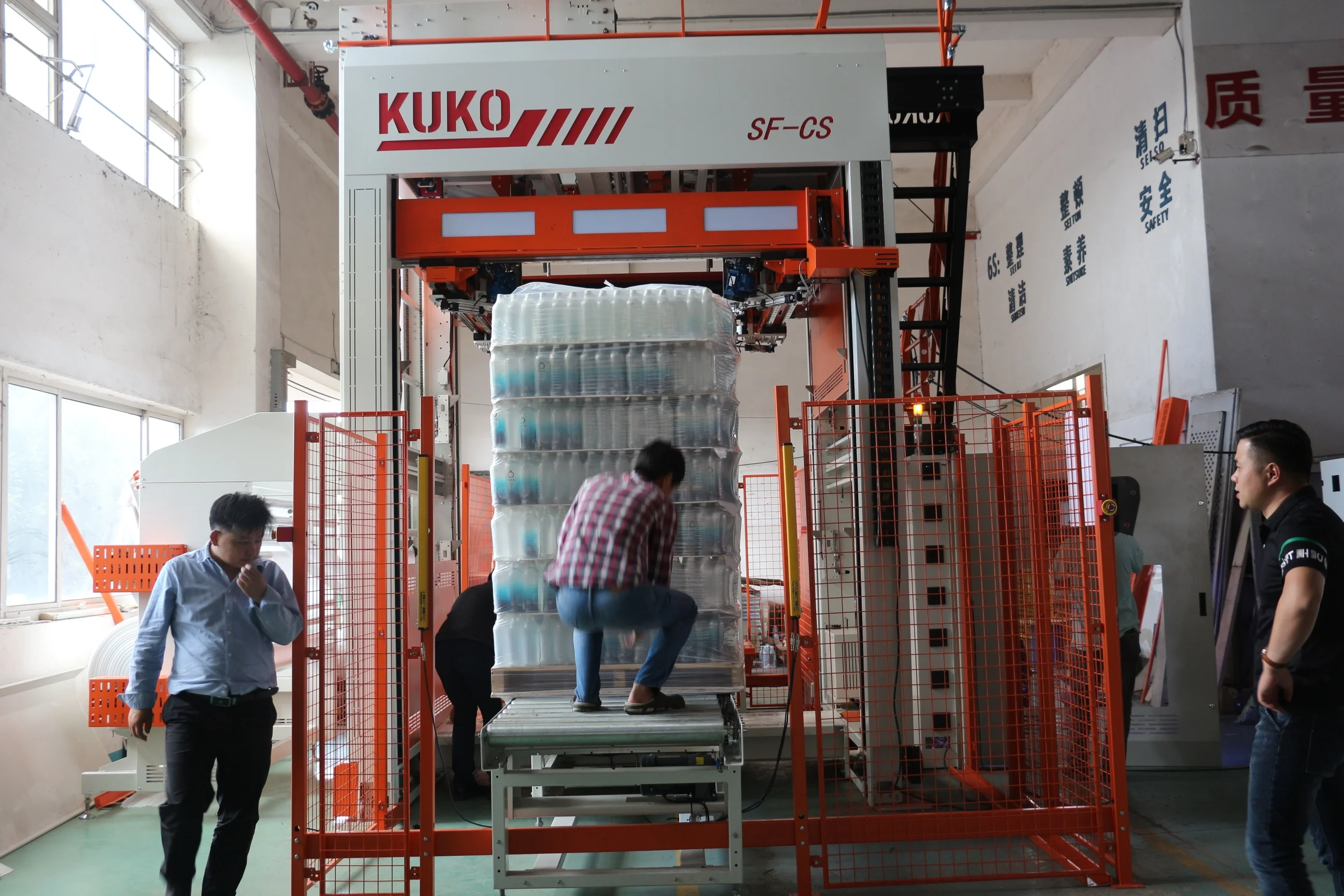

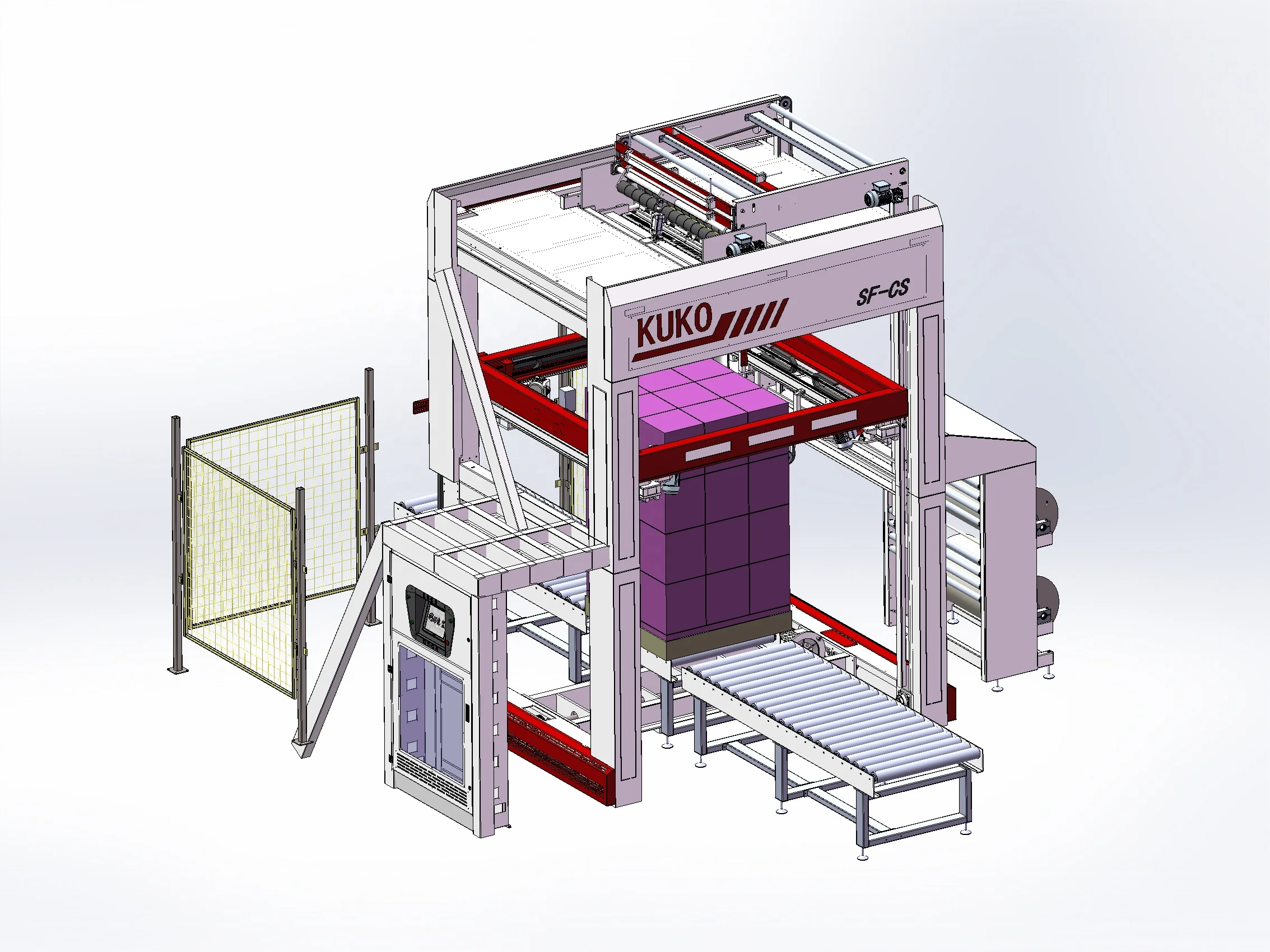

Model	SF-CS
Power	6.5kw
Power Supply	AC 380/220V 3PH 50/60Hz
Loading Weight	10000kgs
Package Type	Cold stretch machine
Max.packing size	L≤1200mm W≤1200mm H≤1500mm
Table Height	750±50mm
Shrink Film	PE
Machine Size L×W×H	2248×4710×3180mm
Packaging Size L×W×H	5000×2300×3180mm
G./N. Weight	2500kgs

         |    The max production capacity is about 60 pallets per hour(according to the pallet’s height, the capacity may have slightly differences;

         |    The film which is sealed on the top becomes the bag and it is effectively waterproof;

         |   The products which are packaged together by the film in the pallets are very suitable for transportation. And it can effectively prevent product shedding;

         |    The products on the pallets which will take away only by cut the stretch hood film, so it can reduce the risk of theft;

         |    For 0.08-0.18mm thickness PE stretch hood film;

         |    Cold stretch hood film doesn’t need heat energy. So it is very eco-friendly and keep your products away from fire and explosion;

         |    The machine contains the protection feature from the shrink wrap film and the economical shrink wrap machine;

         |    The machine can be designed according to your requirements;

         |    Double heats design makes the machine can choose the optimum film according to the sizes of the pallets automatically;

         |    It is a circulation operation process of stretching and hooding in the cold stretch hood machine;

         |  The modular design is very stable and solid and suitable for continuous working;

         |  The stretch hood film can protect the products away from water and dust;

         |  The transparency of the stretch hood film is higher than traditional PE film; you can see the bar code and trademark very clearly. So the advertisements and the exhibition value can be completely showed;

         |  The upright packing power is strong; when the product leans, it also can keep standing;

         |  The package material is environmental and recyclable;

         |  Easy servicing: with the power you will have easy access to all over servicing, Which is reduced to a few quick tasks, special for the unique feature of lowering the top of the machine down to floor level for even easier, faster and safer service and maintenance. Film replacement and changing of sealing wire and film knife all take place at floor lever. No need to climb a ladder with a toolbox on your back to the top of the machine- the top will come down to you;

         |  Stretch hood equals 5 sides protection with reduced risk of product damage due to soiling and weather inferences as well as strains to which the products are exposed during transport and storage.









Sealer	Brand	Country
Sensor	Banner	USA
Side Sealing Cylinder	Festo	Germany
Side Sealing Solenoid Valve	SMC	Japan
Cross Sealing Cylinder	Airtac	Taiwan
Cross Sealing Valve	Airtac	Taiwan
Gear Motor	GPG	Taiwan
PLC	Siemens	Germany
HMI	Siemens	Germany
Film Motor	Li Ming	Taiwan
Intermediate Relay	Siemens	Germany
Power Supply	Mean Well	Taiwan
Solid Relay	Fotek	Taiwan
AC Contactor	Schneider	France
All Switches	Siemens	Germany

Shrink Tunnel	Brand	Country
Power Supply	Mean Well	Taiwan
Solid Relay	FOTEK	Taiwan
Gear Motor	GPG	Taiwan
Circulation Motor	SURFON	Taiwan
Intermediate Relay	Siemens	Germany
Temperature Controller	Autonics	Korea
Electric Breaker	Schneider	France
Thermal overload Relay	Schneider	France
AC Contractor	Schneider	France
Frequency Inverter	Schneider	France
All Switches	Siemens	Germany
