Новинка гигантский гибочный станок Ejon W40 из нержавеющей стали 400 мм
- Категория: Channel Letter Bending Machine >>>
- Поставщик: Tianjin,Ejon,Flying,Science,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 16898.91 $* | 17743.98 $* |
| Aug-18-2025 | 16756.38 $* | 17594.10 $* |
| Jul-18-2025 | 14058.29 $* | 14761.27 $* |
| Jun-18-2025 | 16472.1 $* | 17296.57 $* |
| May-18-2025 | 14342.65 $* | 15059.69 $* |
| Apr-18-2025 | 16188.17 $* | 16997.30 $* |
| Mar-18-2025 | 16046.96 $* | 16848.94 $* |
| Feb-18-2025 | 15904.35 $* | 16699.88 $* |
| Jan-18-2025 | 15762.27 $* | 16550.33 $* |
Характеристики
Product Description
Product Application
Ejon W40 new 400mm 3d Custom Stainless Steel Galvanized Metal Letter giant custom decoration channel letter bending machine
W40 Using cnc turning tool as slotting tool, the strength is high and the loss is low,each knife has 8 angles, no need to sharpen a knife only to change angles,the process is low noise and no dust. By adopting the progressive clamping and feeding design, the waste of materials is effectively avoided, and the cost is saved fundamentally. Through the material fixture, the high quality ball screw and the linear guide, the perfect combination of the high-power servo drive,the pre leveling system of the compound material eliminates the phenomenon that the traditional rolling stock is easily slipped during the feeding process, and avoids the deformation of the sheet in the feeding process. Easy to operate the software,no need to change the node when processing graph,enhance the working efficiency.it is the first choice of the wide edge letters and squre letters.
SPECIFICATIONS | ||||||
Feeding system | Double ball-screw progressive feeding system | |||||
Slotting System | alloy plane cutter slotting system | |||||
Bending System | Double blade alternate bending system | |||||
Suitable Material | Stainless steel, Galvanized plate, Aluminum plate,iron plate | |||||
Material Height | 20-400mm | |||||
Material Thickness | 0.4-1.8mm | |||||
Accuracy | ±0.1mm | |||||
Min. Bending Angle | R15 | |||||
File Format | Dxf.Plt.Ai | |||||
Power | AC220V,50Hz,3.0Kw | |||||
Total Weight | 750kg | |||||
Control System | 4 axis control system(3 axis servo control) | |||||
Main Features
1)The alternated material feeding ensures the feeding precision and more material saving.
2)The 1500W servo motor ensures the bending force and more stable.
3) 3-axis imported servo driver make it faster, more stable and more precise.
Detailed Images
Machine Parts

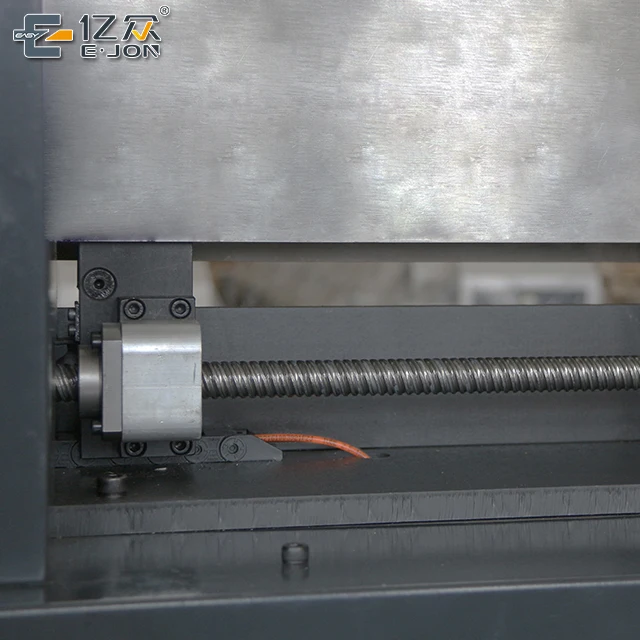

The alternated material feeding ensures the feeding precision and more material saving.
Main Features

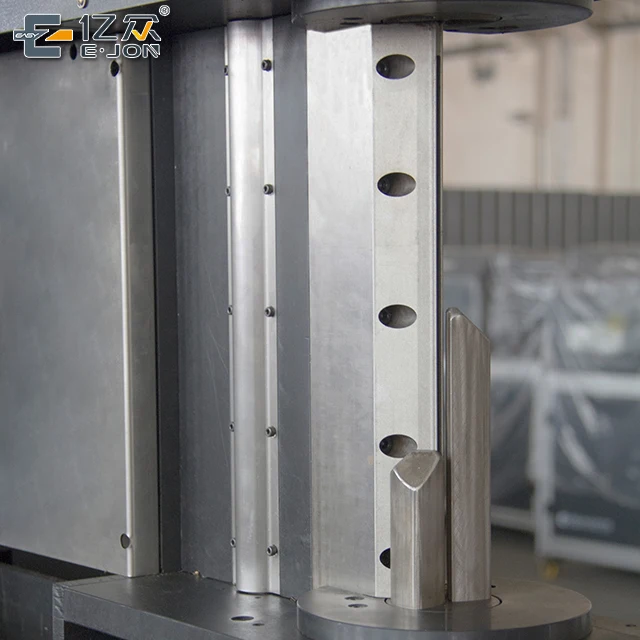

The 1500W servo motor ensures the bending force and more stable.
Machine Parts

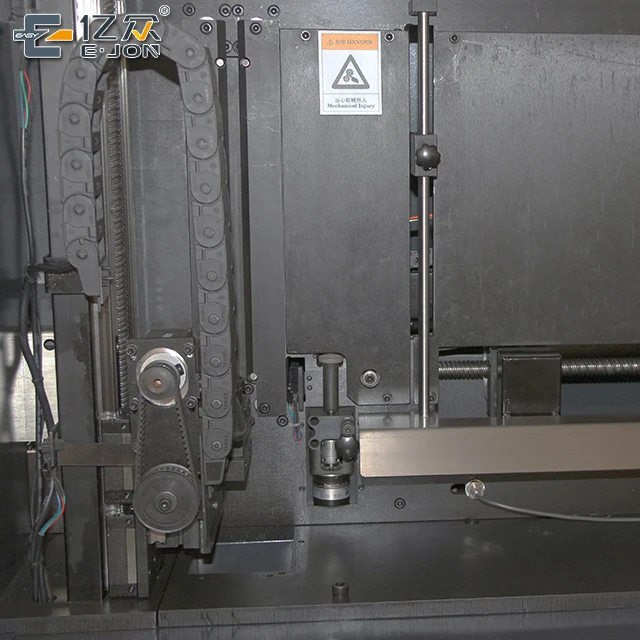

3-axis imported servo driver make it faster, more stable and more precise.
Main Features

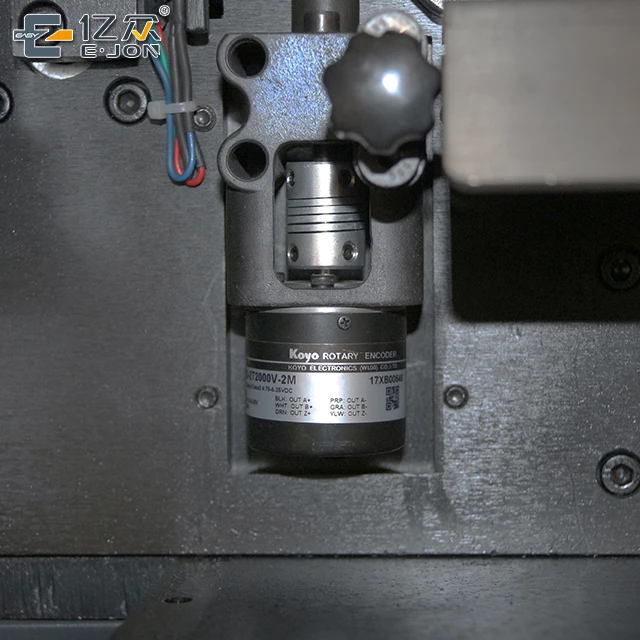

The encoder module is the key component of the the relation equipment precision , and the precision casting is used to ensure the performance of the high precision encoder.
Exhibition show
Computer
To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.
Pump
The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.
File Format
The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 1880(L) * 780 (W) * 1850(D) | |
Weight | 750KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
