Оптовая продажа ЧПУ комплект 5 оси HB nema 23 шагового двигателя 3NM по дешевой
- Категория: Шаговый электродвигатель >>>
- Поставщик: Changzhou,Dewo,Motor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 4862.56 $* | 5105.98 $* |
| Aug-19-2025 | 4821.78 $* | 5062.97 $* |
| Jul-19-2025 | 4045.16 $* | 4247.84 $* |
| Jun-19-2025 | 4740.32 $* | 4977.16 $* |
| May-19-2025 | 4127.50 $* | 4333.93 $* |
| Apr-19-2025 | 4658.45 $* | 4891.5 $* |
| Mar-19-2025 | 4617.25 $* | 4848.16 $* |
| Feb-19-2025 | 4576.24 $* | 4805.58 $* |
| Jan-19-2025 | 4535.65 $* | 4762.74 $* |
Характеристики

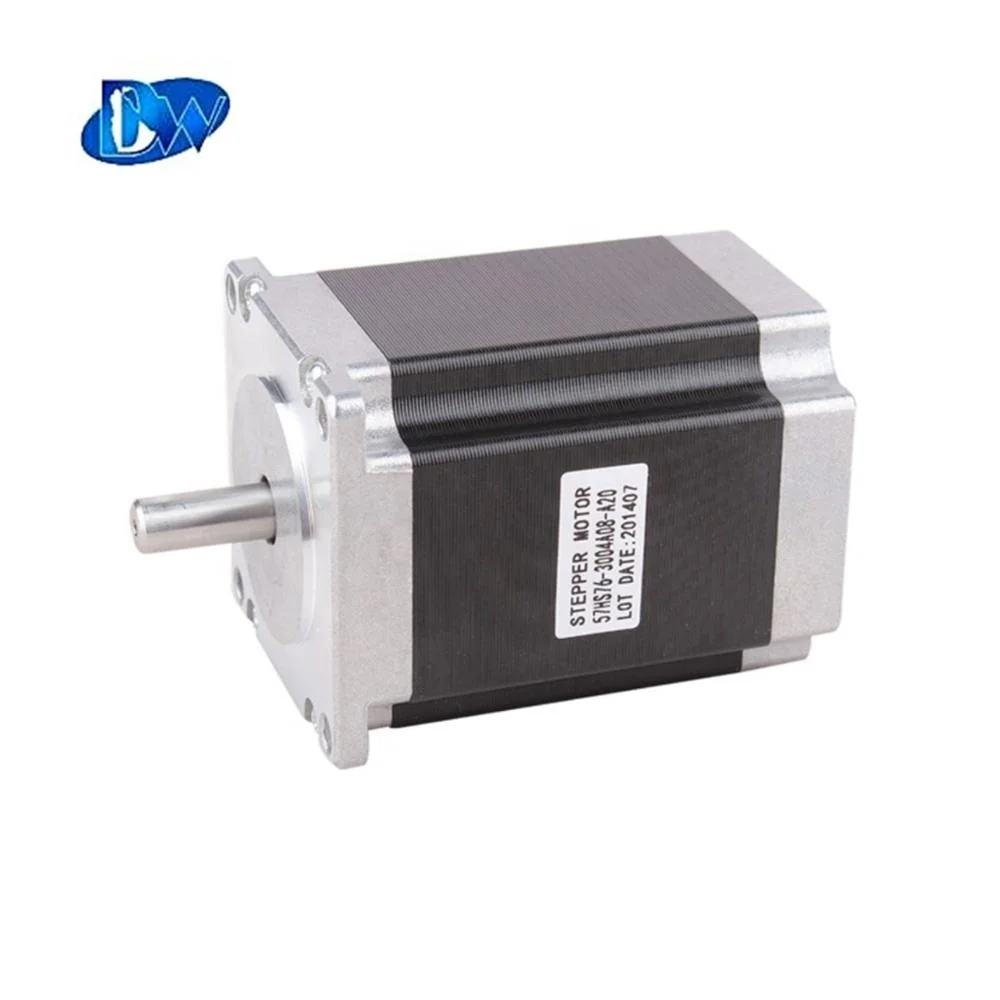

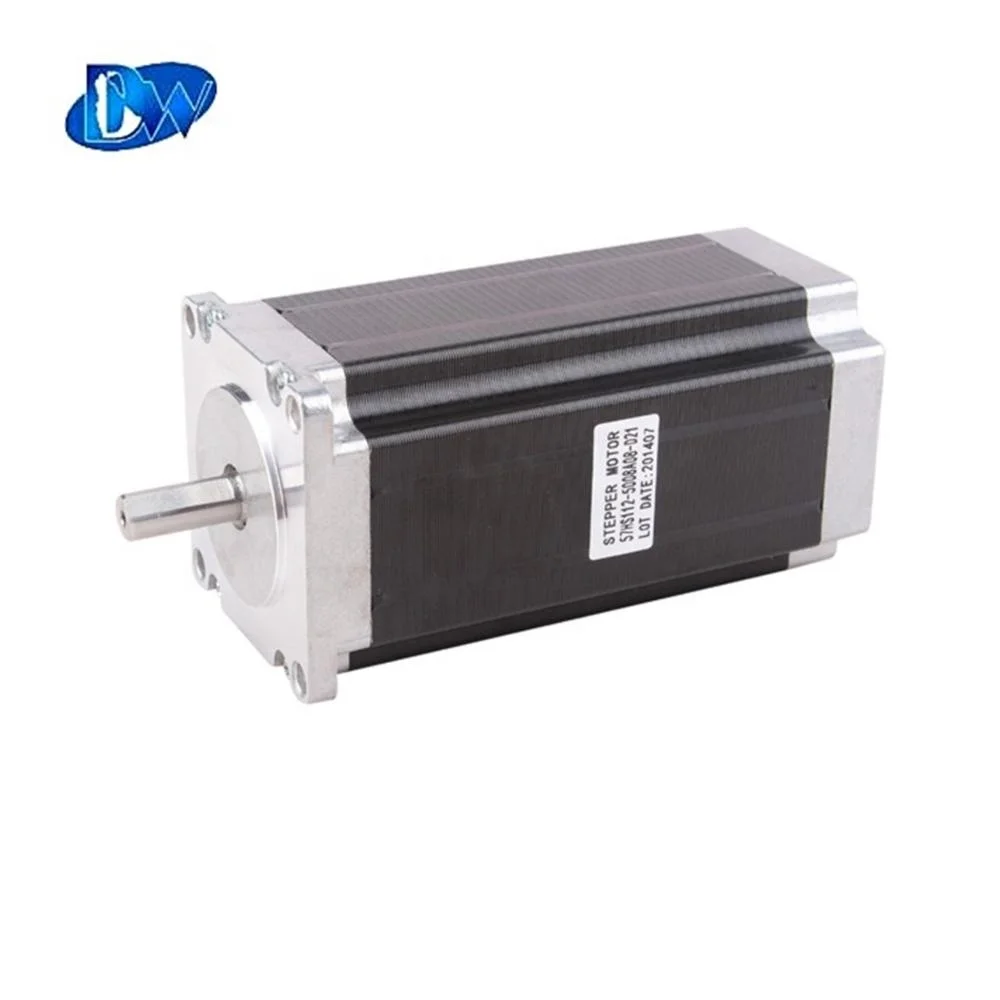

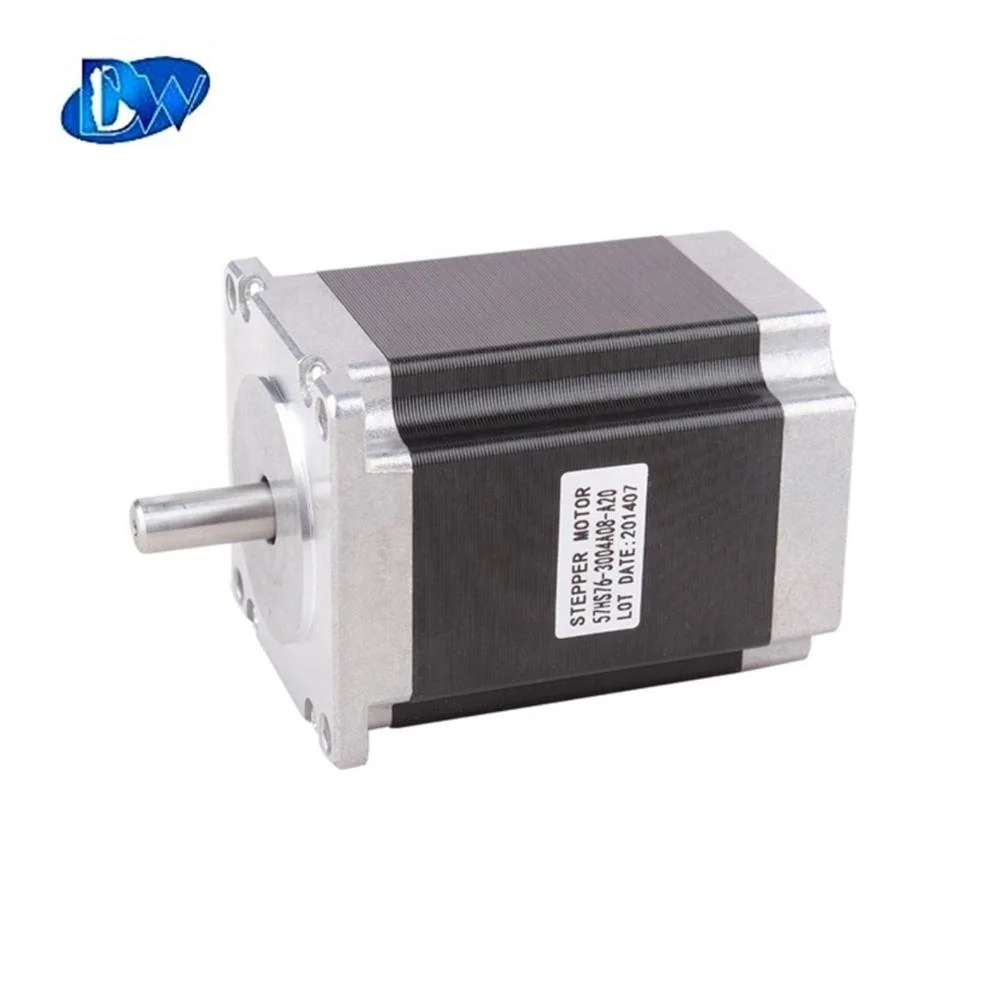

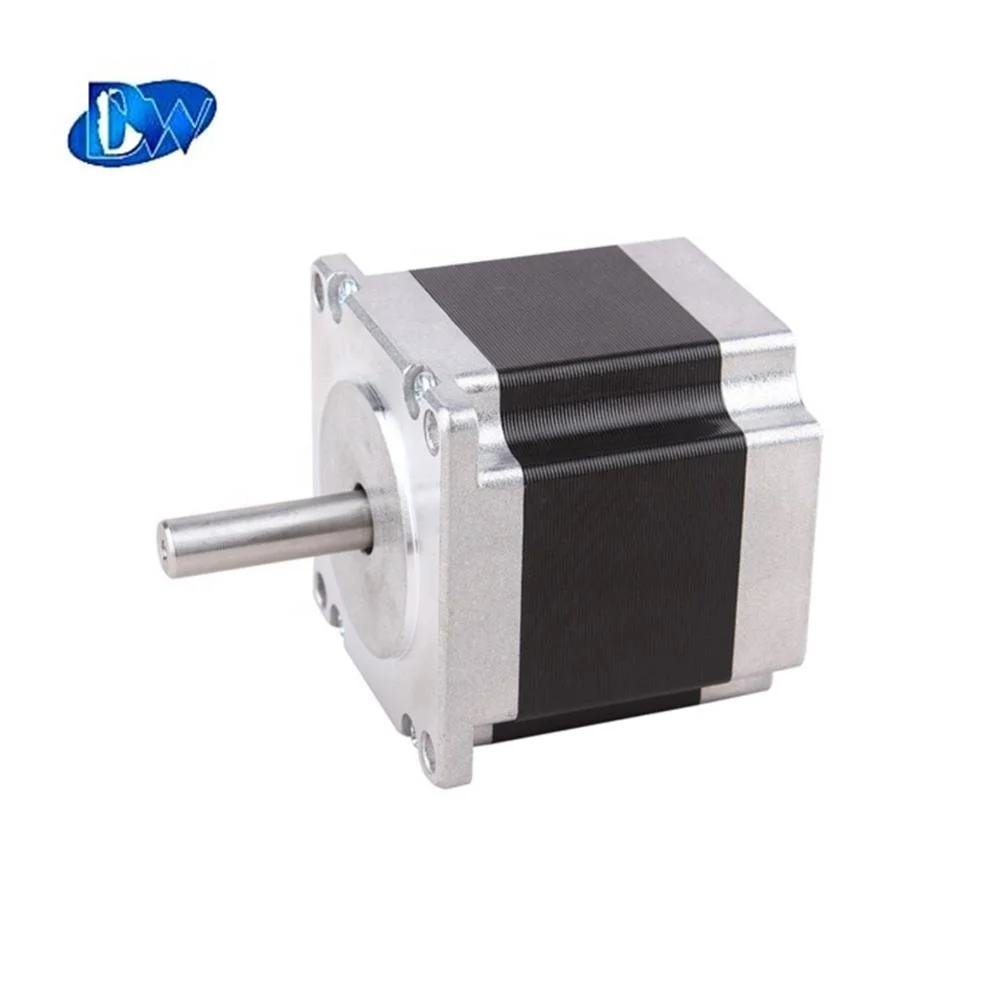

Wholesale cnc kit 5 axis HB nema 23 stepper motor 3NM with cheaper price
Stepper motor introduction:
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃ Max |
| Ambient Temperature | -20℃ Max ~ +50℃ |
| Insulation Resistance | 100M ΩMin.,500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02Max(450g-load) |
| Shaft Axial Play | 0.08Max(450g-load) |
| Max.Radial Force | 75N(20mm from the flange) |
| Max.Axial Force | 15N |
Stepper motor electrical specifications:
Dimensions:
Torque/Frequency Curve:
Stepper motor driver features:
1.Adoption of 32-bit DSP,pure sine wave subdivision technology.
2.Low-noise,low-vibration and low temperature rising.
3.Voltage 24-50VDC.
4.With 8 stalls output current setting,peak current 5.6A.
5.With 16 stalls microstep subdivision setting.
6.Automatic half current,self-test,over voltage,under voltage.over current protection.
7.Internal optical isolation,highest frequency response 200KHZ.
8.Suitable for current range 2.1A-5.6A 2 , 4phase nema23,nema34 Hybrid stepper motor.
Current Selection:
| Peak | RMS | SW1 | SW2 | SW3 |
| Default | OFF | OFF | OFF | |
| 2.1A | 1.5A | ON | OFF | OFF |
| 2.7A | 1.9A | OFF | ON | OFF |
| 3.2A | 2.3A | ON | ON | OFF |
| 3.8A | 2.7A | OFF | OFF | ON |
| 4.3A | 3.1A | ON | OFF | ON |
| 4.9A | 3.5A | OFF | ON | ON |
| 5.6A | 4.0A | ON | ON | ON |
Stepper motor driver dimensions:
Products package:
Products shipping:
Products certificate:
FAQ:
Q:Where is your factory.
A:Our factory is located in Changzhou only one hour from Shanghai by high –speed railway.
Q:How to choose the suitable stepper motor.
A:There are several important points Size and length of the stepper motor Holding torque Step angle voltage Current etc. After confirm some of them then told us We can help you to choose the suitable stepper motor Or you can sent us the model you are using We can help you to find the suitable stepper motor.
Q:When can I receive the drawings of the stepper motor.
A:We will provide the drawings of the stepper motor after you place the order.
Q:How long is the warranty time.
A:12 months And we provide life-long technical service and after sale service.
Q:How can we know the product quality?
A:We suggest you to order a sample Also You can send us email for detail photos for checking if you cannot get enough information in the product page.
Company information:
Changzhou DEWO Mechatronics Co.Ltd.is a comprehensive company which specializes in producing and researching stepper motor and motor driver In addition We have two branches Changzhou Leicon technology CO.,Ltd and Changzhou Jinsanshi mechatronics Co.,Ltd.
Now we have an excellent group with rich experience in manufacturing and researching We can solve the actual using problems for customers Our products are highly commended by customers because of its easy operation Long using life Stable performance Low failure rate and high technical content
Our products are widely applied in engraving machine Cutting plotter Textile machine 3D printer Medical instruments Stage light equipment Robot CNC Music fountain And other industrial automatic eauipment

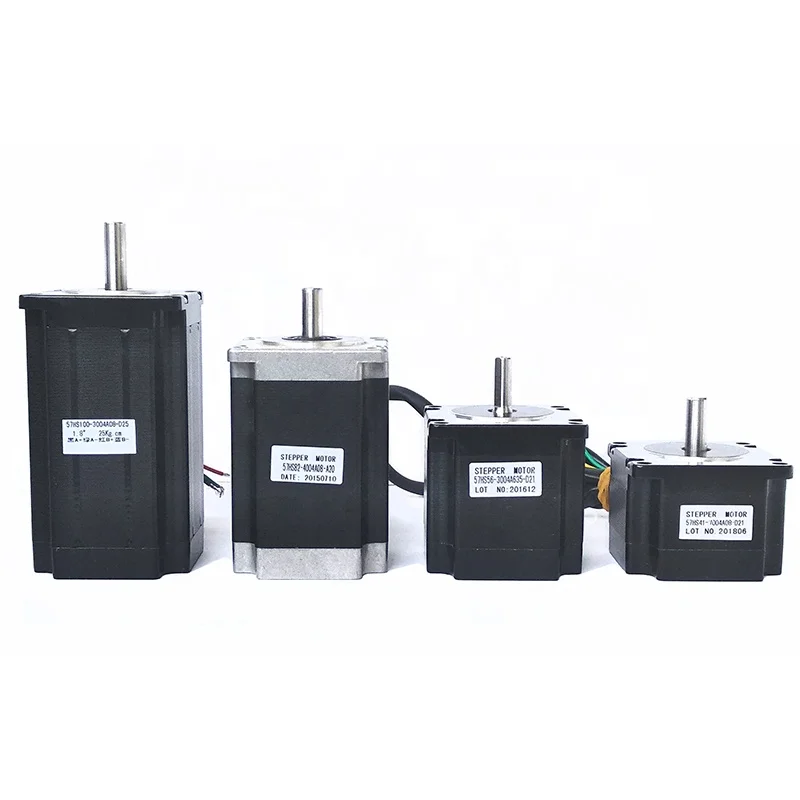

Our main products include from size NEMA 8 NEMA11 NEMA 14 NEMA 16 NEMA 17 NEMA 23 NEMA 24 NEMA 34 NEMA 42 NEMA 52 series hybrid stepper motor And variable sizes linear stepper motor Geared stepper motor Stepper motor with brake And we have products about easy servo system of NEMA 17 NEMA 23 NEMA 24 and NEMA 34 sizes In addition We can produce suitable drivers for all the motors And we are always researching and developing new products
We have passed ISO9001:2008 And have got the certification of CE On the way of development The principle of “Efficiency is the life Quality is the fundamental” is always insisted by DEWO people We take the market sa guidance Provide high quality products and good service to customers We are expecting the cooperation with more friends from home and aboard in the near frture.
Company exhibition:
