Генератор DSE автоматический контроллер генератора

Генератор DSE автоматический контроллер генератора

Категория: Generators >>>
Поставщик: Fuan,Three,Bees,Electronic,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.79 $*	0.86 $*
Aug-15-2025	0.91 $*	0.77 $*
Jul-15-2025	0.25 $*	0.66 $*
Jun-15-2025	0.73 $*	0.9 $*
May-15-2025	0.6 $*	0.92 $*
Apr-15-2025	0.56 $*	0.69 $*
Mar-15-2025	0.60 $*	0.71 $*
Feb-15-2025	0.80 $*	0.51 $*
Jan-15-2025	0.97 $*	0.3 $*

Характеристики

Product Description

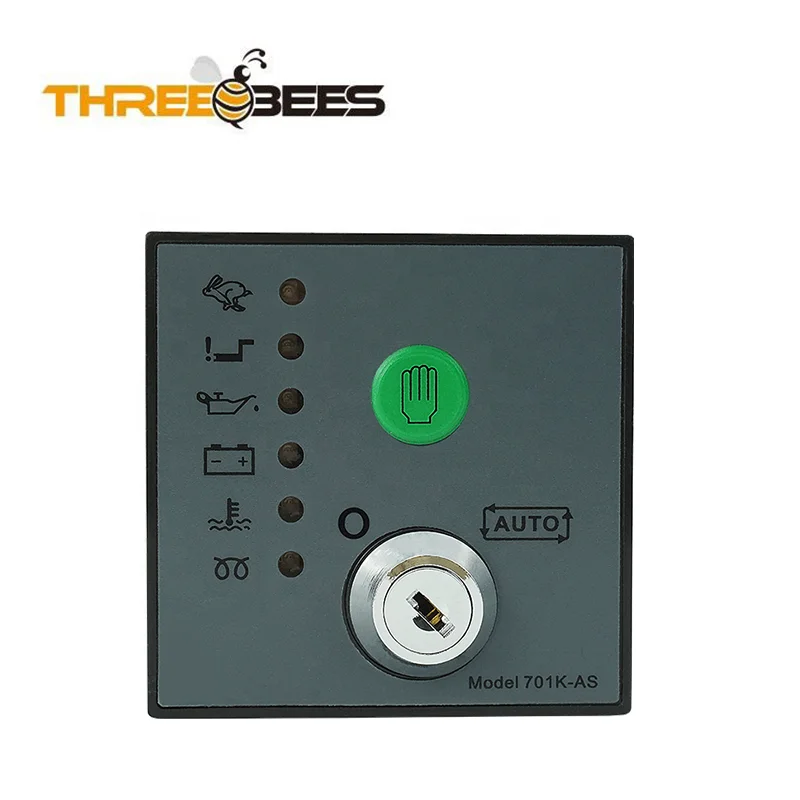

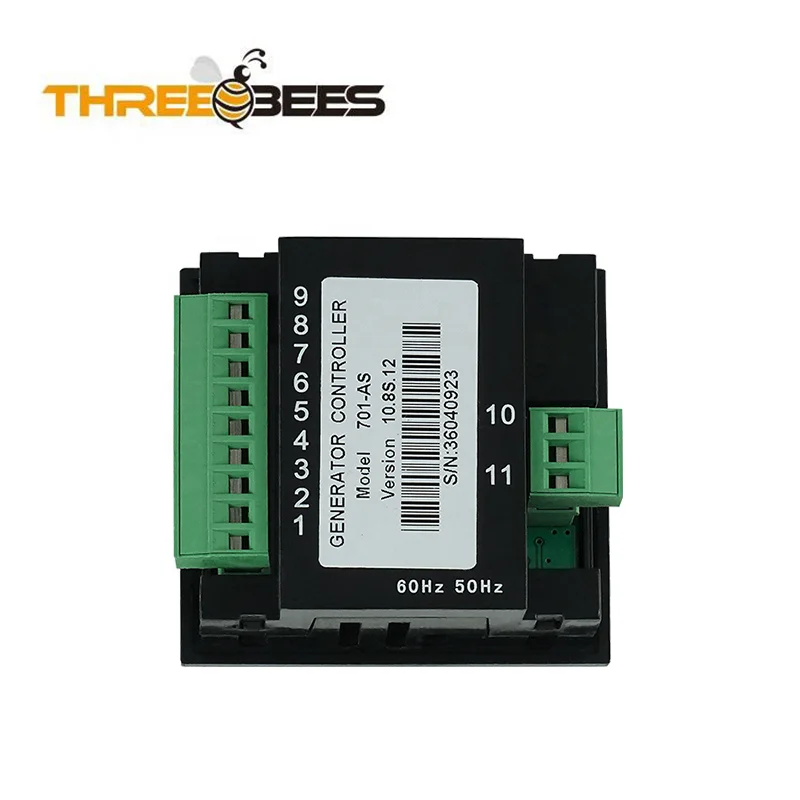

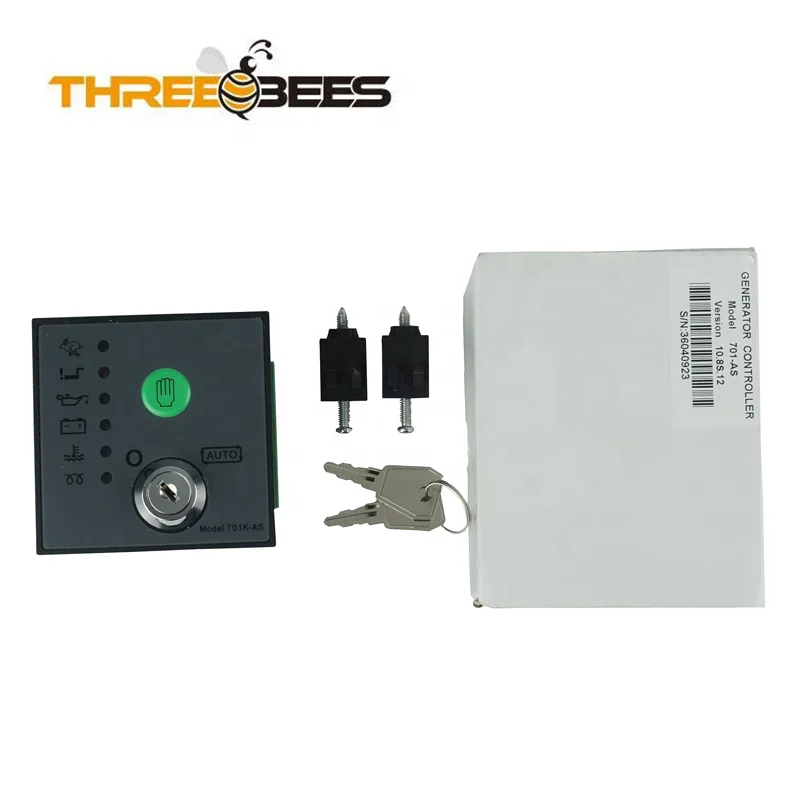

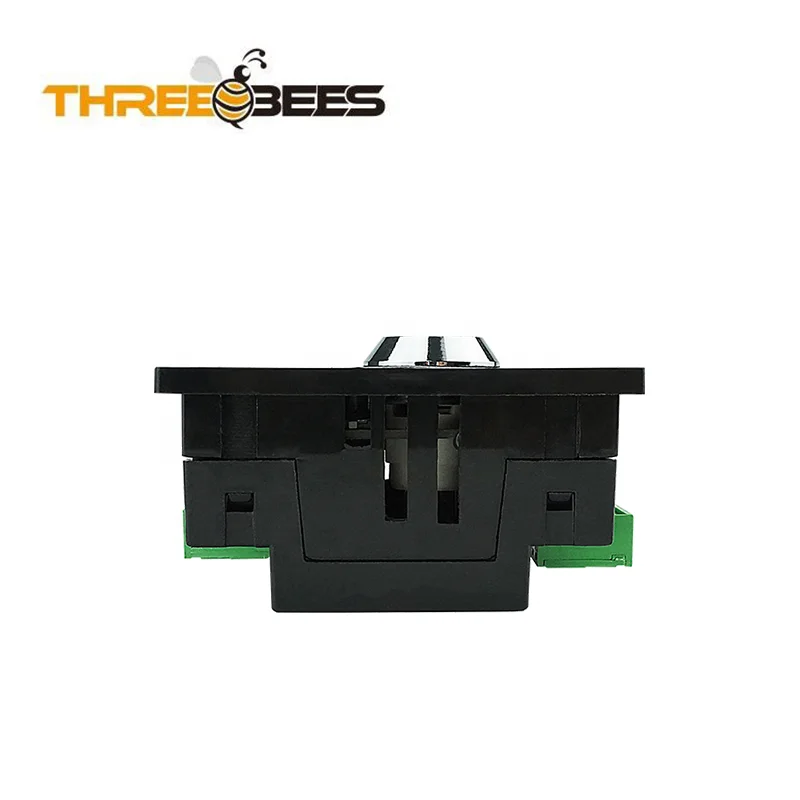

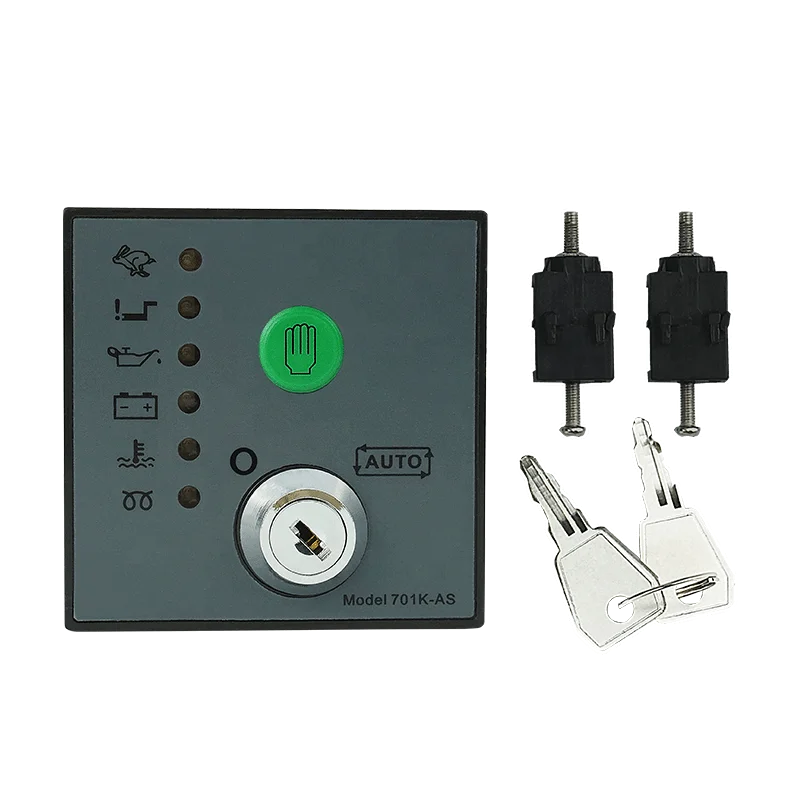

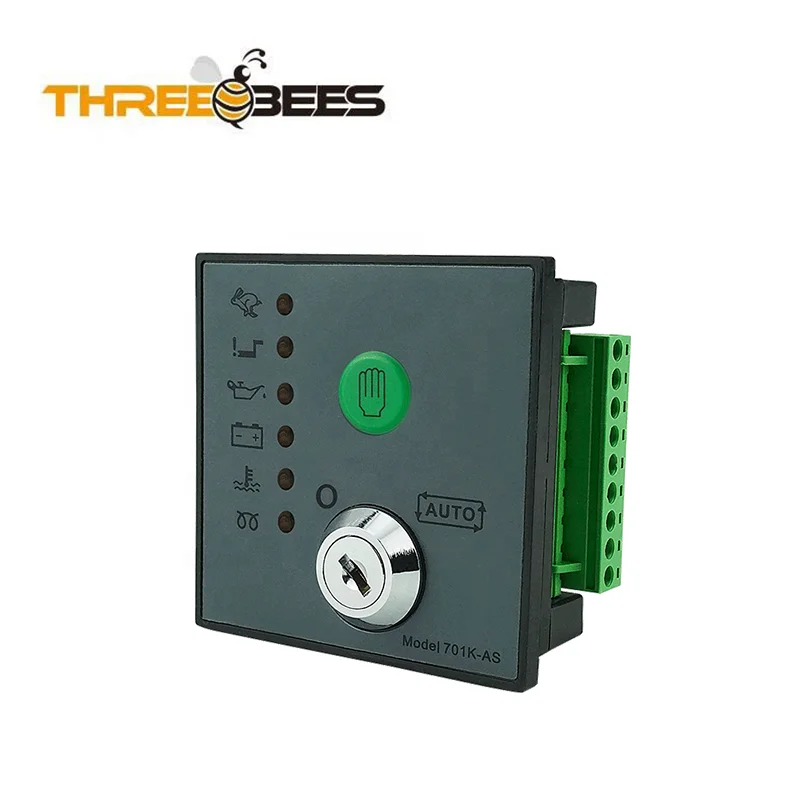

DSE701 Auto Mains Failure Control Module
Overall Size	72 mm x 72mm x37.8mm (2.8″ x 2.8″ x 1.5″)
Panel Cutout Size	68 mm x 68 mm (2.7″ x 2.7″)
Tightening Torque	0.8Nm(7lb-in)
Packed Size	105mm82mm61mm
Weight	0.3kg

701 Controller

The modle 701 is an engine control module designed to control the engine via a key swith and pushbuttons on the front panel.The module is used to start the engine and indicate fault conditions,automatically shutting down the engine and indicating the cause of failure by LED,giving true,first up fault annunciation.

Reliable and extremely performance.

Each control has been tested, and the each buttons undergoes fifty thousand test. Same quality as the original.Ensure that each product is used by customers assured.

Main function

Emergency parking control

Start motor automatic detection

Preheating

DC SUPPLY	CONTINUOUS VOLTAGE RATING	8 V to 35 V Continuous
		MAXIMUM OPERATING CURRENT	340 mA at 12 V, 160 mA at 24 V
		MAXIMUM STANDBY CURRENT	160 mA at 12 V, 80 mA at 24 V
		CHARGE FAIL/EXCITATION RANGE	0 V to 35 V
MAINS (UTILITY)	VOLTAGE RANGE	15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph)
MAINS (UTILITY)		FREQUENCY RANGE	3.5 Hz to 75 Hz
OUTPUTS	OUTPUT A (FUEL)	15 A DC at supply voltage
		OUTPUT B (START)	15 A DC at supply voltage
		OUTPUTS C & D	8 A 250 V (Volt free)
		AUXILIARY OUTPUTS E,F,G,H	2 A DC at supply voltage
GENERATOR	VOLTAGE RANGE	15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph)
GENERATOR		FREQUENCY RANGE	3.5 Hz to 75 Hz
MAGNETIC PICK-UP	VOLTAGE RANGE	+/- 0.5 V to 70 V
MAGNETIC PICK-UP		FREQUENCY RANGE	10,000 Hz (max)
