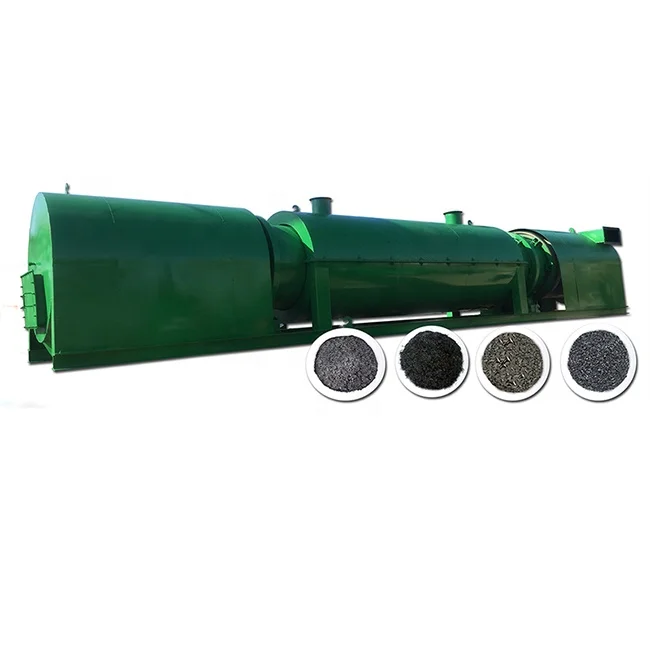

24 hour working continuous biomass carbonization furnace
Brief introduction of continuous biomass carbonization furnace
continuous biomass carbonization furnace manufacturerd by QIMAI machinery is mainly used to carbon the briquette made by the briquette making machine or the original wood log, bamboo, coconut shell, rice husk, peanut shell, palm fiber, etc into charcoal. Carbonizing furnace for charcoal is energy-saving type which includes one outer stove, three set of inner stoves, smoke recycling system and the 3 ton hoisting tools. When one inner stove have been finished by coconut shell continuous biomass carbonization furnace, we will use the hoisting tools to hoist the inner stove from the outer stove, then let the inner stove cooling naturally, at the same time, we can put another inner stove into the coconut shell continuous biomass carbonization furnace, which will save a lot of cooling time, so as to increase the capacity greatly. It is the ideal choice for mass production of charcoal or processing other .
Carbonization furnace working principle
Airflow continuous biomass carbonization furnace includes the following main parts: furnace body, furnace cover, heating chamber, inner pot. The furnace is made of steel, and the thickness is 6-8mm. The furnace is resistant to high temperature, deformation and oxidation. The chamber is covered with refractory brick, and the thickness is 120mm.
The advantage of the continuous biomass carbonization furnace
1. Easy operate and maintain.
2. High carbonization rate, With smoke removal equipment. It is environmental friendly.
3. 8 hours per stove and work continuously.
4. The combustible gas generated during carbonization process will come down along the pipes to the lighting hole to become fuel to heat the stove.
5. With hoisting tools, which can hang the inside stove very easily.
The parameters of continuous biomass carbonization furnace
type
internal diameter
(mm)
final output(t/time)
feeding output(t/time)
dimension(mm)
weight(kg)
THL-C1
1300*1800mm
0.7t
1.8t
2000*1500*1700mm
4000kg
THL-C2
1600*2000mm
1.2t
3t
2200*1800*2000mm
5000kg
THL-C3
1800*2200mm
1.5t
4t
2500*2000*2200mm
6000kg
The material and finished froduct of continuous biomass carbonization furnace
The circular gas flow continuous biomass carbonization furnace can carbonize a lot of things, the raw material can be sawdust, coconut shell, biological material some waste, its finished product is charcoal, can have different shape.

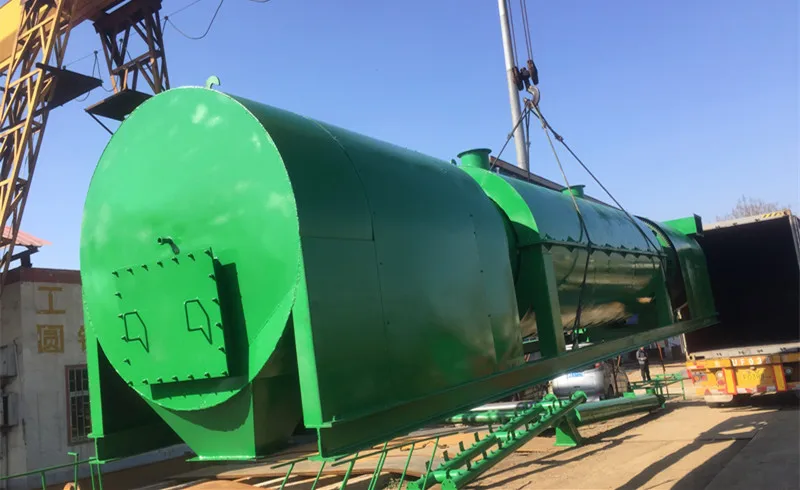

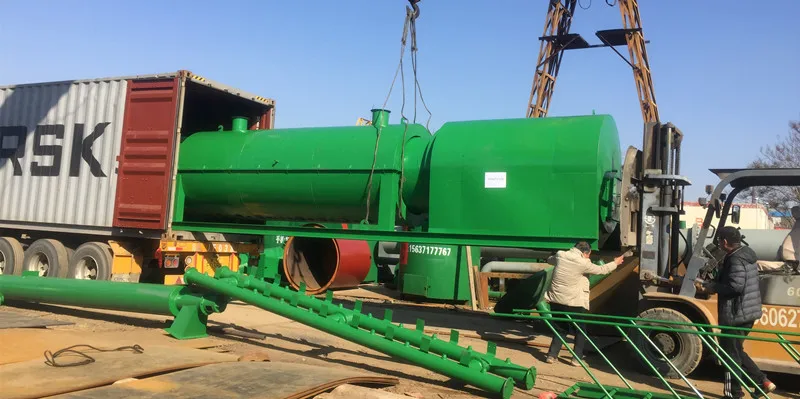

Packing & Delivery
Delivery Time: shipped in 10 days after payment
Packaging Details: container, spare parts in wooden case
Our service
Technical service (1) Design for production line flow and equipment layout freely according to the site. (2) Supply the foundation drawing of equipment. (3) Supply the technical parameters of peripheral equipment. (4) During the operation, we can offer the technology service freely if the user needs to adjust the layout and application. After-sales service (1) During the installation and commissioning, we can send our technician to the site for guiding the installation and commissioning. (2) During the installation and commissioning, we offer training service free of charge. (3) The buyer should pay the cost such as traveling, lodging and eating and so on, and pay the service fee USD100/day/person.
Company Information
Henan Qimai Mechanical Equipment Co.,Ltd is a professional manufacturer of charcoal making machine, continuous biomass carbonization furnace, dryer machine, wood working machine and construction machine, etc, which integrating the development, production and sales as one.Our headquarters is located in Yangli Industrial Park, Yugou Town, Gongyi City, covering an area about 30000 square meters. Since established in 1990, our factory has been adhered to scientific management methods and introduced an advanced technology and process from the United States, Germany, Japan and other countries to establish internationally advanced production lines and a first-class modern detection base. Based on continuous innovation, we rapidly expand to a shining pearl of China's machinery manufacturing industry.
FAQ
Q;1 Are you manufactory or trade company ?
A;We are manufactory specialized in machinery equipments for many years already,in Zhenzhou,Henan province,China.
Q;2 How much the transportation freight of samples?
A;The freight depends on the weight and packing size and destination from here to your location
Q;3 Do you have stock?
A;Most of produts are under regular production , we can make delivery immediately if we the specific one in stock Q;What is your business model? Trading company or direct manufacturer? We are a 26 years direct manufacturer, we specilized in manufacturing different kinds of carbonization furnace, charcoal making machine, charcoal machine, briquette machine, wood crusher, rotary dryer etc and other related products.We have an integrated system on product produce, quality control, logistics and after sale services. Q;What is the carbonization spoilage rate? Usually 2.5 t raw material can get 1t charcoal. ( Spoilage rate is 2.5:1) Q;Can we visit your factory and use your furnace do the test? Yes. Our technician can do the test fo you and you can see the whole working principle clearly.
