Энергосберегающая Лидер продаж полуавтоматическая Строительная керамическая плитка клейкая Сухая растворная смесь производственная

Zhengzhou MG Industrial Co.,Ltd is specialized manufacturer of dry mortar plant and silos for 20 years, we company always provide our clients turnkey project of dry mortar plant from working site planning to dry mortar machines, sand dryer, installation and training, formula, after sales services and life time technical support.

Our equipment can be customized in capacity and voltage, please inform us the capacity you need, we will send you specifications with favorable offer promptly.

Dry mortar is also called premixed mortar, which made in the factory by precise batching and uniform mixing. It can be used directly just by adding water, in construction site. It has different properties through adding different additives. The demand for dry mortar has been increased rapidly due to its outstanding merit compared to the mortar production in job-site

Raw material of dry mortar used in MG Semi automatic dry mortar mixing production line:

1. Cementing material: cement, lime, plaster.

2. Aggregate:yellow sand, quartz sand, limestone, dolomite, expanded perlite etc.

3. Mineral admixture: industrial by product, industrial slag, fly ash, pozzolana, fine silica powder etc.

4. Water-retention and thickening material.

5. Chemical additives

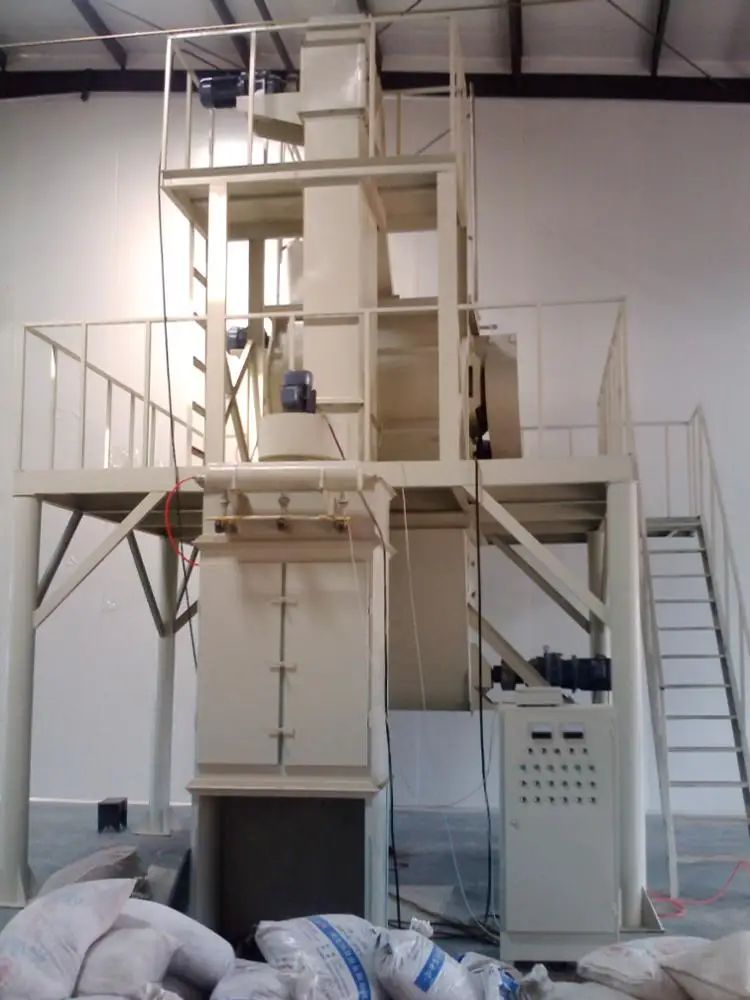

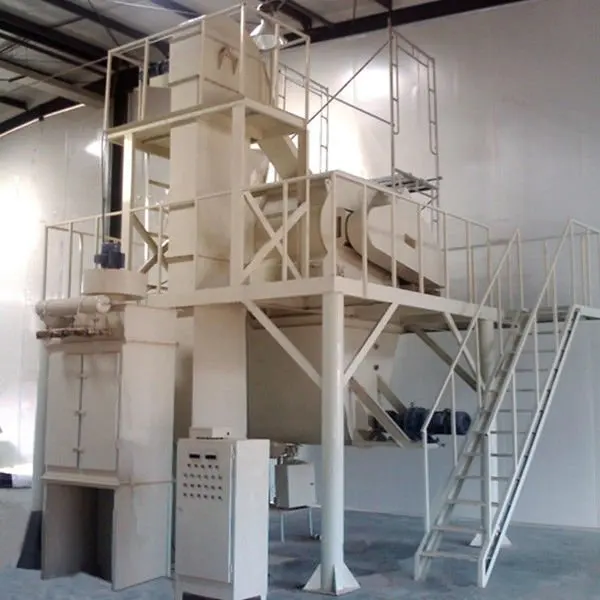

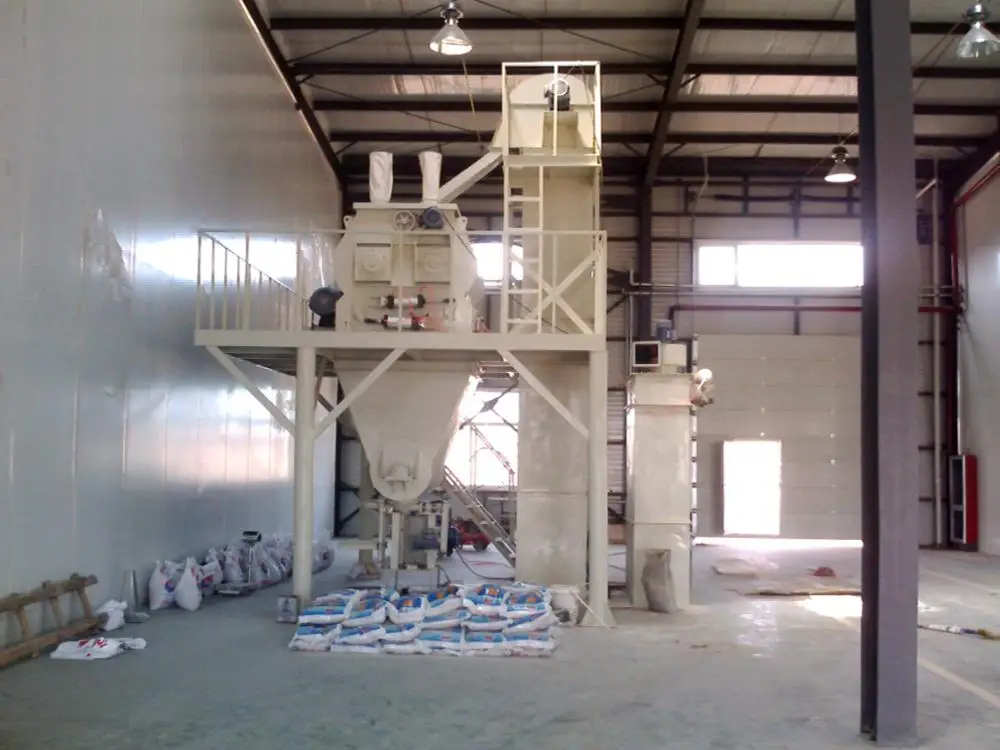

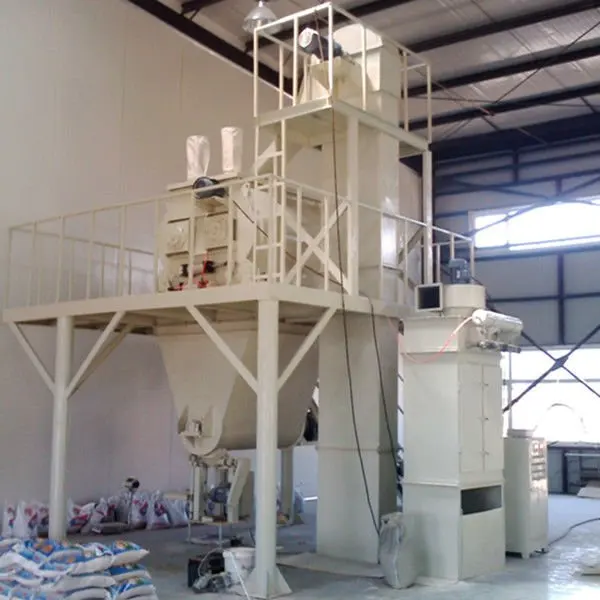

Description of MG Semi automatic dry mortar mixing production line

MG semi automatic dry mortar mixing production line also called energy-saving dry mortar mixing line, dry mortar mixing machine, dry mortar mixing equipment. Which can feed various materials into the bin, under the automatic control system, this production line can realize automation in collecting, feeding, filling and packing. It is the ideal selection for set up a dry mortar factory with reasonable price and quick re-found.

Working principle of Semi-auto Tile Adhesive Dry Mortar Mixer Machine

1. Based on your formula and the mixture ratio, the raw material will be manually put into the bottom of the bucket elevator.

2.Through the transportation of the belt conveyor, the material will be conveyed to the biaxial agravic mixer, it can realize automatic feeding, mixing, storing and packaging.

3. The equipment adopts high-efficiency biaxial agravic mixer as its main mixing system. Requiring little investment and small area but with good efficiency, it shall be an ideal one for small and medium-sized company.

Flow chart drawing of MG semi-automatic Tile Adhesive Dry Mortar Mixer Machine:

Technical parameters of MG semi-automatic Tile Adhesive Dry Mortar Mixer Machine:

 Detail parts for MG semi-automatic Tile Adhesive Dry Mortar Mixer Machine:

Bucket elevator used for MG semi-automatic Tile Adhesive Dry Mortar Mixer Machine:

1.Bucket elevator is one of the most widely used vertical conveying equipment.
2.It's suitable for powder and granular material (such as limestone, cement clinker, plaster power, coal) vertical transport.

 Agravic Paddle Mixer used for MG semi-automatic Tile Adhesive Dry Mortar Mixer Machine:

1. High-speed rotating fly cut has function of quickly dispersion fiber.
2. The pneumatic balance device makes mixing more evenly.
3. No residual, clean and quick discharge.
4. Less maintenance costs.

 Finished product hopper used for MG semi-automatic Tile Adhesive Dry Mortar Mixer Machine:

To store the finished material and prepare for the packing work, the ribbon mixer is to protect the finished material from segregation during the second falling.

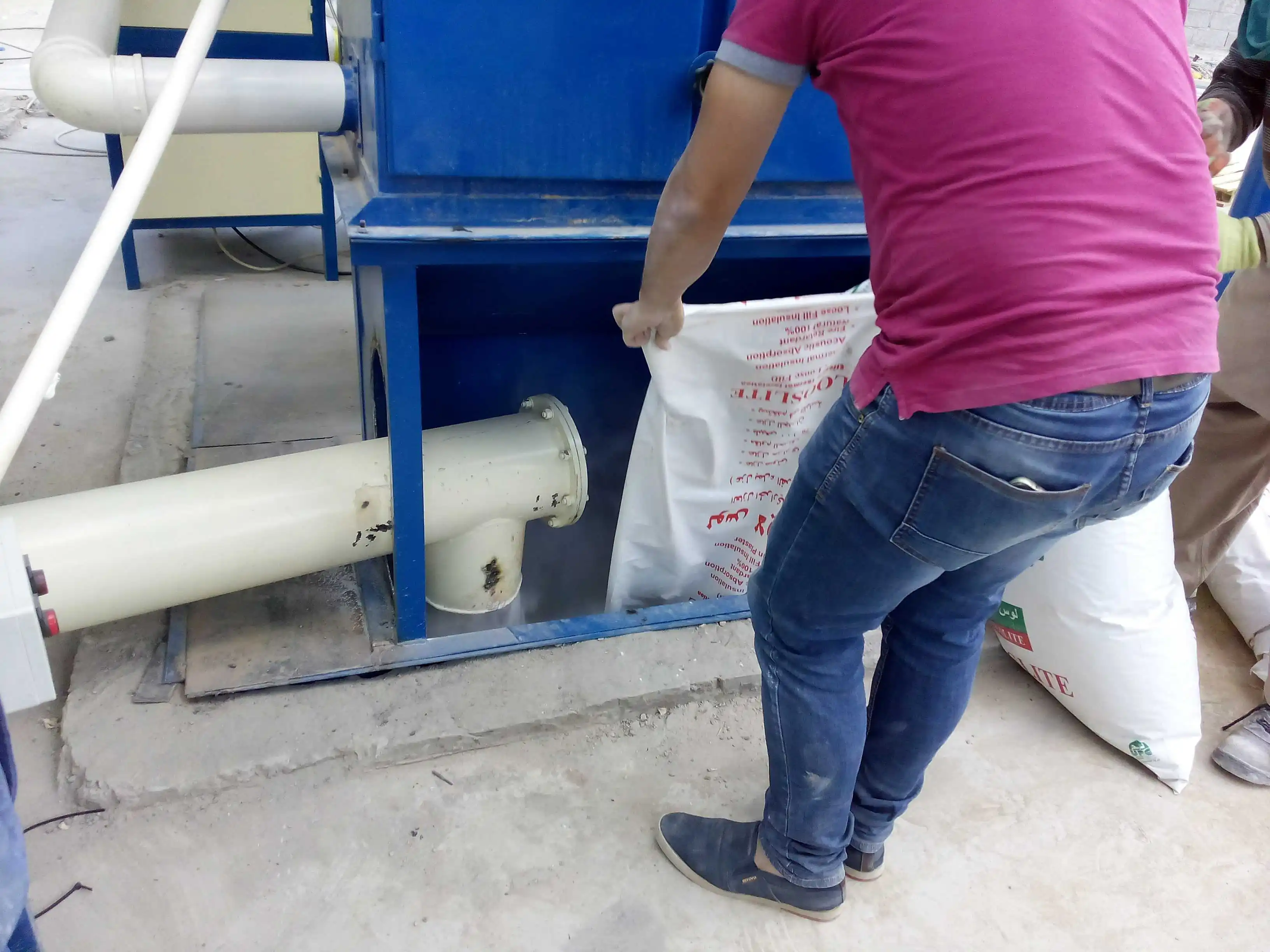

Mortar packing machine used for MG semi-automatic Tile Adhesive Dry Mortar Mixer Machine:

1.This machine adopts the computerized metering device, thus it can weight accurately, perform stably and be operated easily.
2.This machine can be applied in the packaging of powder or particle materials, just as cement, dry mortar, fly ash, lime, calcium carbonate, talcum powder, gypsum, bentonite, kaolin, carbon black, alumina, fire materials powder, granule materials and so on.

Pulse Dust Collector used for MG semi-automatic Tile Adhesive Dry Mortar Mixer Machine:

1. For additive an individual pulse dust collector is applied to prevent additive from leaking and meet environment protection requirements;
2. Points that may generate dust are fitted with pulse dust collectors and reclaimed dust is reused.

Application of MG semi-automatic Tile Adhesive Dry Mortar Mixer Machine:

Zhengzhou MG Industrial Co,.Ltd focuses on the design manufacture of dry mortar production line and sand dryer for 17 years. We provide turnkey project of dry mortar plant from working site planning to dry mortar machines, installation and training, good after-sales services, technical support and so on.

Under principle “CUSTOMER FIRST”and“TEGRITY FIRST”, MG people provide a reasonable and practical plan and first class products as well as excellent After-sale Service according to each customer’s requirement. Generally speaking, over 75% of our customers or their friends will repurchase our products in a year.

Thanks to our high quality products and outstanding customers service, MG has earned a high reputation in marketing and gained countless customers from Russia, the United Arab Emirates, Malaysia, Brazil, Chile, Morocco and other 90 countries.

With the commitment of customer satisfaction ,we are expecting to widen and deepen the cooperation and communication with all friends all over the world.

1. On our own factory: we have our own factory. The factory site No.93 Zizhu Road, High-Tech Zone, Zhengzhou City, Henan Province, China. Welcome to view our factory. Besides, we have a long cooperation with some excellent supplier of the raw material. It make sure that the price of products we supply  is lower than other foreign trade company.

2.On the investment of this project: It depends on your requirement. But we can supply the design service and budgetary assessment according to your need. Besides, we are sure you will get the most competitive price and the best quality products.

3.On the installation: we will send the advanced engineers and English translation to your country to install and operate the machine when we reach an agreement.

4. On the operate number: Usually 2-4 workers are enough to operate the machine.

5. On the guarantee period: 12 months, within this period, we provide you spare parts and services for free.

6.The capacity of your dry mortar mixing equipment: Normally, the capacity of  dry mortar mixing equipment we supply is 3-30T/H as your requirement, but  we can customize the dry mortar plant as your capacity requirement.
7. The area required for this dry mortar mixing equipment: usually 100-300m²

8.The difference between full automatic dry mortar mixing equipment and Semi-automatic dry mortar mixing equipment?

1)On price:Semi-automatic dry mortar mixing equipment is more cheaper.

2)On silos: Full automatic dry mortar mixing equipment equip material silos.

3)Operator: Semi-automatic dry mortar mixing equipment need 2-3 person to feed material.

If you want to know more details on our products, please send us inquiry or contact us directly.

Your Satisfaction Is the Greatest Support for Us !
