CBDB20 Полу Электрический Гидравлическая Тележка для

CBDB20 Полу Электрический Гидравлическая Тележка для

Категория: >>>
Поставщик: Dalian,Shuhui,Mechanical,Equipment,Co.,Ltd.,[Liaoning,China]Dalian

Цена:11 300,69 ₽ - 37 668,95 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	13447.72 $*	14119.64 $*
Aug-16-2025	13334.83 $*	14001.77 $*
Jul-16-2025	11187.8 $*	11746.77 $*
Jun-16-2025	13108.26 $*	13763.86 $*
May-16-2025	11413.63 $*	11984.26 $*
Apr-16-2025	12882.58 $*	13526.14 $*
Mar-16-2025	12769.90 $*	13407.49 $*
Feb-16-2025	12656.13 $*	13289.81 $*
Jan-16-2025	12543.17 $*	13170.60 $*

Характеристики

Product Description

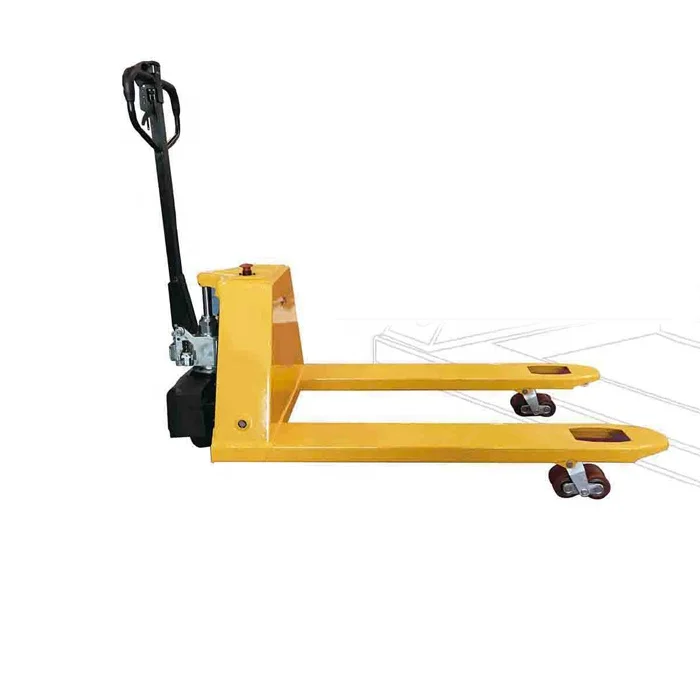

CBDB20 semi electric hydraulic pallet truck

Semi-electric truck CBDB20

Features:
1.Small body, light weight, can work in narrow channels;
2.The chain type traction motor is adopted, the traction force is large, the walking speed is controllable, and it can bear heavy material handling;
3.Good power off braking function, the whole vehicle is in the braking state when the handle is in the vertical and horizontal direction.
4.Effectively prevent the free sliding of the car body and reduce the occurrence of accidents.

Technical parameters:

Features	Model	CBDB20
	Drive mode	battery
	Operator type	Pedestrian
	load capacity(kg)	2000
	self weight(including battery) (kg)	160
Basic size	overall length(mm)	1595/1665
	overall width(mm)	685
	overall height(mm)	1300
	Max lifting height(mm)	200
	Lowered height(mm)	85
	outer width of fork(mm)	550/685
	fork length(mm)	1150/1220
	single fork width(mm)	160
	turning radius(mm)	1375/1445
	wheels type	PU/PU
	Driving wheels size	Φ210×70
	Loading wheels size	Φ80×70
Property	Travel speed(full load/empty load)(km/h)	4/4.5
	Gradeability(full load/empty load)(%)	3/20
	Braking mode	electromagnetic braking
Driver	Drive Motor Power(kw)	0.65
	Battery voltage/capacity(V/AH)	2×12/32
	Battery Weight(kg)	2×10.2
	battery size (length/width/height)(mm)	267/78/170
	battery type	Maintenance-free battery
Other	Type of drive control	DC
Other	Noise level at the driver's ear(A)	74
