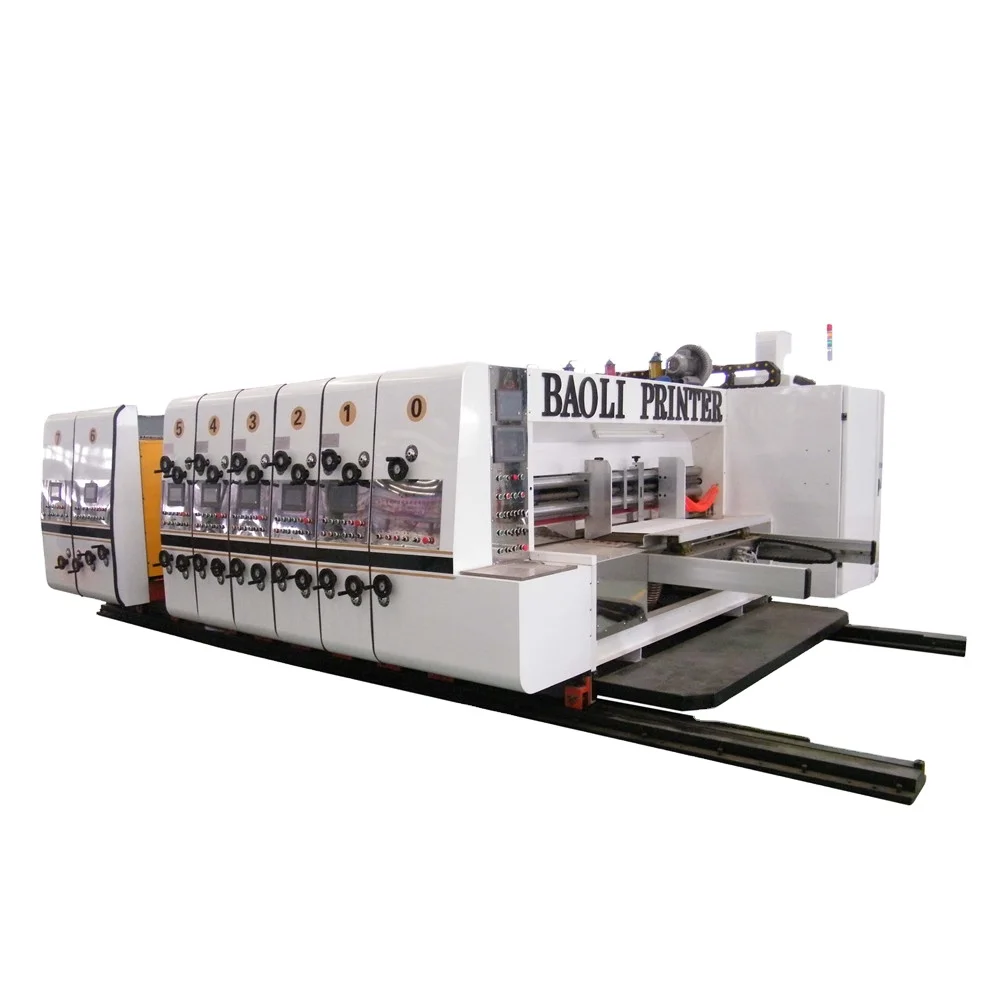

Модель 900*2200 мм машина для флексографской печати на гофрированном

Product Application

1 Lead edge feeder system :

1)Four rows wheels type lead edge feeding system , easy operation , high precision.

2)The lead edge wheels adopt Maxdura brand from Taiwan , durable Wear Resistant .

3)7.5kw fan , air suction auxiliary paper feeding, according to the bending degree of the board, adjustable air volume to ensure smooth paper feeding. Variable frequency control the air volume .

4)The positions of the left and right baffles are electrically regulated by the screw rod, which is convenient and quick to adjust. The position of upper and lower clearance of front baffle is manually adjusted separately.

5)With the skip feeding function , choose the skip feeding function according to the needs to ensure the processing of large size board. Paper lifting and paper dropping adopt cylinder to push the action quickly and save effort.

6)The host machine adopts frequency conversion control the machine start , runs smoothly, and can save 30% of energy.

7)Equipped the interlock control switch which is connected with die cutting unit, to realize urgent stop, stop feeding or resume feeding, forward and reverse jog, phase jog of each unit, and more humanized operation.

8)The back paper frame can electric control the position movement , speed up the adjustment .

9)Dust removal device : equipped with high quality brush and 4kw dust removal fan, it can remove impurities on the printing surface of cardboard in large quantities and improve the printing quality.

10)Manual adjustment of back baffle position .

11)Paper feeding counter, set and display production quantity.

Main Features

1.Computer touch screen is adopted

Through PLC and rotary encoder, automatic detection and adjustment can be made. Storage orders can be invoked.

2.Full computer adjustment

In addition to using the computer touch screen, adjust the axial direction and box height of each cutter seat through PLC and rotary encoder. Electric control buttons can also be used to adjust the axial direction of each cutter seat and the height of the box.

3.Slotting phase adjustment

1)Slotting phase adjustment adopts PLC touching screen frequency conversion controland electric digital 360 ° adjustment (motion and stop all can be adjusted).

2)Phase zero setting device to ensure consistent slot position.

4.Pre-creasing section

1)Pre-creasing shaft diameter 110mm, adopt high-quality seamless steel pipe. Surface grinding, dynamic balance correction, hard chrome plating, smooth rotation.

2)The pre-creasing wheel adopts advanced technology to improve the large pre-creasing wheel , so that the paperboard will not be broken when crease the line.

5.Creasing wheel section

1)The diameter of the creasing roller is 124mm, and high-quality seamless steel pipe is adopted. Surface grinding, dynamic balance correction, hard chrome plating, smooth rotation.

2)The creasing wheel adopts advanced technology. The upper wheel is made of high hardness resin glue and grooves in the middle. When passing the board synchronously with the lower wheel, the board line does not run away from the slant.

Machine Parts

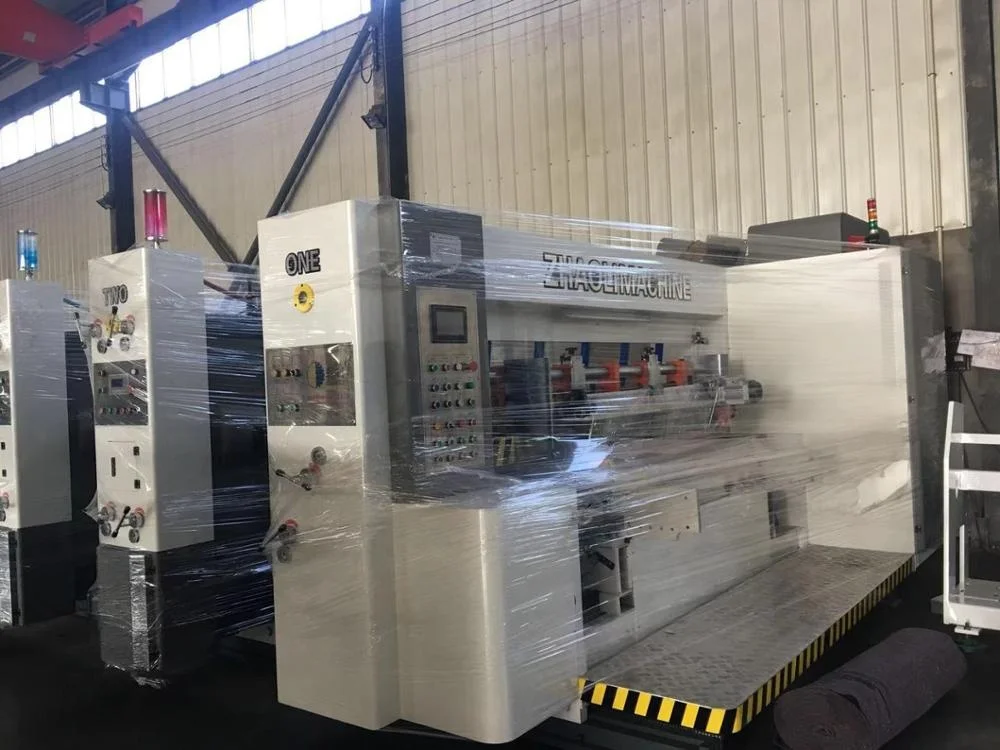

Name: Lead edge feeding paperboard part

Brand: zhaoli

Original: China

Four rows wheels type lead edge feeding system , easy operation , high precision.

Main Features

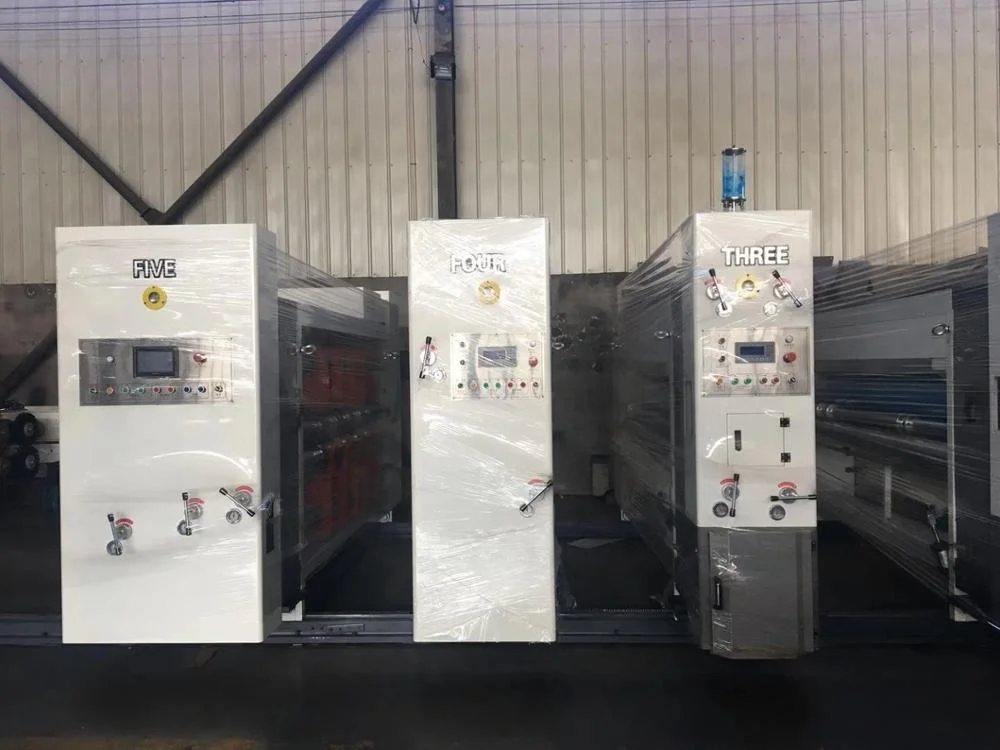

Name: Printing part
Brand: zhaoli
Original: China
Paper feeding counter, set and display production quantity.

Machine Parts

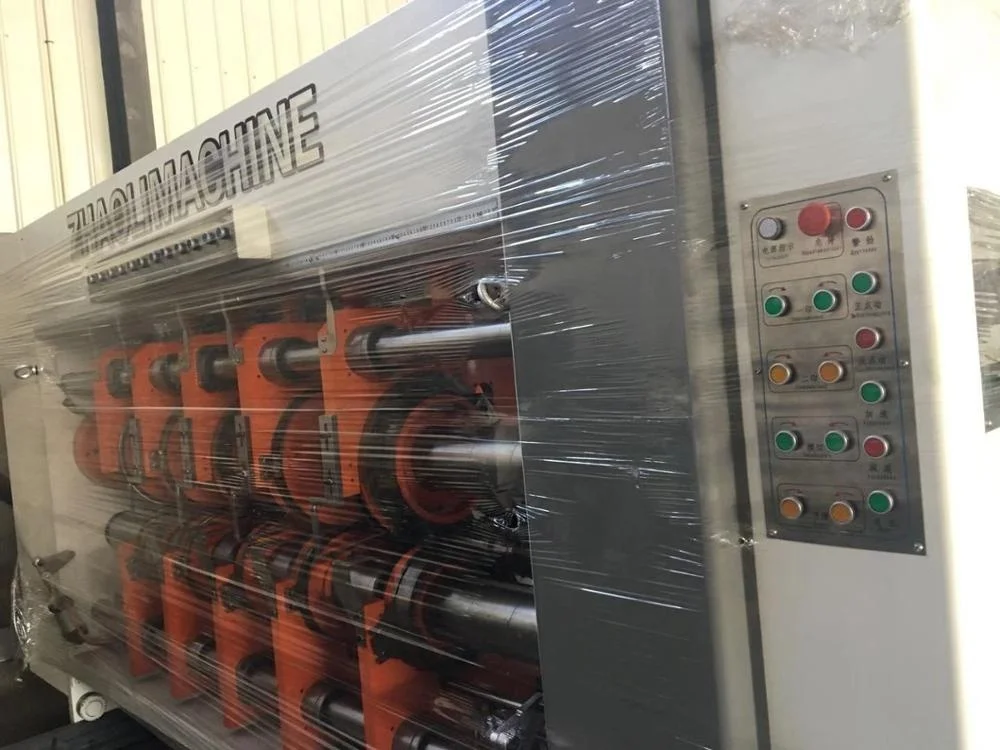

Name: Slotting part
Brand: zhaoli
Original: China
Through PLC and rotary encoder, automatic detection and adjustment can be made. Storage orders can be invoked.

Main Features

Name: Slotting part
Brand: zhaoli
Original: China
In addition to using the computer touch screen, adjust the axial direction and box height of each cutter seat through PLC and rotary encoder. Electric control buttons can also be used to adjust the axial direction of each cutter seat and the height of the box.
