Кроссовый процессор RT1050 серия MCU на основе IMXRT1052 макетная плата 4M QSPI NORFLASH 16M SDRAM лучше и дешевле чем
- Категория: Наборы и инструменты для разработки >>>
- Поставщик: Baoding,Forlinx,Embedded,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.55 $* | 0.45 $* |
| Aug-19-2025 | 0.30 $* | 0.34 $* |
| Jul-19-2025 | 0.16 $* | 0.46 $* |
| Jun-19-2025 | 0.68 $* | 0.38 $* |
| May-19-2025 | 0.92 $* | 0.21 $* |
| Apr-19-2025 | 0.67 $* | 0.84 $* |
| Mar-19-2025 | 0.84 $* | 0.61 $* |
| Feb-19-2025 | 0.67 $* | 0.12 $* |
| Jan-19-2025 | 0.39 $* | 0.17 $* |
Характеристики

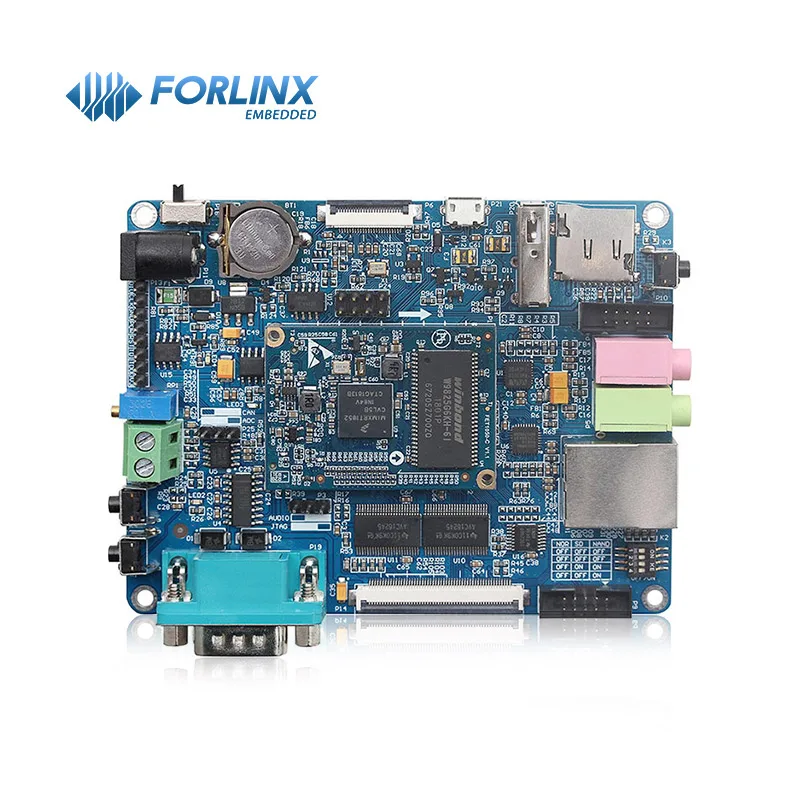

Crossover Processor RT1050 Series MCU Based IMXRT1052 Development Board 4M QSPI NORFLASH 16M SDRAM Better & Cheaper Than Stm32
OK1052-C is a development board designed based on Cortex-M7 crossover MCU i.MX RT1052. It operates at speeds up to 528MHz to provide high CPU performance and best
real-time response. The i.MX RT1052 processor has 512 KB on-chip RAM,which can be flexibly configured as TCM or general-purpose on-chip RAM. 16MB/ 32MB SDRAM, 4MB/ 16MB QSPI-NorFlash are optional on SoM FET1052-C.

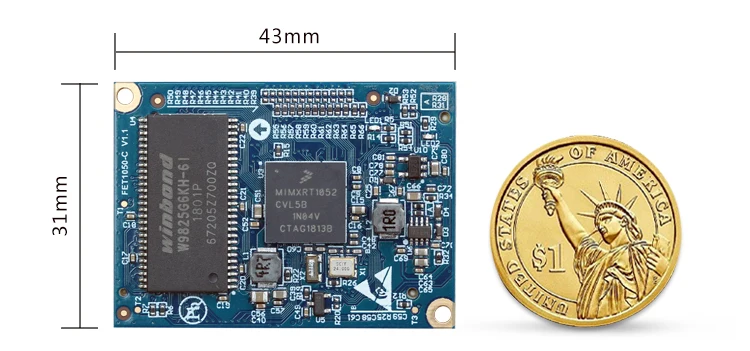

The SoM FET1052-C is an industrial grade item with working temperature ranges from -40℃ to +85℃ and it has a compact appearance that dimensions only 31mm * 43mm, the SoM is designed with a couple of 80-pin connectors with pitch of 0.8mm, all 160pins of the processor are drawn out with GPIO up to 124 pins. Other peripheral pins such as UART, Ethernet, USB, CAN, PWM, ADC, LCD and CAMERA are all available. What's more, OS uClinux is supported very well.
High-performance, fast real-time response, low-power
SoM deliveries 3020 CoreMark/1284 DMIPS @ 528 MHz
512 KB on-chip RAM, fastest real-time response with latency as low as 20ns
Powerful scalability
All functional pins are available on the SoM with GPIO up to 124 pins;
LCD, camera, USB, UART, CAN, Ethernet and PWM are all native interfaces supported by this SoM
Multimedia performance
LCD interface with RGB888 is supported to 1366* 768 resolution and 2D GPU;
emWin, parallel camera interface and three IIS are all supported in MCU mode
Native data encryption
Various functional communication interfaces
Eight UART up to 5Mbps;
One 10/100M Ethernet controller with support for 1wip;
Two CAN 2.0 modules, Twenty 12-bit ADC;
Thirty two PWMs support for quadrature decoder and motor control
Easy-to-go
MCU system is supported with Keil IAR and ARM-GCC tools, meanwhile, Amazon FreeRTOS, SDK, ARM mbed, online development tools and other related global ARM system are supported for development.
Ubuntu and GCC are supported for development work on MPU
Compact size
The SoM dimensions are only 31mm* 43mm with designing of anti reverse board to board connectors, which is not only convenient for users to do testing and mass production but also easy for assembling
Com![1050_20.jpg]()
Industry/ Application

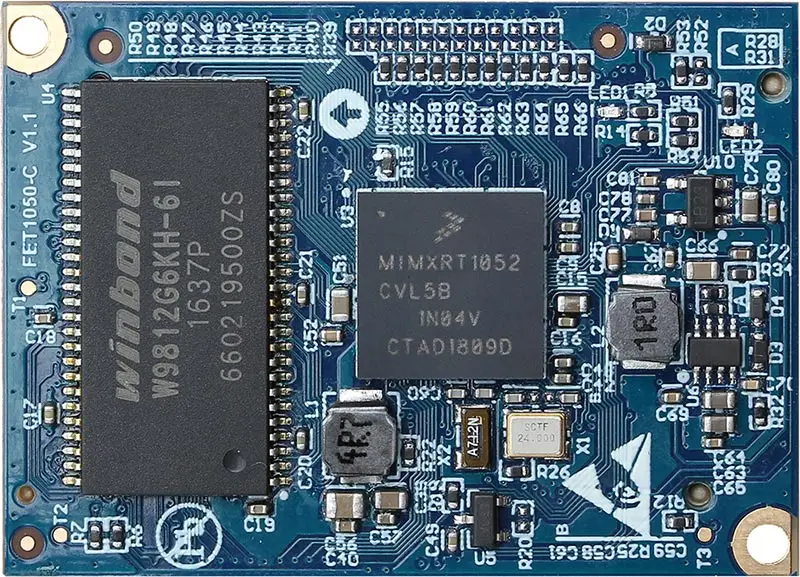

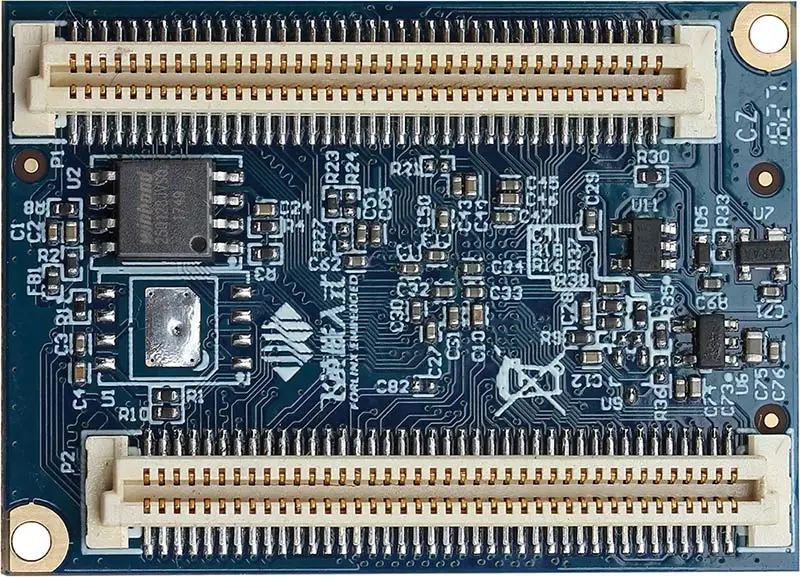

| SoM FET1052-C Basic Information | |||
| CPU | i.MX RT1052 | Power Input | 5V |
| Architecture | Cortex-M7 | Dimensions | 31mm* 43mm |
| Frequency | 528MHz | Craftwork | thickness 1.6mm, 4-layer EING PCB |
| RAM | SRAM: 512KB, SDRAM: 16MB/ 32MB | Connector | 2* 80-pin, pitch of 0.8mm |
| Flash | QSPI NorFlash: 4MB/ 16MB | Working Temp | -40℃ to +85℃ |
| SoM FET1052-C Hardware Features | ||
| Interface | QTY | Spec. |
| LCD | 1 | upto RGB888, resolution up to 1366* 768*(WXGA), 480*x 272 and 800* 480 are available |
| Camera | 1 | 8-bit DVP, up to 5.0Mp |
| SD/ MMC/ SDIO | ≤2 | SD card or SDIO card with 1-bit or 4-bit mode |
| USB | 2 | 1x USB2.0 OTG(up to 480Mbps), 1x USB2.0 host, integrated with HS USB Phy |
| SAI | ≤3 | up to 3x IIS audio |
| SPDIF | 1 | Sony/ Philips digital audio interface |
| UART | ≤8 | each up to 5.0Mbps |
| SPI | ≤4 | full duplex enhanced sync. serial interface, up to 52Mbit/s, it could be configured to host/ device mode, four chip selections are available |
| IIC | ≤4 | |
| Ethernet | ≤1 | 10M/ 100Mbps |
| PWM | ≤32 | |
| SWD | supported | |
| Keypad | supported | 8* 8 |
| QSPI | 2 | |
| CAN | ≤2 | CAN2.0B |
| ADC | ≤20 | 2x 12-bit ADC, up to 20 input channels |
| ISO7816-3 | ≤2 | |
| SEMC BUS | 1 | 16-bit parallel bus |
| OK1052-C Carrier Board Features | ||
| Interface | QTY | Spec. |
| LCD | 1 | RGB565, resolution up to 1366* 768*(WXGA) |
| Camera | 1 | 8-bit DVP, up to 5.0Mp |
| Audio | 1 | 1x MIC, 1x Phone |
| USB Host | 1 | USB2.0(up to 480Mbps) |
| USB OTG | 1 | standard micro USB connector, USB2.0 OTG(up to 480Mbps) |
| Ethernet | 1 | 10M/ 100Mbps, RJ-45 |
| RTC | 1 | RX8010SJ chip, CR1220 |
| EEPROM | 1 | 24C02 chip with capability of 256 bytes |
| TF card | 1 | compatible of MICRO SD, SDHC |
| LED | 1 | users indicator |
| POR_BUTTON | 1 | reset key |
| WakeUp | 1 | |
| ON/ OFF | 1 | keep pressing it to power on or power off the board |
| BOOT | 1 | DIP switch for booting mode selection, presently, only TF card mode and QSPI NOR Flash mode are supported |
| PWM | 1 | for LCD backlight adjusting |
| ADC | 5 | 4x ADC for resistive touching panel, and 1x ADC for adjustable resistor |
| IIC | 1 | for mounting of touching, camera, WM8960, EEPROM, RTC, IIC converted to 4-wired touching chip |
| CAN | 1 | CAN2.0 |
| SPI | 1 | pin connectors (10-pin) with pitch of 2.0mm |
| UART | 1 | 3 wired UART, 3.3V, up to 5.0Mbps, 10-pin header with pitch of 2.54mm |
| IIS | 1 | for WM8960 |
| Debug | 1 | RS232, DB9 connector |
| SWD | 1 | debug port, 8-pin hearder with pitch of 2.54mm |
| Resistive touching | 1 | the carrier board compative the original touch and TSC2007 touching chip, TSC2007 is the default configuration |
| Keypad | 1 | 4* 4 metrix keypad port by 8-pin header with pitch of 2.54mm |

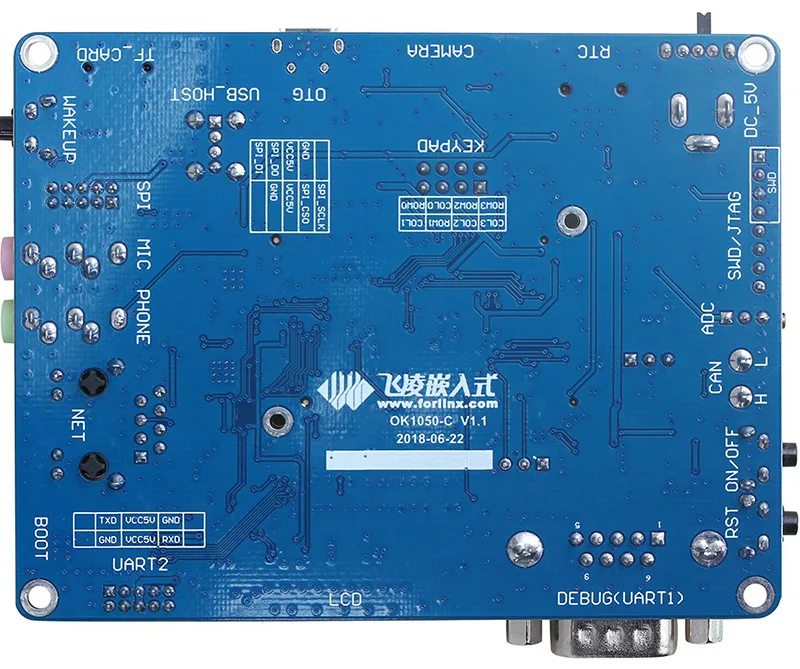

Overview of OK1052-C
| MCU Demos | |
| GPT | lpi2c: (RTC, EEPROM) |
| PIT | KPP |
| PWM | ENC |
| Wdog | Bee |
| Rtwdog | Sai |
| Ewm | Lpspi |
| Dcp | Enet |
| Snvs | Flexspi |
| Src | Sdcard |
| Trng | Sdcard_fatfs |
| Cache | Edma |
| Flexcan | Tsc |
| GPIO: LED shinning | Semc |
| ADC | CSI: CMOS camera sensor |
| Adc_etc | Elcdif |
| Cmp | PXP |
| Qtmr | Emwin |
| Lpuart(UART2) | Flexram |
