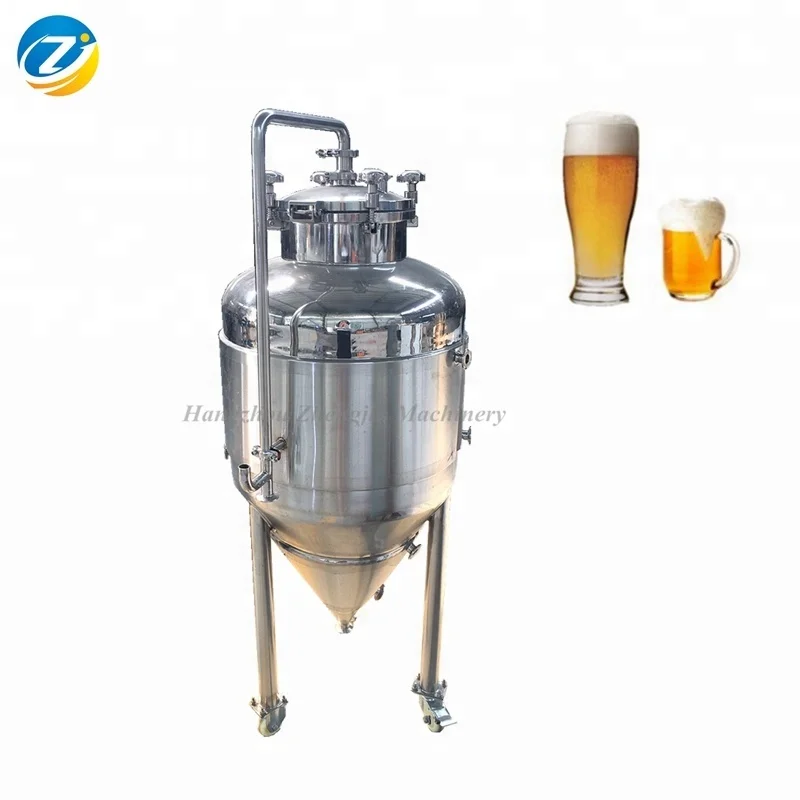

Конусный резервуар из нержавеющей стали коническая Пивоваренная система 1bbl

Конусный резервуар из нержавеющей стали коническая Пивоваренная система 1bbl

Категория: >>>
Поставщик: Hangzhou,Zhengjiu,Machinery,Manufacturing,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.3 $*	0.82 $*
Aug-15-2025	0.13 $*	0.78 $*
Jul-15-2025	0.27 $*	0.22 $*
Jun-15-2025	0.58 $*	0.44 $*
May-15-2025	0.52 $*	0.41 $*
Apr-15-2025	0.76 $*	0.29 $*
Mar-15-2025	0.82 $*	0.65 $*
Feb-15-2025	0.94 $*	0.91 $*
Jan-15-2025	0.86 $*	0.74 $*

Характеристики

Working Volume (L)	Demension (D*H)mm	Total Length (mm)	Diameter of Inlet &Outlet (mm)	PU Insulation (mm)	Manway Size(mm)
500	800*800	2100	38	50	440*320
1000	1000*1200	2650	38	50	440*320
2000	1100*1400	2950	38	50	550*430
3000	1200*1500	3150	51	50	550*430
4000	1400*1700	3900	51	50	550*430
5000	1500*2100	4050	51	50	550*430
6000	1600*2200	4100	51	50	550*430
8000	1800*2700	4800	51	50	550*430
10000	2000*2800	4900	51	50	550*430

FEATURE:

1. Capacity: 1 BBL to 300 BBL, or customized
2. Warranty: 12 months
3. Processing: Fermenting
4. Thickness: 3mm
5. Voltage: 220V/380V(Or to be customized)
6. Volume design: Properly according to the capacity requests
7. 60 degree cone bottom, with an average of 25% head space
8. Rotating racking port
9. Side manway hole, shadowless
10. Certification: ISO9001 / CE/ TUV
11. Interior shell: 304 stainless steel, thickness 11 gauge
12. Exterior shell: 304 stainless steel, thickness 14 gauge
13. 2” Polyurethane insulation
14. 2” CO2 blowoff arm for maximum tank space utilization
15. Material: Stainless Steel AISI 304 or AISI 316
16. Design pressure of the tank: 1.5bar
17. Design pressure of the jacket: 3.0bar

Accessories:
Sample Valve x1;
Pressure relief valve x1;
CIP nozzle x1;
Hop port x1;
Temp. sensor / thermometer x1;
Rotating racking arm with butterfly valve x1;
Bottom outlet with butterfly valve x1;
Stainless pipe legs with adjustable footpads x4;

1. Q: Are you are factory or trading company
A: We are factory, anytime welcome to visit us
2. Q: Where is your factory, how can i visit there?
A: Our factory was loacted at Lushan Industrail park, Fuyang city, Zhejiang province, China, around 2 hours from
Shanghai train station by high speed train, as well from Hangzhou International Airport by car. All our clients, from home or
aboard, are warmly come to visit us.(Here is the map for your reference)
