Характеристики

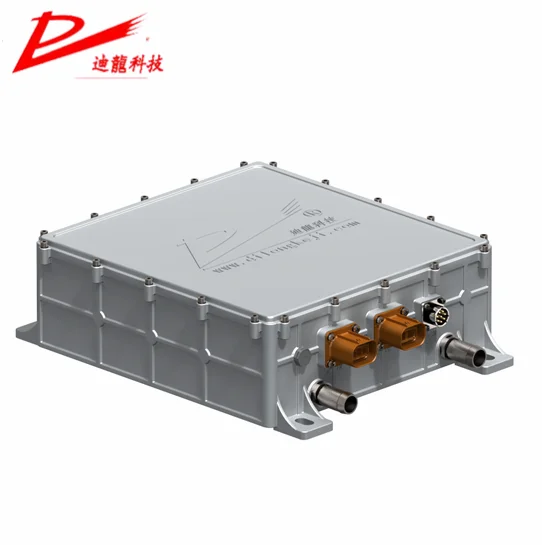

5000W charger 3.3KW OBC and 1.5KW DC-DC Converter EV water-cooling on board charger
more products
Product Description
Place of Origin:Hebei, China (Mainland)
Brand name:Dilong
Model Number:DA5KM50-362C-14RC
(DA3K3M50-362C)AC/DC charger:
A. Automatic conversion of constant power and constant voltage, effectively saving the charging time
B. Active power factor correction is greater than or equal to 0.99
C. Input undervoltage protection
D. Output overvoltage protection
E. Output overcurrent protection
F. Short circuit protection
G. Output protection and protection of the
H. Over-temperature protection of
I.C AN intelligent fault alarm, protection function
J. Small volume, high power density
K. Control guidance function with connection with charging pile (optional)
L. Have the functions of remote detection, burn writing, fault inquiry, etc.
M. Built-in output high voltage insurance can be freely replaced.
(DEV1K5M50-14RC)DC/DC high voltage input voltage output converter:
a. Constant current and constant voltage automatic conversion, effectively saving the charging time.
b. input undervoltage protection.
c. Output overvoltage protection.
d. Output overcurrent protection.
e. output short circuit protection.
f. Overtemperature protection.
g.CAN communication intelligent fault alarm and protection function.
h.N+1 backup, high reliability.
i. small volume, high power density.
j. Intelligent charging control function.
k. Built-in output insurance can be changed freely.
Specification
(DEV3K3M50-362C)AC/DC charger:
| DEV3K3M50-362C | |||
Mains Input | Rated output voltage | V | 220Vdc |
Voltage Range | Vac | 85Vdc-264Vdc | |
Efficiency | % | ≥95 (Not including auxiliary power supply) | |
Power Factor |
| ≥0.99@220Vac,rated power | |
Current | A | ≤16@220Vac | |
Mains output | Rated output voltage | Vdc | 360 |
Max current | A | 12 | |
Constant power output | W | 3300 | |
Constant voltage output range | Vdc | 220-420 | |
Output voltage accuracy | V | ≤±1%Vo input 175Vac-265Vac,output 10%-100% load | |
Line regulation | % | ≤±1Vo input 175Vac-265Vac,output 100% load | |
Load regulation | % | ≤±1Vo input 220Vac,output 10%-100% load | |
Ripple and noise | mV | ≤±3%Vo 20M oscilloscope,Twisted-pair cable test. | |
Auxiliary supply | Rated output voltage | Vdc | 14 |
Property | Input over-voltage protection | Vac | >275 CAN directive warning protection |
Input under-voltage protection | Vac | <85 CAN directive warning protection | |
Output Over-current protection | A | ≥110%Io CAN directive warning protection | |
Output under-voltage protection | Vdc | < 90 CAN directive warning protection | |
Output over-voltage protection | Vdc | >205 CAN directive warning protection | |
Over-temperature protection | ℃ | 85±5 CAN directive warning protection | |
Output short circuit protection |
| Yes (CPU Intelligent monitoring ) | |
Reverse polarity protection |
| yes (CPU Intelligent monitoring ) | |
Dynamic response | us | ≤200 | |
CAN communication |
| Communication interrupt, timeout of 20 seconds intelligent shutdown, communication normal recovery. | |
Work environment | Operating temperature |
| -40℃~+70℃(Intelligent derating shell temperature above 70 ℃) |
Storage temperature |
| -45℃~+95℃ | |
Operating humidity | %RH | 20-90(No condensation) | |
Storage humidity | %RH | 10-95(No condensation) | |
Vibration |
| QC/T413-2002(Other parts required) | |
Type of cooling |
| water-cooling | |
Safeguard | Isolation Voltage |
| shell←input→output:2.8KVdc; Main Output→shell:2.8KVdc; Auxiliary Output→shell:700Vdc |
Insulation resistance | MΩ | input—output—shell>10 (25℃,70%RH) | |
| model number | DEV5KM50-362C-14RC |
| size | 280*180*88mm |
| weight | 6.3Kg |
| Protection grade | IP67 |
| Type of cooling | water-cooling |
Factory
Packaging & Shipping
Packaging Details: export standard packing.
Delivery Details: Shipping in 30 days after payment.
Company Information
Shijiazhuang Dilong Technology Co., Ltd. is a manufacturer with the development, production and sales of military power supply , industrial power supply ,new energy vehicle power supply.We also has branch offices in Beijing, Shanghai,Shenzhen,Chengdu and Wuhan.
Our company pays high attention to the Quality Management System , passed ISO9001, the ISO/TS16949:2009 system authentication successively, the CE European Union product authentication, the ROHS non-lead product authentication and so on
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: What are your main products?
A: We mainly produce electric vehicle power supply, including OBC, dc converter and integrated power supply.
Q: how long is your delivery time?
A: Within 15 days, small sample order 5-7 days.
Q: What is your production capacity?
A: The monthly output of the product is 5,000 to 10000.
