Паровой бойлер для горячей воды с защитой окружающей среды
US $4000-$5000
Новейший дизайн газовая горелка для промышленного отопления
- Категория: >>>
- Поставщик: Shantou,Huaxing,Machinery,Factory,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1.0 $* | 1.84 $* |
| Jul-18-2025 | 1.75 $* | 1.79 $* |
| Jun-18-2025 | 1.54 $* | 1.75 $* |
| May-18-2025 | 1.6 $* | 1.79 $* |
| Apr-18-2025 | 1.88 $* | 1.73 $* |
| Mar-18-2025 | 1.12 $* | 1.91 $* |
| Feb-18-2025 | 1.17 $* | 1.93 $* |
| Jan-18-2025 | 1.32 $* | 1.91 $* |
Характеристики

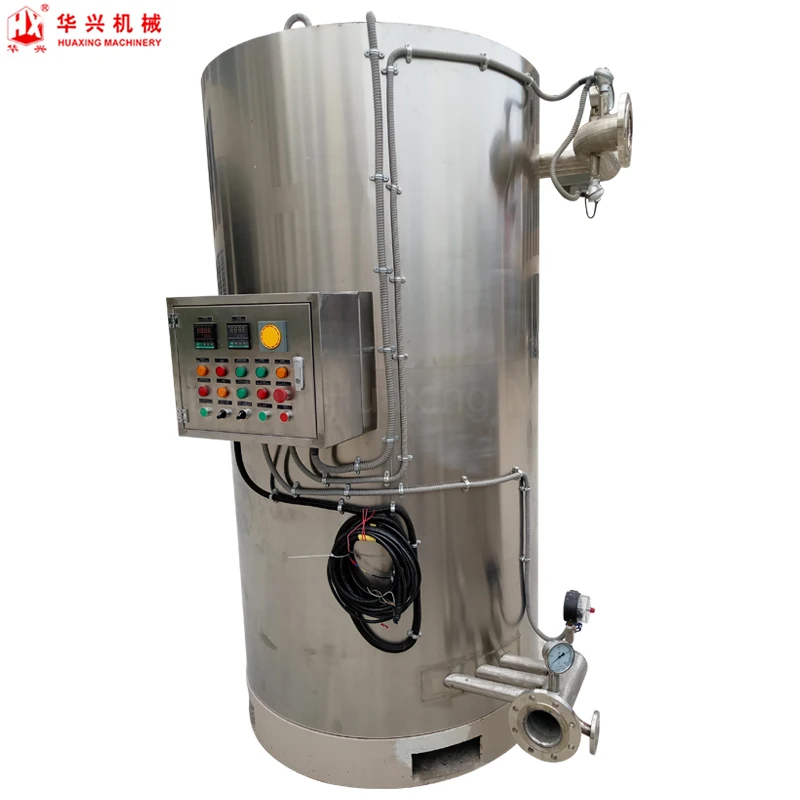

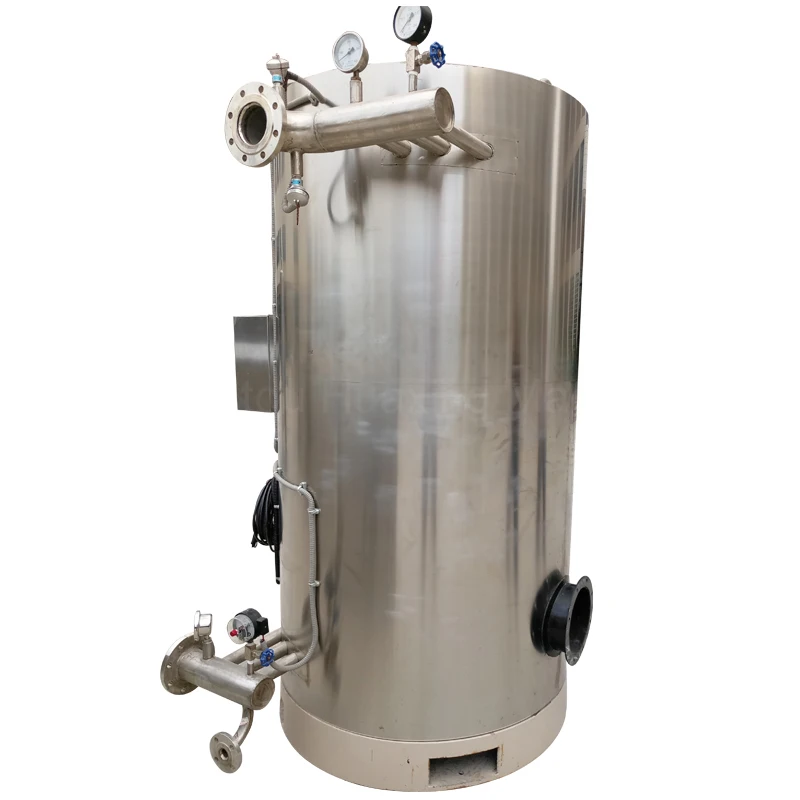

HX Series Auto Oil/gas Fired Heat Medium Boiler
Introduction:
The fuel of HX series auto oil/gas fired heat medium boiler is light oil or gas. The burner of boiler is the advanced burner in the world. The heat-transfer medium of the heat medium boiler is heat transfer oil, boiler make use of heat oil pump to coerce the heat-transfer medium into circulating, so supply the heat energy for user, whereafter, the heat-transfer medium return to boiler to heat up again.
This equipment is a sort of advanced supply heat energy equipment, which heat-transfer medium is liquid. So, it can get a high working temperature on the lower running pressure.
Main Technical Parameter:
| Model | HX(W) | HX(W) | HX(W) | HX(W) | |
| -235Y(Q) | -350Y(Q) | -500Y(Q) | -585Y(Q) | ||
| HEATING | KW | 235 | 350 | 500 | 585 |
| CAPACITY | 10 | 20 | 30 | 40 | 50 |
| Kal/h | |||||
| EFFICIENCY (%) | 82-85 | ||||
| WORKING PRESSURE | 0.7-1.0 | ||||
| (MPa) | |||||
| MAXIMUM WORKING | 300 | ||||
| TEMPERATURE | |||||
| (℃) | |||||
| VELOCITY | 2.0-3.0 | ||||
| OF FLOW | |||||
| (m/s) | |||||
| CAPABILITY OF | 0.12 | 0.16 | 0.18 | 0.25 | |
| BOILER PROPER | |||||
| (m3) | |||||
| FLOW CAPACITY | 12 | 20 | 25 | 30 | |
| (m3/h) | |||||
| INLET/OUTLET | 80 | 80 | 100 | 100 | |
| CALIBRE | |||||
| (DN) | |||||
| BOILER WEIGHT | 1.7 | 2.1 | 2.4 | 2.9 | |
| (t) | |||||
| CHIMNEY SIZE | 210 | 250 | 250 | 280 | |
| (mm) | |||||
Auxiliary Equipment:
1,Circulating-oil Pump
2,Expansion Tank
3,Oil Tank
4,Oil Feed Pump
5,“v”type Oil Filter:
6,Oil Separator
7,Safety Valve
Packing
Certificates
Company
Shantou Huaxing Machinery Factory Co., Ltd is a professional manufacturer for snack machinery.We started to produce the snack machines around 38 years ago.We have sold our machines to over 45 countries already. We have obtained ISO9001:2000 certificate. Some of machine ,we have abtained CE certificate.We welcome customers from all over the world to cooperate with us , if you are interested in any of our series, please do not hesitate to contact us of details. |
Our Service
Pre-sales service:
1. Related machines’s technical parameter supplied.
After sale service:
1. Training how to instal the machine, training how to use the machine. |
1.Are you a manufacturer or a trading company? |
