Product Description

Industrial finned tube air heating tubular heater

Electric Finned Tubular Air Heater Elements are constructed like basic tubular elements with the addition of continuous spiral fins, 4-5 per inch permanently furnace brazed to the sheath.Fins greatly increase surface area and permit faster hear transfer to air, resulting in lower surface element temperatures.

Description

finned tubular heaters provide rapid heat transfer for natural convection or forced air
space heating in industrial process air heating systems.
Finned tubular heaters start out as a standard tubular heater with the fins being attached
on a custom built finning machine.

Specification

\t Sheath material	\t SUS304,201,316,Incoloy 800,840 Titanium
\t Resistance	\t NiCr2080
\t Max temperature	\t 0-750°C
\t Max watt density	\t 2-10W/cm2
\t Max Volatge	\t 600VAC
\t Watt tolerance	\t +5%,-10%
\t Resistance tolerance	\t -10%,+5%
\t Min diametre	\t 6mm

\t TUBE MATERIAL	\t FIN MATERIAL	\t TUBE DIA. (MM)	\t FIN HEIGHT (MM)	\t FIN THICKNESS(MM)	\t FIN PITCH(MM)
\t SS304/316/ 321/Incoloy	\t SS304/316 /321/Incoloy	\t Φ6.7	\t 3-5	\t 0.3-0.4	\t 3-5
\t SS304/316/321/Incoloy	\t S.Steel / mild Steel	\t Φ8	\t 3-5	\t 0.3-0.4	\t 3-5
\t SS304/316/321/Incoloy	\t S.Steel / mild Steel	\t Φ9	\t 3-5	\t 0.3-0.4	\t 3-5
\t SS304/316/321/Incoloy	\t S.Steel / mild Steel	\t Φ10	\t 5-7	\t 0.3-0.4	\t 3-7
\t SS304/316/321/Incoloy	\t S.Steel / mild Steel	\t Φ12	\t 5-7	\t 0.3-0.4	\t 3-7
\t SS304/316/321/Incoloy	\t S.Steel / mild Steel	\t Φ14	\t 5-10	\t 0.3-0.4	\t 3-7
\t SS304/316/321/Incoloy	\t S.Steel / mild Steel	\t Φ16	\t 5-10	\t 0.3-0.4	\t 5-7
\t SS304/316/321/Incoloy	\t S.Steel / mild Steel	\t Φ20	\t 5-10	\t 0.3-0.4	\t 7-10

Drawings for Finned Tubular Heater

Detailed Image

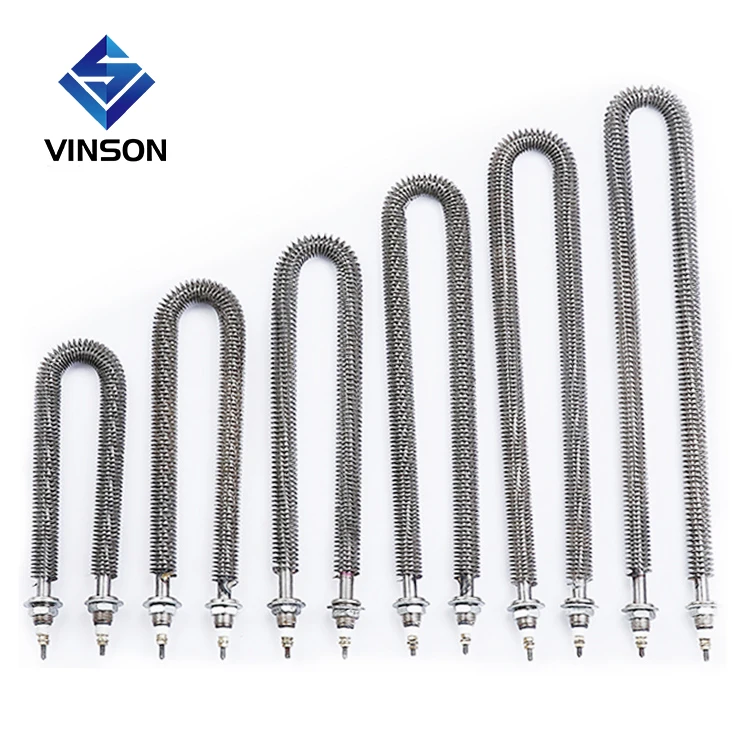

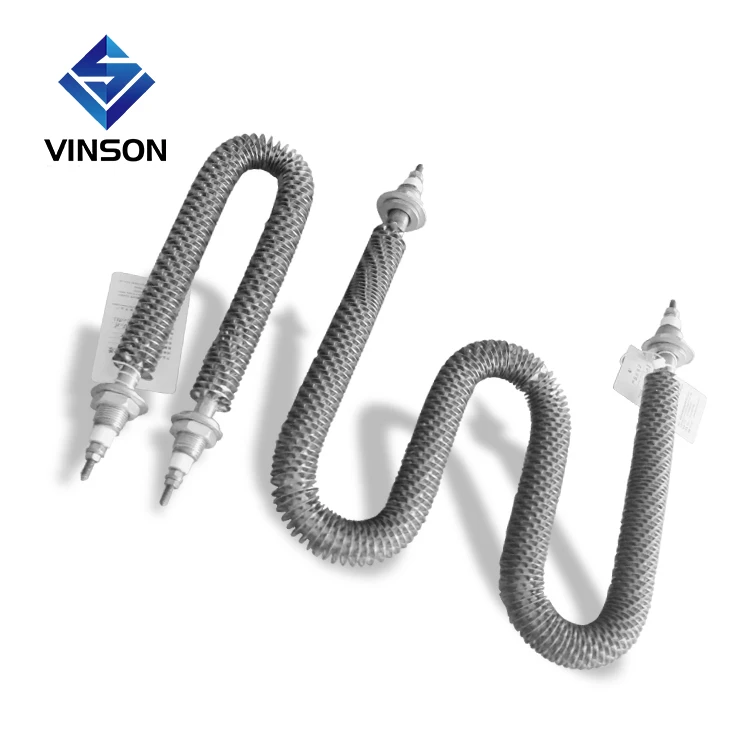

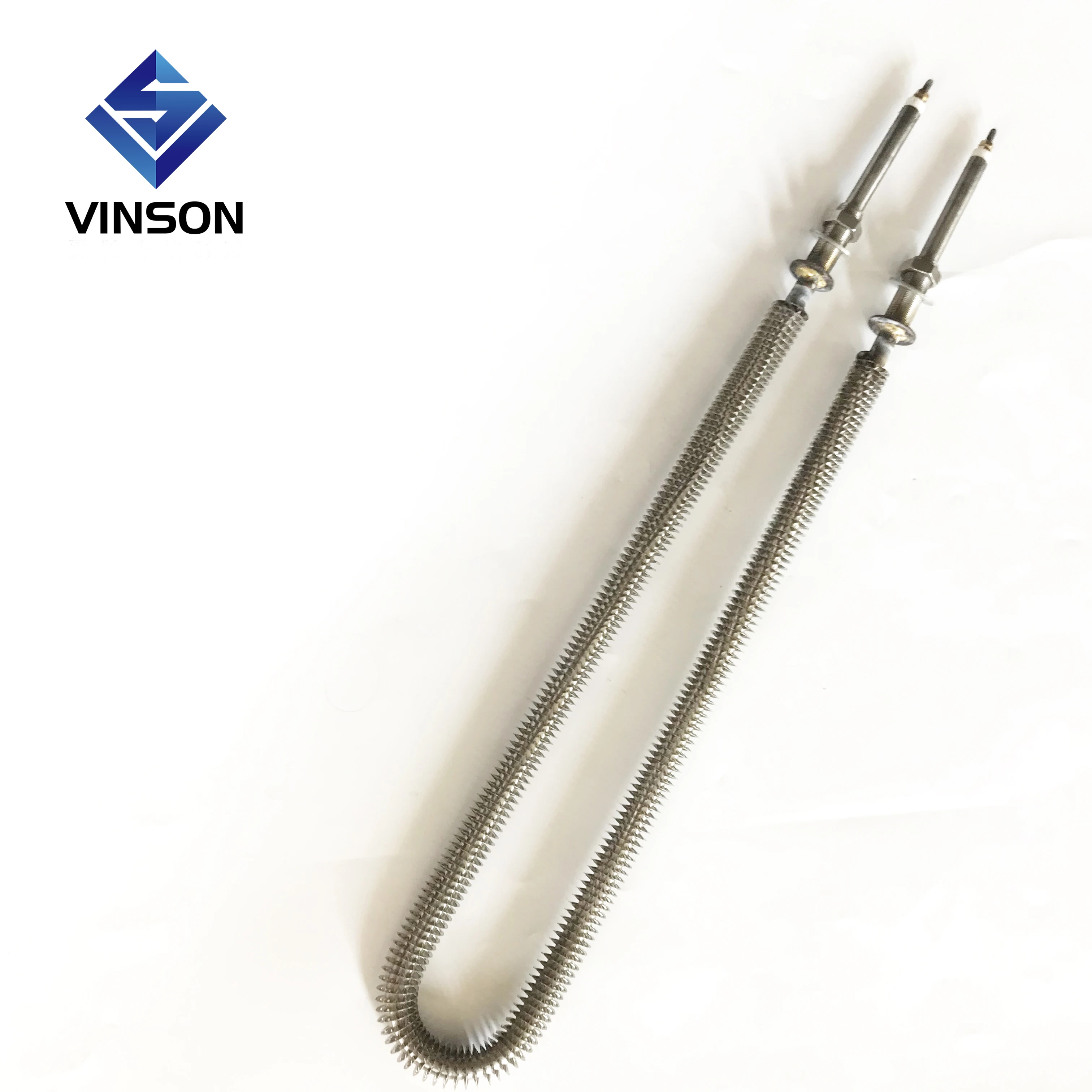

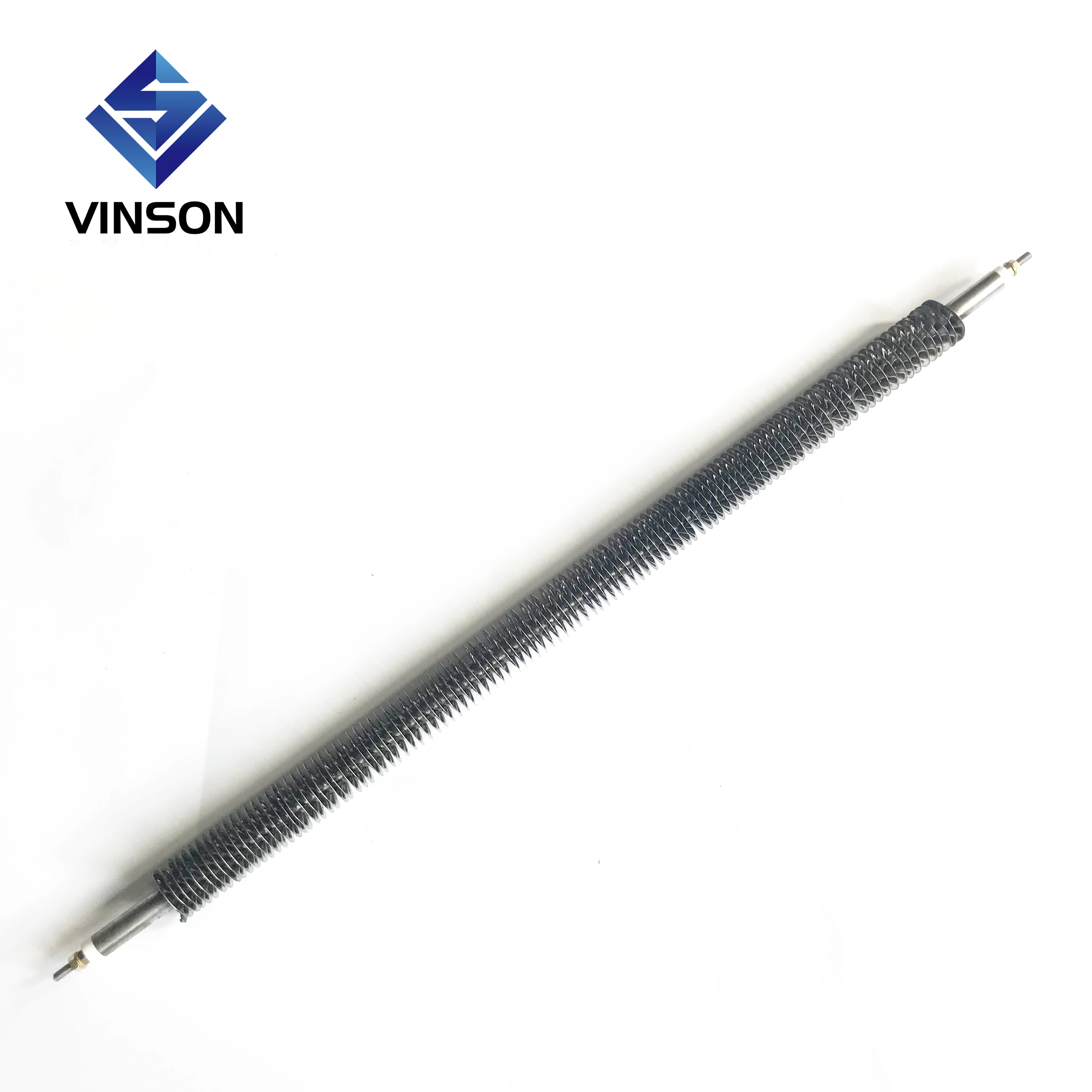

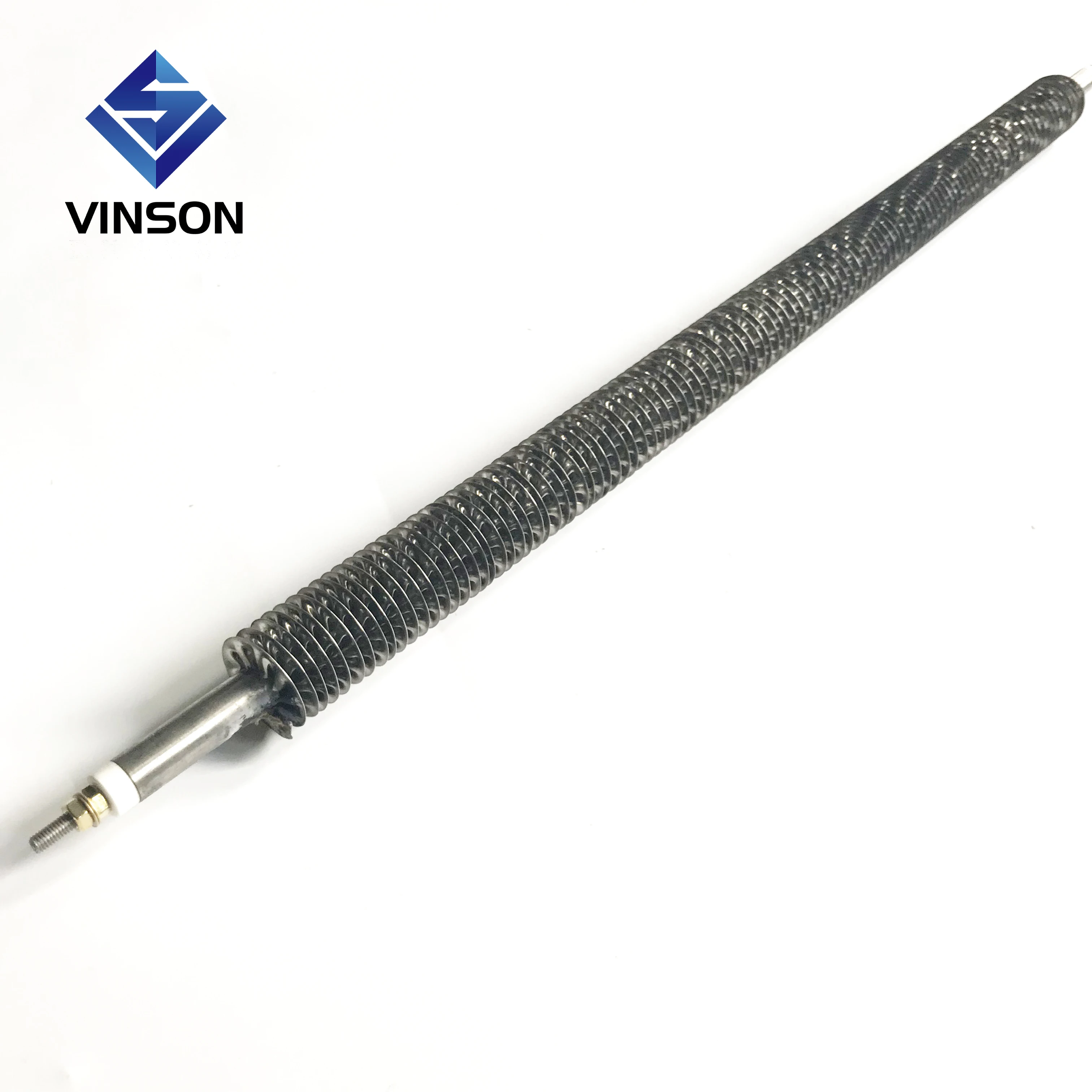

Electric finned tubular heater

1.Good sealing ,no pollution
2.Compacted with insulating MgO,heating faster
3.Virtually a limitless array of custom bend formation options, to include adapting heater element around space parameters – to maintain maximized efficient heating.

Applications for Electric Tubular Heater

* Forced air heating for dryers, ovens, ducts
* Still air heating for ovens, comfort heating
* Incubators
* Ink drying
* Load bank resistors

Main Features

1. Mild Steel sheath are suitable for operating temperature 500C;
2. Stainless steel sheath are suitable for operating temperature 700C;
3. Premium grade magnesium oxide insulation;
4. High temperature nickel chromium resistance wire;
5. Full brazed wound fin;
6. Standard and custom options available.

Tubular heater

Finner Heater

Cartridge heater

Order Guidance

When you order, please note the specifications as following:

1. Drawing if have
2. Power,voltage,shape
3. Working temperature
4. Material requirement
5. Screw size if have
6. Quantity
Please kindly note that we could do any customized type for you.

Packing & Delivery

\t Packaging
\t Size	\t 40(L) * 28 (W) * 28 (D)
\t Weight	\t 20KG of Industrial finned tube air heating tubular heater
\t Packaging Details	\t The normal package is Carton(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
