The pneumatic NC servo feeder is a loose cam set connected to the punching machine (the traditional punching machine does not have a cam to add a cam plate), and the releasing cam of the punching machine provides a releasing signal to the feeder solenoid valve (the conventional punching machine is equipped with a proximity switch). Controlling the releasing cylinder via the solenoid valve (or proximity switch) to push the upper roller to achieve the releasing action, the releasing action is relatively slow, but the advantage is that it can be matched with various machine tools (including punching machine, shearing machine, hydraulic drawing press, forming machine, laser cutting machine). ), a wide range of applications.

The mechanical NC servo feeder needs to be equipped with a loosening rod device on the punching cam. When the punching press is pressed, the roller is pressed down to loosen the bearing to realize the synchronous releasing of the upper roller of the feeding machine. Since the mechanical NC servo feeder is installed with an auxiliary device on the punch slider, there is a certain limit on the size and model of the matching punch. Thanks to the fast releasing of the mechanical NC servo feeder, it is ideal for short-space, high-speed applications, as well as with traditional punching machines.

1.The mechanical NC servo feeder

2.The pneumatic NC servo feeder

 Thickness of Material:2.2mm-6.0mm  Thick Plate Series NC Servo Feeder

High Speed Double Servo Feeder

Feed Speed/MAX (m/min):60m/min

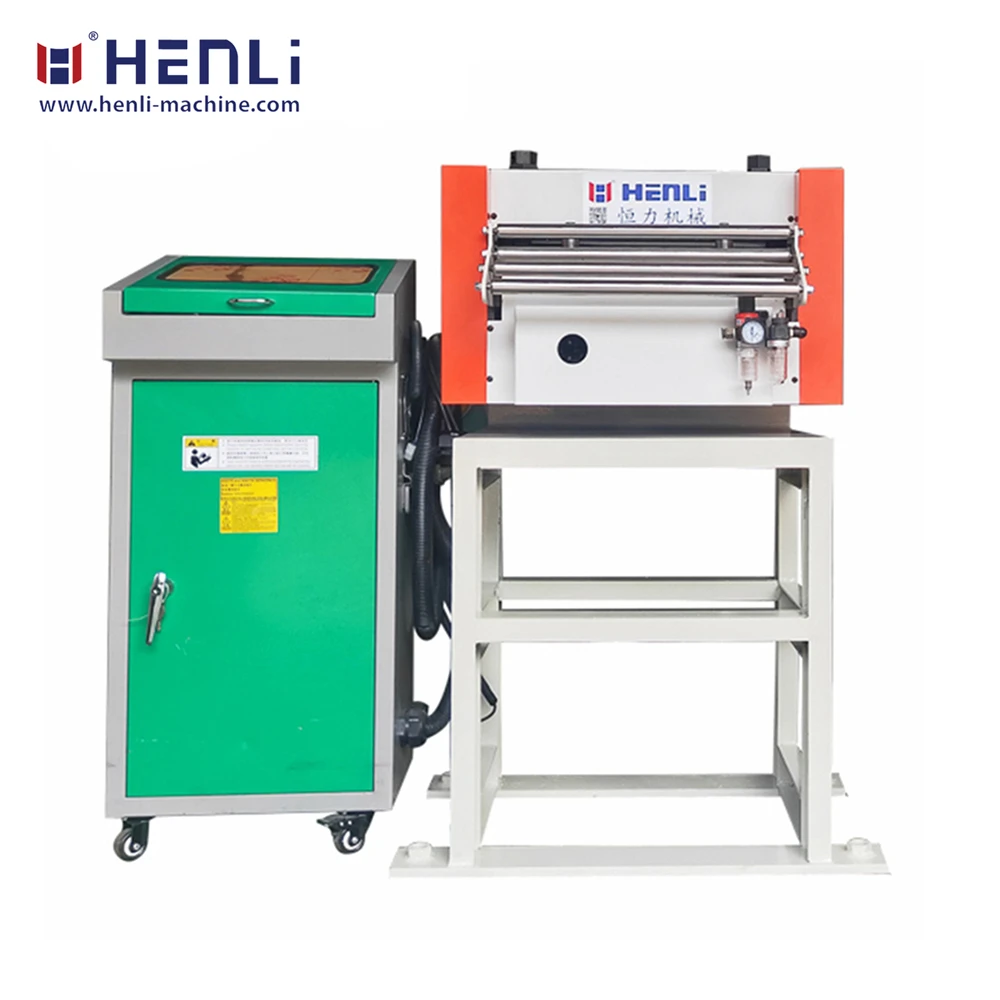

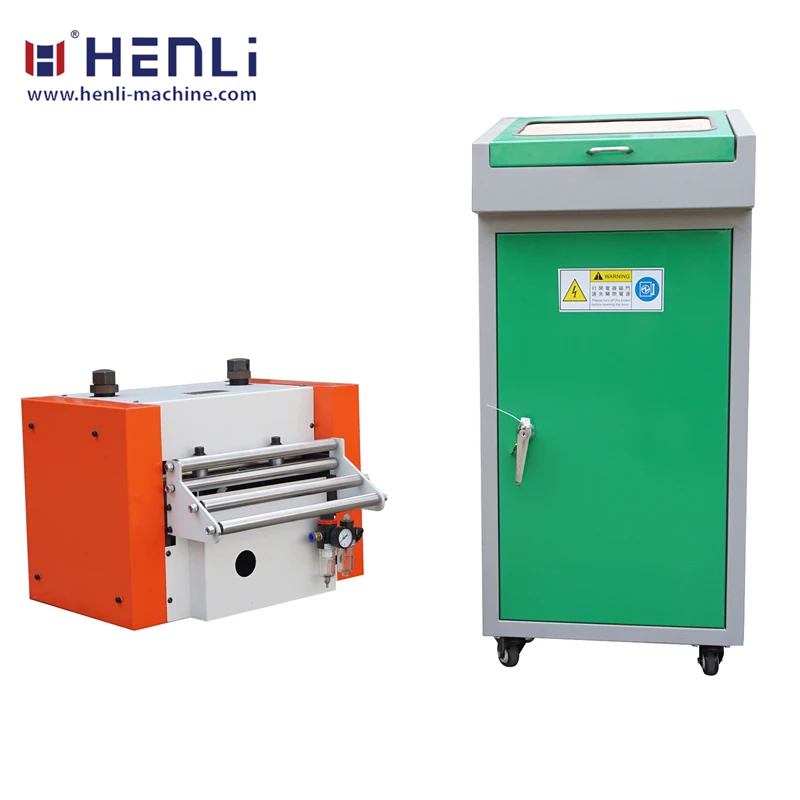

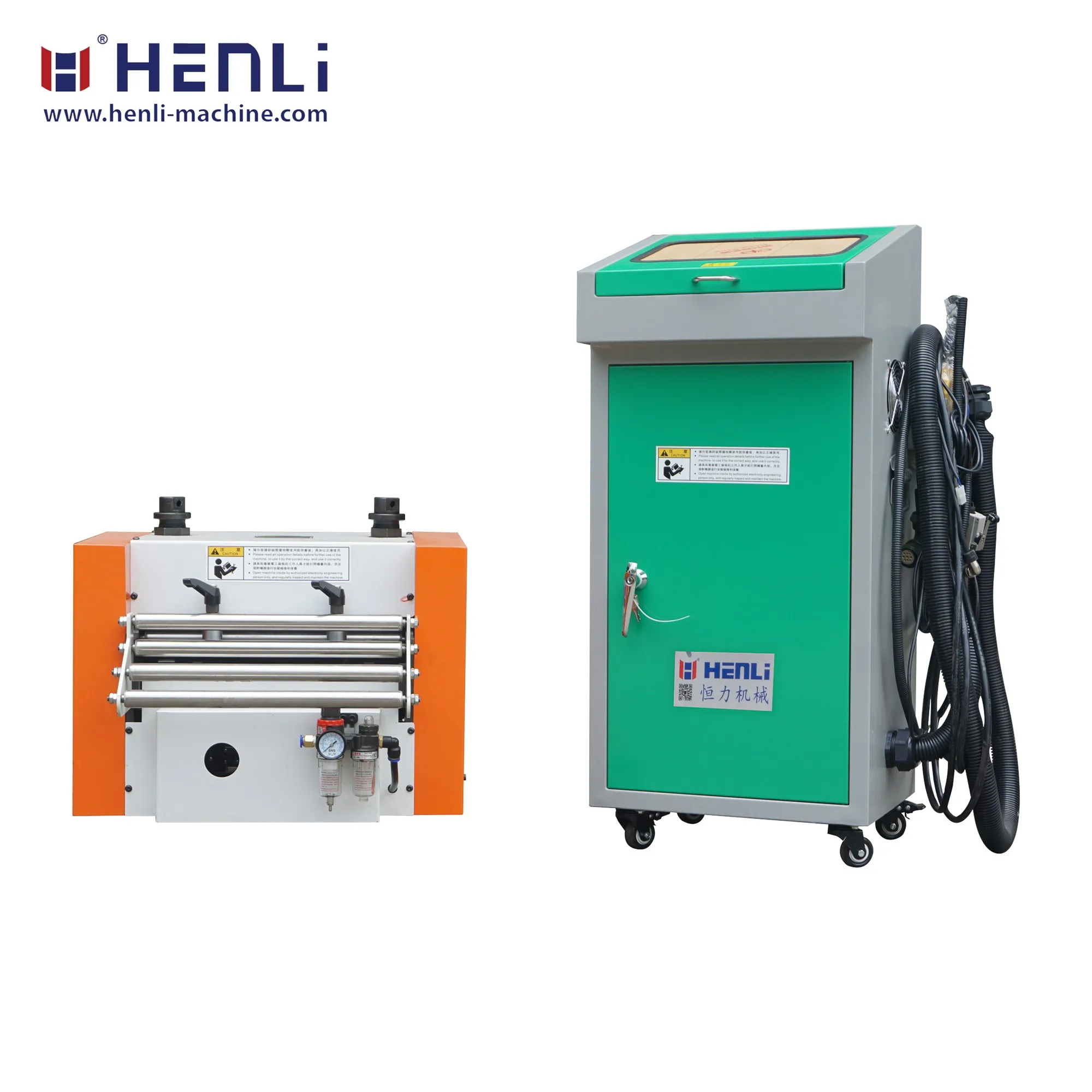

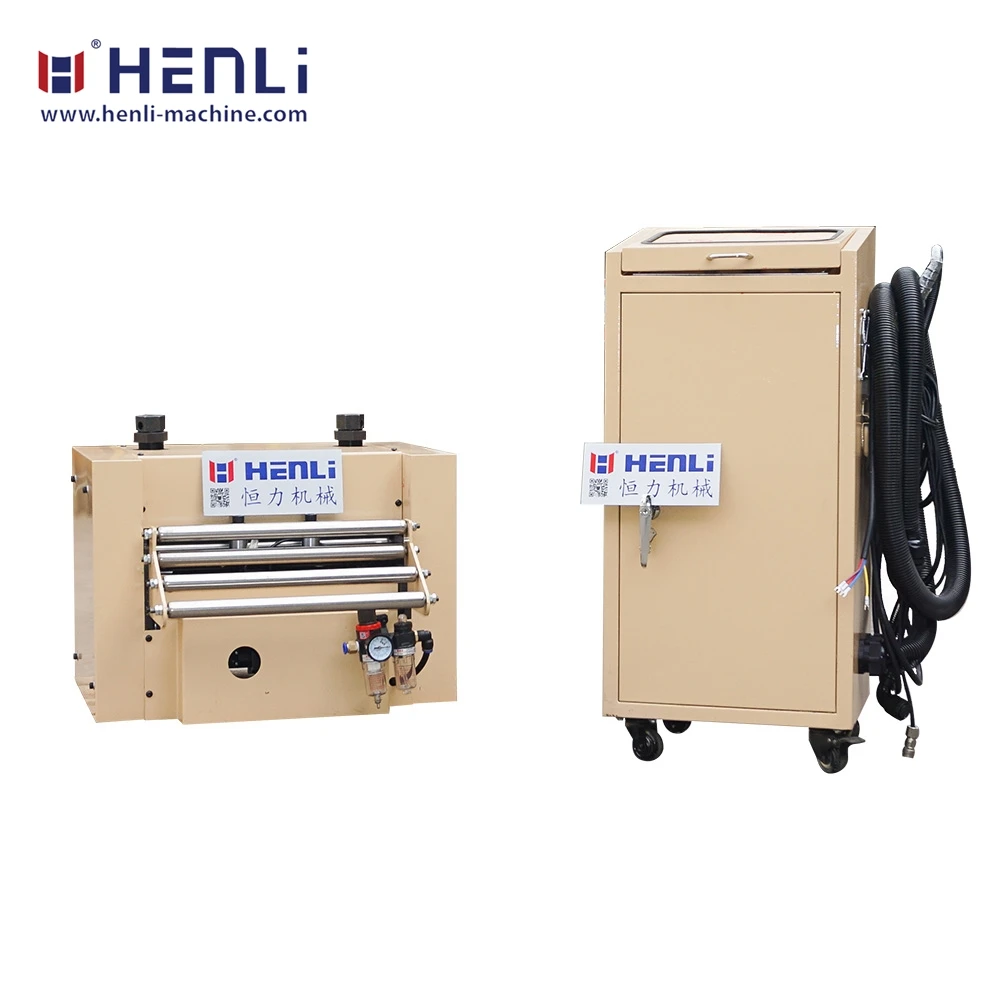

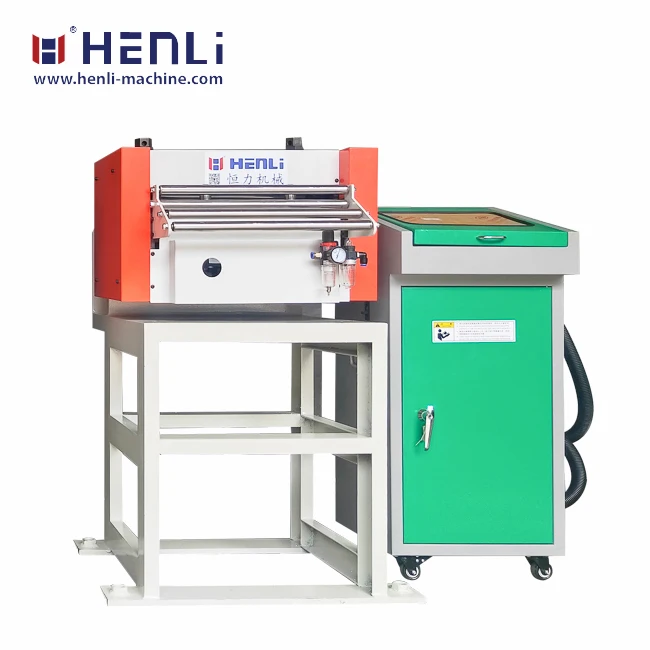

Characteristic of NC Servo Feeder

1. Suitable for various coils material feeding of stamping production;
2.Adopt?high efficiency Japan’s NC servo motor ,control feeding length with high accuracy feeding and easy for setting.
3.Human-machine interface(HMI):In order to easy to operation,adopt touch man machine interface to control feeding easily.
4.Adopt Mitsubishi PLC control system to make the machine run more stable and high efficient production.
5.More conveniently is equipped with a handle control.Specific function can let the material manual forward and reverse,but also used in manual state to test mode and test punching, combined with punching machine can realize fully automatic production without manual operation.
6.Equipped with automatic relaxation function can eliminate various cumulative errors and other factors that occur during continuous production, causing damage to the mold.
7. Simple design structure,easy to maintenance and management,high safety.
8.All roller is hard-chromed after heat treatment, high precision and durable,with long service life.
9.The feeding height can be adjust to suit for various size mold production.

Optional device
1.Speed adjustment;
2.Automatic lubricator system

Parameters
