Машина для выдувания бутылок

Категория: Stretch Blow Moulding Machines >>>
Поставщик: Zhengzhou,Megaplant,Imp.,&,Exp.,Co.,Ltd.

Цена:3 950,00 $ - 4 790,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	4701.45 $*	4936.11 $*
Aug-19-2025	4661.52 $*	4894.29 $*
Jul-19-2025	3911.84 $*	4107.89 $*
Jun-19-2025	4582.85 $*	4811.2 $*
May-19-2025	3990.32 $*	4190.69 $*
Apr-19-2025	4503.40 $*	4728.38 $*
Mar-19-2025	4464.81 $*	4687.32 $*
Feb-19-2025	4424.40 $*	4645.9 $*
Jan-19-2025	4385.40 $*	4604.90 $*

Характеристики

bottle blowing machine semi automatic

bottle blowing machine semi automatic

Product Description

1. Using the new clamping system with double crank four tie-bars,the cross balanced fixed glide.

2. The seal,the stretch use the parallel bars union and combined design,which is advantageous to the product formation.

3. The advanced air course design,the single-channel or single-channel air admission;low pressure for clamping,sealing and stretching;the high pressre for blowing the bottle.

4. PLC control system,the operaton is easy.

5. With infrared heating,controllable constant pressure control,frequency conversion,thus achieves blows the perfect bottle.

Specification

Item	Unit	MG-PB01	MG-PB02
Number of cavity	cavity	1	2/3
Theoretical Output	pcs/hr	90	1000/500
Max.container volume	L	20	20L
Max.neck diameter	mm	200	90/120
Max.container diameter	mm	300	110/150
Max.container height	mm	520	340
Mould Thickness	mm	260-410	100-180
Mould Stroke	mm	330	170
Heat Lamp Amount	pcs	32	28
Max.heating power	kw	25.6	14
Power of Main Blower	kw	26	14.5
Actual power consumption	kw	16-20kw	6-8kw
Working Pressure	Mpa	0.8	0.8
Low pressure consuming	Ltr/min	600	400
Blowing pressure	Mpa	3.5	3
High pressure consuming	Ltr/min	600	400
Measurement of Main Blower	mm	23007501860	16506101550
Measurement of elevator	mm	22807001630	21806001380
Weight of Main Blower	kg	800	800

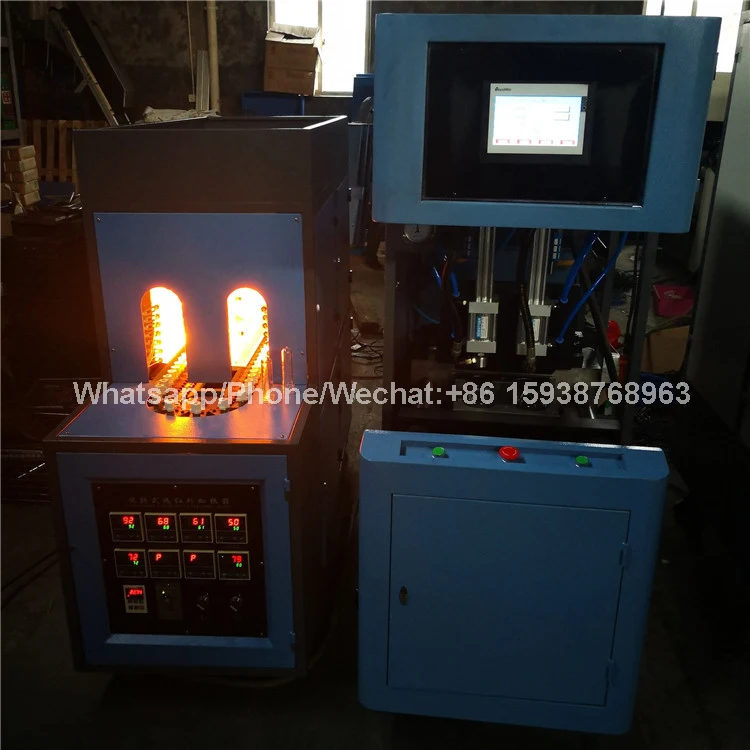

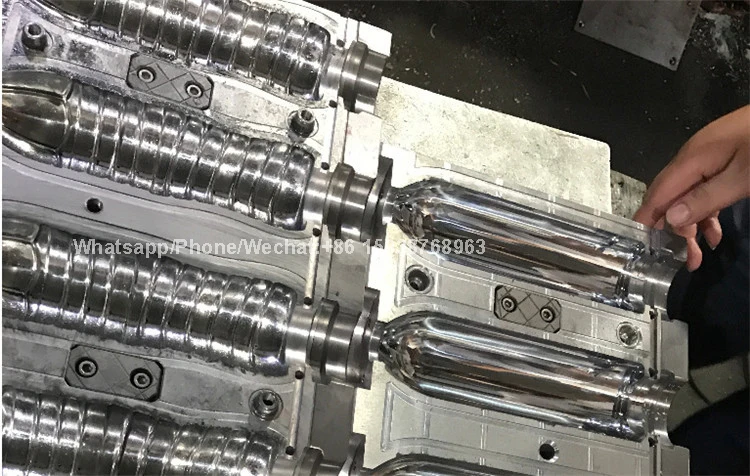

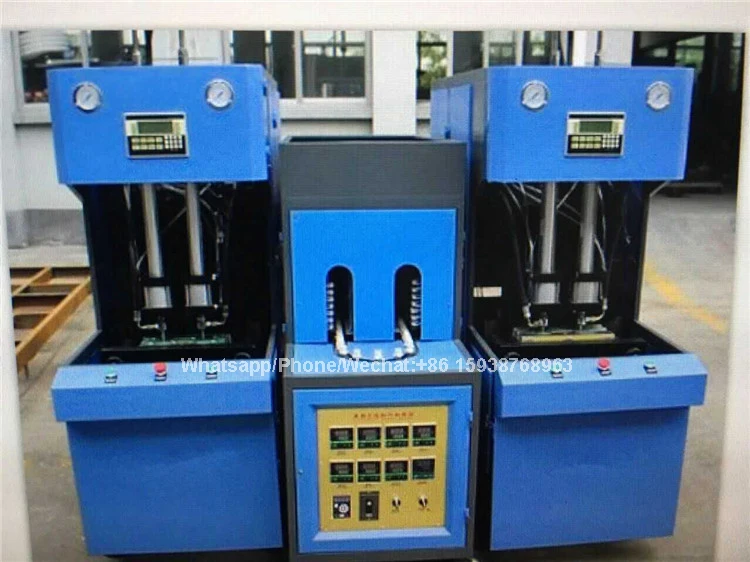

Detailed Images

Packaging & Shipping

Packaging: Wooden Crate or Pallet or bare package in standard containers for export;

bottle blowing machine semi automatic

Shipping: All machines will be sent by sea, if you need other kind of transportation, please inform us in advance.

And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.
