VSS-02-2K DC5-24V программные приложения Wifi WS2812B WS2811 пикселей светодиодные полосы
- Категория: Dimmers >>>
- Поставщик: Shenzhen,Vss,Winline,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 36.69 $* | 38.65 $* |
| Aug-17-2025 | 35.63 $* | 37.1 $* |
| Jul-17-2025 | 30.7 $* | 32.40 $* |
| Jun-17-2025 | 35.67 $* | 37.6 $* |
| May-17-2025 | 30.27 $* | 32.59 $* |
| Apr-17-2025 | 34.53 $* | 36.6 $* |
| Mar-17-2025 | 34.31 $* | 36.10 $* |
| Feb-17-2025 | 34.25 $* | 36.69 $* |
| Jan-17-2025 | 33.1 $* | 35.60 $* |
Характеристики
Product Description
LED WIFI Controller (Model: VSS-02-2K)
Size | L120*W70*H24mm | Input voltage | DC7-24V | ||
Number of pixels | 2000 pixel *2 | Speed Control | 32 adjustable | ||
Effect | 252 | Memory | Automatic memory function | ||
RGB sequence | Arbitrarily set | Synchronous mode | 485 cascade synchronzation | ||
Control mode | APP | Music control | Environment music | ||
Support chip | TM1804 / TM1804B / TM1809 / TM1812 / TM1923 / TM1934 / TM1913 / TM1926 / TM1826 / TM1829 / TM1914 / TM1914A / TM1916 / TM1918 / TM1814-RGBW / UCS1903B / UCS1903N / UCS1909B / UCS1912B / UCS2909B / UCS2912B / UCS2903B / UCS2904B-RGBW / WS2801 / WS2811 / WS2812 / GS8205 / GS8206 / SM16703 / SM16703P / SM16704P / SM16704PB / SM16709P / SM16712P / INK1002 / INK1003 / LX1203 / LX1603 / LPD6803 / LPD8806 / APA-102 / P9813 / P9823 / INK1504 | ||||
1.The phone WIFI-APP can be controller .(android system)
2.Built-in 252 kinds of patterns and voice control patterns (environmental sound control) can be played in any combination.
3.The controller 2 sets the port output, each group drives 2000 pixels, maximum drive 4000 pixels and the playback speed can reach 30 frames/second .
4.Multiple online control, 485 cascade synchronization.
5.The speed is level 32 adjustment.
6.The led sequence can be set arbitrarily.
7.With parameter automatic memory function.
8.Support for audio plugs.
Specification: L120*W70*H24mm
Package: L122*W75*H32mm
Weight: 0.2KG

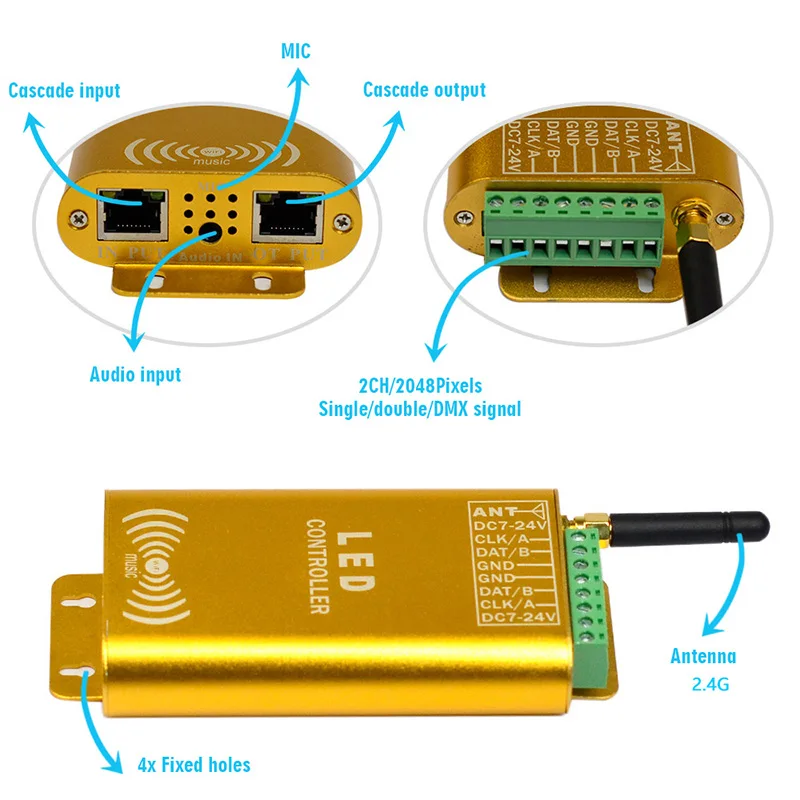

ANT: Signal
DC7-24V: Positive electrode (Input )
CLK/A: clock
DAT/B: Data
GND: Negative electrode
Detailed Images

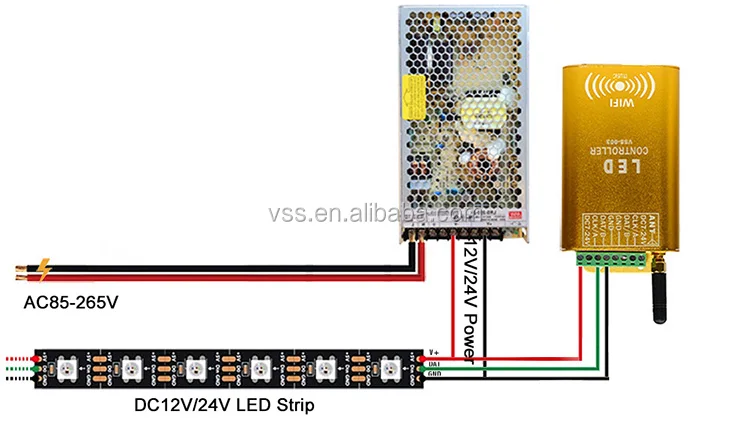

Connection method
Operational way
