SF703 автоматическая машина для фаски деревянных поддонов на
- Категория: Другое деревообрабатывающее оборудование >>>
- Поставщик: Qingdao,High-Class,Service,Import,&,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 10710.33 $* | 11246.63 $* |
| Aug-19-2025 | 10620.48 $* | 11151.52 $* |
| Jul-19-2025 | 8910.44 $* | 9356.12 $* |
| Jun-19-2025 | 10440.55 $* | 10962.61 $* |
| May-19-2025 | 9090.11 $* | 9545.42 $* |
| Apr-19-2025 | 10260.42 $* | 10773.66 $* |
| Mar-19-2025 | 10170.42 $* | 10679.16 $* |
| Feb-19-2025 | 10080.32 $* | 10584.12 $* |
| Jan-19-2025 | 9990.58 $* | 10490.44 $* |
Характеристики
Product Description

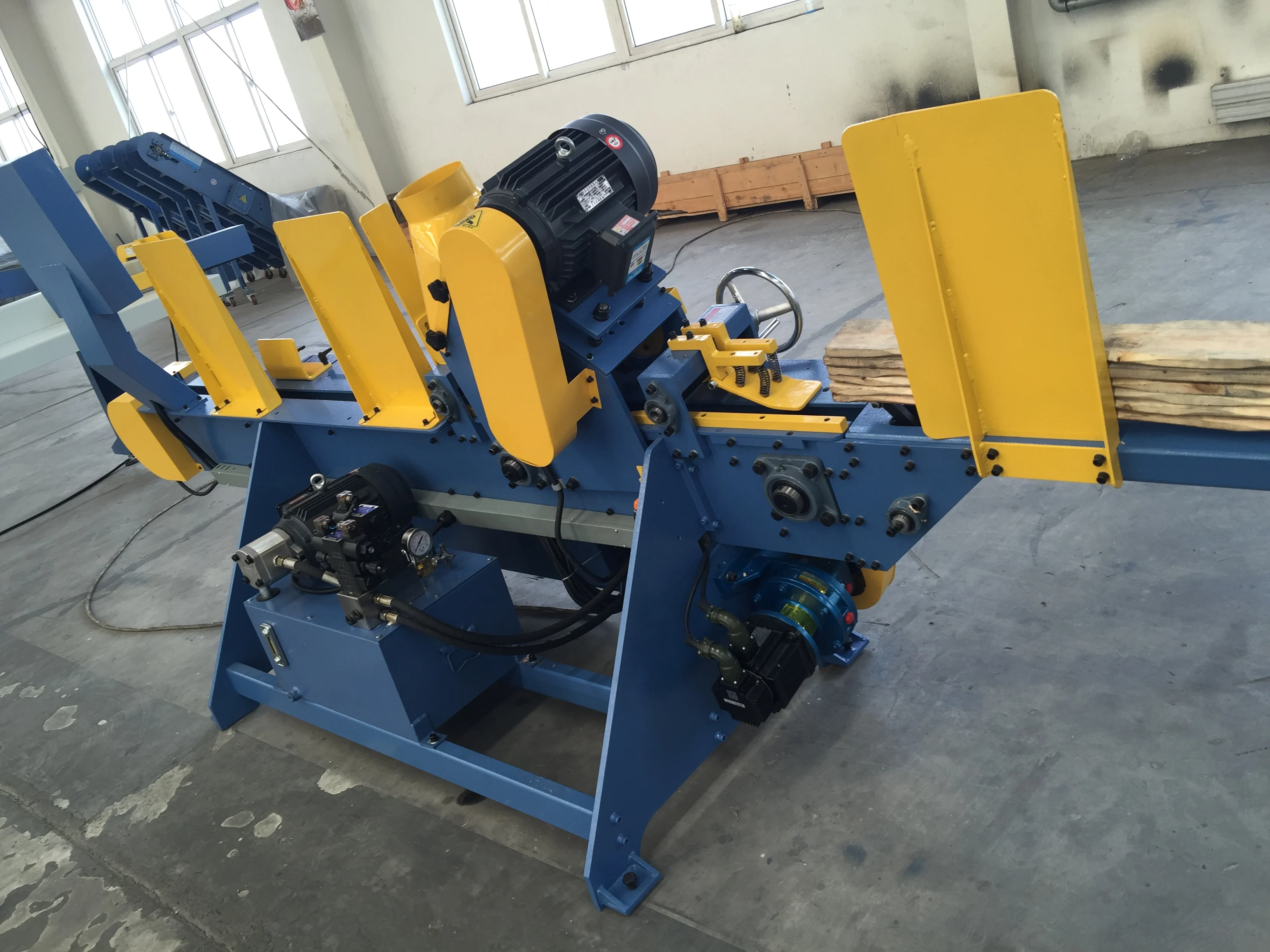

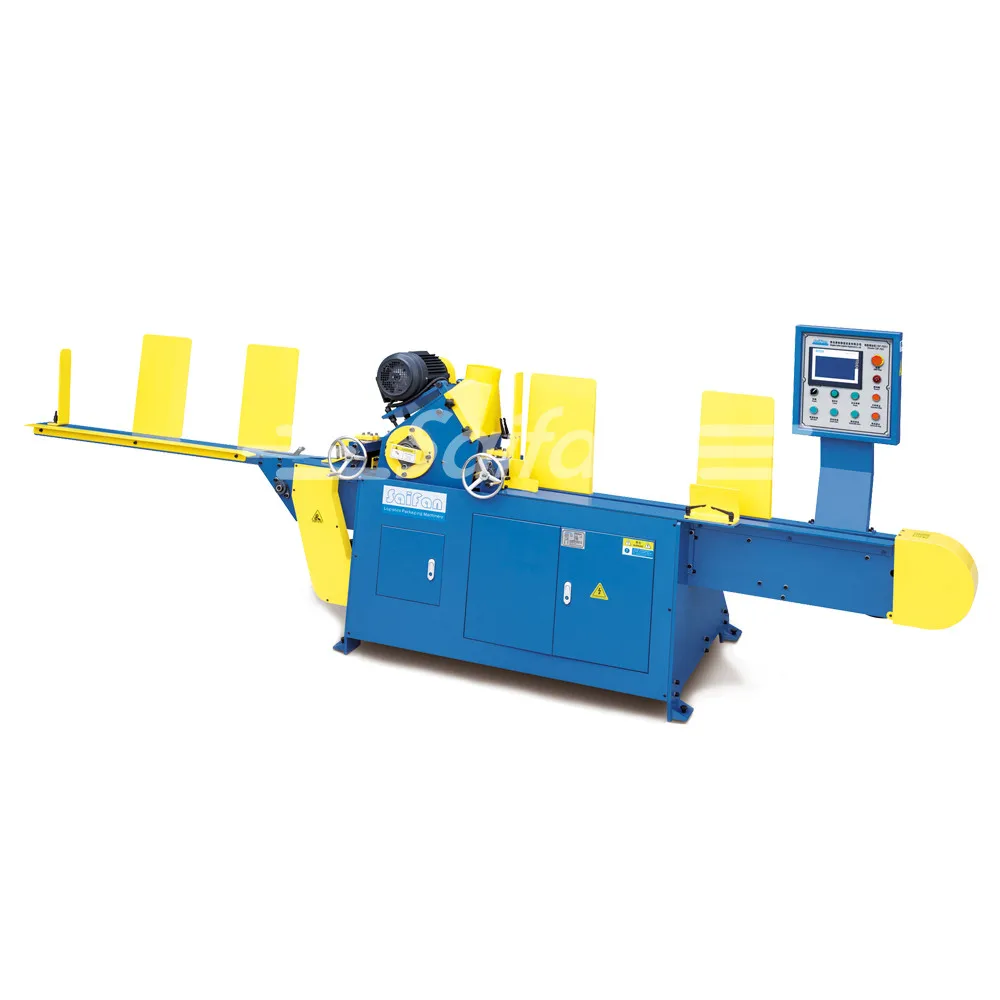

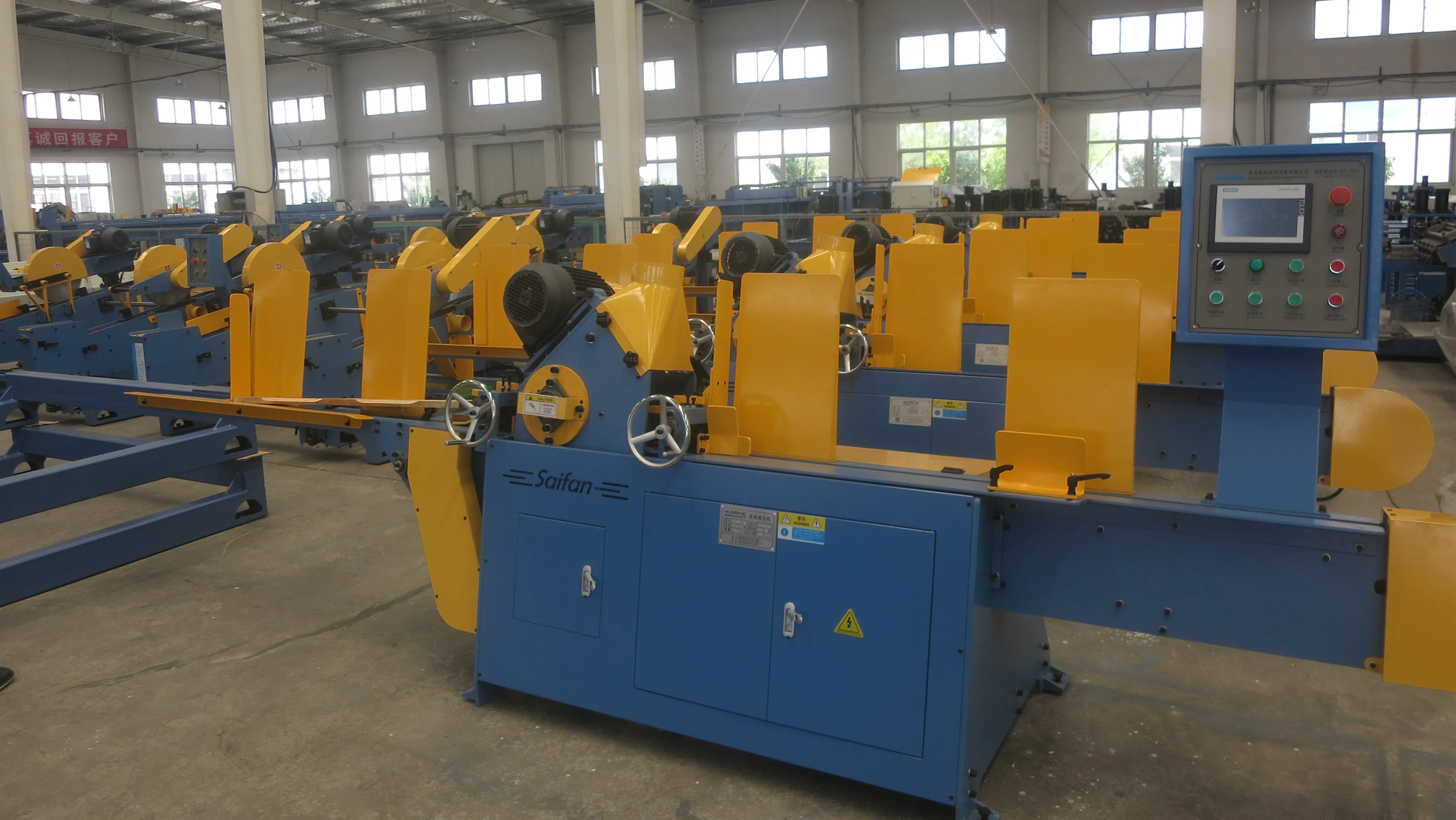

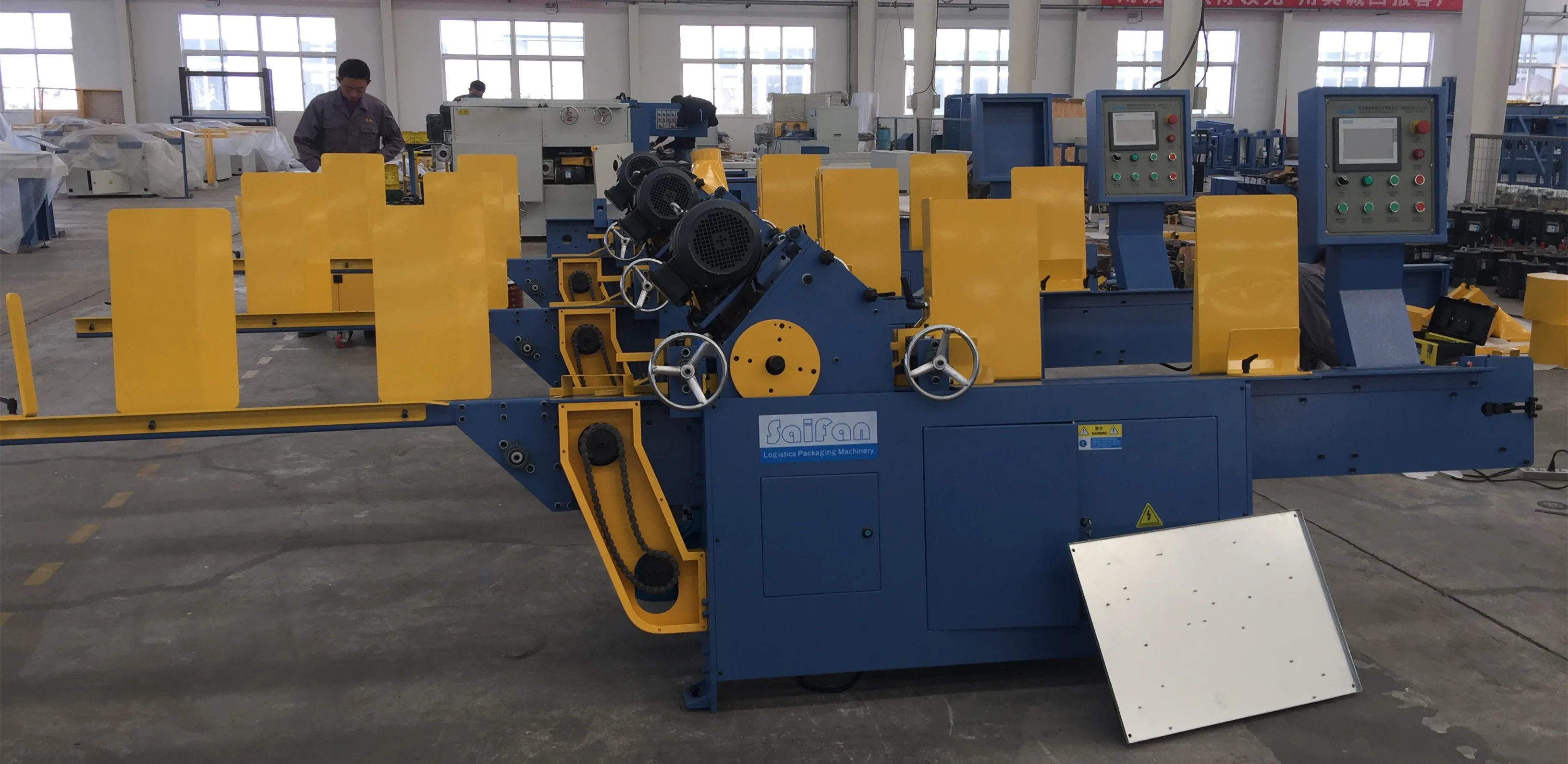

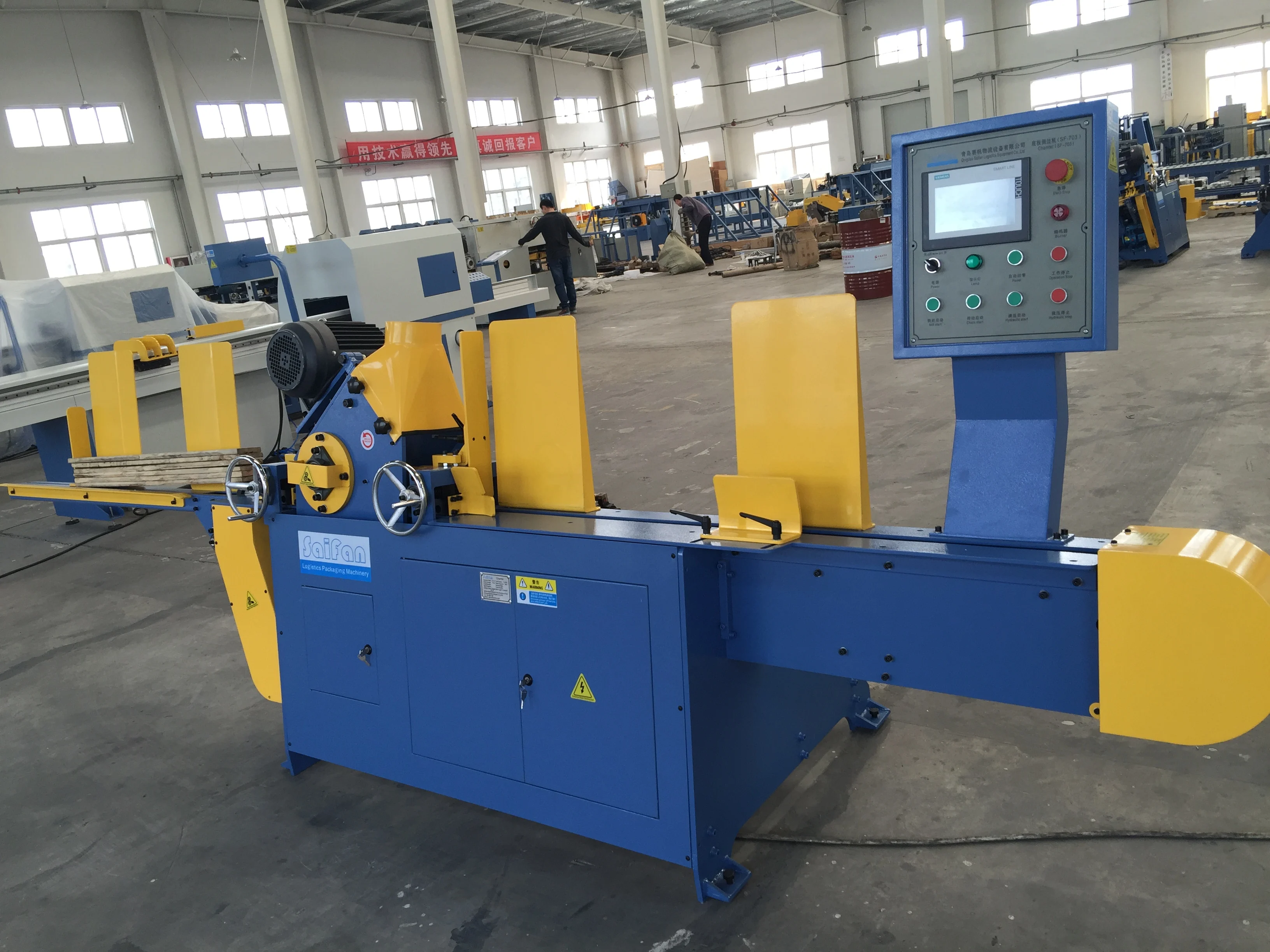

SF703 Wood pallet chamfer machine
Application:Make chamfer on deck board, automatically chamfer two sides, the chamfer size and location is adjustable. Our chamfer is PLC and servo control, thus the chamfer dimension is adjustable. And hydraulic system, more stable.
Model | SF703 |
Cutting motor | 4kw |
Convey servo motor | 1kw |
Hydraulic motor | 2.2kw |
Total motor | 7.2kw |
Voltage | 380v 50Hz 3phase |
Cutter type | 45° V milling cutter, left and right |
Working length | 600-1500mm |
Working thickness | 17-35mm |
Working width | 80-150mm |
Productivity | 500-700pc/h |
Hydraulic pressure | 0.4-0.5Mpa |
Control system | Siemens |
Machine dimension | 4450*800*1400mm |
Packing dimension | 3220*920*1760mm |
Machine weight | 1040kg |
Dust collection port | 150mm*1pc |
Detailed Images

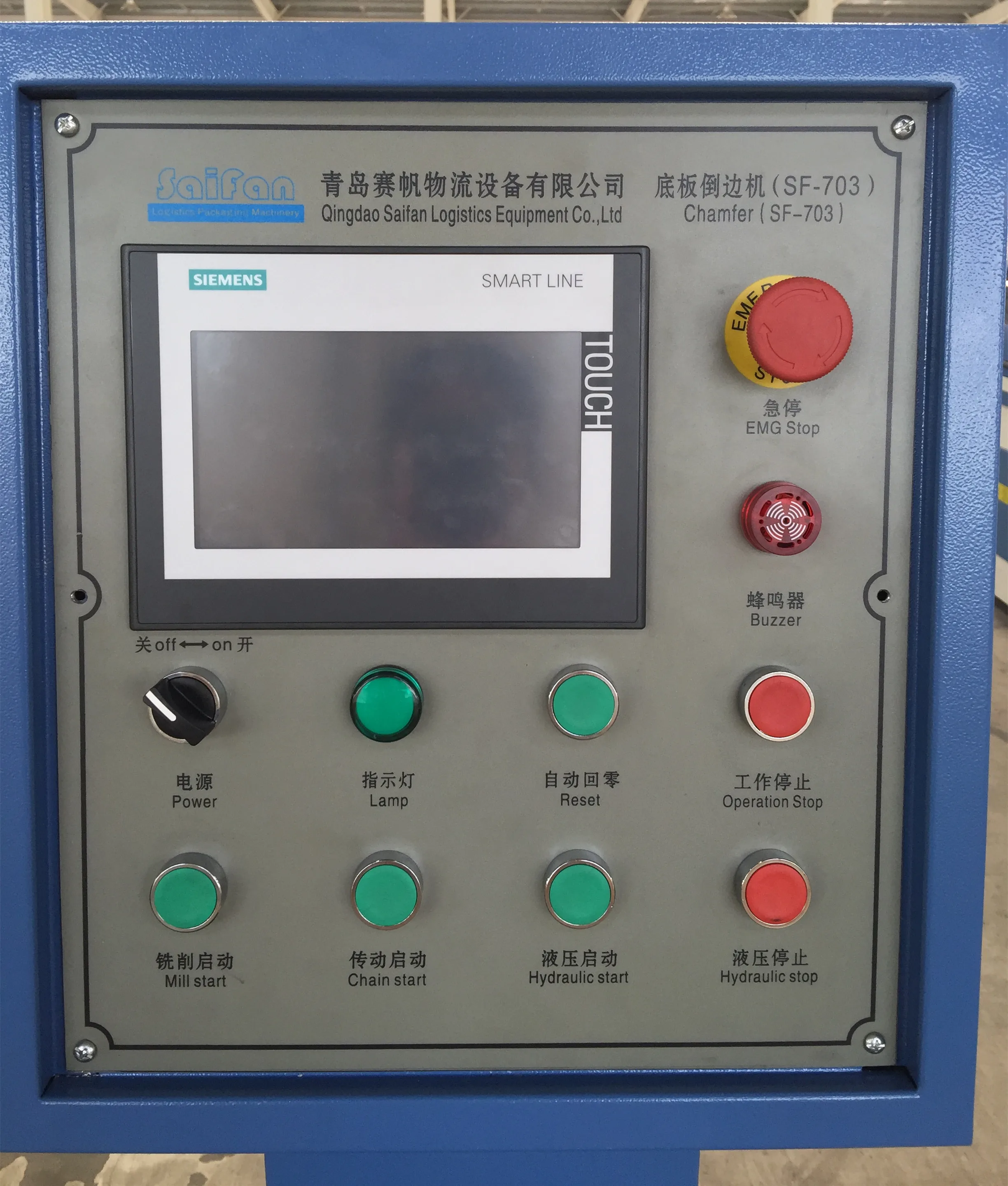

Control panel, it contains chamfer program, input parameters from the Siemens PLC touch screen, can edit the chamfer size and location, and speed.
Milling cutter, two piece left and right, it’s a special cutter, need to customize from cutter supplier, we can supply you cutter drawing.
Product packaging
Packing, nailless plywood packing box ensure safety on the road, and easy open for buyers.
