Мировым брендом мокрым сцеплением JH21-100 C рамка механический пресс для

Мировым брендом мокрым сцеплением JH21-100 C рамка механический пресс для

Категория: Станочное оборудование >>>
Поставщик: Shanghai,Yingxin,World,Machinery,Co.,Ltd.

Цена:743 271,00 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-19-2025	943954.90 $*	962833.47 $*
Jul-19-2025	765569.34 $*	780880.46 $*
Jun-19-2025	929089.16 $*	947671.69 $*
May-19-2025	921656.52 $*	940089.34 $*
Apr-19-2025	735838.20 $*	750555.85 $*
Mar-19-2025	906791.47 $*	924927.3 $*
Feb-19-2025	899358.82 $*	917345.8 $*
Jan-19-2025	891925.42 $*	909764.83 $*

Характеристики

Product Description

As a kind of general punching machine, C frame mechanical power press including single crank press or double crank press, mechanical clutch press or pneumatic clutch press, capacity range from 25ton to 400ton. No matter what stamping parts you produce, hard wares, tools, aluminum circles, auto parts, electric parts, home appliance parts, or mobile phone parts, you can find one or two models punching press here

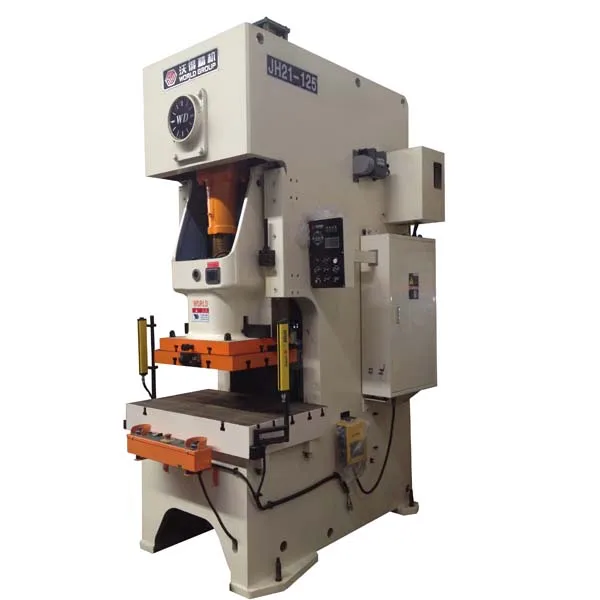

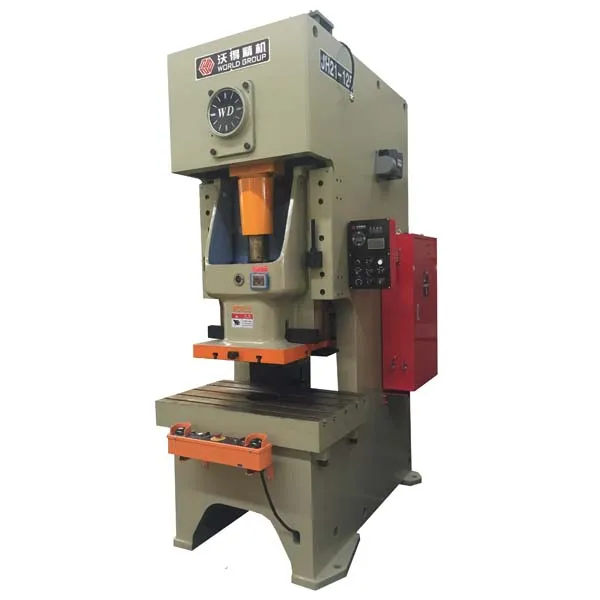

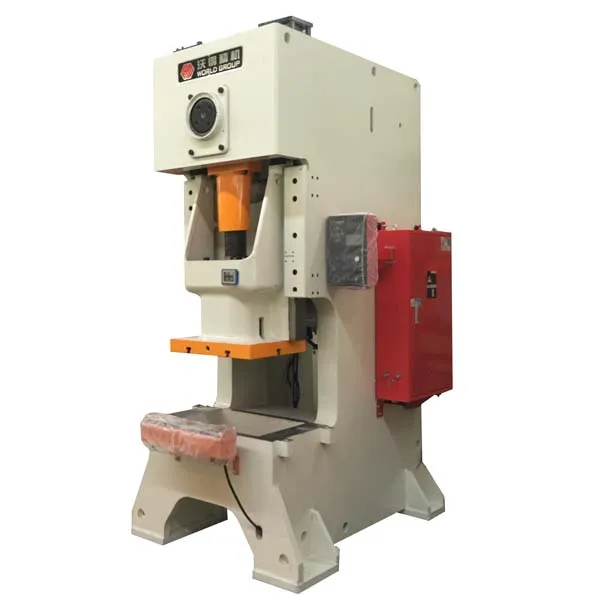

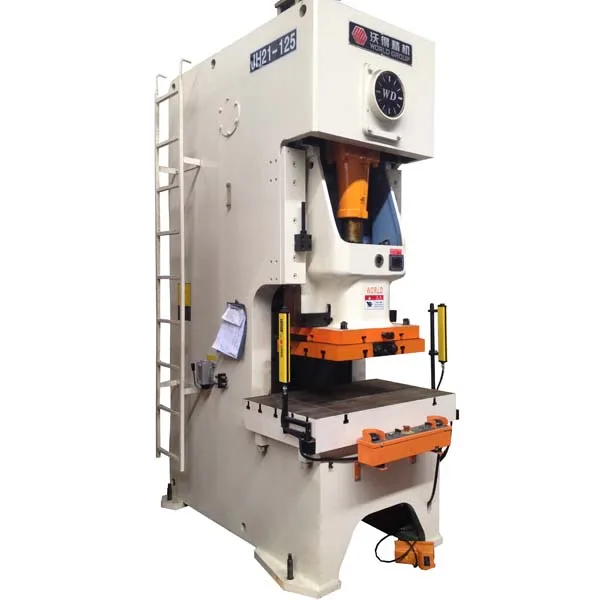

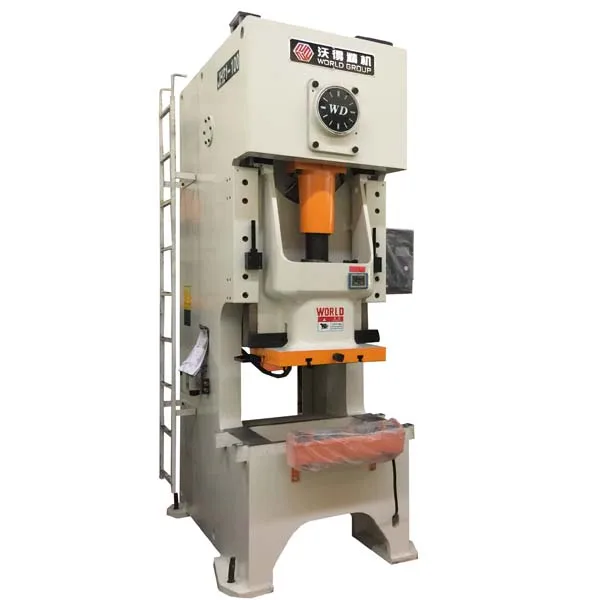

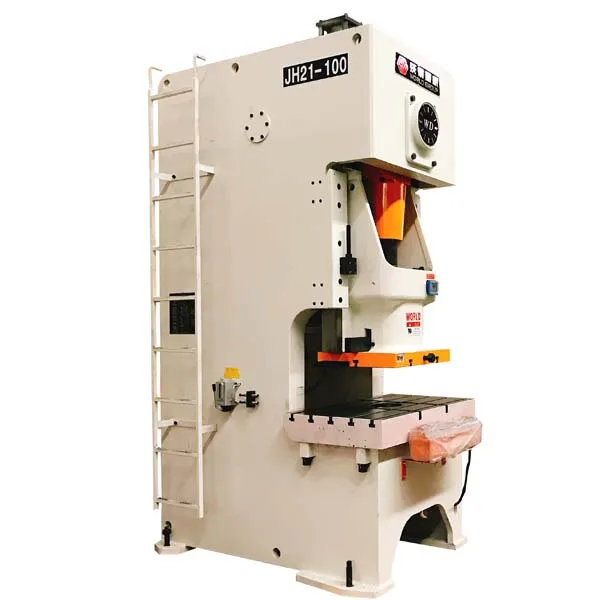

World brand wet clutch JH21-100 C frame power press for sale
Item		Unit	JH21-25	JH21-45	JH21-60	JH21-80	JH21-100
Nominal capacity		KN	250	450	600	800	1000
Slide stroke		mm	80	120	140	160	160
Stroke speed	Fixed	spm	100	80	70	60	55
Stroke speed	Variable	spm	60-120	50-90	45-85	40-75	35-65
Max die set height		mm	250	270	300	320	350
Die shut height adjustment		mm	50	60	70	80	90
Throat Depth		mm	210	225	270	310	330
Bolster Size		mm	720X400	825X440	930X520	950X600	1060X640
Slide Bottom Size		mm	360X250	400X340	480X400	540X460	620X520
Motor Power		Kw	3	5.5	5.5	7.5	7.5
Weight(approximate)		Kg	2450	3550	5150	6450	8650

Features:

1. High quality steel welded body, all processed by tempering and shot blasting. with good rigidity and stable precision;

2. Longitudinally set bent axle, with compact structure, and the bent axle is processed by rolling, with good smoothness and flexible rotation; rectangle six-face lengthened guide rail, the guide surface is bronze panel and with high guiding precision;

3. Air operated double balance cylinder, the balance sliding block and upper die weight can reduce the impact and noise, eliminate the gap between the connecting rod and the sliding block, reduce the impact and abrasion of loaded parts abd enhance the molding precision of the parts;

4. The whole machine has adopted imported PLC centralized control, and imported safety double valve control is applied to the gas circuit, to realize inch, single and continuous punching;

5. The key components and parts, such as sliding block, guide rail, working table, connecting rod, and flywheel, etc. are cast by resin-bonded sand by which the surface roughness can be improved by 1 to 2 levels and dimensional precision can be improved by 2 to 3 levels compared with common clay sand cast

6. Electrical control is applied to die-filling height for JH21 products of 60 tons or above; high-quality configuration. and all the key components and parts such as pneumatic components, electrical apparatus elements, sealing elements, and button are imported.

Detailed Images

Wet clutch.

World produce the wet clutch. We use the best seals, bearing and friction discs. The wet clutch features stable operation, lower noise , longer service, high safety and reliability;

Hydraulic overload protected pump.

Hydraulic overload protected pump is used to protect the press and the die if the machine is overloaded. You can reset the overload with the switch on the touch screen easily.
