35A обработки ток EDM сверлильный станок отверстие пайпер чпу электроэрозионный вырезной
- Категория: Drilling Machines >>>
- Поставщик: Ipretech,Machinery,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.8 $* | 0.61 $* |
| Aug-16-2025 | 0.34 $* | 0.30 $* |
| Jul-16-2025 | 0.61 $* | 0.69 $* |
| Jun-16-2025 | 0.24 $* | 0.58 $* |
| May-16-2025 | 0.57 $* | 0.16 $* |
| Apr-16-2025 | 0.14 $* | 0.96 $* |
| Mar-16-2025 | 0.27 $* | 0.21 $* |
| Feb-16-2025 | 0.18 $* | 0.51 $* |
| Jan-16-2025 | 0.47 $* | 0.57 $* |
Характеристики
Product Description

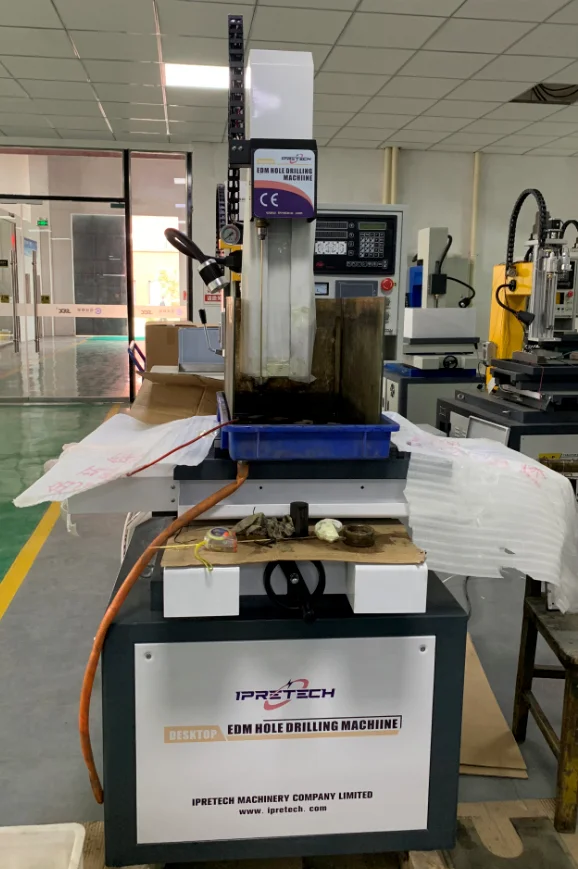

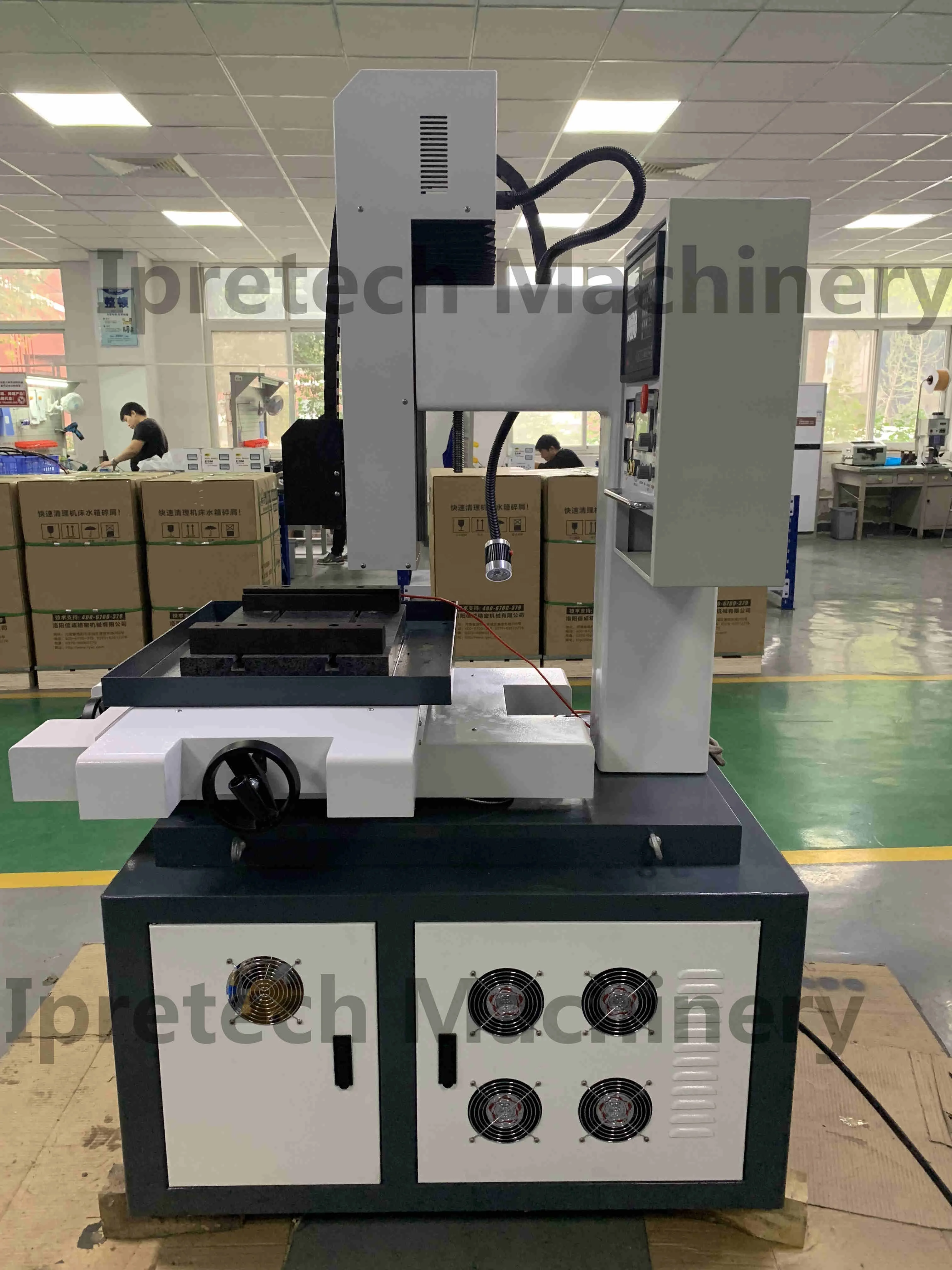

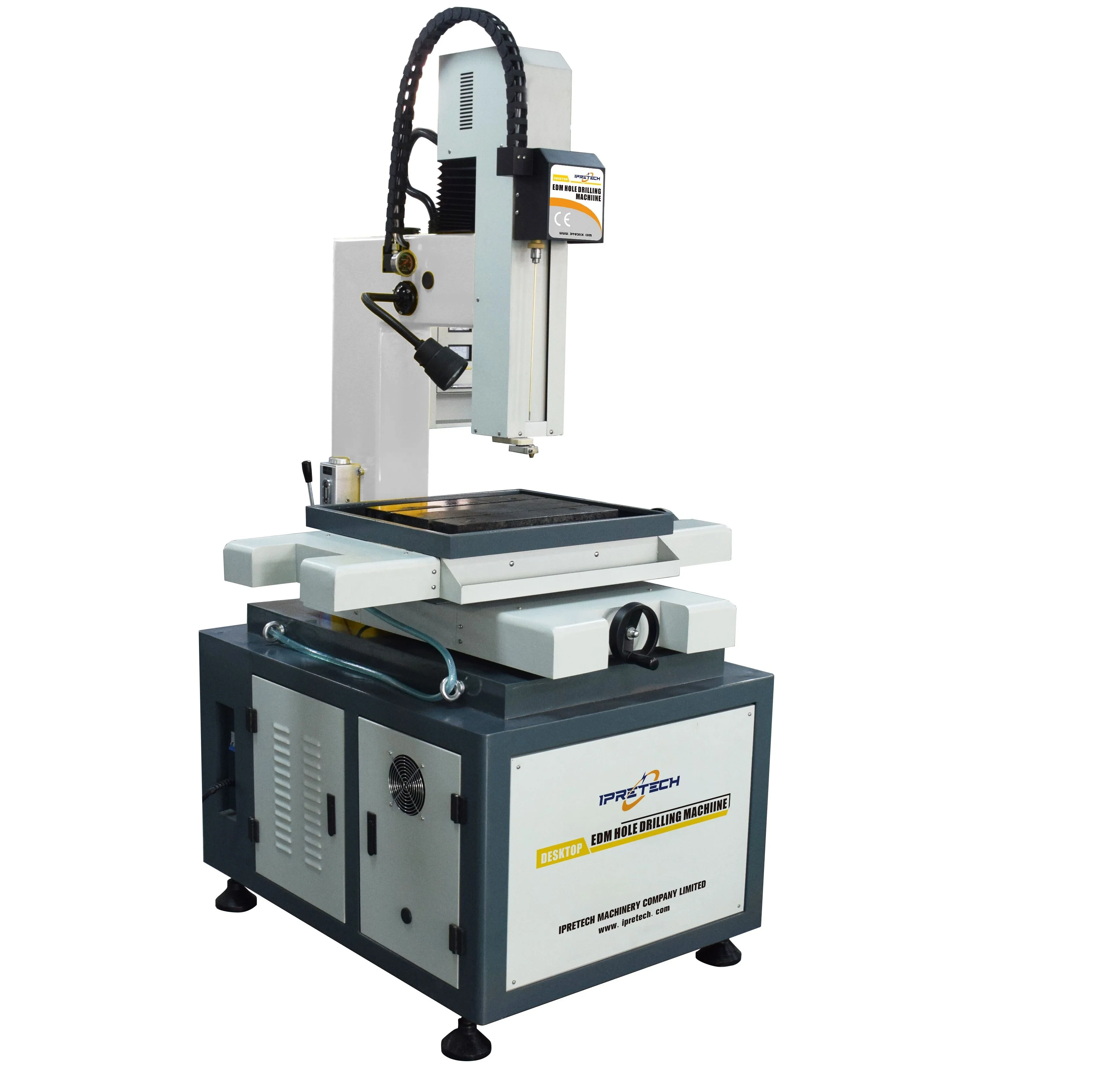

EDM small hole drilling machine XF300
0.2-3.0mm drilling diameter at fast speed
Specifications | Unit | XF300 | XF400 | XF500 | XF630 | XF800 | XFP | |||||
Worktable size | mm | 280*360 | 320*460 | 585*860 | 705*1020 | 780*1080 | portable EDM | |||||
X-Y stroke | mm | 200*300 | 300*400 | 400*500 | 500*630 | 9630*800 | ||||||
Control Type | Common/ZNC | |||||||||||
Principal Axis travel | mm | 300+300 | 300+300 | 300+300 | 300+300 | 300+300 | 320+200 | |||||
Table loading | kg | 200 | 350 | 500 | 800 | 1200 | ||||||
Electrode diameter | mm | 0.2-3.0mm(300:1) 0.3-6.0 | ||||||||||
Machine weight | kg | 550 | 600 | 1400 | 1900 | 3000 | ||||||
Overall size | mm | 1150*900*1750 | 1250*980*1750 | 1700*1250*1950 | 1750*1350*2050 | 1900*1550*2050 | 520*260*390 | |||||
Power supply | V | 1 phase 220V/3 phase 380V 50/60HZ | ||||||||||
Max. current | A | 35 | 35 | 35 | 35 | 35 | 35 | |||||
Drilling speed | mm2/min | 50-70 | 50-70 | 50-70 | 50-70 | 50-70 | 40-60 | |||||
Main Features
1) Using Taiwan type drilling head and linear guide rail
2) ZNC With setting of drilling depth, the spindle head will back to starting positioning after finish pf drilling automaticly
3) Using high quality steel structure machine bed/iron casting machine bed.
4) Max process speed at 70mm2/min
5) Provide lifelong aftersale service
Detailed Images
Rotating drilling head
Taiwan type
Smart Control board
Durable central lubritaion pump
Marble worktable
Samples by our machine
Samples by our machine
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service
