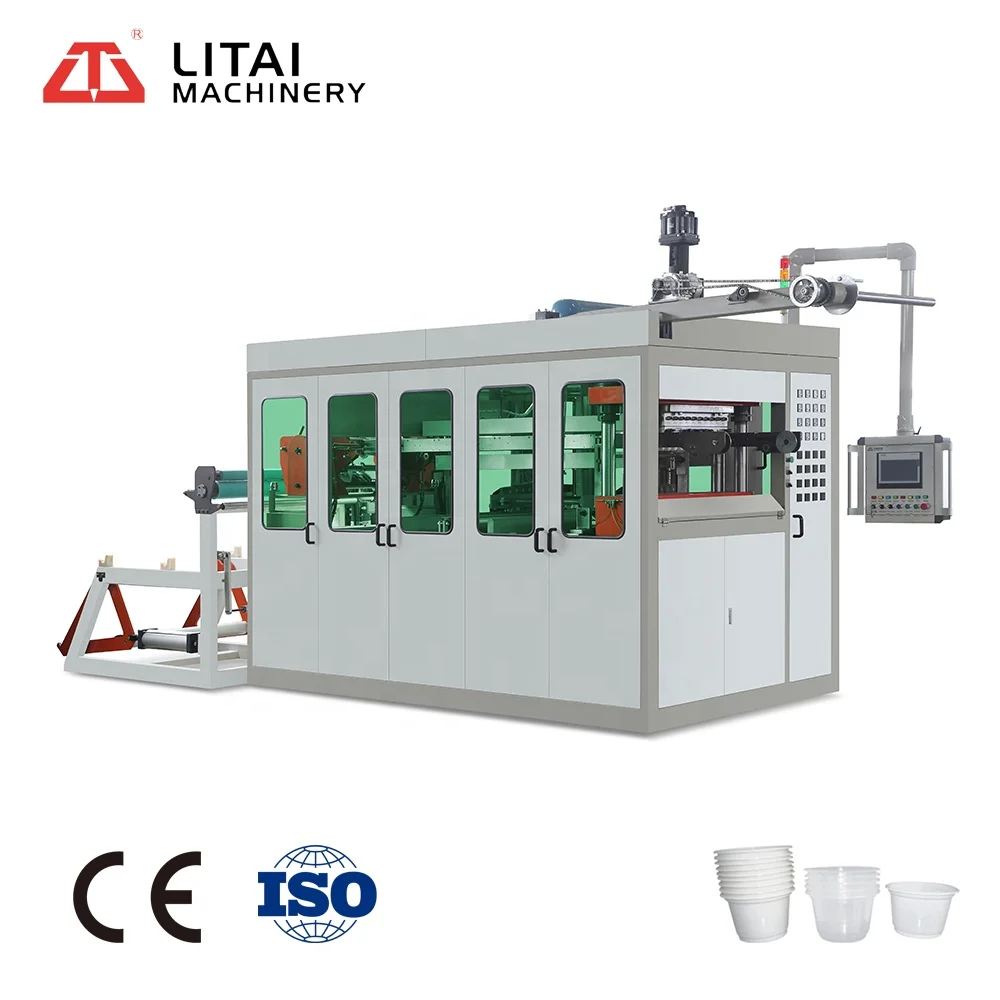

PP чайная чашка агрегат для производства пластиковых чашек TQC-650B с высокая скорость
- Категория: Оборудование для производства пластиковых изделий >>>
- Поставщик: Ruian,City,Litai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 47362.81 $* | 49730.16 $* |
| Aug-20-2025 | 46964.14 $* | 49312.2 $* |
| Jul-20-2025 | 39402.48 $* | 41372.43 $* |
| Jun-20-2025 | 46168.43 $* | 48476.5 $* |
| May-20-2025 | 40198.14 $* | 42208.42 $* |
| Apr-20-2025 | 45372.64 $* | 47641.97 $* |
| Mar-20-2025 | 44974.59 $* | 47223.2 $* |
| Feb-20-2025 | 44576.76 $* | 46805.73 $* |
| Jan-20-2025 | 44178.62 $* | 46387.9 $* |
Характеристики
Product Paramenters
Model | TQC-650B |
Max. Forming Area | 650*300mm |
Max. Forming Depth | 125mm |
Sheet Thickness | 0.3-1.8mm |
Sheet Width | 650mm |
Max. Forming Speed | 35 times/min |
Air Pressure | 0.6-0.8mpa |
Air Consumption | 2.0m³/min |
Water Consumption | 0.5m³/h |
Rated Power | 98Kw |
Used Power | 69Kw |
Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
Dimension | L8500*W2200*H2700mm |
Weight | About 5T |
MACHINE MAIN PARTS | ||
Touch Screen/PLC | SIEMENS (Germany) | |
Servo Motor | YASKAWA (Japan) | |
AC Contactor/Circuit Breaker | SCHNEIDER (France) | |
Proximity Switch | ROCKWELL (USA) | |
Solenoid Directional Valve/solenoid overflowing valve/counterbalance valve | YUKEN (Taiwan) | |
Intermediate relay | IDEC (Japan) | |
Intermediate relay base | OMRON (Japan) | |
Forming Valve | CKD (Japan) | |
Solenoid Valve | SMC (Japan) / Mindman (Taiwan) | |

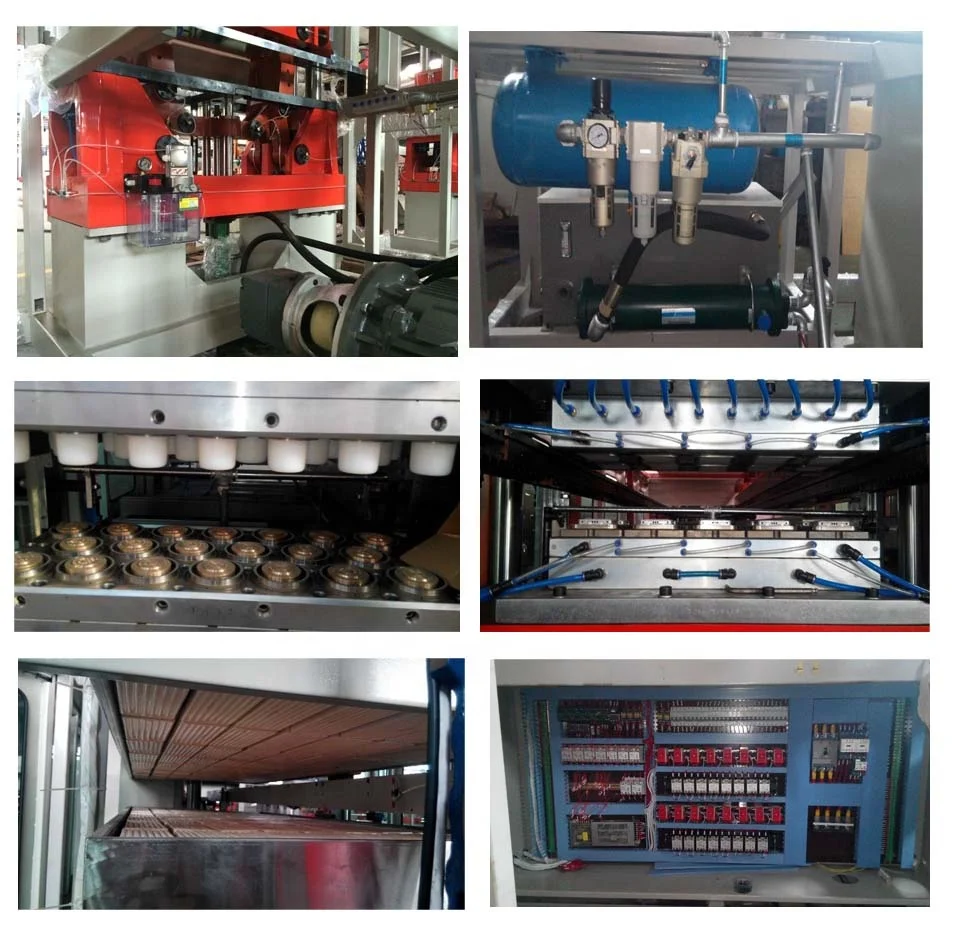

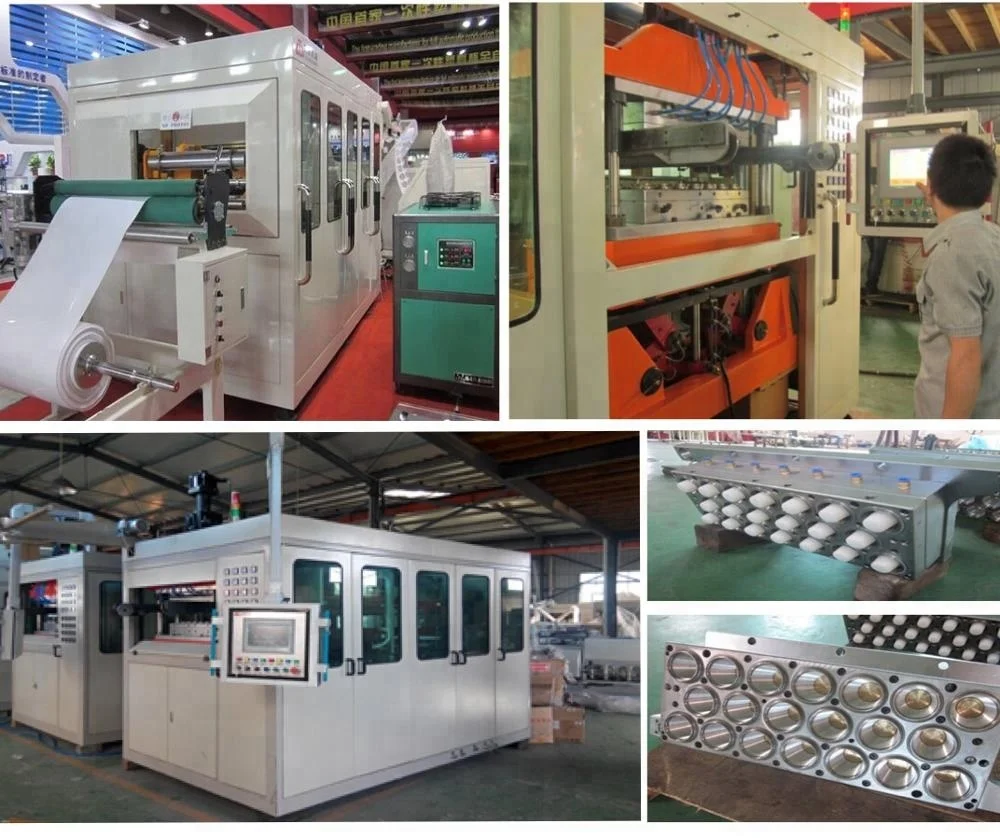

Product display
APPLICATION
Product process
SUMMARY OF MACHINE
2. Material holder combines with the machine, which is controlled by cylinder, can move up and down. It is easy for operation, and saving more space.
3. Machine adopts PID temperature system, it shows high precision, and temp control tolerance＜1℃.
4. Movably mould device is conveniently to assemble and dismantle mold, and the vibration of the machine could be reduced by machine’s counterbalance valve controls the opening and closing speed, good stability, conducive to forming.
Company Profile
Guest Department
Exhibition
Packaging shipping
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory, and we export our machines to more than 80 countries since 2001.
Q2: How long is the warranty period?
A2: We have a professional QC department in charge of products' quality.
Q3: How long is the warranty period?
A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q4: How to install the machine?
A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
A1: We are a factory, and we export our machines to more than 80 countries since 2001.
Q2: How long is the warranty period?
A2: We have a professional QC department in charge of products' quality.
Q3: How long is the warranty period?
A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q4: How to install the machine?
A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
