vertical steel plate electric permanent magnet lifter with safety handing

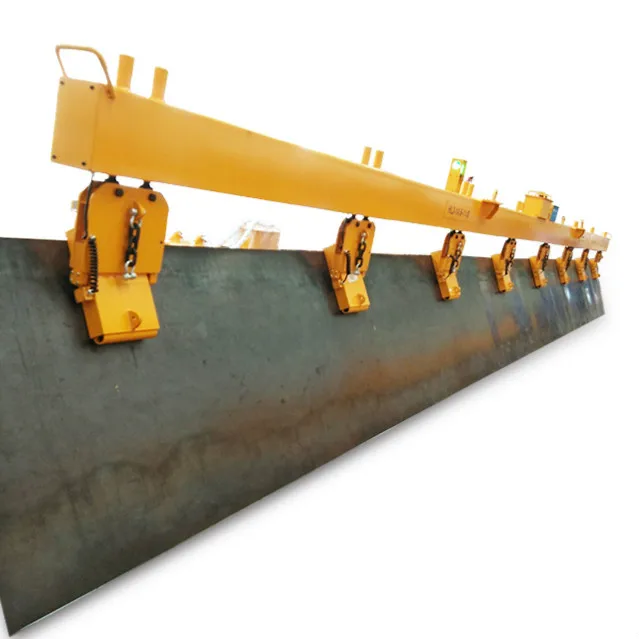

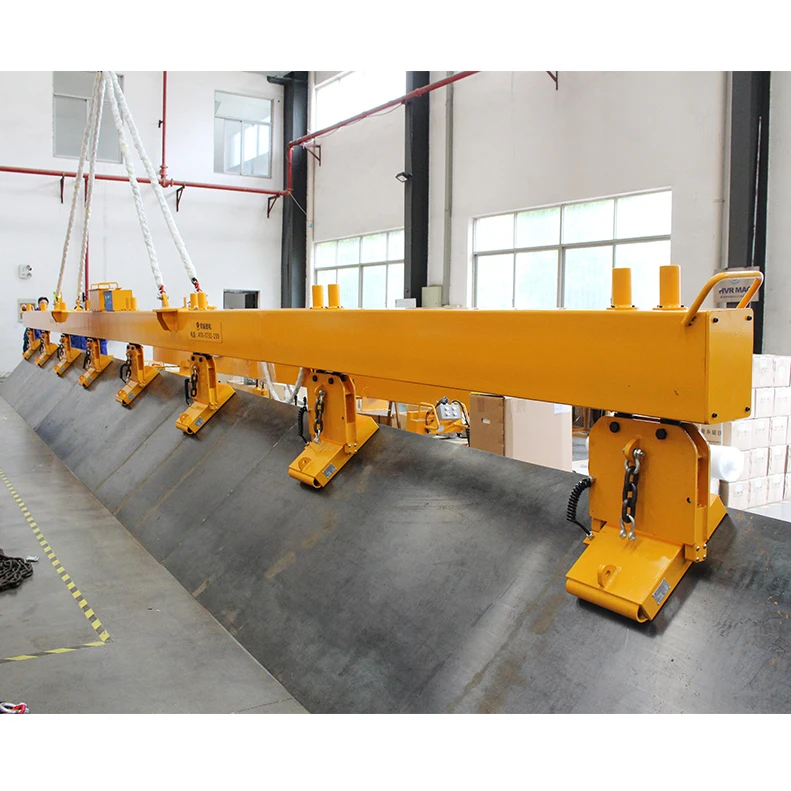

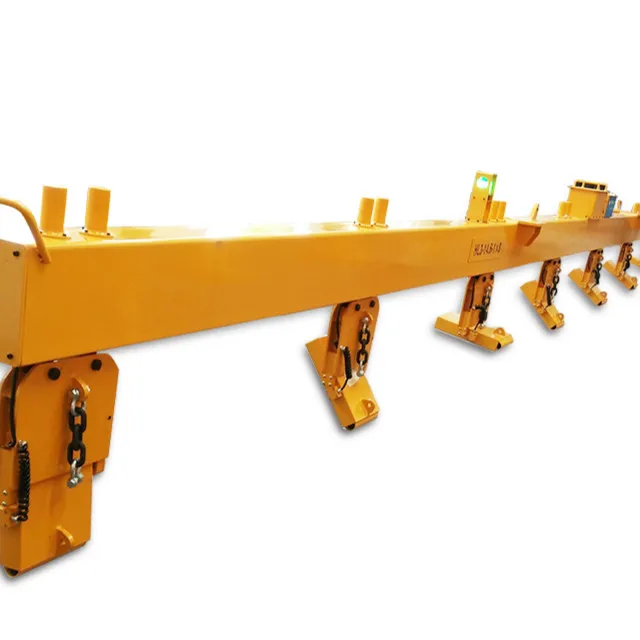

HM4 series electro permanent magnetic lifter for steel plate vertical hanging.
During the lifting handling process, the traditional steel plate may often cause personal injury and equipment damage accidents because of the spreader problems. The research and development of Electric permanent magnet spreader has successfully solved such safety problems. After the full power of magnetization, even if outage, it won’t demagnetization, minimal energy consumption, low operating costs, Power consumption is only 5% of the electromagnet, and is equipped with special control box, remote control, convenient and quick! Electric permanent magnet spreader is currently the world's safest steel plate lifting handling hook!
During the lifting handling process, the traditional steel plate may often cause personal injury and equipment damage accidents because of the spreader problems. The research and development of Electric permanent magnet spreader has successfully solved such safety problems. After the full power of magnetization, even if outage, it won’t demagnetization, minimal energy consumption, low operating costs, Power consumption is only 5% of the electromagnet, and is equipped with special control box, remote control, convenient and quick! Electric permanent magnet spreader is currently the world's safest steel plate lifting handling hook!
FEATURES AT A GLANCE
Advantages:
1. It combines the safety of permanent magnets with the efficiency of electro magnets.
2. An electro permanent magnet system is intrinsically safe and is not affected by a power failure.
3. A bBackup battery system is not required.
4. Without moving parts and without heat development, the system is maintenance-free and 100% reliable.
5. No compression or deformation of the product occurs during the lifting process.
2. An electro permanent magnet system is intrinsically safe and is not affected by a power failure.
3. A bBackup battery system is not required.
4. Without moving parts and without heat development, the system is maintenance-free and 100% reliable.
5. No compression or deformation of the product occurs during the lifting process.
THE MOST SAFE LIFTING MAGNET
- Electro permanent magnetic Technology independent of the electric Current = 100% safe.
- Safety Factor 3:1
- An inductive proximity Switch mounted on the lifting Mechanism prevents accidental demagnetization in the air.
- Integrated "PICK-UP" Cycle at lower Force (4 levels) for picking up thin Steeplates, followed by FULLMAG.
- Digital illuminated push Buttons for easy and clear Operation.
- Simultaneous 2-button operation to demagnetize.
- Lamp block for indication of the Status of the Magnet.
- Radio remote control which prevents the operator from getting close to the load.
- Safety Factor 3:1
- An inductive proximity Switch mounted on the lifting Mechanism prevents accidental demagnetization in the air.
- Integrated "PICK-UP" Cycle at lower Force (4 levels) for picking up thin Steeplates, followed by FULLMAG.
- Digital illuminated push Buttons for easy and clear Operation.
- Simultaneous 2-button operation to demagnetize.
- Lamp block for indication of the Status of the Magnet.
- Radio remote control which prevents the operator from getting close to the load.
Contents | Electro Permanent Magnet System | Electromagnet System |
The source of the magnetic force | From permanent magnets :NdFeB, AlNiCo | Produced by the electrical current flow |
Magnetization | Two kinds of magnetization, permanent and electromagnetic, both controlling the work load at the pole face | The electric current only controls the work load at the pole face |
Demagnetization | The interaction between the magnets removes the magnetic force controlling the work load | Isolation of the electric supply removes the magnetic force controlling the work load |
Safety | No electricity is consumed during the working period. Electricity shutdown won’t affect the operation of the magnet system or the magnetic latching of the work load. | Electricity is essential for the operation of the magnet. When in shutdown, the magnetization will stop. The work load may fall down without a battery backup supply. |
Reliability | No natural or electrical factors affect the magnet while it is operation and the reliability is quite stable. | An increase in temperature due to electric current flow or ambient temperature, may affect the operation of the magnet, and the coil or the electrical controls could open circuit or burn out. It is not as reliable. |
Maintenance | Minimum maintenance is required and the running cost is low. | The coils and battery need to be tested periodically and the cost can be expensive. |
The Operational Cost | No electricity is consumed while operating the magnet. The total electricity consumption is 5% of the electromagnetic systems. | The electricity consumption is quite large and the cost is expensive if used for long periods of time. |
Lifting weight/ Actual Weight Comparison | High:- A 4200kg electro permanent magnet can lift 15 tons. | Low:- A 8700 kg electromagnet can lift 15 tons. |
Specification
Art No. | Serier Code | Lenght(mm/in) | Width(mm/in) | Thickness (mm/in) | Dead weight (kg/Lbs) | Capacity (kg/Lbs) | ||||
Min. | Max. | Min. | Max. | Min. | ||||||
HM4-06-040 | HM4-040A0104-1 | 2000/79 | 6000/236 | 1200/47 | 3200/126 | 5/0.2 | 900/1980 | 4000/8800 | ||
HM4-12-070 | HM4-070A0106-1 | 500/20 | 6000/236 | 1200/47 | 3200/126 | 5/0.2 | 2200/4840 | 7000/15400 | ||
HM4-12-120 | HM4-120A0106-1 | 500/20 | 6000/236 | 1200/47 | 3200/126 | 5/0.2 | 2400/5280 | 12000/26400 | ||
Certifications
Cases
Recommend Products
Why Choose Us
About HVR MAG
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB, BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
HVR MAG designs and manufactures electro permanent lifting magnets for a wide range of applications. Our heavy duty lifting mangnets are designed for applications such as steel plate handling, coils, strips, profiles, piples, Billets, round bar, rail and more. These magnets are commonly used in steel structure shipyard. Metal cutting workshops. Warehouses , foundries, coil and pipe distributors, and other users of applicable steel products.
Why choose us
Our products and services have spreaded all the world ,and also have been recognized by customers
FAQ
Q: HVR is a Factory or Trading company?
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best lifting solution for steel sheets based on our innovative technology and superior product quality.
Q: How to guarantee the quality of products.
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A: Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation, we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity , only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents .
2. CE & ISO 9001:2015 standard .
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best lifting solution for steel sheets based on our innovative technology and superior product quality.
Q: How to guarantee the quality of products.
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A: Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation, we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity , only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents .
2. CE & ISO 9001:2015 standard .
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
