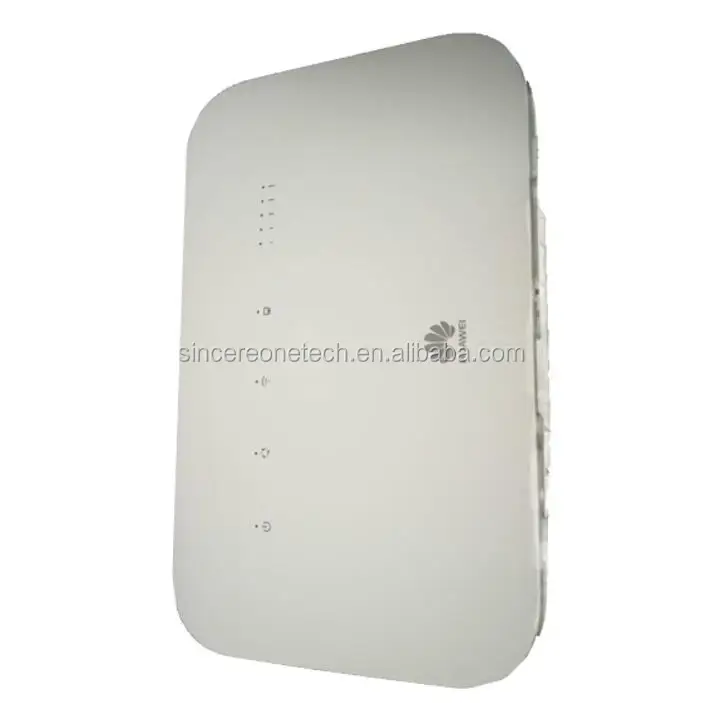

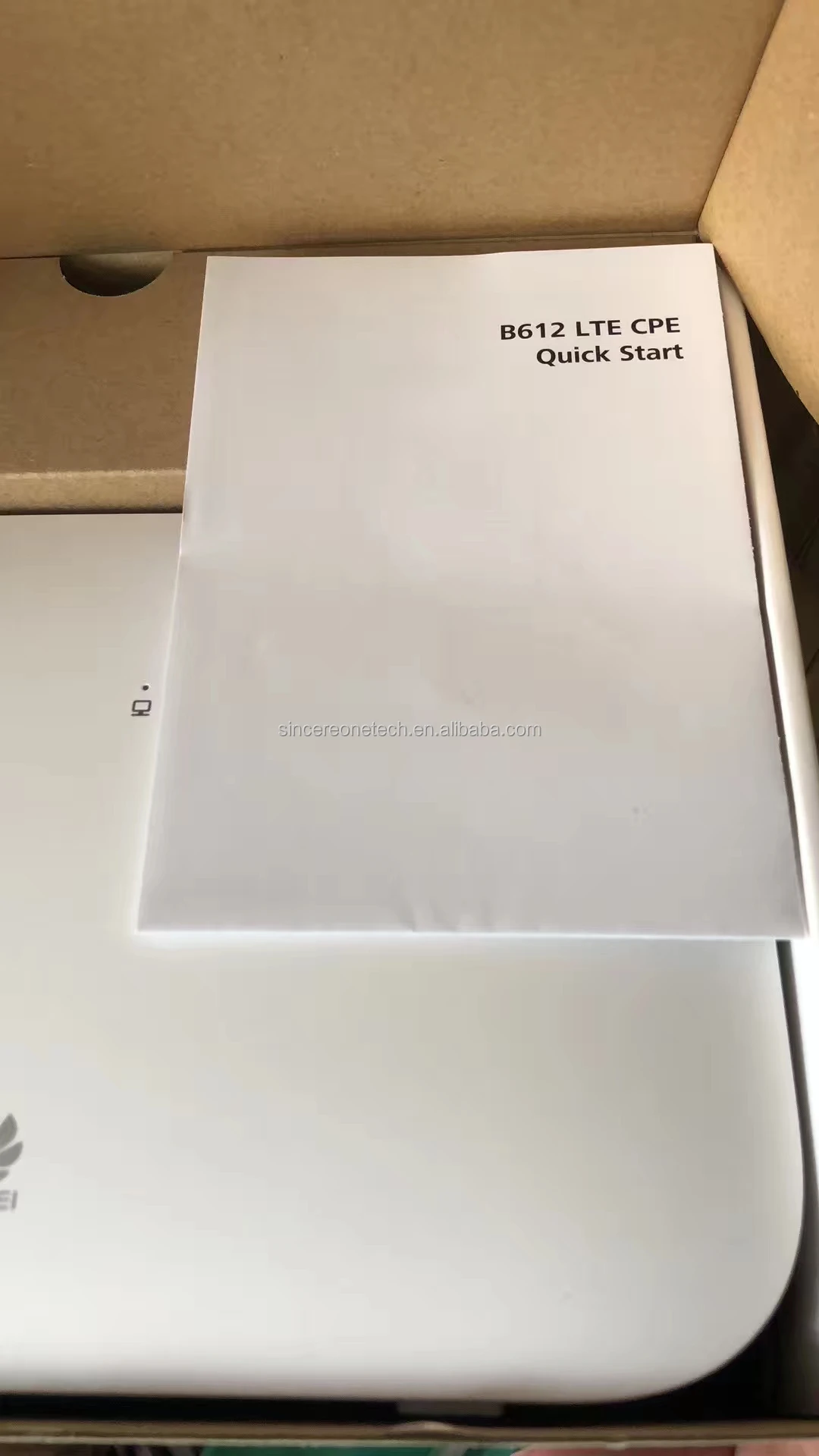

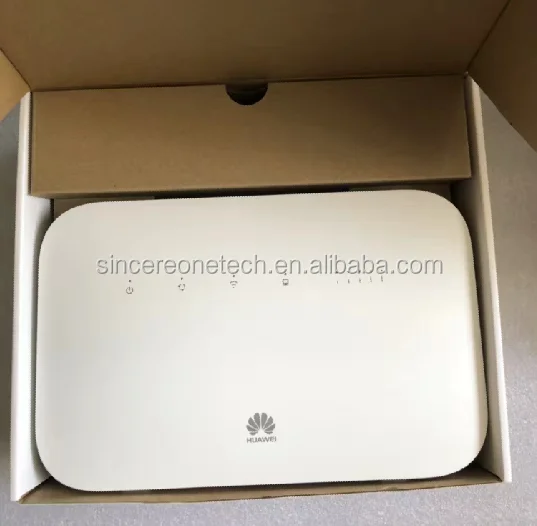

Huawei B612 4G LTE Cat.6 CPE 300mbps cpe

Huawei B612 LTE CPE is a wireless gateway that integrates LTE and high-speed Ethernet uplink access, which provides users with flexible and diversified data access and voice services. With support of LTE Category 6, Huawei B612 CPE could achieve download speed to 300mbps and upload speed to 50mbps. Here now, Huawei B612 has two sub-models: Huawei B612s-25d and B612s-51d. They support different frequency bands:

Huawei B612s-25d support:

* LTE: B1/B3/B7/B8/B20/B38/B40/B41(2545~2655MHz)/B42/B43

* DC-HSPA+/HSPA+/HSPA/WCDMA: B1/B8

* EDGE/GPRS/GSM: B2/B3/B5/B8

* 4*4 MIMO: B3/B7/B20/B38/B40/B41/B42/B43

Huawei B612s-51d support:

* LTE: B2/B4/B5/B7/B41(2545~2655MHz)

* DC-HSPA+/HSPA+/HSPA/WCDMA: B1/B2/B5

* EDGE/GPRS/GSM: B2/B3/B5/B8

Huawei B612 LTE CPE Technical Specifications:

* LTE Category 6 router

* Support LTE Band 2, 4, 5, 7, 41

* LTE DL 300Mbps/UL 50Mbps

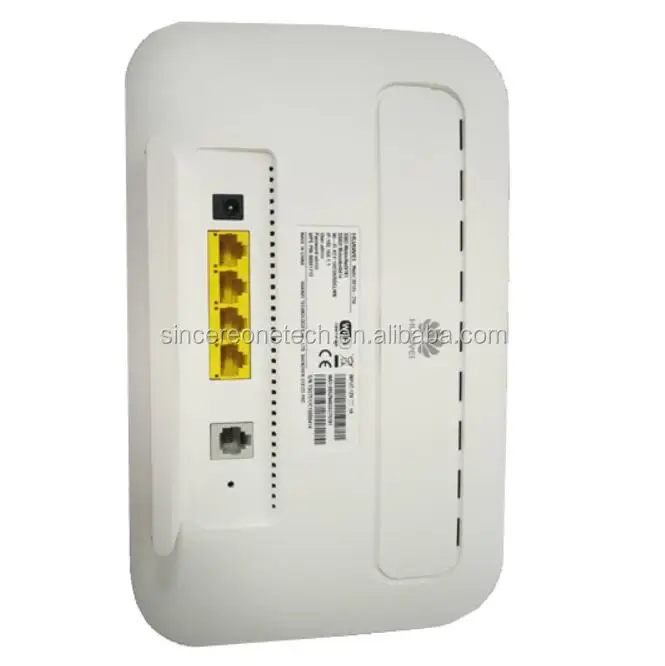

* 4 x LAN ports(One for LAN/WAN), 1 x Landline phone port

* Two connectors for external antenna(SMA type)

* SIM type: Micro SIM

Huawei B612 LTE CPE mainly supports the following features:

* Access to LTE wireless networks

* Access to Gigabit Ethernet networks

* High-speed data access
− LTE FDD: DL 300 Mbit/s, UL 50 Mbit/s
− LTE TDD: DL 210 Mbit/s, UL 10 Mbit/s
− DC-HSPA+: DL 42 Mbit/s, UL 5.76 Mbit/s
− HSPA+: DL 21 Mbit/s (64QAM) / 28 Mbit/s (MIMO), UL 5.76 Mbit/s
− HSPA: DL 14.4 Mbit/s, UL 5.76 Mbit/s
− WCDMA PS: 384 kbit/s
− EDGE: DL 296 kbit/s, UL 236.8 kbit/s
− GPRS: 85.6 kbit/s

* Complies with wireless 802.11b/g/n standards with data rates up to 300 Mbit/s

* Support up to 32 wireless devices

* SMS

* IPv4 /IPv6 dual stack

* Compatibility with RJ11 telephone ports; support VoLTE voice(customizable function), can be set to Voice over Internet Protocol (VoIP) voice mode or Circuit Switch (CS) voice mode

* External LTE antenna port

* Support for Huawei HiLink App

* WPS 2.0

* HOTA updates

* Built-in DHCP Server, DNS RELAY and NAT

* Security services. Provides instant protection to block potential security risks and intrusion attempts

* Windows 7, Windows 8, Windows 8.1, Windows 10 (does not support Windows RT), MAC OS X 10.9, 10.10, 10.11 and 10.12 with latest upgrades

* User-friendly design of LED indicator. Easy to observe the status of equipment

* External port

Huawei B525 4G LTE Cat6 Wireless Router

Huawei B525 is a new 4G LTE Advanced router with carrier aggregation on HiSilicon LTE Cat6 Chipset, which could achieve download speed to 300Mbps and upload speed to 50Mbps. It could support up to 64 wireless terminals to access the internet simultaneously with the WiFi 802.11ac dual bands(2.4GHz & 5GHz). There are four RJ45 ports for Ethernet cable, one USB interface(ability to connect an external drive or printer) and one Telephone port(RJ11). Two external antenna connectors are covered by a cap on the back.

Huawei B525 CPE is a powerful 4G LTE Ultra desktop router so that you will enjoy the fastest wireless internet in your home or office. With this application HiLink (available on Android and IOS), the B525 LTE CPE can be managed remotely using your smartphone. Huawei had already an LTE cat6 router E5186, which has similar features to B525 WiFi router. It combines the advantages of a well-known devices B315 and E5186. Users can use the interface WLAN 802.11ac (max. 786 Mbps) or 4 Gigabit LAN ports.



Huawei B525 4G LTE Router features and technical specifications:

* 4G LTE Cat6 wireless router

* Platform: HiSilicon LTE Cat6 Chipset, Cortex A9 Processor

* Network mode: LTE/UMTS/HSDPA/HSUPA/EDGE/GPRS/GSM

* FDD-LTE Peak download speed up to 300Mbps and upload speed to 50Mbps

* TDD-LTE Peak download speed up to 220Mbps and upload speed to 10Mbps

* Huawei B525s-23a:

  - Support 4G LTE Band 1/3/7/8/20/32/38 (FDD 800/900/1500/1800/2100/2600MHz, TDD 2600MHz)

  - Intra-band contiguous: B3+B3, B7+B7, B38+B38

  - Inter-band: B3+B7, B3+B20, B7+B20, B7+B8, B3+B8, B1+B20, B1+B8, B20+B32

  - Support 3G DC-HSPA+/HSPA+/UMTS Band 900/2100MHz

  - Support 2G GSM/GPRS/EDGE 850/900/1800/1900MHz

* Huawei B525s-65a:

  - Support 4G LTE Band 1/3/4/5/7/8/20/19/26/28/32/38/40/41 (FDD 2600/2100/1900/1800/1700/1400/900/850/800/700MHz, TDD 2300/2500/2600MHz)

  - Support 3G DC-HSPA+/HSPA+/UMTS Band 1/2/5/6/8/19

  - Support 2G GSM/GPRS/EDGE 850/900/1800/1900MHz



* Huawei B525s-95a:

  - Checking the supported frequency bands on 4G, 3G, and 2G now.

* WLAN: WiFi 802.11 a/b/g/n/ac, dual-band (2.4GHz & 5GHz)

* Support up to 64 connected devices

* LED indicator: Power/Network Sync/Wi-Fi/Signal Strength/LAN - WAN/SMS

* SIM card: Micro-SIM

* SIM lock: No, free for any network providers

* Two SMA connectors for external antennas

* 4 x RJ45 Gigabit Ethernet ports

* 1 x USB port + 1 x RJ11 phone port(VoIP, CS voice)

* Color: White or Black

* Security features: Encryption (WEP/WPA/WPA2)

* HiLink application (available on Android and IOS) to manage the router remotely using a smartphone

* Gateway:

- Supports the default route: 0.0.0.0.
- Supports the default gateway address: 192.168.8.1.
- Supports the Address Resolution Protocol (ARP).
- Supports the Internet Control Message Protocol (ICMP).
- Supports the domain name service (DNS).
- Supports NAT and Network Address and Port Translation (NAPT), which complies with RFC2663, RFC3022, and RFC3027.
- Supports CONE NAT.
- Supports fragmented message identification during common NAT.
- Enables and disables the DHCP server.
- Configures DHCP server address pools.
- Sets the lease time.

* VPN Client: Support L2TP VPN client (When L2TP VPN client function is enabled, the throughput performance will slow down, the maximum speed can up to 50Mbps (dependent on network environment).)

* SMS

- Writing/Sending/Receiving
- Writing/Sending/Receiving extra-long messages

* VoIP

- Supports the Session Initiation Protocol (SIP).
- Supports G.711a/G.711u/G.726 (-24/-32)/G.722 for encoding and decoding.

* CS voice
- Supports CS voice communication over UMTS and GSM networks.
- Supports the circuit switched fallback (CSFB).

* Firewall

- Enables and disables the firewall.
- Filters LAN MAC addresses.
- Filters LAN IP addresses.
- Filters URLs.
- Supports demilitarized zone (DMZ).
- Supports Universal Plug and Play (UPnP).
- Supports Application Level Gateway (ALG).

* IPv6/IPv4 dual stack

- DHCPv6/v4 server and client
- DNSv6/v4 server and client
- Display IPv6/v4 WAN address

* HUAWEI HiLink App for huawei B525

- View the data traffic usage and SMS.
- Manage the connected devices.
- Change CPE's SSID and password.

Temperature
- Working temperature: 0°C to 40°C
- Storage temperature: -20°C to +70°C

* Dimensions: 163 mm x 52 mm x 226 mm

* Weight: 370g

Package contents of huawei B525:

* 1 x Mobile Router Huawei B525

* 1 x Ethernet cable

* 1 x Power supply

* 1 x English Quick Start Guide

Huawei B593s-12 4G LTE CPE Industrial WiFi Router



Huawei B593 4G LTE CPE Router is world's first 4G LTE TDD FDD Broadband CPE Router. It's launched to market by Sweden operator Tele 2, and HUAWEI B593 4G LTE Router also have many branch models such as HUAWEI B593U-12, B593s-82, B593s-42, B593u-501, B593u-513, B593u-91, B593s-601 etc. They are born to meet the 4G LTE Band requirements for different markets. They incorporates similar configuration and have even same functions.



HUAWEI B593u-12:  LTE  FDD 800/900/1800/2100/2600MHz

HUAWEI B593s-22:  LTE  FDD 800/900/1800/2100/2600MHz and TDD 2600MHz, LTE Category 4 CPE (Speed up to 150Mbps)

HUAWEI B593s-82: TDD 2300/2600MHz

HUAWEI B593u-91: LTE TDD 2300/2600MHz

HUAWEI B593s-850: LTE TDD 1900/2300/2600MHz

HUAWEI B593u-501:

HUAWEI B593u-513:

HUAWEI B593u-41:



4G LTE CPE HUAWEI B593 Router is the first LTE TDD wireless broadband router of the world, supports LTE TDD/FDD 800/1800/2300/2600MHz, up to 100Mmbs download speed and access to up to 32 WIFI devices that become an ideal home entertainment and information exchange hub.It supports multi-devices simultaneous high speed access, perfect for SOHO's and small businesses with its connectivity options of the world.



Frequencies of huawei B593:

* 2G: EDGE/GPRS/GSM 850/900/1800/1900 MHz

* 3G HSUPA / HSDPA / UMTS / DC-HSPA+ 900/2100 MHz

* 4G LTE TDD FDD 800/900/1800/2100/2600 MHz



Transmission speed 4G (MAX)

   * Download 100 Mbit / s
   * upload 50 Mbit / s

TRANSMISSION SPEED 3G (MAX)
   * download 42.2 Mbit / s
   * upload 5.76 Mbit / s

WI-FI: Wi-Fi(802.11 b / g / n)

Addistional antenna location: two antenna ports

SIZE: 190 mm x 35 mm x 176 mm

WEIGHT: 500g





Application Instroduction of B593s-22:

1. Insert the SIM card into the SIM card slot.

2. Connect the power cord to the modem and the wall socket.

3. Turn on your computer and any other devices modem LAN and USB ports.

4. Turn on your modem POWER button.



CONNECTING PC TO THE MODEM WLAN CONNECTION

1. Turn on your modem POWER button.

2. Make an indicator that the WLAN is enabled. To activate the WLAN feature on and off by holding the WLAN button for more than 3 seconds.

3. Select your network from the list of wireless networks, the SSID name is the same as the name of your modem and press connect. Enter the network security key.

             Note: * The SSID and network security key can be found on the label on the back of the modem.

                        * You can review and change the WLAN security settings for the network-management page under General Settings> WLAN Settings > Security.

4. If the PIN code request is active, log network management page (http://192.168.1.1 ) and enter the correct PIN code in the field provided.

Network Management Page Opening

1. Make sure that your flash drive and a computer or device the connection is established correctly.

2. Start a web browser and enter the address http://192.168.1.1

3. If the PIN code request is active, asking the network management side of it. The default PIN is 0000.



Light Indicators of huawei B593:

light Mode               light                      Description
MODE                      Blue                     This light is a constant blue, when the modem is connected to the 4G network, but no data is transferred. The indicator light     flashes blue when data is being transferred.
MODE                      Green                 This indicator light is constantly green when the modem is connected to a 3G network, but no data is transferred. The indicator light flashes Green when data is being transferred.
MODE                      Orange               This light is constantly orange when the modem is connected to a 2G network, but no data is transferred. The indicator light flashes orange when data is being transferred.
MODE                      White                  This light will flash white when the modem to connect to the wireless network.
MODE                       Red                     This light is constantly red when the modem cannot connect to a wireless network or modem is not a wireless network.
MODE                  Mulberry                 This light is on when the SIM card is not recognized, or PIN has not been or PIN authentication fails.
WLAN                       On                        WLAN function is enabled.
LAN1-LAN4             On                       This light is on when the computer or other device is connected to the LAN port.
SIGNAL                    On                       More bars are lit, the stronger the wireless signal.



Unlocked Huawei B315S-22 4G wireless gateway 4G LTE CPE 150mbps



Huawei B315 is a new 4G LTE CPE with LTE Category 4 technology. Huawei B315 could achieve LTE connection of up to 150Mbps through its Gigabit Ethernet port. There are four Ethernet ports for LAN/WAN. It also features a USB 2.0 port for HDD, flash drives, network storage devices and printers. The B315 LTE CPE could cover smoother wireless network for 250 meters. Even after a successful upgrade, you can easily restore software to the previous version. Simply hold the WPS and Power buttons for a seamless rollback. With the LTE CPE B315, the brother model huawei B310 lte cpe  is also presented less LAN ports and no USB port.



Huawei LTE CPE B315s-22 Technical Specifications:

* 4G LTE Category 4 CPE

* Huawei B315s-22: 4G LTE B1/B3/B7/B8/B20 (FDD 800/900/1800/2100/2600MHz)and TD-LTE B38 (2600MHz)

* Huawei B315s-607: 4G Band 1/3/7/8/28/40 (FDD 700/900/1800/2100/2600 & TDD 2300Mhz)

* Huawei B315s-936: 4G Band 1/3/40/41 (FDD 1800/2100 & TDD 2300/2500Mhz)

* Huawei B315s-608: NA

* 3G UMTS B1/B8

* GSM B2/B3/B5/B8

* LTE Download speed to 150mbps, upload speed to 50Mbps

* WiFi 802.11b/g/n, Wireless speed to 300Mbps

* Up to 32 wireless users could be connected simultaneously

* Two connectors for external antennas (SMA Type, buy Huawei B315 Antenna)

* One Telephone port and Four ports for LAN/WAN

* Dimensions: 186.0mm x 139.0mm x 46.0mm

* Weight: about 275g







Huawei B310 is a new 4G LTE CPE with LTE Category 4 technology. Huawei B310 could achieve LTE connection of up to 150Mbps through its Gigabit Ethernet port. The B310 LTE CPE could cover smoother wireless network for 250 meters. Even after a successful upgrade, you can easily restore software to the previous version. Simply hold the WPS and Power buttons for a seamless rollback. With the LTE CPE B310, the brother model huawei B315 LTE CPE is also presented.



Huawei LTE CPE B310 Technical Specifications:

* 4G LTE Category 4 CPE

* Support 4G TD-LTE B38/B39/B40/B41

* Support 4G FDD-LTE B3/B7/B8

* 3G TD-SCDMA B34/39

* LTE Download speed to 150mbps, upload speed to 50Mbps

* WiFi 802.11b/g/n, Wireless speed to 300Mbps

* Up to 32 wireless users could be connected simultaneously

* Two connectors for external antennas

* One Telephone port and one port for LAN/WLAN

* Dimensions: 181.0mm x 126.0mm x 70.0mm

* Weight: about 226g
