China new 3 axle 4 axles wrecker semi trailer for

DIMENSIONS

Tare Weight

4500kg

China new 3 axle 4 axle wrecker  semi trailer for sale

Overall Length

13000mm

Overall Width

2480mm

Payload

30000kg

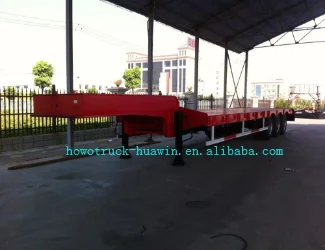

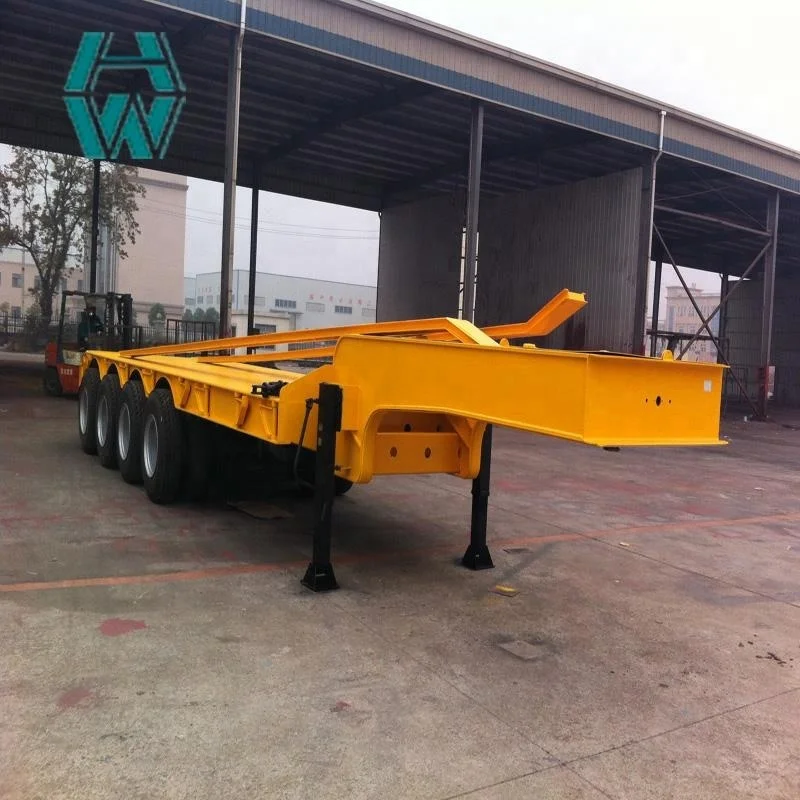

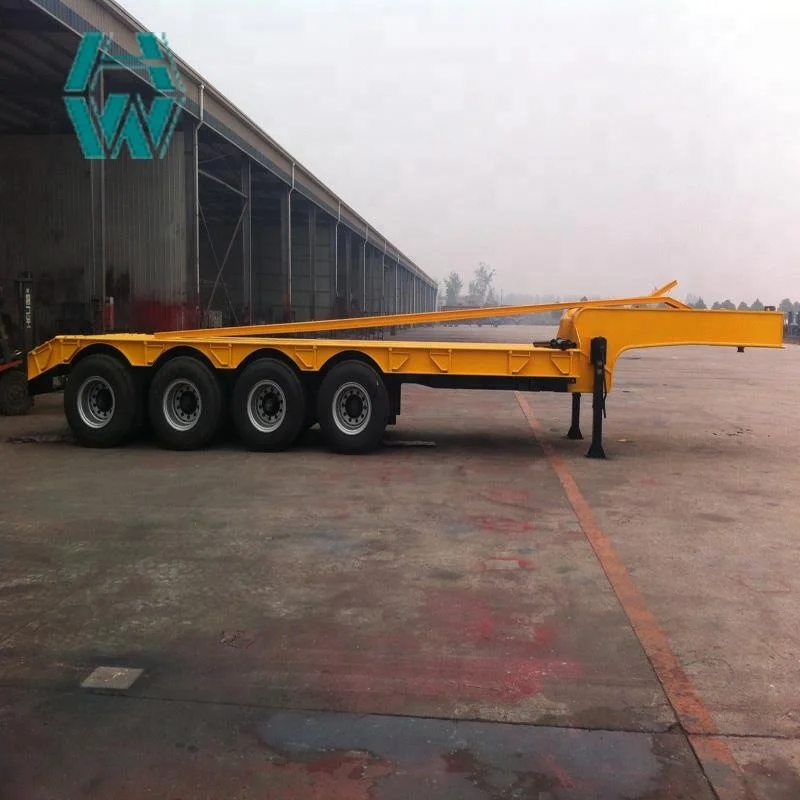

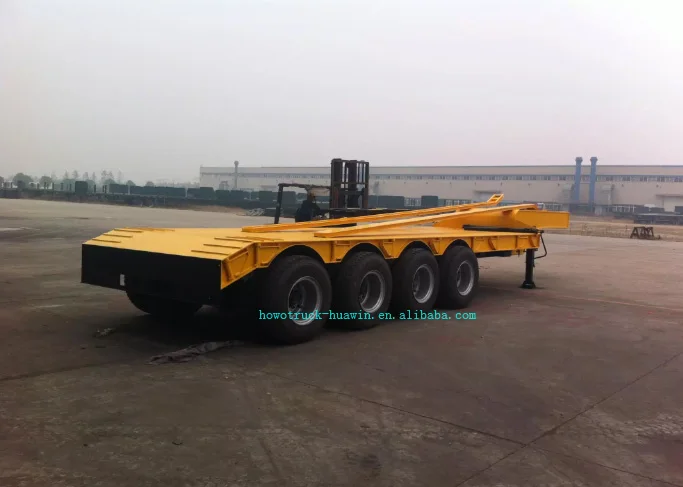

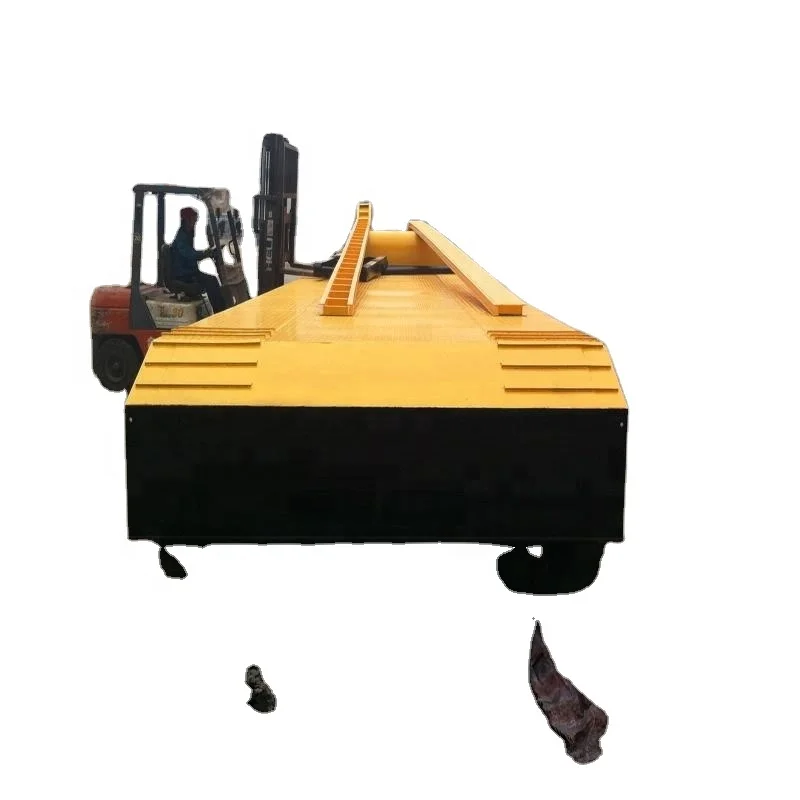

Photo for reference. Final products can be made according to exact requirements

SPECIFICATION

Chassis

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,height 500mm; Bottom Flange 16mm,width 140mm.

Axle

HJ Brand: 4X 13000KGS axles of Germany design

Suspension

Germany design heavy duty mechanical suspension

Leaf Spring

Leaf spring

King Pin

JOST 2.0” Bolt-in King Pin

Landing Gear

JOST Two-speed, manual operating, heavy duty landing gear

Wheel Rim

9.00-22.5 steel wheel rim, 8pcs

Tire

12R22.5 Tubeless Tire, 8pcs

Spare Tire

One set of spare tire including a carrier

Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box
