I.Preface

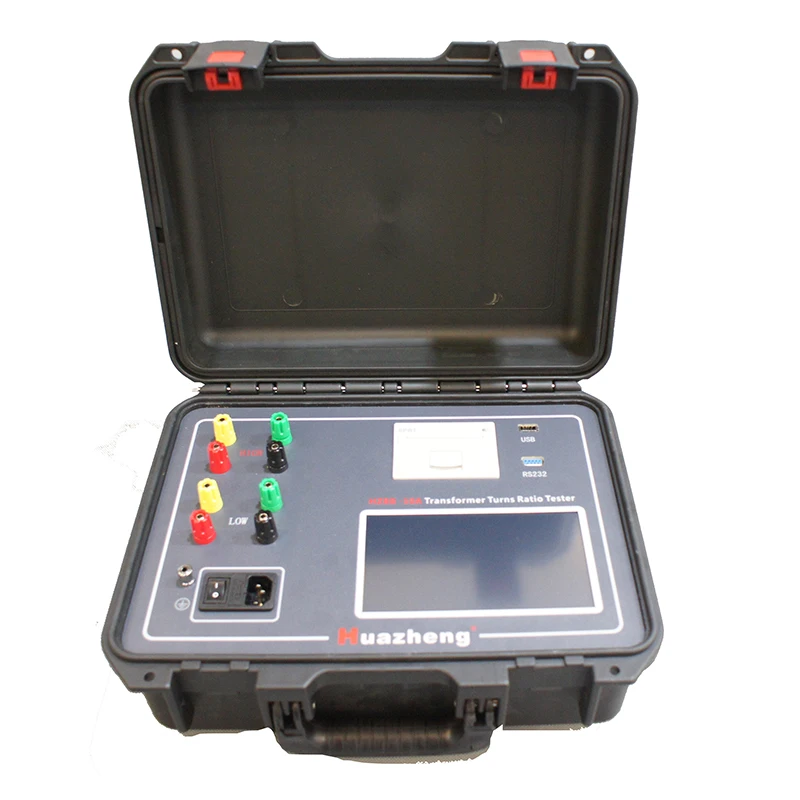

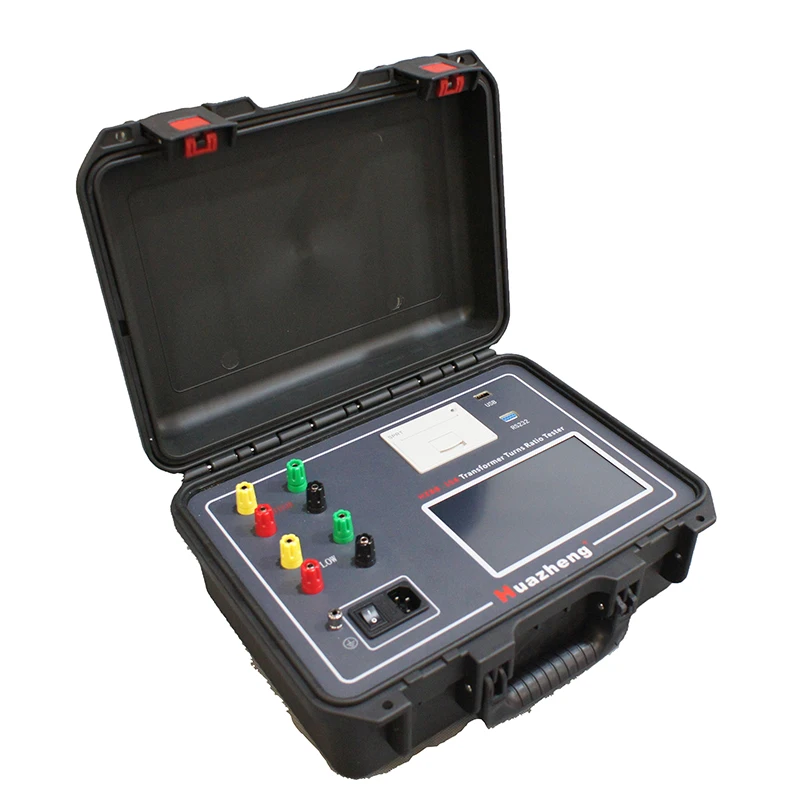

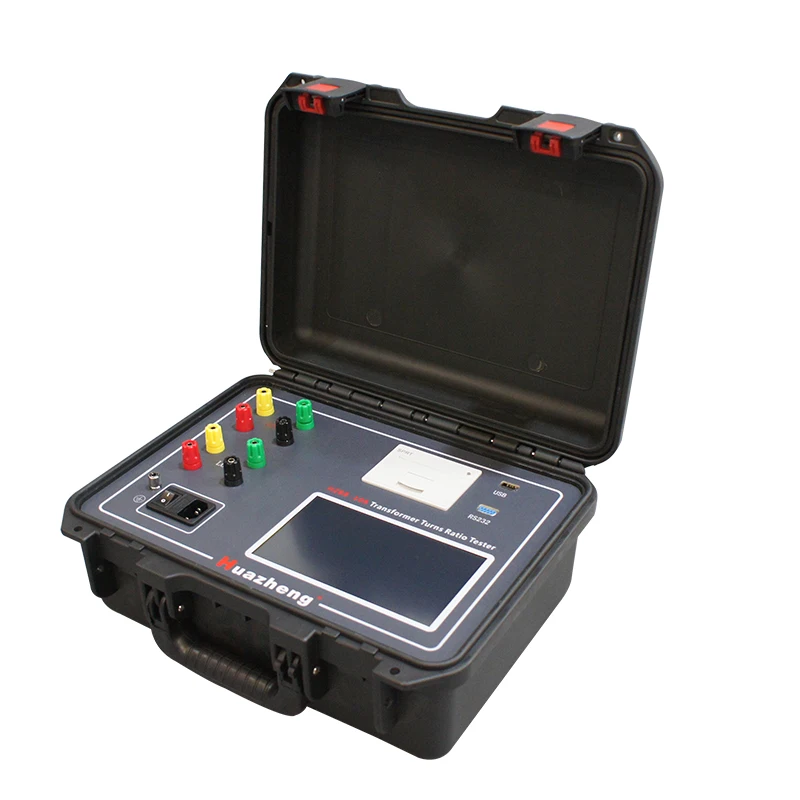

During the processing of the semi-finished products and the finished products in transformer production, the transformer newly installation before using, or according to IEC and national standard, the turns ratio or voltage ratio should be tested in the circle rate. Traditional bridge method is complicated, and can’t read the data directly, and you have to make conversion, the testing results are data of one phase. Turns ratio tester of HZBB-10A overcomes the shortcomings of traditional bridge method. The monitor adopts big screen with lattice liquid crystal, which has the function of indicating by menu, operating easily and directly. It finishes test of three-phase voltage ratio or turns ratio once, fast testing and high precise.

II. Functions And Characters

1.Precision inverter three-phase measuring power supply is adopted in the instrument to measure more accurately.

2.Adopt three-phase output voltage, three-phase pressure, three-phase simultaneous measurement, improve test speed, and automatically identify transformer wiring group.

3.Applicable to a wide variety of transformers, especially for the Z type transformer, rectifier transformer, grounding transformer, furnace transformer, phase shift transformer, balance transformer and other transformer measurement, measurement parameters are the most comprehensive.

4. The use of precision three-phase inverter power supply, with high and low voltage reverse polarity protection, transformer inter-turn short circuit protection, on-off tap-changer not in place protection, the output short-circuit protection, Which increases instrument stability.

5. After inputting the rated parameter, it can automatically measure the transformer ratio value, error value and on-load tap-changer position.

6. 65K true color LCD, modular liquid crystal display.

7. The device can be equipped with both print output, USB port and RS232 port, which is convenient for paperless office.

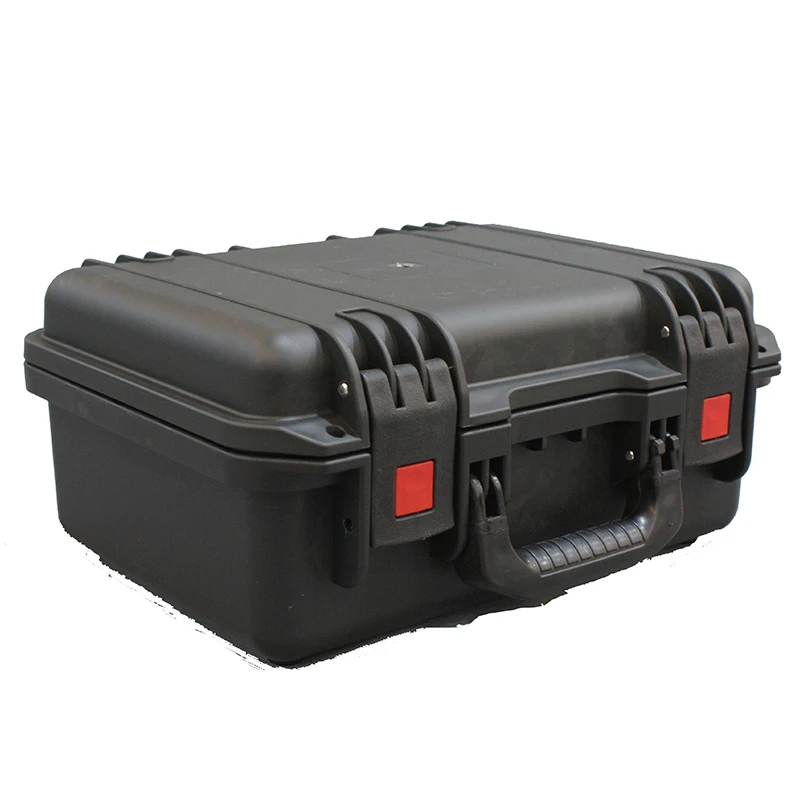

8. The use of cold and heat resistant, sealed, waterproof, anti shock and multi-function engineering plastic box, easy field test.

III. Technical Index

1.Rating: 0.9~10000

2.Accuracy: ±0.1%(below500)   0.2%(501-2000)  0.5%(2001-10000)

3.Resolution: Minimum is 0.0001

4.Working power supply: AC 220V±10%   50Hz

5. Applied temperature: -10℃~40℃

6. Relative humidity: ≤85%, non-condensing

                 7. Dimension;tester:360*290*170(mm) Wire box:360*290*170(mm)

8.Weight:tester 5.9KG Wire box:5.65KG

From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
