Производители электрических полюсных колес 12 схемы Рабочая скорость 300 об/мин на использование опасных материалов в производстве электрического и электронного
- Категория: Electrical Contacts and Contact Materials >>>
- Поставщик: Shenzhen,Jinpat,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.37 $* | 0.61 $* |
| Aug-19-2025 | 0.90 $* | 0.25 $* |
| Jul-19-2025 | 0.78 $* | 0.23 $* |
| Jun-19-2025 | 0.11 $* | 0.94 $* |
| May-19-2025 | 0.1 $* | 0.23 $* |
| Apr-19-2025 | 0.78 $* | 0.68 $* |
| Mar-19-2025 | 0.84 $* | 0.72 $* |
| Feb-19-2025 | 0.77 $* | 0.95 $* |
| Jan-19-2025 | 0.32 $* | 0.4 $* |
Характеристики
Bargain Price Only in Alibaba

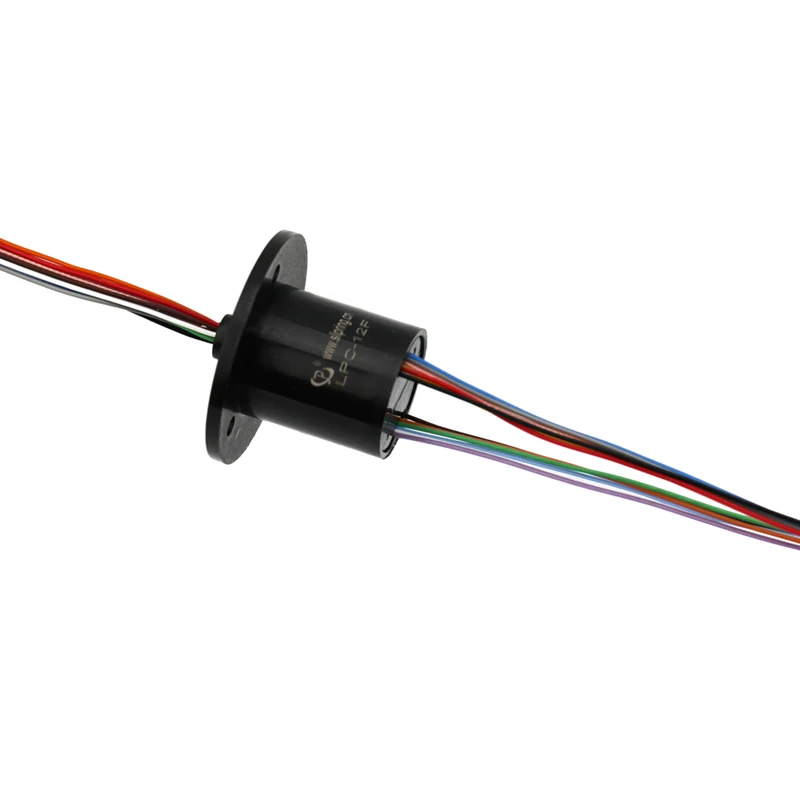

Standard middle-sized Capsule Slip Ring is able to integrate over 125 circuits, with optional outer diameter from
22mm~54mm. This series adopts advanced military-standard surface processing techniques, and is highly precise, compact and easy to assemble. Gold-to-gold contact ensures low resistance and super long service life. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc.
Features:
Military standard surface processing /Precise/Gold-to-gold contact/Low resistance/Long service life
Options:
Rotating speed/Life span/Protection grade/Number of circuits/Current capacity/Size/Housing material/Mass produc-tion
Main applications:
High speed dome/Camera platform/Electrical testing equipment/Rotary table /Manufacturing and control equipment
Specification
| Circuits | 12 |
| Current Rating | 2A |
| Voltage | 240VAC |
| Dielectric Strength | ≥500V@50Hz between circuits |
| Insulation | 100MΩ@500VDC |
| Electrical Noise | ≤15mΩ |
| Working Speed | 0~300 RPM |
| Contact | Precious metal |
| Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH |
| Protection Grade | IP54 |
Main Application
- Electric devices
- Motor equipment
- Industrial machinery
- LED industry
- Medical equipment
- Process control equipment
Outline Drawing
Product Display
Company Information
