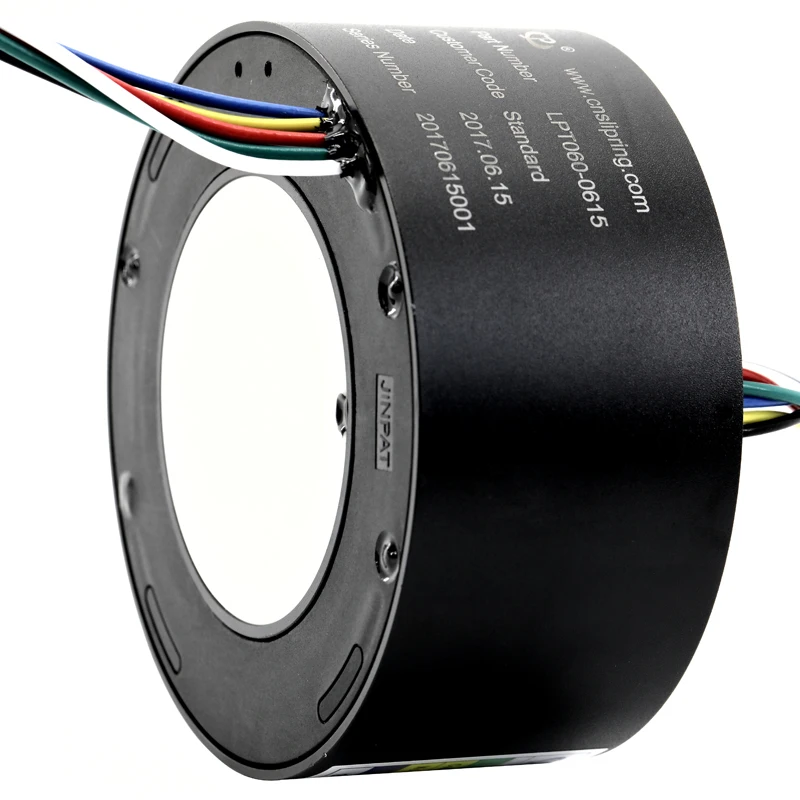

Стандартное проскальзывающее кольцо с сквозным отверстием размер отверстия 60 мм 6 цепей 15A напряжение 240
- Категория: Electrical Contacts and Contact Materials >>>
- Поставщик: Shenzhen,Jinpat,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.84 $* | 0.73 $* |
| Aug-19-2025 | 0.15 $* | 0.42 $* |
| Jul-19-2025 | 0.40 $* | 0.90 $* |
| Jun-19-2025 | 0.5 $* | 0.93 $* |
| May-19-2025 | 0.73 $* | 0.26 $* |
| Apr-19-2025 | 0.96 $* | 0.46 $* |
| Mar-19-2025 | 0.22 $* | 0.51 $* |
| Feb-19-2025 | 0.18 $* | 0.77 $* |
| Jan-19-2025 | 0.67 $* | 0.93 $* |
Характеристики
Bargain Price Only in Alibaba
LPT slip rings are through-hole slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). Using advanced fiber brush, reliable contact is guaranteed with very low friction. The center hole can be selected from 0 to 1000mm, the current can be selected from mA to 5000 amps, and the voltage can be up to 10000 volts, which can fully meet your different transmission schemes.
Features:
- Transmit analog and digital signal
- The power and signal are mixed transmitted, and the signal categories are as follows:
- Ethernet: Rate (10Mbps/100Mbps/1000Mbps)
- Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.
- HD video: SDI, LVDS, etc.
- Serial communication: RS232, RS485, RS422, etc.
- Universal Serial Bus: USB2.0
- Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.
- Sensor signal: thermal resistance, thermocouple, strain gauge, etc.
- Long service life, maintenance-free
- Easy to install
Main Applications:
- Industrial automation equipment
- Medical equipment
- Wind power equipment
- Test equipment
- Exhibition
- display equipment
- Robots
- Turntable equipment
- Amusement equipment
- High-speed railway equipment
- Packaging
- machinery
- Ship offshore equipment
- Construction machinery
Specification
| Circuits | 6 |
| Current Rating | 15A |
| Voltage | 240 VAC/DC |
| Dielectric Strength | ≥1000V@50Hz between circuits |
| Insulation | 500MΩ@500VDC |
| Hole Diameter | 60 mm |
| Working Speed | 0~300 RPM |
| Contact | Precious metal |
| Housing | Aluminum alloy |
| Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH |
| Protection Grade | IP50 |
Outline Dimension
Application
- Radar antenna
- Rotary Platform
- Engineering machine
- Packaging Machine
- Test Equipment
Product Display
