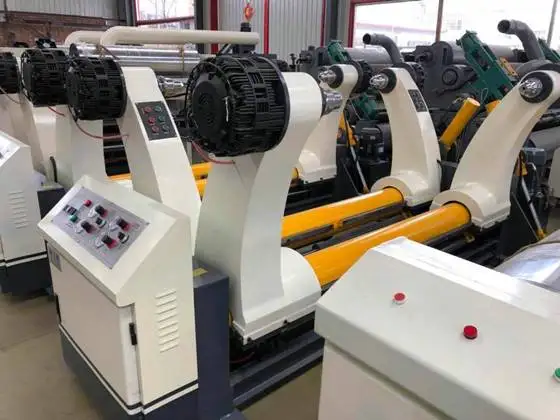

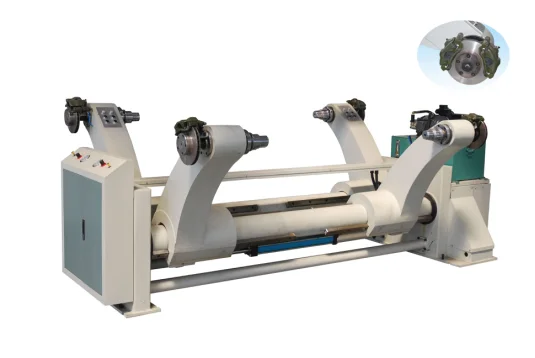

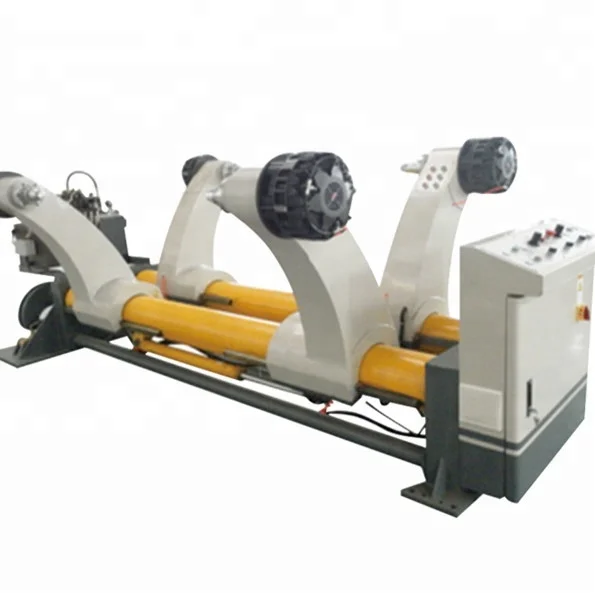

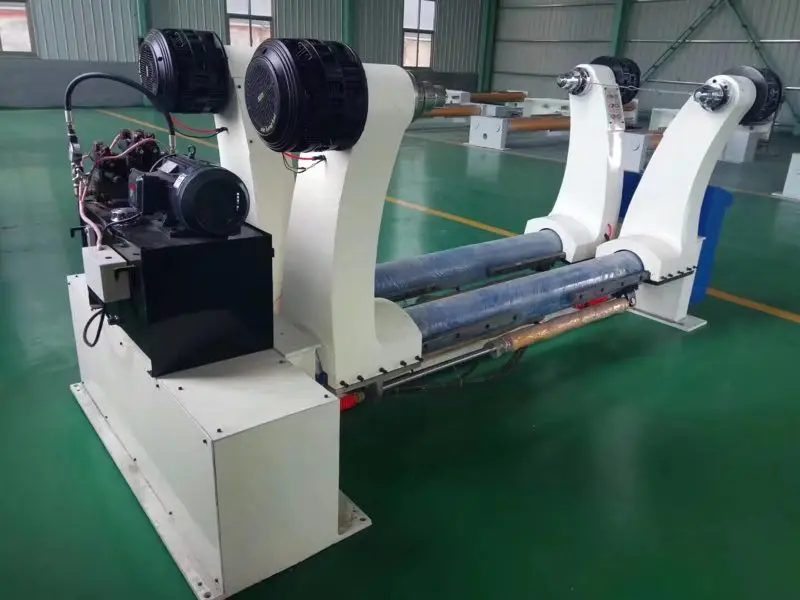

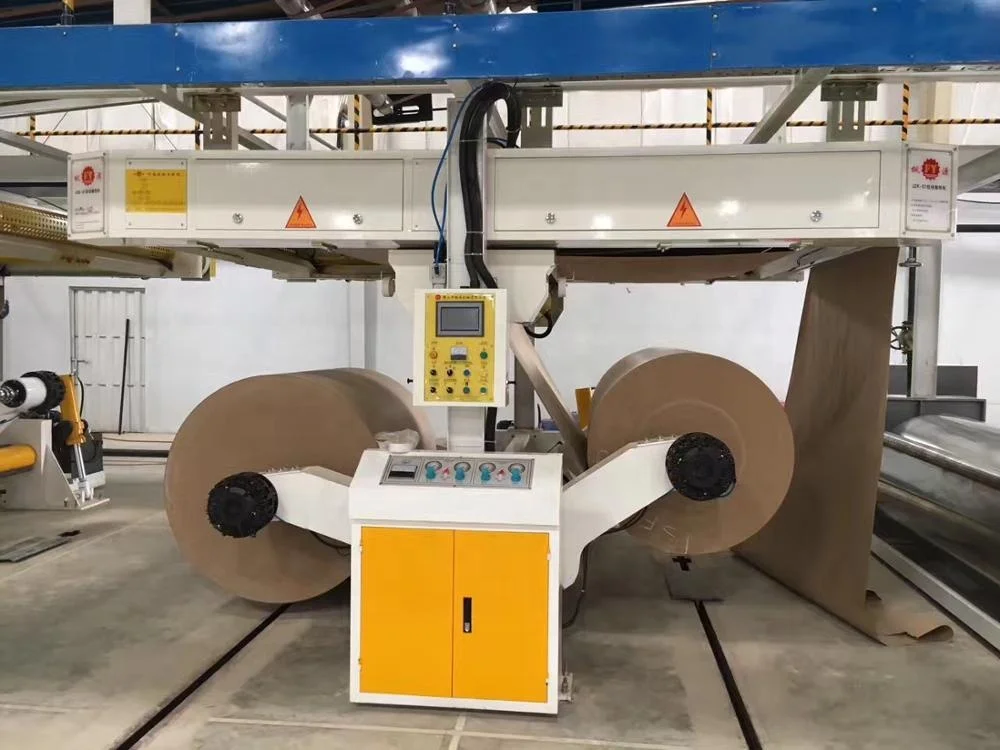

1800 гидравлическая мельница рулонная подставка для линии по производству гофрированного картона картонных

structural feature:

1.Symmetrical structure

2.adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

    Expanding head with jam, head size is 3 inch or 4 inch

technical parameters:

1. Paper stand action model : hydraulic model

2.clamp paper scape : max  1650mm , min 900mm

3. clamp paper diameter : max 1500mm

4.single side max load paper weight : 2000kgs

5.paper main shaft diameter  219mm

6.air compressor work pressure (Mpa):0.4-0.8mpa

7. work power :  volt  380v , 50hz

Hydraulic system parameters:

1,Work pressure(Mpa):16---18Mpa

2,lifting hydraulic cylinder:100*440mm

3.Clamping hydraulic cylinder:63*1300m

4,hydraulic station motor power:5KW --380V -- 50Hz

2,5,solenoid valve voltage:220V  50 Hz

Mainly purchased parts, raw materials and origin:

Pre-sales service

1.many years expertise and professional experience in designing and manufacturing.

2.design and customize according to customers’ requirements.

3.high levels of performance, quality and reliability of all equipment and services.

After-sales service

Term of service for the sold machine as below:

1.Engineers available to service machinery overseas.
 2.Within 1 year, the spare parts damaged by non-human reason, we will replace it in free charge, excluding wearing spare parts. The cost of damaged parts will be charged due to violation operation of operator or faulty operation.
3. The price of spare parts is lowest cost prices beyond warranty period.
