Product Description

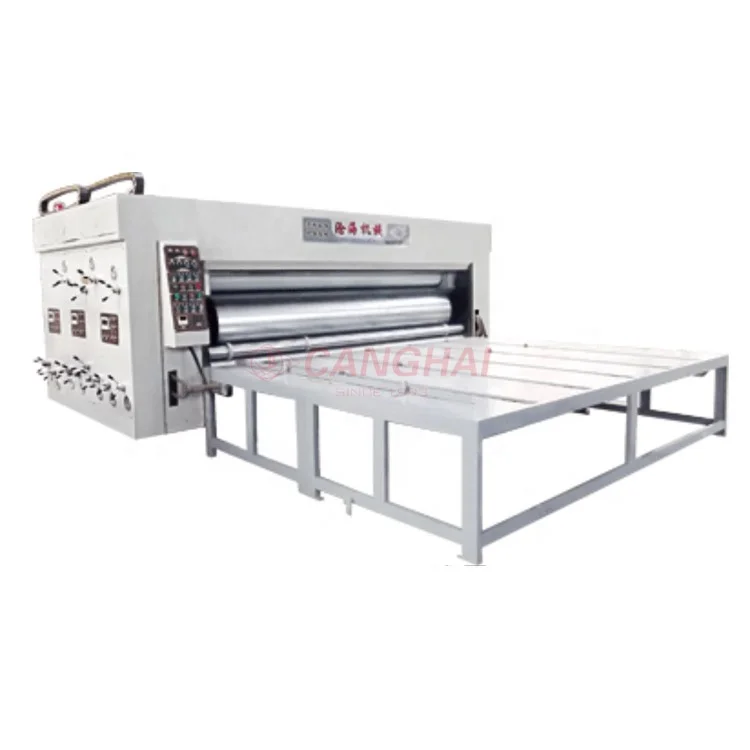

Manual feeding canghai flexo printer slotter machine carton 3 color

The machine adopts chain-paper feeding.

Adopting QT400 Ductile iron gear driving
Rockery interval adjustment device avoids central deviation of upper and lower knife rolls led by conventional adjustment,thus ensure balance operation rolls and clear print without double shadow.
Auto cycling ink-feed system ,roller lifted pneumatic and separate rotating.
All the axles of roller chrome –plated for increase the hardness

\t Item	\t Unit	\t 1650*2400
\t Max paper coverage	\t mm	\t 1650*2400
\t Effective printing area	\t mm	\t 1650*2200
\t Min finish size	\t mm	\t 400*550
\t Thickness of printing plank	\t mm	\t 6
\t Adapt to cardboard thickness	\t layers	\t 3,5,7
\t Slot width	\t mm	\t 7
\t Cut corner deepness	\t mm	\t 50
\t Max.depth of slot	\t mm	\t 500
\t Topping precision	\t mm	\t ±0.75
\t Slotting precision	\t mm	\t ±1.5
\t Max speed	\t Pcs/min	\t 60
\t Economy speed	\t Pcs/min	\t 30-50
\t power of motor	\t kw	\t 7.5
\t Shape size	\t mm	\t 4520(3120-4420)2050

Detailed Images

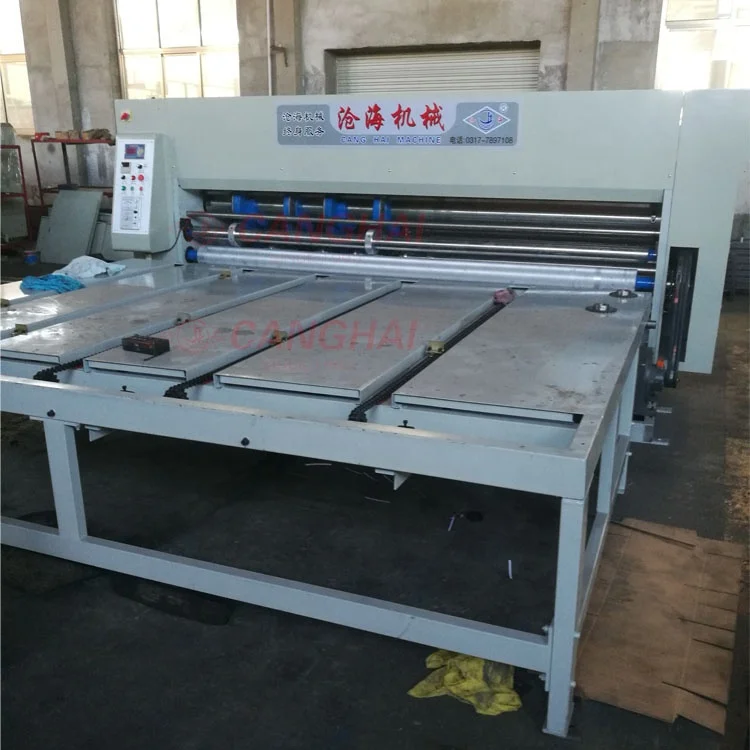

Feeding unit

Rockery interval adjustment device avoids central deviation of upper and lower knife rolls led by conventional adjustment,thus ensure balance operation rolls and clear print without double shadow.

Auto cycling ink-feed system ,roller lifted pneumatic and separate rotating.
All the axles of roller chrome –plated for increase the hardness

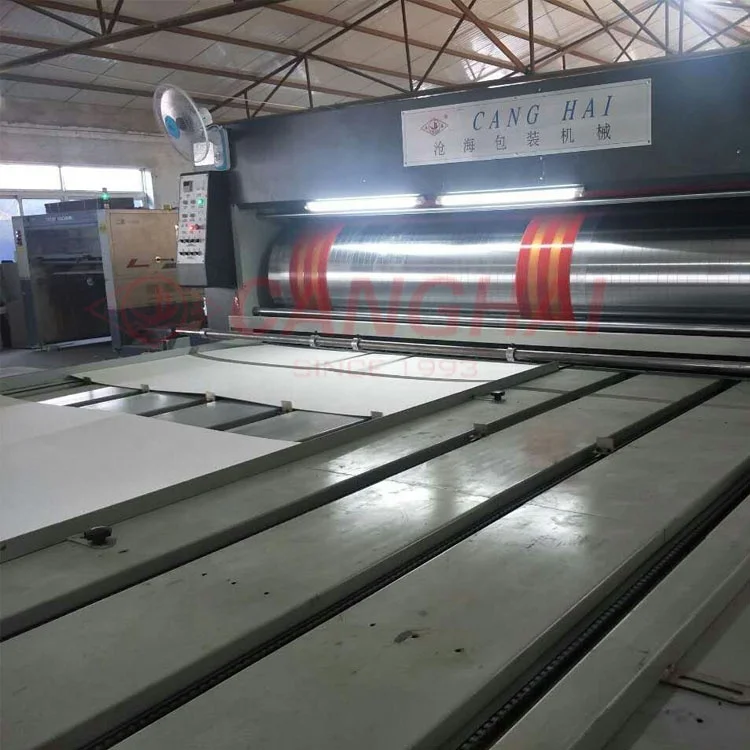

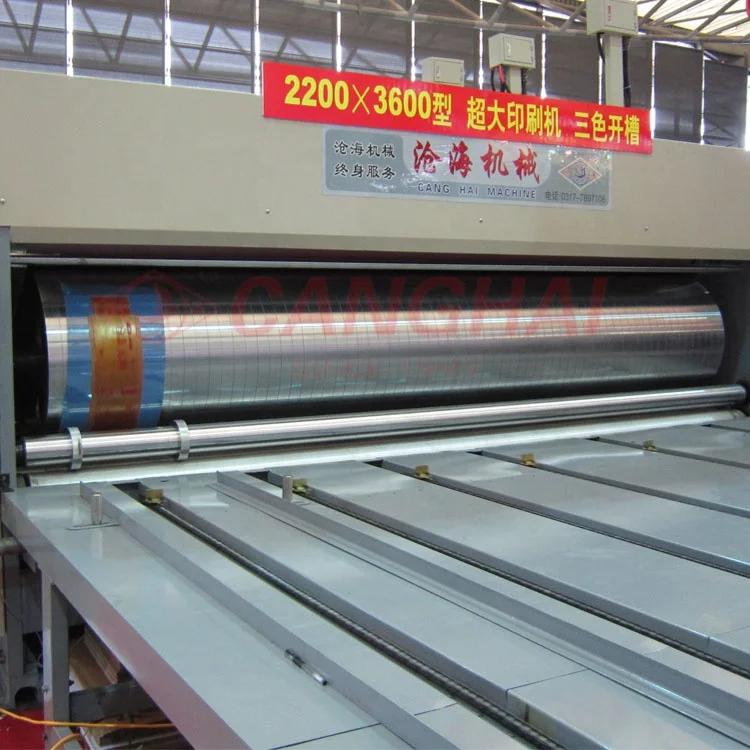

Pringint unit

Printing and grooving electric phase adjusting mechanism adopt planet type gear structure (it can be adjusted 360 degree while revolving and stopping)

Electrically separation and pneumatic locking
Module design ,any combination of multi-color printing unit
Auto count device to show right production volume.

Slotting unit

The slot knife thickness 7 millimeter,manufactured by high quality ally,tooth profile cutting sharp,the grinding resistance high.

The slot knife phasing adjustment organization ,the frequency changer the brake,static 360 degree adjustments.
The slot knife lateral movement uses the electrically operated control,the adjustment is quick and accurate.
Regards the user to need to be possible to match the punch device..
Slot department are added the pre-press rolling set ,improve the cardboard resistant to compression ability.
Compressing wheel disk are added on the press line and cut angle seat, to guarantee the papers junction are smooth, easy to glue box.
