YT-4600 4 вида цветов нейлоновая сумка пленки флексографическая печатная


Поделиться:


Цена:14 000,00 $ - 14 500,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 16660.3 $* 17493.5 $*
Aug-15-2025 16520.60 $* 17346.71 $*
Jul-15-2025 13860.0 $* 14553.25 $*
Jun-15-2025 16240.0 $* 17052.79 $*
May-15-2025 14140.18 $* 14847.90 $*
Apr-15-2025 15960.12 $* 16758.59 $*
Mar-15-2025 15820.95 $* 16611.1 $*
Feb-15-2025 15680.74 $* 16464.77 $*
Jan-15-2025 15540.31 $* 16317.31 $*

Характеристики


YT-4600 4 colors nylon bag film flexo printing machine


1.Feature:


1.1 Easy operation, flexible starting, accurate color register.


1.2 The meter counter can set printing quantity according to the requirements, stop the machine automatically at the quantity or when the material is cut off.


1.3 Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.


1.4 The printing ink is spread by the anilox cylinder with even ink color.


1.5 Reliable drying system coordinated with highspeed rotation, it will automatically break circuit when the


machine stops.360continuous and adjustable longitudinal register device.


1.6 The frequency control of motor speed adapts to different printing speed.


1.7 Suitable for printing the packing material as PE and PP plastic bags, glass papers rolling papers, etc.


2. Main Technical Specification


































































Model



YT-4600



YT-4800



YT-41000



Feed width



150-600mm



150-800mm



150-1000mm



Printing width



150-560mm



150-760mm



150-960mm



Print length



191-1000mm



191-1000mm



191-1000mm



Unwind diameter



φ450mm



φ450mm



φ450mm



Printing Speed



5-50m/min



5-50m/min



5-50m/min



Thickness



2.3mm



2.3mm



2.3mm



Total Power



12.2kw



16.2kw



19.25kw



Dimension



4.2×1.6×2.4m



4.2×1.8×2.4m



4.2×2×2.4m



Weight



3000kg



3500kg



4000kg






3. picture showroom


 A. roll paper unwind


unwind





B. rewind roll paper


double rewind film





C.electric box


control panel


F. print unit


printing

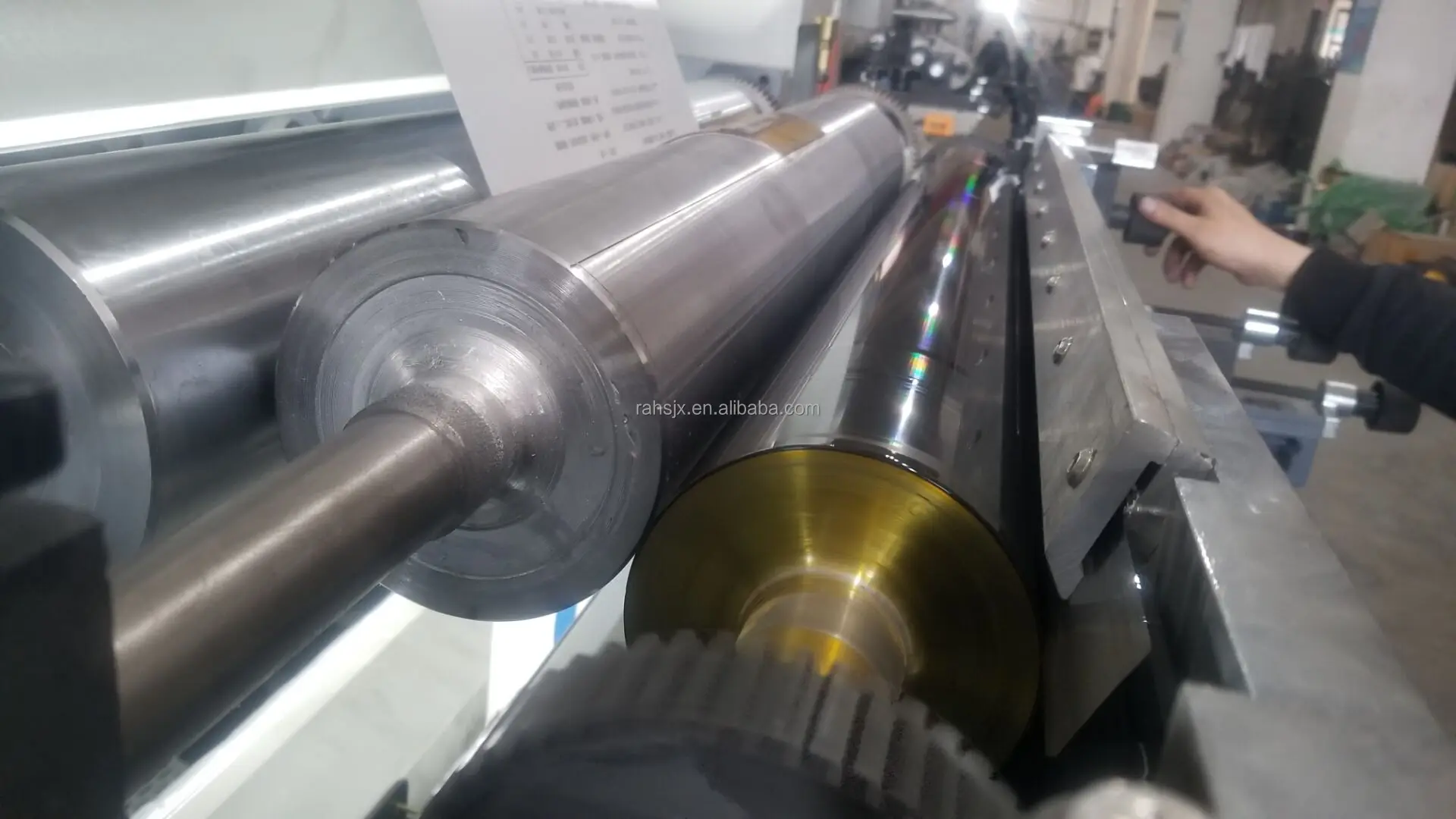

G.ceramic anilox roller and doctor blade


printing 2

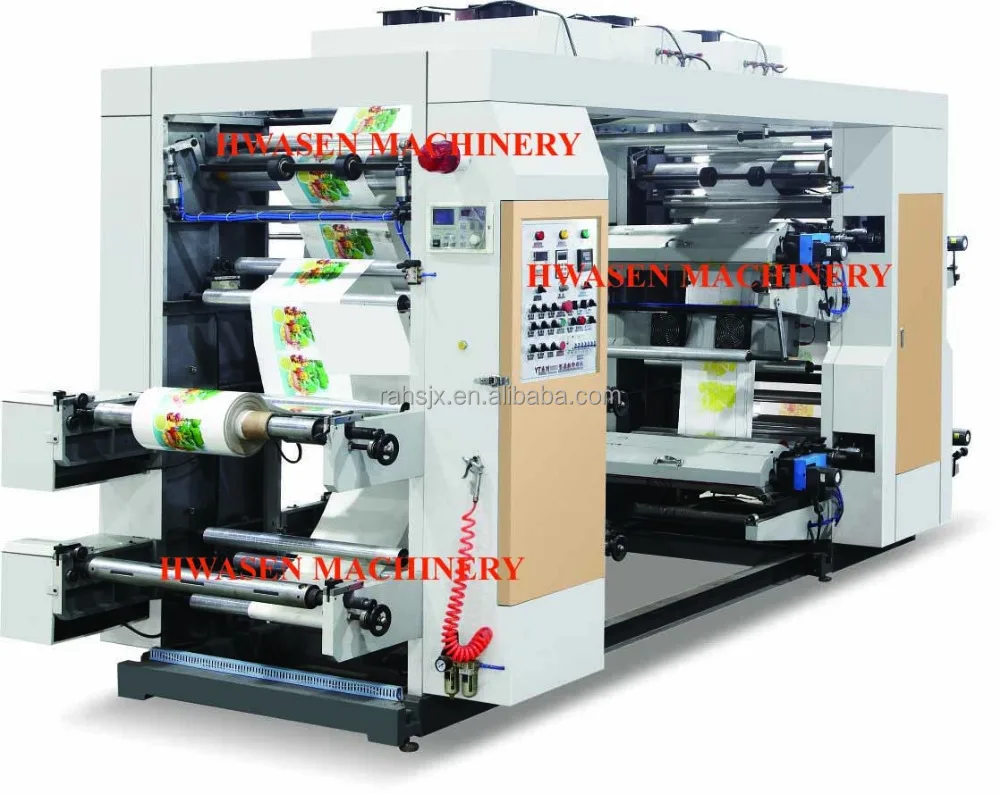

H. printing machine whole picture


P1
