Характеристики

Product Description

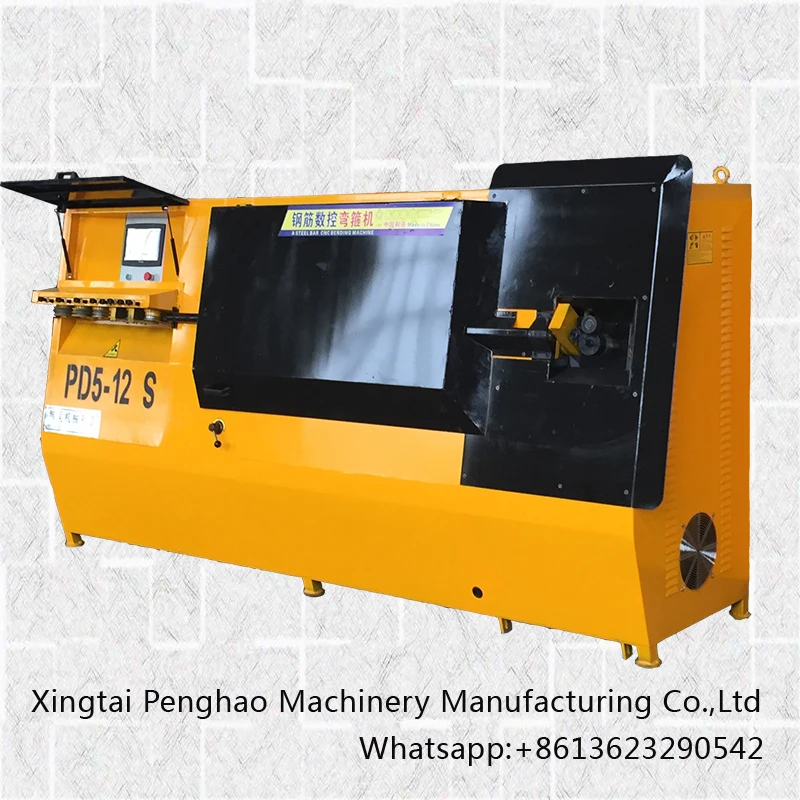

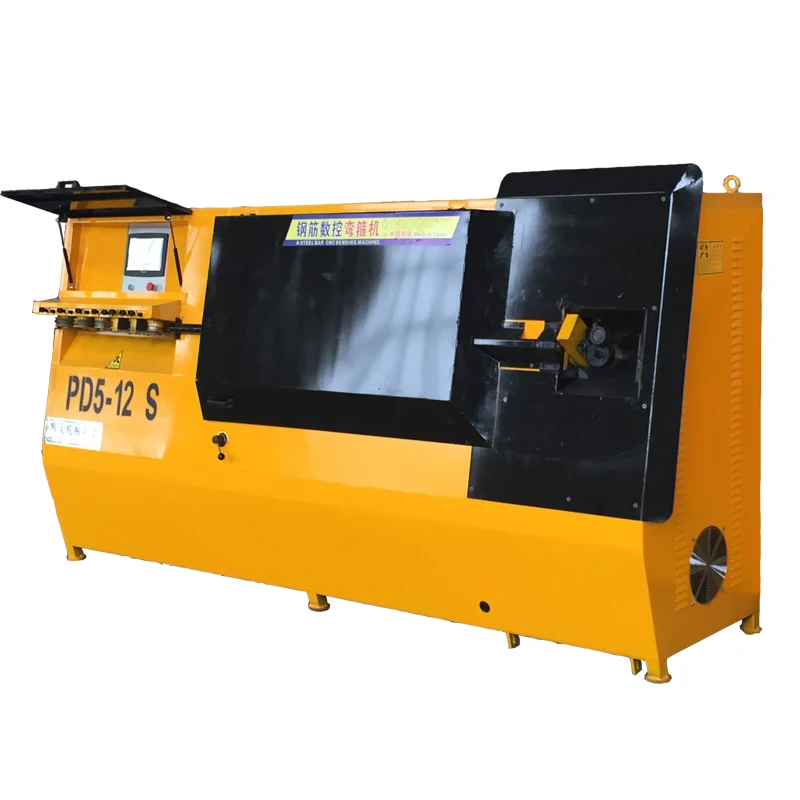

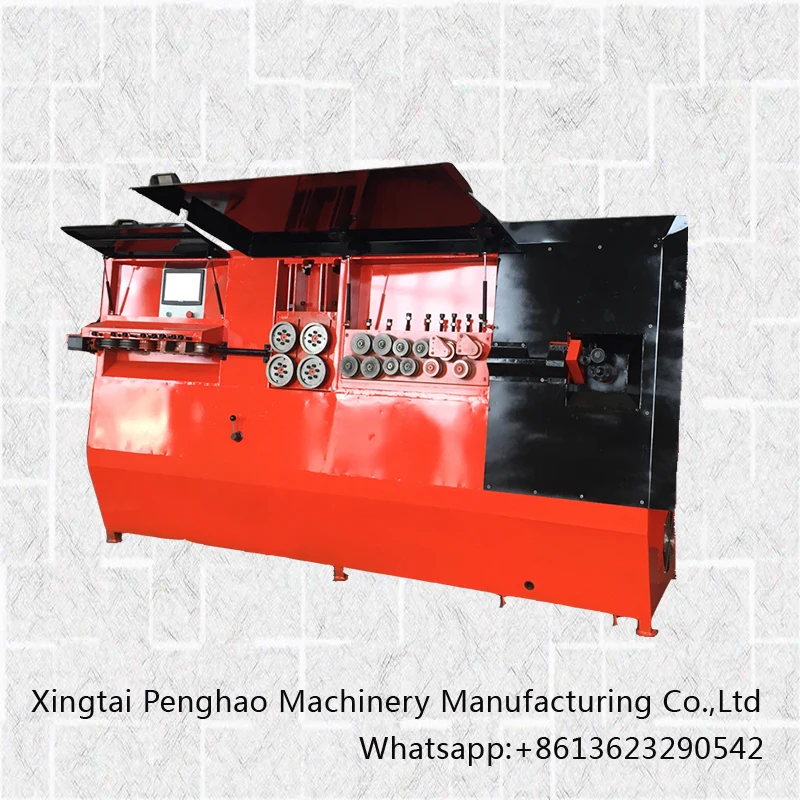

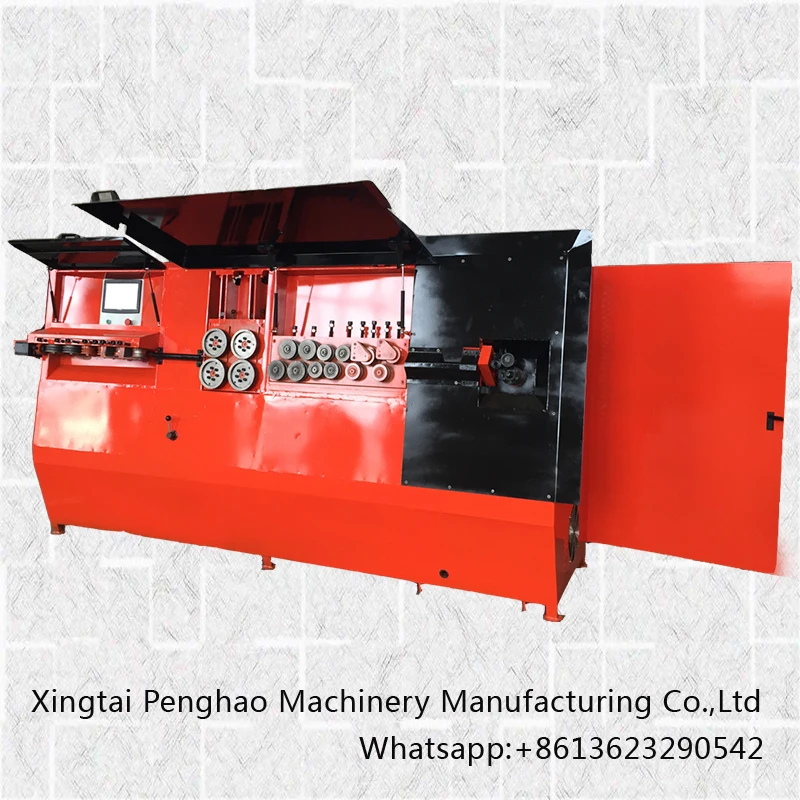

PD5-12S CNC stirrup bending machine

The equipment adopting CNC servo control system can automatically complete the straightening, sizing, bending, cutting, and other processes.
12 mm is the max. diameter processed by this machine.The device is widely used in the construction industry, large steel processing plants and other fields.

Technical Parameters

PD5-12S Technical Parameters
Processing dia.(Sigle wire)	Round steel φ4-12mm	Max. bending speed	800°/sec
Processing dia.(Sigle wire)		Screw steel φ4-12mm	Length accuracy	±1mm
Processing dia.(Double wire)	Round steel φ4-12mm	Angle accuracy	±1°
Processing dia.(Double wire)		Screw steel φ4-12mm	Equipment power	23kw
Max bending angle	±180°	Size(mm）	410011002100
Maximum towing speed	60m/min	Total weight	1500KG
Production efficiency	1600pcs/hour	Color	Customized

AMain Features of PD5-12S CNC rebar bending machine

1.This equipment adopts servo controlling system;
2.Automatically accomplish the functions of rebar's feeding, straightening, bending and cutting etc.;
3.Max bending diameter of rebar is 12 mm;

4.Continuously bend various stirrup of plane figure;

5.High efficiency and accurate processing precision.

Detailed Images

Machine Parts 1

Name: CNC automatic computer system

This machine adopts numerical control system, it can process many kinds of shapes of rebars.

Machine Parts 2

Name: Multi roller straightening device

Multi roller straightening device has good straightening effect.During machining ,it will not tangle.The roller is made of special alloy steel which is wear-resisting.

Machine Parts 3

Name: Double roller traction device

The roller is made of Cr12MoV material.This material lengthen the service life of the roller, and strengthen the effect of feeding roller.

Machine Parts 4

Name: Pneumatic telescopic device

This device can save material .It is our patented product .In addition , it can process 5*5 stirrups.

CE Certifications

Packing & Delivery

1.Standard export package(wooden case), fumigation free.If the customer needs, according to customer's demand.
2.If we have goods in stock ,we will delivery goods within seven days.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* One year warranty for whole machine(not including wearing parts ),life-long maintenance and technical support.
* All the machines sold in the country shipped with user-friendly English operation video and instruction.
* Training how to instal the machine, training how to use the machine.

Advanced technology

Fully automatic CNC bending hoop machine,adopting intelligent control, can process various sizes ,such as square, rectangle, polygon and rhombus etc..At the same time ,with straightening and cutting functions, multi-use of one machine.Greatly enhance the production efficiency and reduce labour costs.
