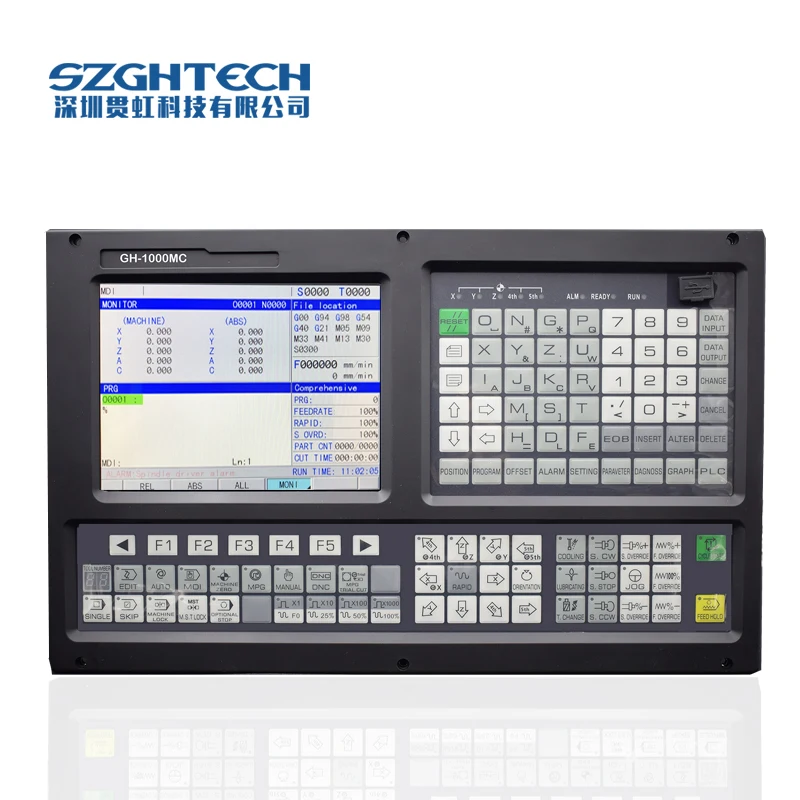

New Product 4Axis CNC Milling Controller For CNC Milling Machine
Product Description
Number of control axes
3axes (X, Y, Z)
Minimum programming
0.001mm
Maximum programming
± 99999.999mm
Top speed
30m / min
Feed speed
0.001-15m / min
Manual continuous
one axis or simultaneous multi-axis
Interpolation method
straight line, arc, thread interpolation
Tool offset
length compensation, nose radius C compensation
Spindle functions
gear, dual analog control, rigid tapping
Handwheel functions
panel type, plug-in hand-held
Screen saver function
screen saver function
Communication function
RS232, U disk interface
Compensation function
knife compensation, between compensation, screw compensation, radius compensation
Program editing
male / English, relative / absolute programming
Limit function
software limit, hardware limit
Pre-reading function
Short line preprocessing 10,000 lines
Password protection
multi-level password protection
Input and output
I / O point 24X24
PLC programming
The user is free to design PLC function
Acceleration and deceleration control
linear acceleration and deceleration, the number of additions and subtractions
Encoder lines
any setting
User macro program
Yes
Electronic gear functions
Yes

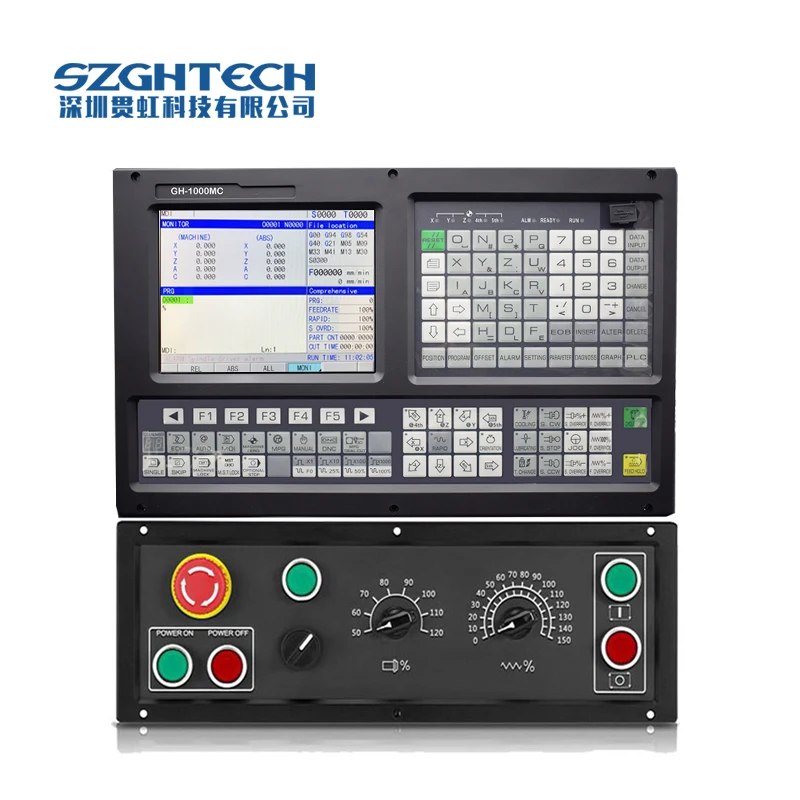

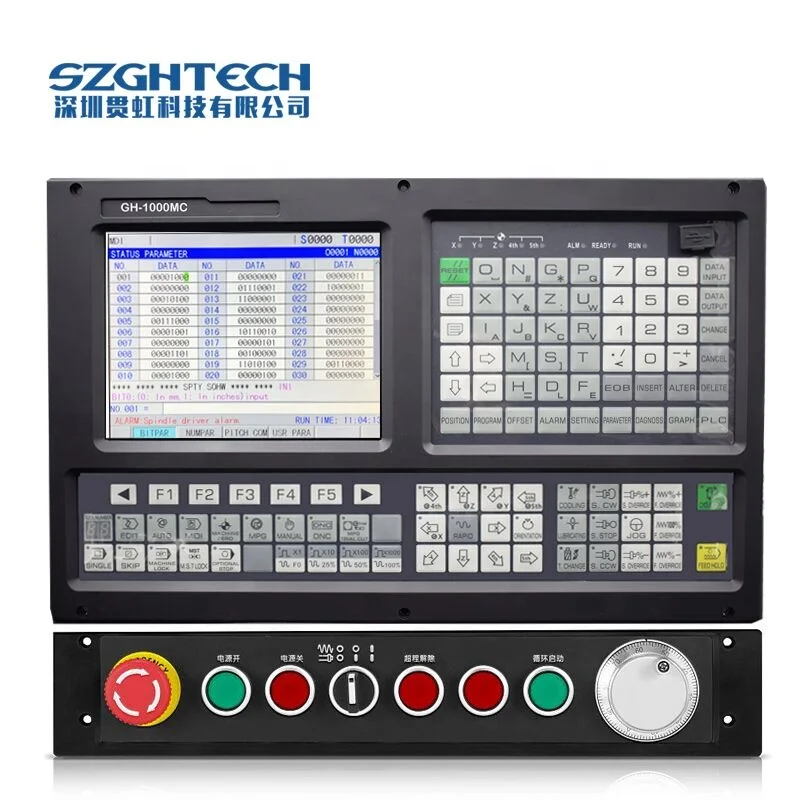

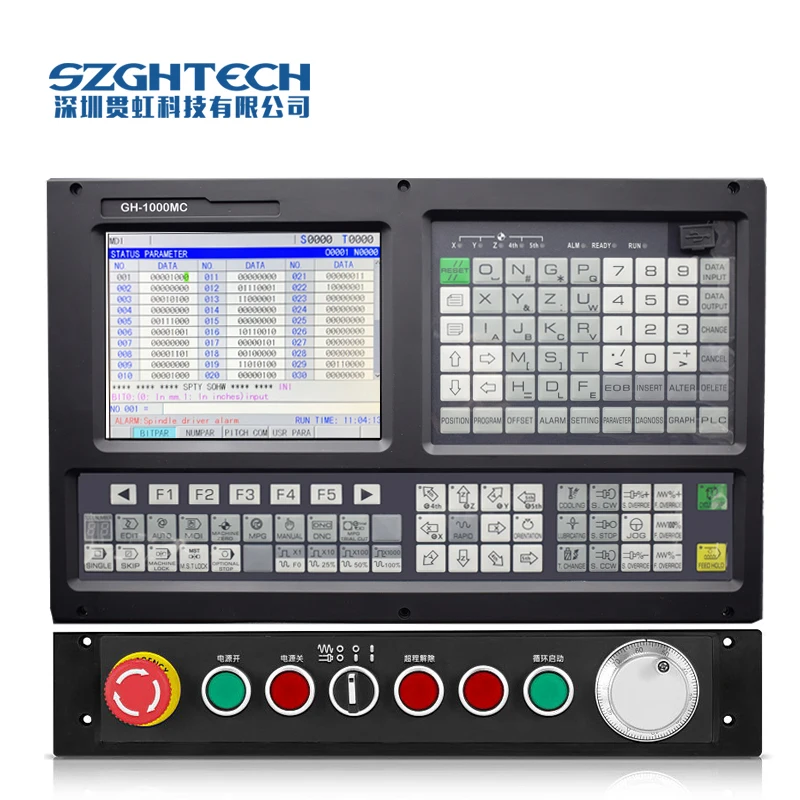

Vice-panel
A-type panel with hand wheel; B band band switch
Applicable machine tools
milling machine, boring machine, drilling machine

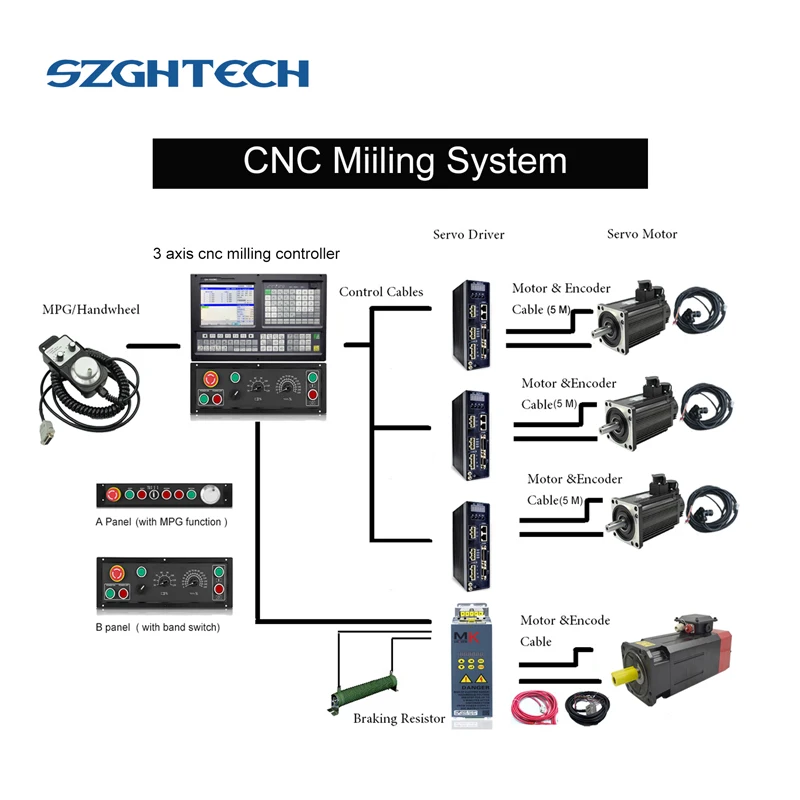

GH CNC CONTROLLER ALSO CAN PROVIDE MODBUS ,Ethernet CNC CONTROLLER SYSTEM AND SERVO SERVO (23 BIT ENCODER )
Professional technical team provides after-sales service!
Company Information
Packaging & Shipping
FAQ
Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
