Ручной домкрат YT28

Категория: >>>
Поставщик: Tianjin,Good,Drill,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.6 $*	0.58 $*
Aug-18-2025	0.97 $*	0.17 $*
Jul-18-2025	0.61 $*	0.28 $*
Jun-18-2025	0.65 $*	0.65 $*
May-18-2025	0.11 $*	0.2 $*
Apr-18-2025	0.65 $*	0.56 $*
Mar-18-2025	0.35 $*	0.94 $*
Feb-18-2025	0.97 $*	0.51 $*
Jan-18-2025	0.93 $*	0.5 $*

Характеристики

Product Description

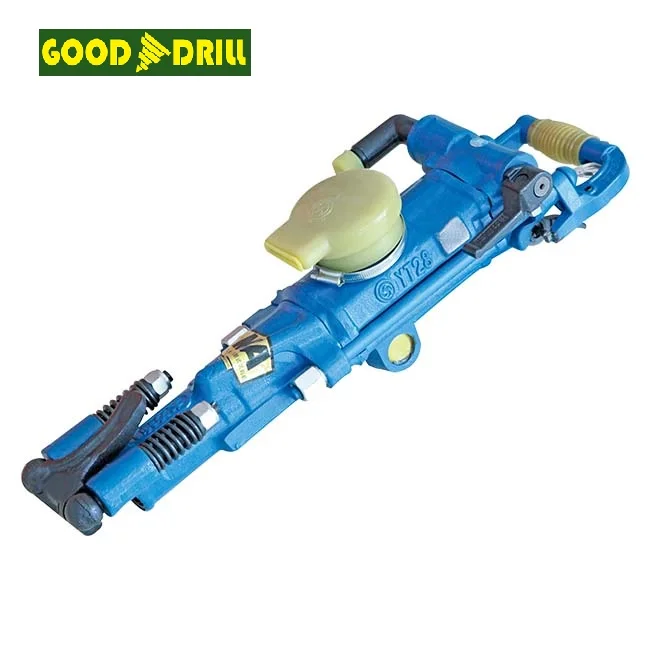

Hot sale pneumatic rock drill YT28 Hand Held Jack Hammer

Application

The rock drill is a kind of high efficiency air leg rock drill machine. It is mainly used for digging into mine lane way and blasting holes in all drilling works. It is an indispensable machine tool in metallurgy, coal, railway, traffic, water conservancy construction and national defense stone project.
It is suitable for drilling and blasting under various of rocks at any direction angles. Blast hole dia is 34-42mm and depth 5 m. This machine could match with short air leg or long air leg.

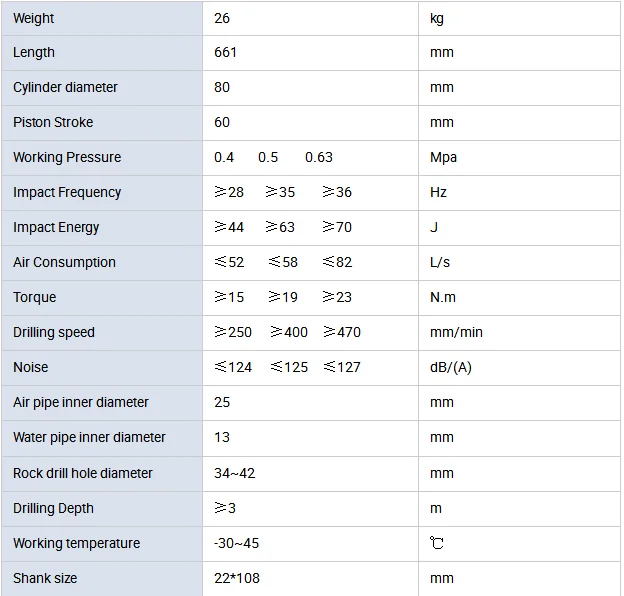

Parameters

\t Weight	\t 26	\t kg
\t Length	\t 661	\t mm
\t Cylinder diameter	\t 80	\t mm
\t Piston Stroke	\t 60	\t mm
\t Working Pressure	\t 0.4 0.5 0.63	\t Mpa
\t Impact Frequency	\t ≥28 ≥35 ≥36	\t Hz
\t Impact Energy	\t ≥44 ≥63 ≥70	\t J
\t Air Consumption	\t ≤52 ≤58 ≤82	\t L/s
\t Torque	\t ≥15 ≥19 ≥23	\t N.m
\t Drilling speed	\t ≥250 ≥400 ≥470	\t mm/min
\t Noise	\t ≤124 ≤125 ≤127	\t dB/(A)
\t Air pipe inner diameter	\t 25	\t mm
\t Water pipe inner diameter	\t 13	\t mm
\t Rock drill hole diameter	\t 34~42	\t mm
\t Drilling Depth	\t ≥3	\t m
\t Working temperature	\t -30~45	\t ℃
\t Shank size	\t 22*108	\t mm
\t FY200B / FY200C Oil injector
\t Weight	\t 1.02	\t kg
\t Oil Reserve	\t 200	\t ml
\t Air Leg
\t type	\t FT160BD (short)	\t FT160BC (long)
\t Weight	\t 14.4kg	\t 16.9kg
\t Length	\t 1400mm	\t 1800mm
\t Advance Length	\t 965mm	\t 1365mm
\t Cylinder diameter	\t 65mm	\t 65mm
