Детали для нитрирующей печи питьевого

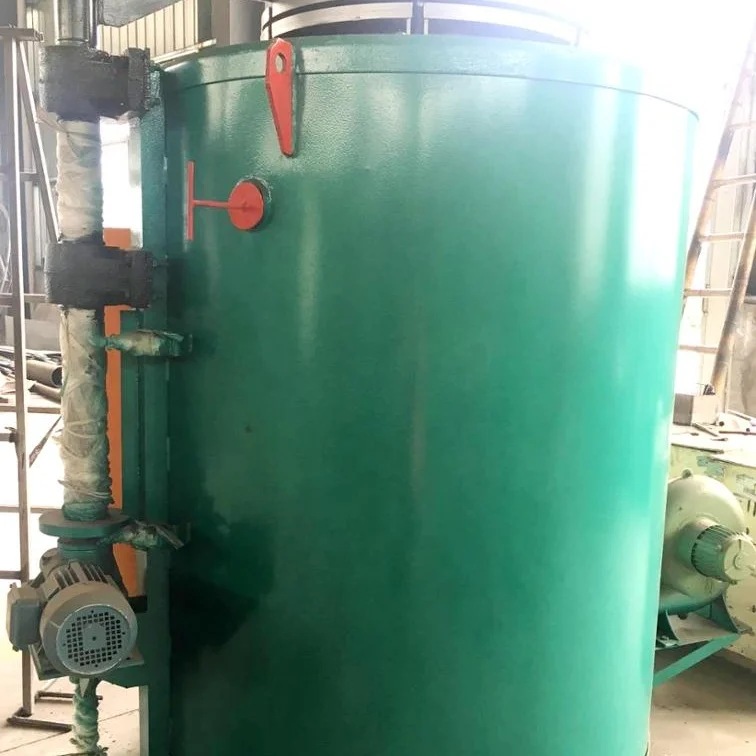

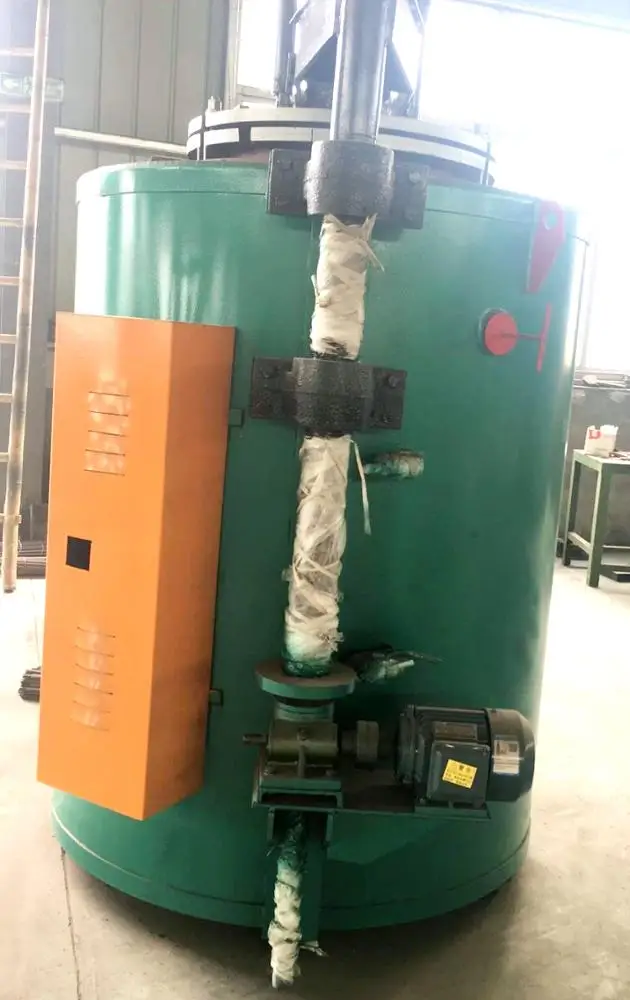

1,Furnace body

Furnace body is mainly made of furnace shell, lining, heating elements, furnace cover, furnace cover lifting mechanism and the sealing system, furnace can, hot air circulation fan and drip liquid device, etc

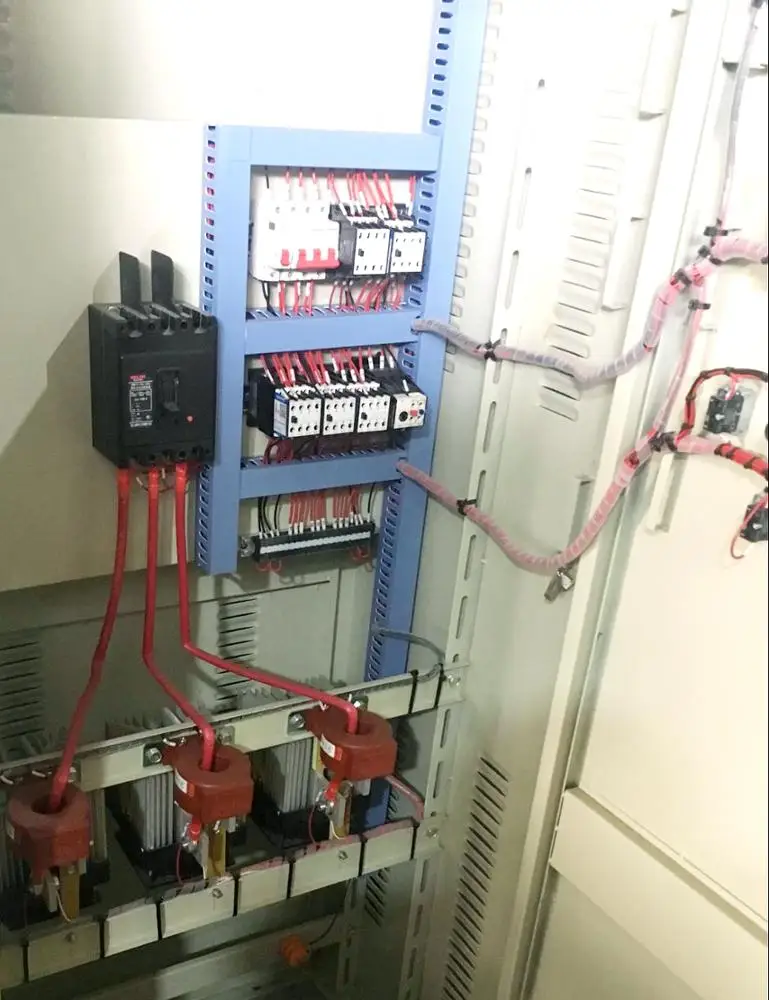

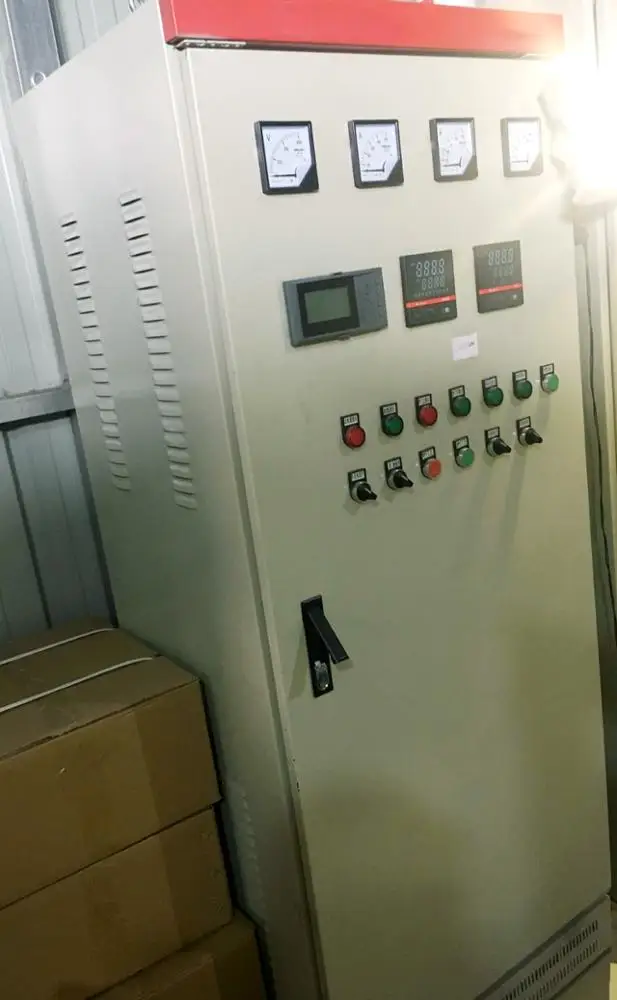

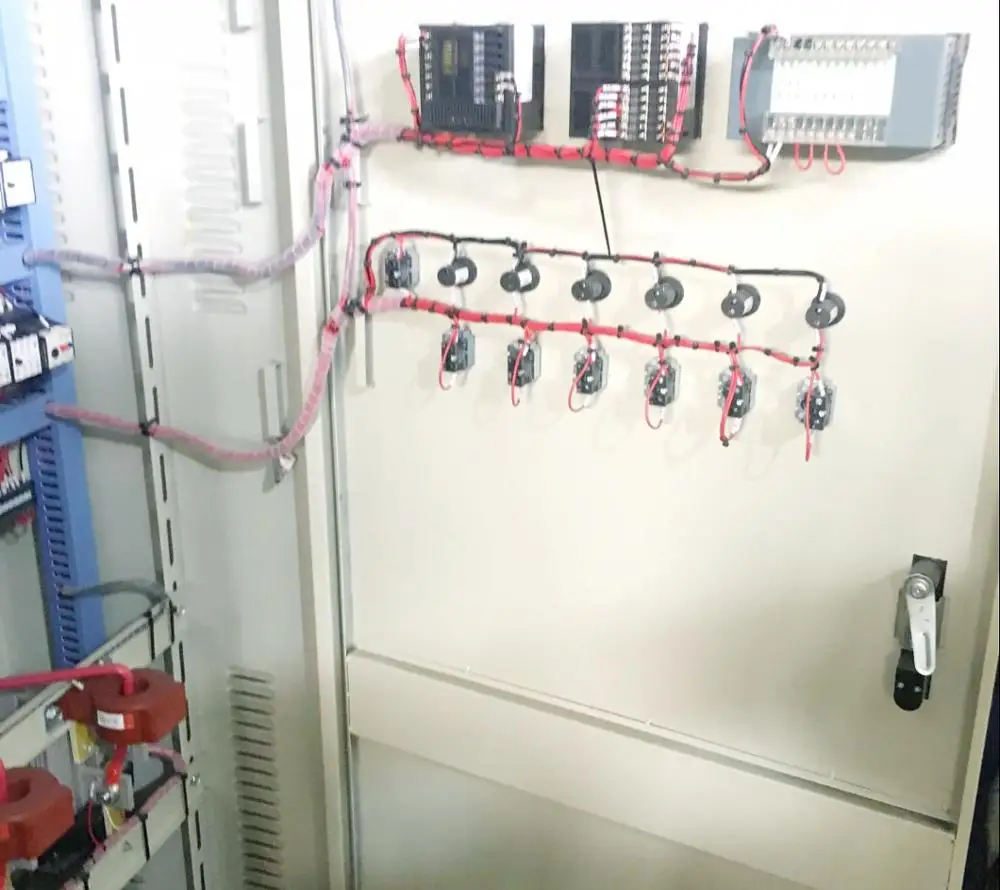

2,Electrical Control Cabinet

2.1,The cabinet body adopt structural cabinet form, the framework inside cabinet is with universal mounting holes ,install galvanized hangs inside cabinet, hangs plate and cabinet surface adopt cold rolled steel sheet ≥2mm to be formed

2.2,Electric furnace is controlled by partition, each zone were respectively adopted PID intelligent high precision meter which to control temperature, high precision for temperature control , furnace temperature stable, small fluctuations on temperature difference

2.3,Settings for reasonable data by intelligent controller, which can be up to the optimal control of each temperature zone

2.5,Be with over*temperature, over-current, short circuit, break, furnace cover lifting.etc chain protection,

2.6,Alarm with sound and light alarm form, indicating which zones show over temperature

2.7,There is heating current instructions. to observe if heating of each zone is normal, when heat become slowly, it is for analyze the fault
