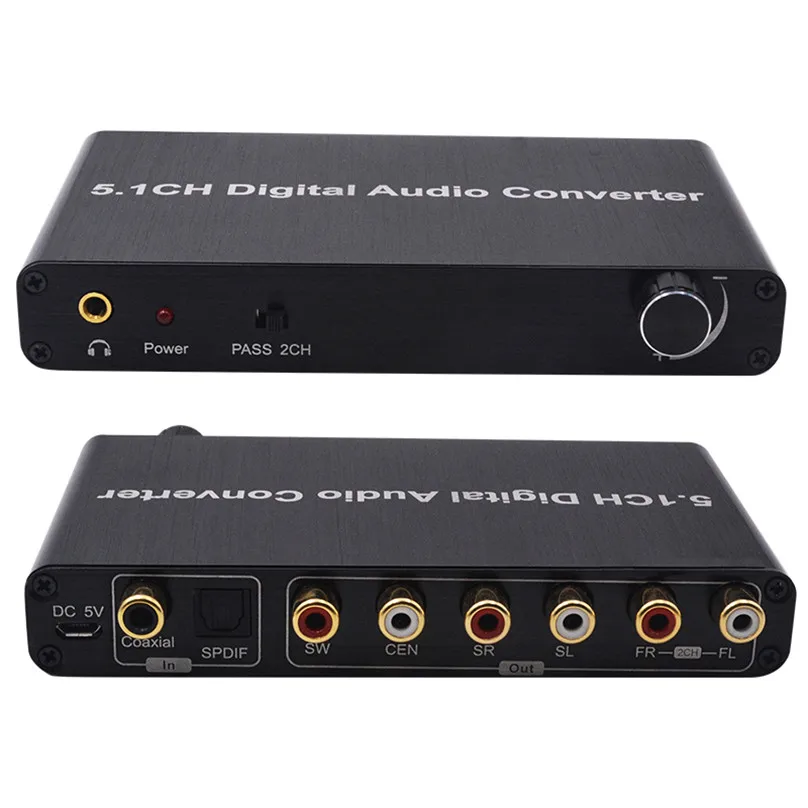

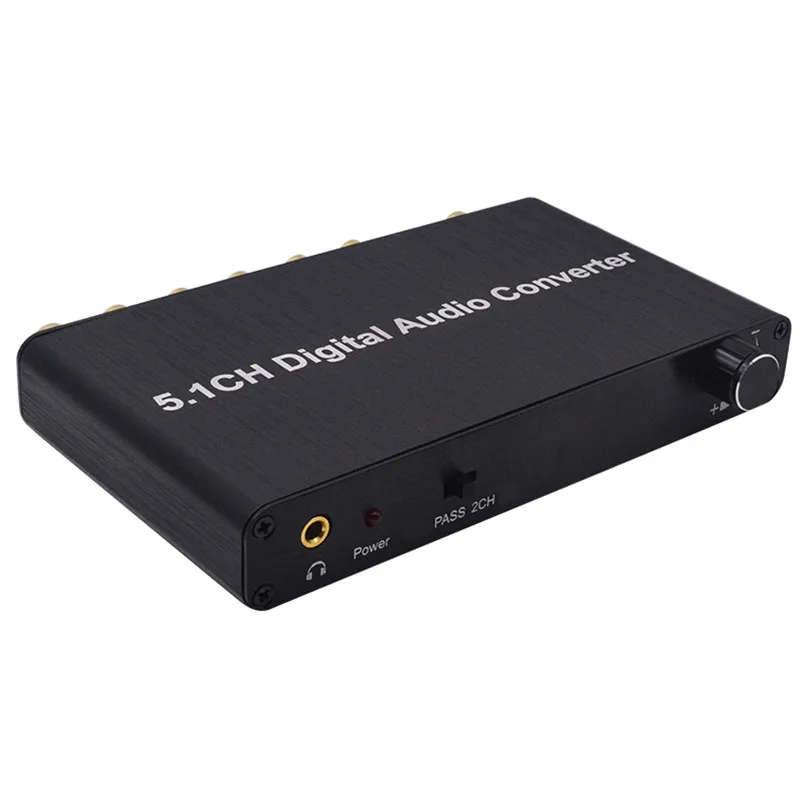

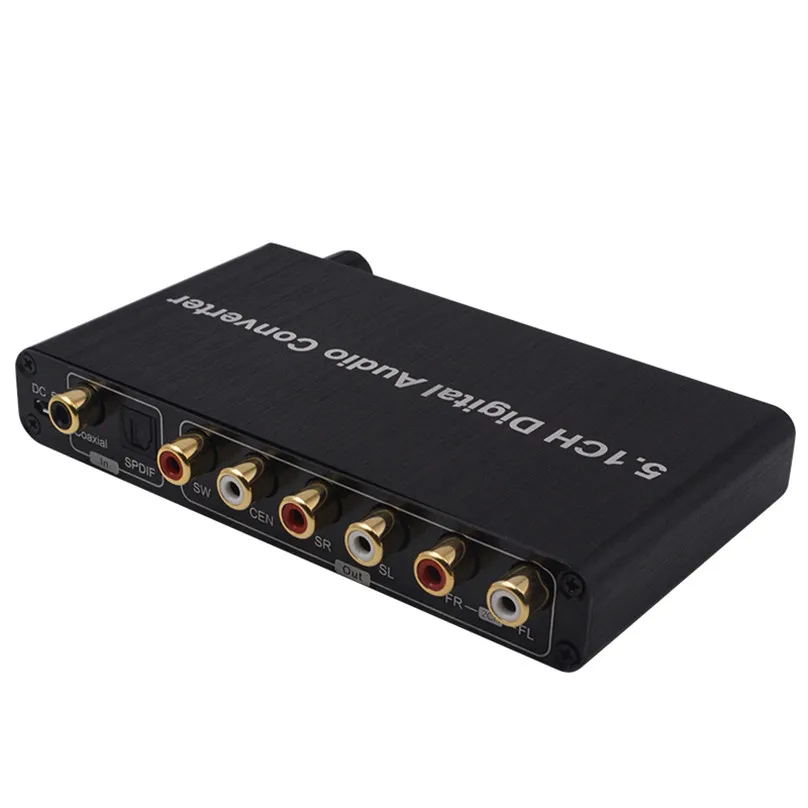

Features:

l Built-in high performance RTOS operating system and audio decoder chip;support DTS/AC-3.

l Just 3 seconds started

l Input:1 SPDIF Optical, 1 Coaxial

l Output:SW, CEN, SR, SL, FR, FL;3.5mmHeadphone Port

l Auto decode AC-3/DTS (LPCM/PCM/RAW) input signal without any set.

l High compatibility: Support network player, HDTV, Blu-rayDVD, DVD, PS3, Xbox 360, DM500S, DM800HD, etc.

l Small Size and Metal case, Anti-interference.

l Adopt 6CH RCA /3.5mm Headphone port output, using conveniently.

l Supports 6CH volume synchronous adjustment..

Specification:

Support audio format..MP3,AC3,DTS,WAV,WMA,

AAC,ALAC,FLAC,APE,OGG,M4A

Signal Noise Ratio.......................................120db

Stereo Isolation.................................80db(1KHZ)

Channel Unbalance.........................................0db

Sampling Rate....................................32~192 KHz

Bit Rate...................................................16~24 Bit

Response Frequency..........20Hz~20KHz+/-0.7db

THD.............................20Hz~20KHz 0.25-0.065%

THD+N...............................................1KHz 0.15%

Analog Output level........................................2.2V

Analog Input level......................................1V(3db)

Shell Dimension.................138.2 x 97.5 x 21.2mm

Weight............................................................238g

Working Voltage........................................DC +5V

Max Power Current.....................................210mA

Working Temperature..................................0-70℃

Working Humidity..10%-80%RH(non-condensing)

Storage Temperature...............................-10-80℃

Storage Humidity...5% -90% RH(non-condensing)

Connection and Operation:

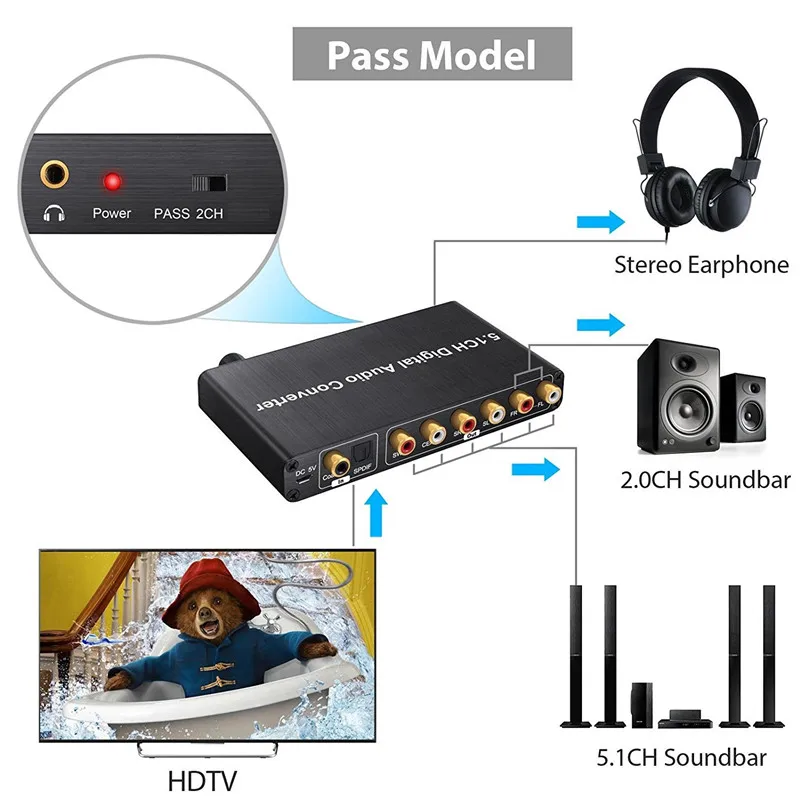

1. Use optical cable or coaxial cable connect to SPDIF port orcoaxial port on the source device.

2. Use the audio cable connect to the SW/ CEN/SR/SL/ FR/FL port of the audio amplifier.

3. Powered the decoder.

4. When you need to output with 5.1 channels, switcher to the PASS position, and set the source outputof the source device. (Note: The source signal and source device need to support 5.1CH)

5.When you need to outputwith 2.0 channels, switcher the 2CH position (Note: There is no sound in the SW/CEN/SR/SL channels when the switcher to 2CH).

Note: This product's optical fiber and coaxial interface use automatic identification mode,coaxial priority, if you want use fiber channel ,please unplug the coaxial line or close the coaxial output device!

Note:

Please use the machine as the instruction listed to keep the long lifetime of it.

1. Please do not expose this unit to the damp, high-temperature, dusty, erosive, or oxidative environment.

2. All parts will be free from the strong shake, hit, fall.

3. Please do not touch the power adapter plug with wet hands.

4. Please hold the plug when unplugging. Do not pull the power cable directly.

5. Please turn the unit off when it is not in use for a long period of time.

6. Please do not open the cover and do not touch the inside parts.

7. Please use the original factory USB power cable.

FAQ:

Before switching on the extractor, please check all the cables carefully and make sure all the interfaces are connected correctly. The common problems and the relevant solutions are showed as follows.

Each Set product Package Include:
