Быстросъемная сцепка для экскаватора

Описание и отзывы

Трекер стоимости

Характеристики

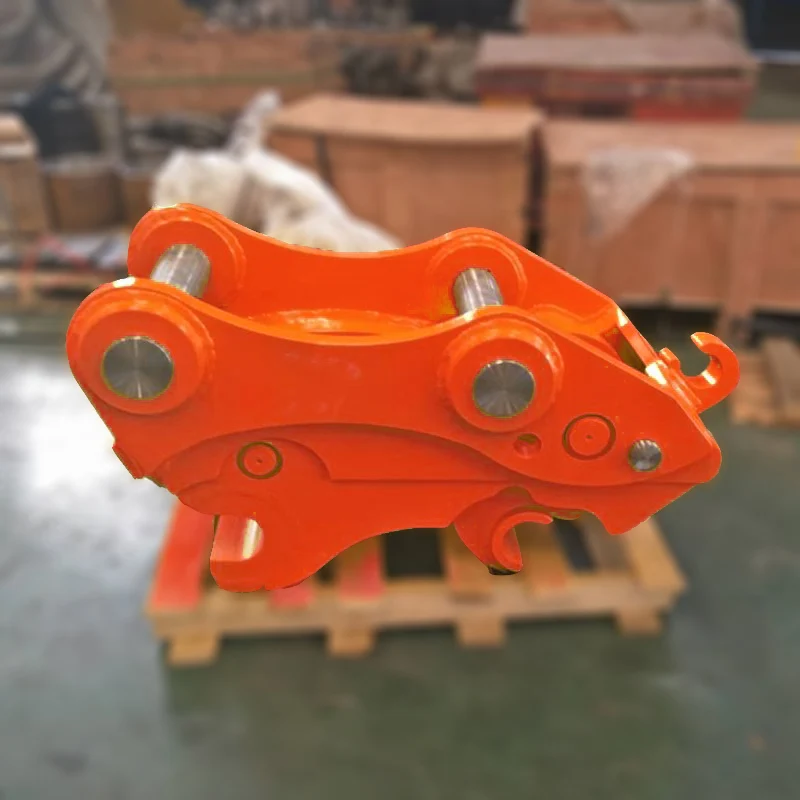

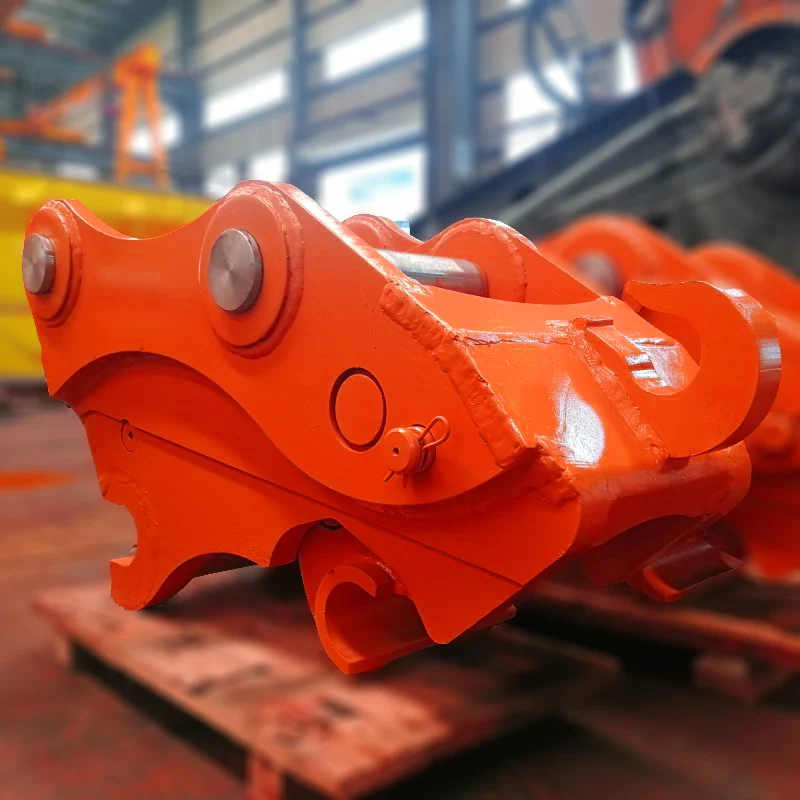

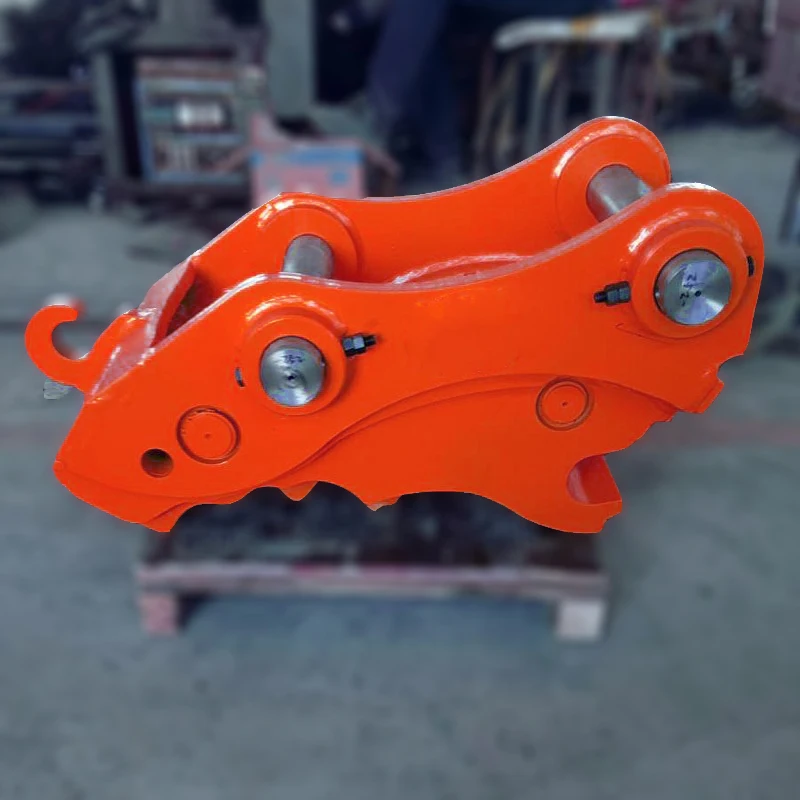

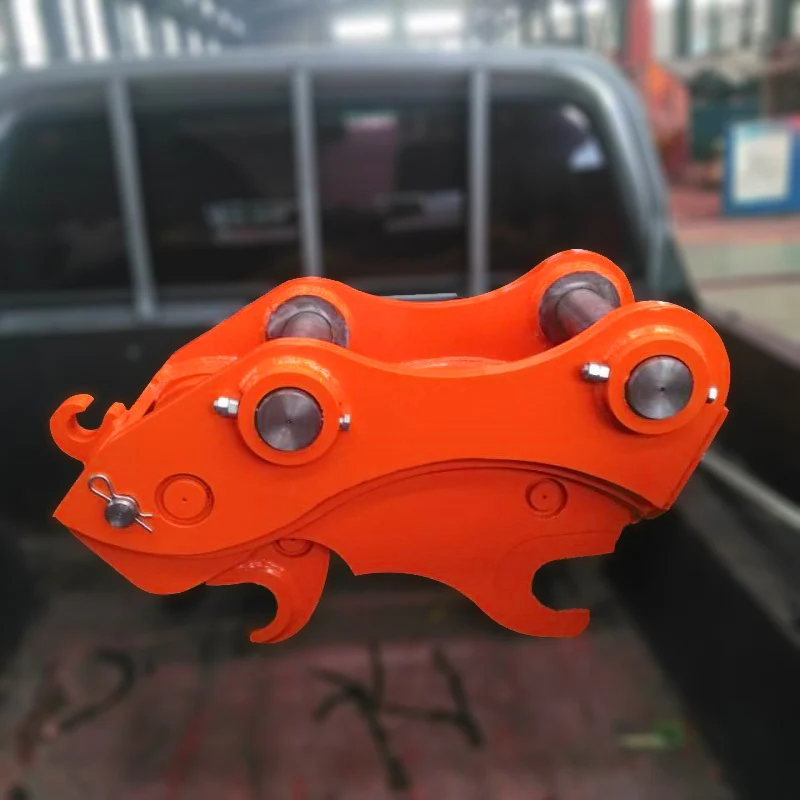

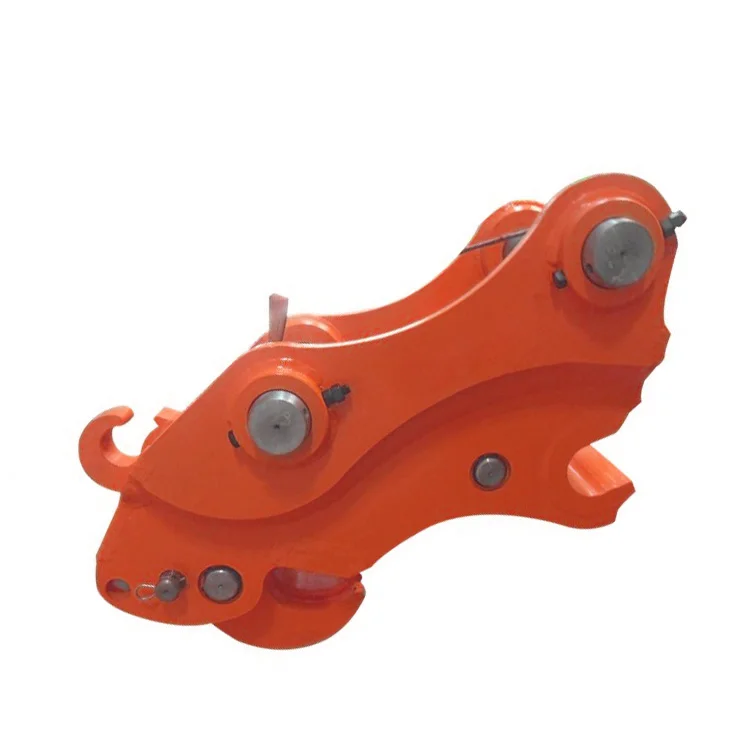

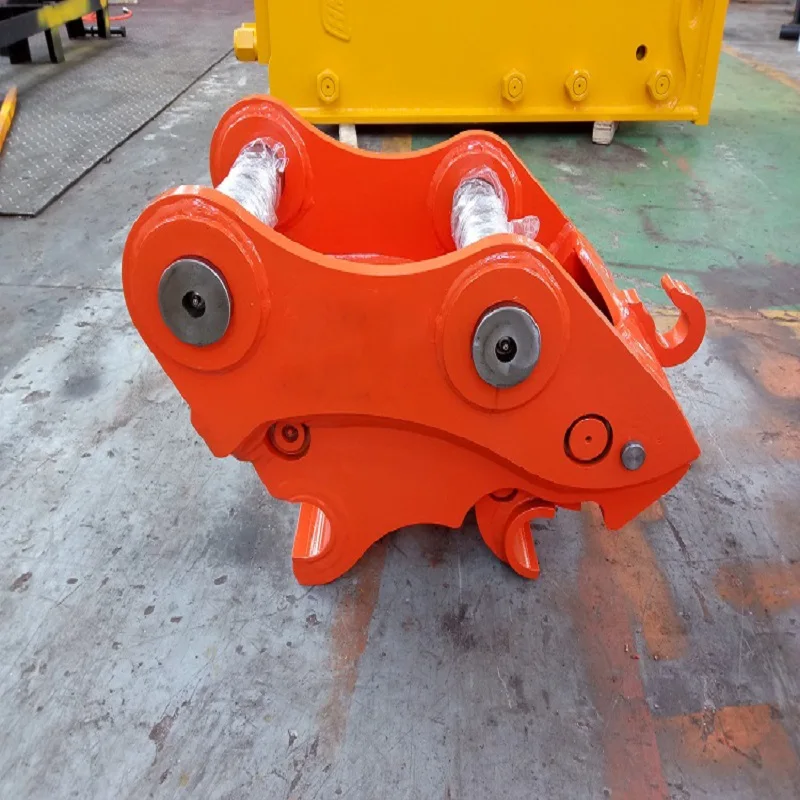

Quick Coupler Quick Hitch for JCB Excavator







Item	Unit	DEHNMINI	DEHN02	DEHN04	DEHN06	DEHN08	DEHN10	DEHN17
Overll Lenght C	MM	388	534-545	600	765	924-944	983-1050	1006-1173
Overall Height G	MM	246	307	310	388	492	574	558-610
Overall Width B	MM	175	258-263	270-280	353-436	449-483	543-568	606-663
Foream Open Width A	MM	80-140	155-170	180-200	232-315	306-340	375-411	416-469
Pin to Pin Center  Distance	MM	80-150	230-270	290-360	380-420	460-480	473-540	550-620
Retractable Distance  of Oil Cylinder E	MM	170-206	205-275	340-450	340-486	256-590	413-590	520-590
Top to Bottom Pin  Distance F	MM	159	195	195	220	275	300	360
Pin Diameter	MM	25-40	45-50	50-55	60-70	70-80	80-90	90-120
Weight	KG	25-30	50-60	80-90	120-130	280-290	450-530	450-580
Working Pressure	KG/M2	40-380	40-380	40-380	40-380	40-380	40-380	40-380
Required Oil Flow	L/MIN	10-20	10-20	10-20	10-20	10-20	10-20	10-20
Suitable Excavator	TON	1.5-4	4-6	5-9	9-19	17-23	23-35	33-45







Company Information

Yantai Shijin Machinery CO., Ltd was established in 2010. Our company is one of the largest manufactureswhich is specialized in the research, manufacture and sales of hydraulic breaker for Six Years. DEHN we have always regarded Product Quality as Soul of the company, sticks to the principle of Service, Innovation and Sustainable Development to be the top Brand in engineering machinery industry. It will provide you Top-ranking technical support, best product quality and wide range accessories supply and Professional after- service.

    Our company is specialized in manufacturing Hydraulic Breaker, Quick Coupler, Hydraulic Chisel, Earth Anger, Excavator Ripper and Spare Parts. Our own brand “DEHN” hydraulic chisel have full series and are right to all brand hydraulic brands hydraulic breakers.
