Бренд HY 750 Вт переключатель высокого напряжения модель лазерной мощности для лазера
- Категория: Запчасти для лазерного оборудования >>>
- Поставщик: Shandong,Laser,Source,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 176.1 $* | 185.23 $* |
| Aug-19-2025 | 175.40 $* | 184.38 $* |
| Jul-19-2025 | 147.43 $* | 154.97 $* |
| Jun-19-2025 | 172.29 $* | 181.86 $* |
| May-19-2025 | 149.66 $* | 156.46 $* |
| Apr-19-2025 | 169.43 $* | 177.84 $* |
| Mar-19-2025 | 167.3 $* | 175.75 $* |
| Feb-19-2025 | 166.13 $* | 174.89 $* |
| Jan-19-2025 | 164.40 $* | 172.49 $* |
Характеристики

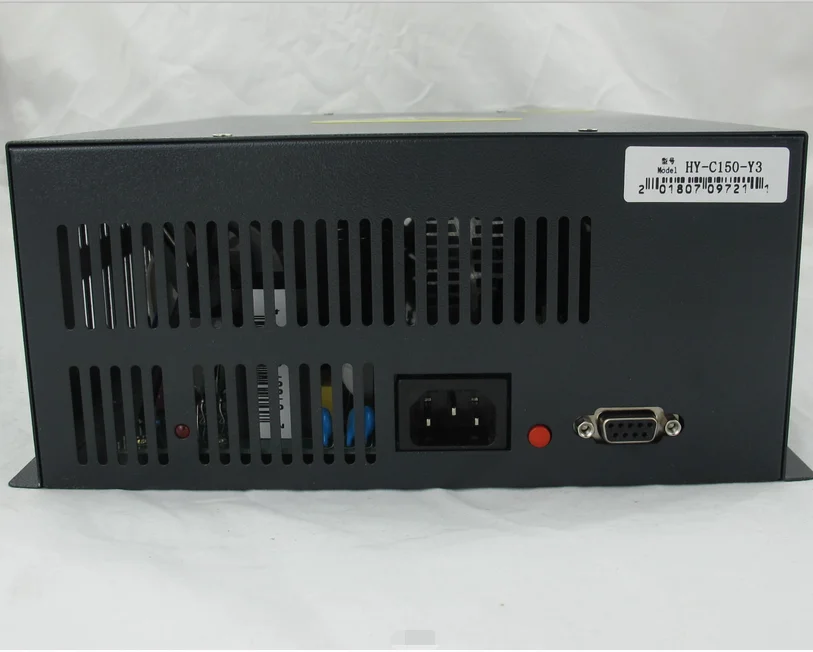

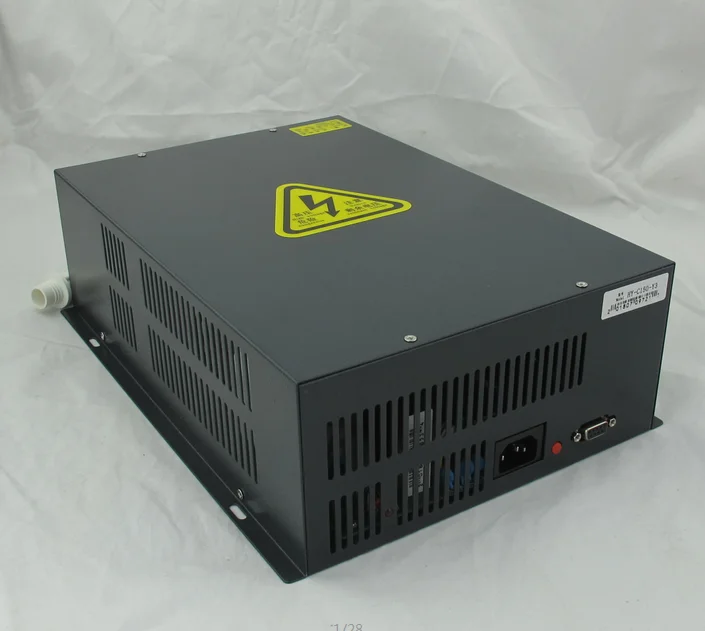

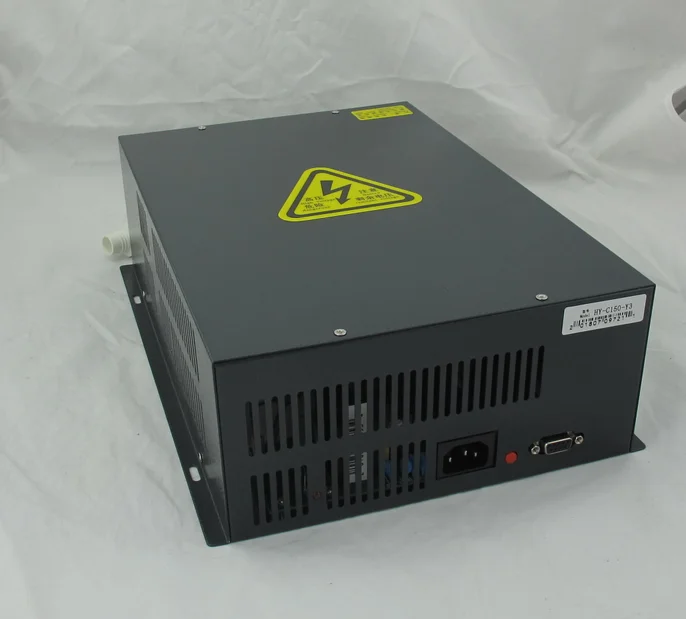

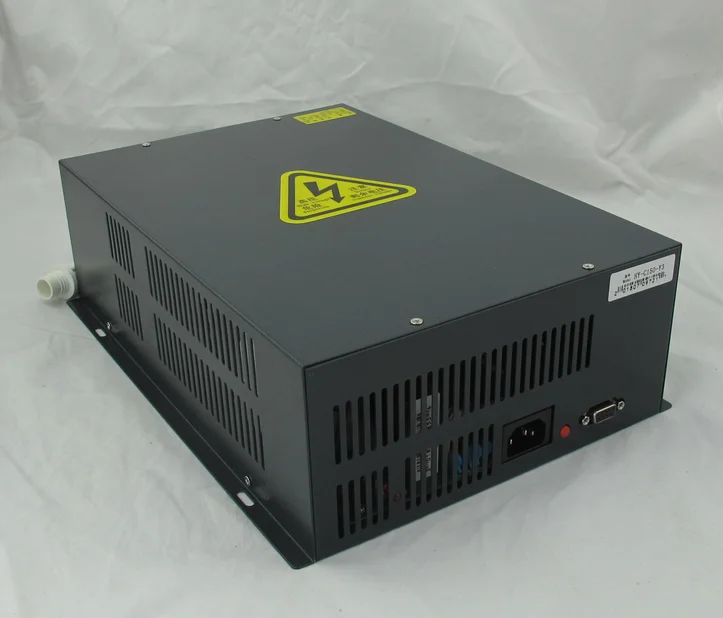

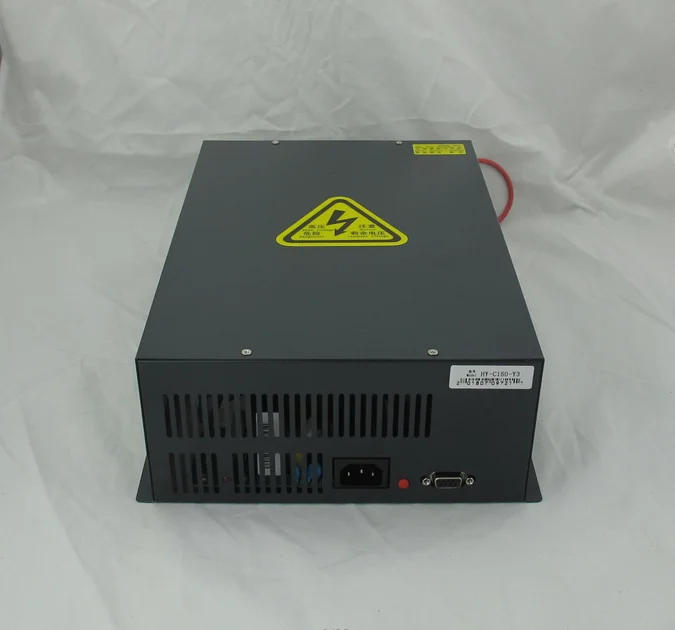

750w high voltage switch model laser power for Yueming lasers
Model: HY-C150-Y3 for RECI ,EFR,Yongli,Weegaint 130watt,150watt laser tubes on yueming laser cutting and engraving machines
Matche with 100W 120W 130W 150W CMA Han's YUEMING co2 laser machine
1. HY-C150-Y3 with DB9 pin, it is controlled by 0 ~ 3.3v analog signals or PWM control signal,
Special designed for 60W,80W CMA laser cutting machine manufactured by Yueming factories.
2. High Voltage Power Supply: Input AC 220V or AC 110V Voltage ,Max output DC 50KV.
4. This Power Supply has the” TEST” button which can test output laser manually.
5. The Laser Power Supply has high Output Power, good stability, this can prolong laser tube's service life.
6. Easy Control: The start and stop of laser can be easily controlled by TTL level. either 0 ~ 3.3v analog signals or PWM control signal can control the laser power.
7. The Laser Power Supply has output open circuit protection.
8. This Laser power supply has TTL signal indication, water through signal indication and laser output indication.
9. The power has feedback interface, can be used for closed-loop control, also can be used for testing the laser tube working current.
10. Application:HY-C150-Y3 Laser Power Supply is used for 130W,150W, CMA Yueming Laser
Cutting and Engraving Acrylic, Fabric, Double Color Sheet and Rubber,etc.
YUEMING laser cutting machine power source Specification
Input | Input Voltage | AC110V or AC220V ( to be specified when placing the order) | |
AC frequency | 47—440HZ | ||
Max input power | 750w | ||
Max output current | 10A | ||
Output | Max Output Voltage | DC 50KV | |
Max Output Current | DC 38mA | ||
Efficiency | ≥90 percent (full load) | ||
MeanTime Between Failure (MTBF) | ≥10000 hour | ||
Response Speed | ≤1ms(from the switch Signal is given to the output current up to 90% of the setting current) | ||
Withstand Voltage | Input-Output, Input-Shell: AC1500V 10MA 60S; Output negative is connected with machine shell. | ||
Environment | Operating Temperature:-10~40°C),Relative Humidity (RH)≤90 percent | ||
Cooling Way | Force-Air Cooling (FAC) | ||
Dimension | L×W×H=325*240*97 (mm) | ||
Color | Black | ||
1. HY-C150-Y3 and Laser Tube Connection diagram
High voltage terminal (HV+) of HY-C150-Y3 power supply should be connected to the positive pole of CO2 laser device. Current circuit of the power supply shall be connected to negative pole (laser output terminal) of laser device, through an ampere meter or directly.
2. Connection of HY-C150-Y3power supply and control board
Connection of control signal(See the wiring diagram of power supply and control interface card))
The control signal shall be reliably connected to control terminal of the power supply HY-C150-Y3 ,And ensure the control board ground, laser power supply case, the shell of a laser machine and computer chassis and reliable together. If the laser lamp can not work properly, should check the control signal is correct or not(include check the voltage specification and logic),if use PWM control as power control,make sure f≥20KHz,Amplitude (peak value) ≤3.3V,Check and make sure protection switch WP connection is correct at same time.
HY-C150-Y3 power supply Manual Test Method
Firstly make sure HY-C150-Y3 power supply and laser tube correct well, disconnect the control terminal and press the button" TEST" on HY-C150-Y3 power supply for 5-10seconds to check if there is laser output from laser tube.This method is easily to judge if power supply is ok.
Shandong Laser Source Technology Co.,ltd. is the same as Jinan Hongyuan Electric Co., Ltd
is a high-tech enterprise, located in the core area of electronically developed regions-Jinan. Professional designer & manufacturer & exporter of laser power supply with 17 years experience,
Have good long - term cooperation with YUEMING laser, HAN'S laser, GCC laser, RECI laser, EFR laser, Boye laser, Beyond laser, Senfeng laser, Bodor laser, SUN-UP laser, etc. Hope we will have chance to help you in your business line.
Our company can customize laser power supply according to your requirment. Actually, about
50% of our laser power are specially customized for laser machine factory.
After - sales service
(1) Warranty: one year
(2) Free charge of the maintenance back to our factory (Besides shipment charge)
(3) Free charge of accessories sending to your door (If broken by non-artificial factors within warranty)
(4) 24 hours online supporting technical service
We produce strictly according to ISO9001:2008 international quality management system elements
of conduct production activities. All series co2 laser power supply got CE Certification.
