Гибридная автономная система питания 5 кВт контроллер заряда 1 солнечный
- Категория: >>>
- Поставщик: Shenzhen,Smartkey,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 281.53 $* | 295.24 $* |
| Aug-15-2025 | 278.86 $* | 292.1 $* |
| Jul-15-2025 | 234.53 $* | 246.19 $* |
| Jun-15-2025 | 274.27 $* | 288.44 $* |
| May-15-2025 | 238.20 $* | 250.13 $* |
| Apr-15-2025 | 269.54 $* | 282.48 $* |
| Mar-15-2025 | 267.8 $* | 280.82 $* |
| Feb-15-2025 | 264.72 $* | 277.81 $* |
| Jan-15-2025 | 262.98 $* | 275.95 $* |
Характеристики

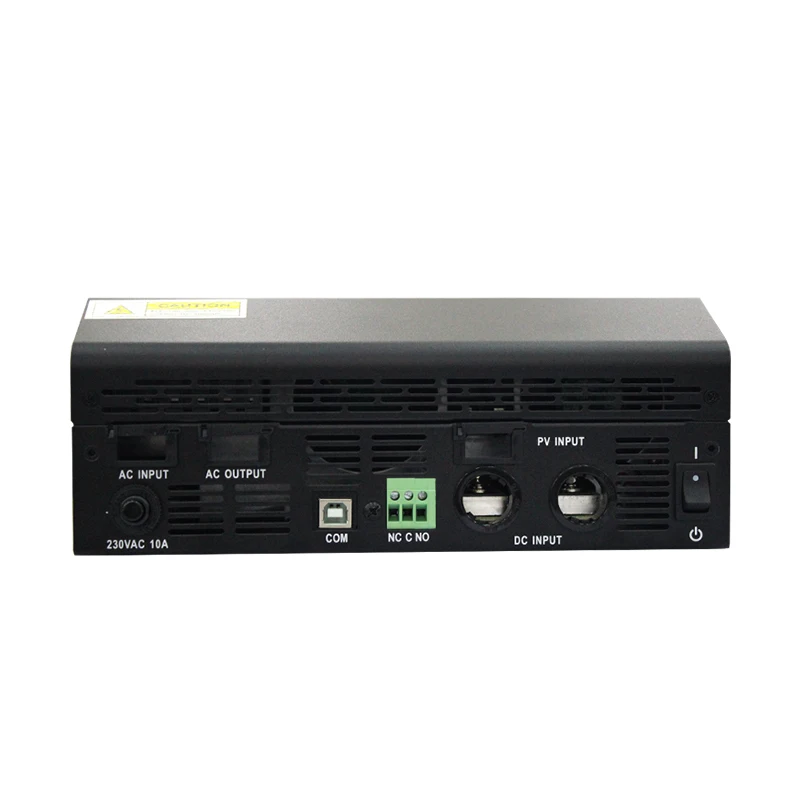

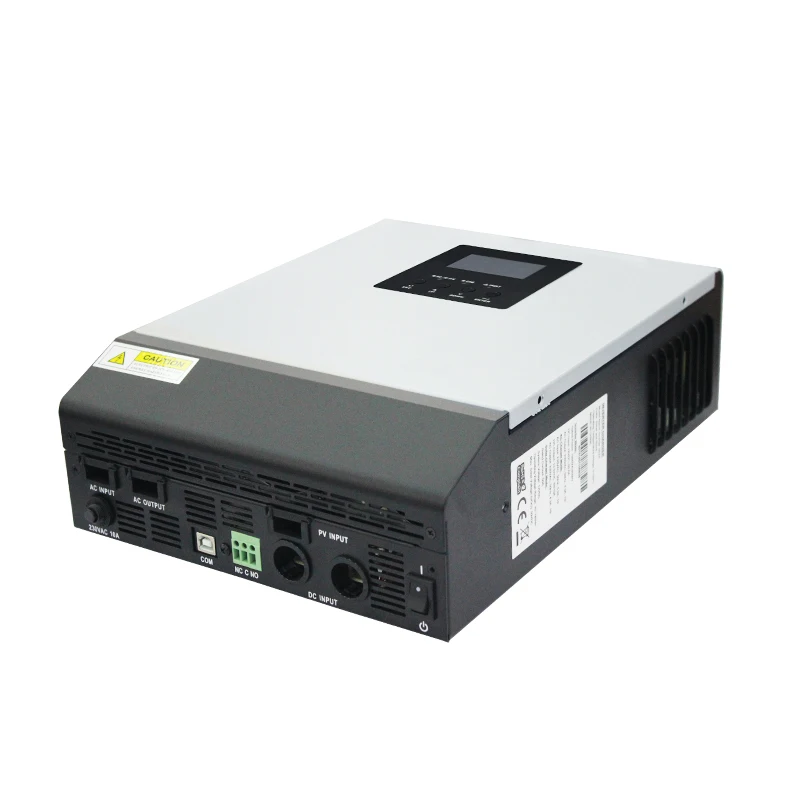

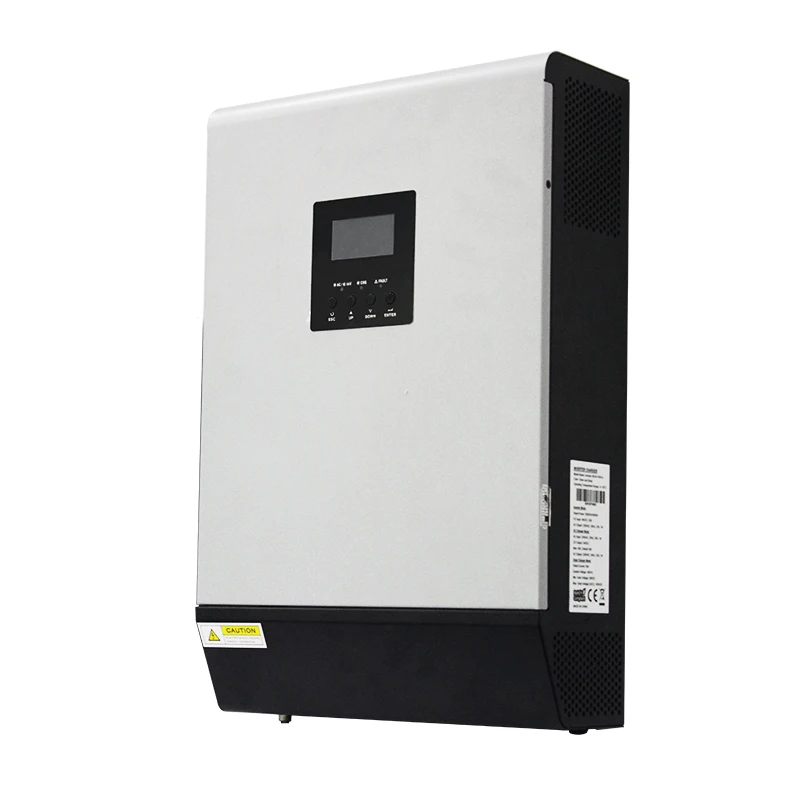

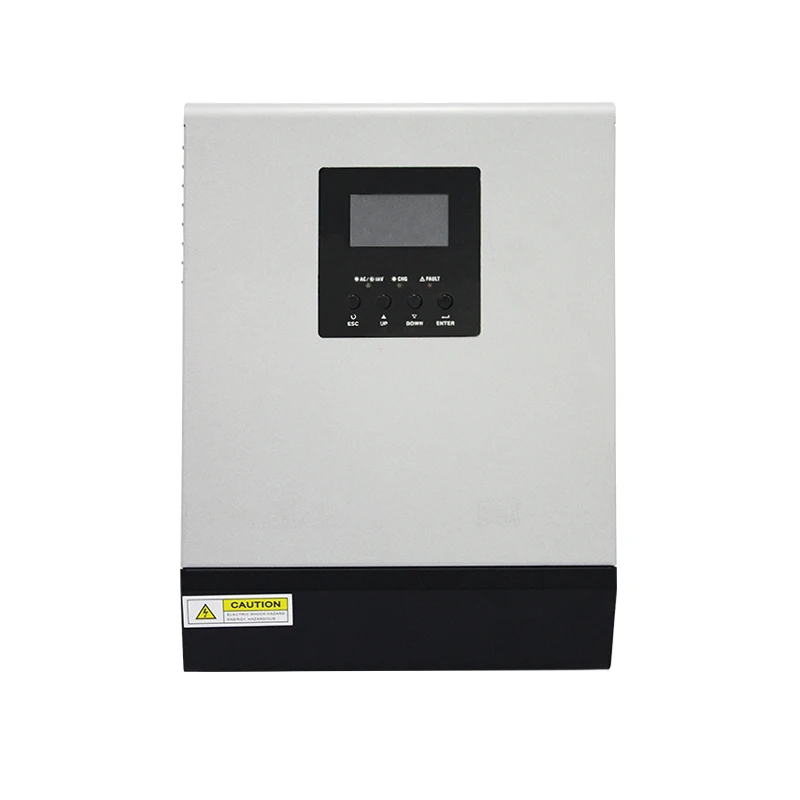

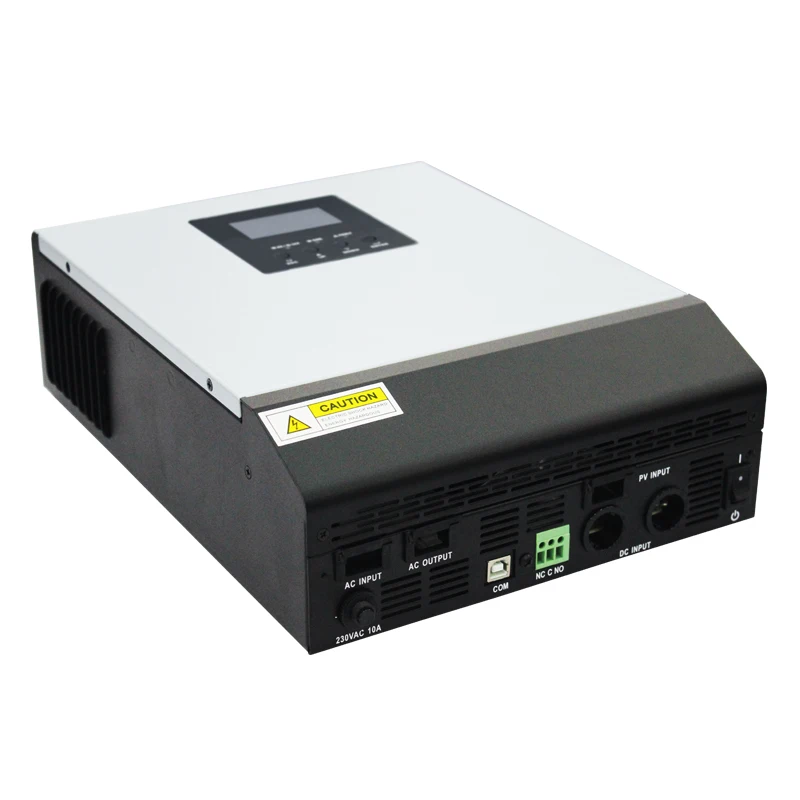

Hybrid Off Grid Panel Power System 5kw Price Charge Controller 1kw Solar Inverter
Product Description
- Pure sine wave inverter
- Selectable input voltage range for home appliances and personal computers
- Selectable charging current based on applications
- Configurable AC/Solar input priority via LCD setting
- Compatible to mains voltage or generator power
- Parallel operation with up to 6 units only available for 4KVA/5KVA
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- Cold start function
- Optional Remote Control Panel availabletery
| Model | PH20-1000 | PH20-2000 | PH20-3000 | PH20-3000 | PH20-4000 | PH20-5000 |
| DC VOLTAGE | 1K-24v | 2K-24v | 3K-24v | 3K-48v | 4K-48v | 5K-48v |
| RATED POWER | 800W | 1600W | 2400W | 2400W | 3200W | 4000W |
| INPUT | ||||||
| Voltage | 230 VAC | |||||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) | |||||
| 90-280 VAC (For Home Appliances) | ||||||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||||
| OUTPUT | ||||||
AC Voltage Regulation | 230VAC ± 5% | |||||
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA | |
| Efficiency (Peak) | 90%-93% | 93% | ||||
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |||||
| Waveform | Pure sine wave | |||||
| BATTERY & AC CHARGER | ||||||
| Battery Voltage | 24 VDC | 24 VDC | 24 VDC | 48 VDC | 48 VDC | |
| Floating Charge Voltage | 27 VDC | 27 VDC | 27 VDC | 54 VDC | 54 VDC | |
| Overcharge Protection | 31 VDC | 31 VDC | 31 VDC | 62 VDC | 60 VDC | |
| SOLAR CHARGER & AC CHARGER | ||||||
Maximum PV Array Power | 600 W | 600 W | 600 W | 900 W | 3000 W | |
MPPT Operating Voltage | 30V~66VDC | 30V~66VDC | 30V~66VDC | 60V~88VDC | 60V~115VDC | |
| Maximum PV Array Open Circuit Voltage | 75VDC | 75VDC | 75VDC | 102VDC | 145VDC | |
Max Solar Charge Current | 25A | 25A | 25A | 18A | 60A | |
| Max AC Charge Current | 20A | 30A | 30A | 15A | 60 A | |
Maximum Charge Current | 25A | 30A | 30A | 18A | 120A | |
| AC and solar charger can't work at the same time | ||||||
| Maximum Efficiency | 98% | |||||
| Standby Power Consumption | 2 W | |||||
| PHYSICAL | ||||||
| Dimension D*W*H | 100*272*355 (mm) | 140*295*540 (mm) | ||||
| Net Weight (kgs) | 6.8 | 7 | 7.4 | 12.5 | 13.5 | |
| OPERATING ENVIRONMENT | ||||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||||
| Operating Temperature | 0°C - 55°C | |||||
| Storage Temperature | -15°C - 60°C | |||||
Our Services
1. OEM&ODM services acceptable.
2. 1% pcb board provided .
3. Lots of cooperated agent for shipping by sea or by air.
4. 1year warrenty , if it is quality problem , we will provide the parts for free .
Little hint:
1.In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
2.Exceed the warranty period, improper operation and man-made damage, we will still give help and support,We will provide spare parts at a cost price.
3.According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional machine.
Factory & Company
Certifications
Exhibitions
Trade Shows
FAQ
Q1: Why you should choose us?
---16 years UPS experiences
---Professional team for both oversea and domestic market
--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,and so on
Our products could pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be
developed within 45-60days.
