Portable Small Fiber Laser 20w 30w 50w 100w Max Raycus JPT CNC Desktop Color Marking Machine Price for
- Категория: Laser Marking Machines >>>
- Поставщик: Jinan,Vmade,CNC,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 1726.80 $* | 1812.61 $* |
| Aug-17-2025 | 1711.56 $* | 1797.44 $* |
| Jul-17-2025 | 1436.79 $* | 1508.76 $* |
| Jun-17-2025 | 1682.24 $* | 1766.62 $* |
| May-17-2025 | 1465.59 $* | 1538.80 $* |
| Apr-17-2025 | 1653.11 $* | 1736.88 $* |
| Mar-17-2025 | 1639.36 $* | 1721.27 $* |
| Feb-17-2025 | 1624.18 $* | 1705.88 $* |
| Jan-17-2025 | 1610.92 $* | 1691.63 $* |
Характеристики
Product Description
Fiber Laser Marking Machine suitable for Gold, Silver, Diamond, Sanitary Equipments, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipments, Glasses and Clock, Auto Parts, Plastic& Paper Materials, The Electron, Hardware which with high request for depth, smooth,
accuracy such as horologe, Mould, bitmap marking etc.

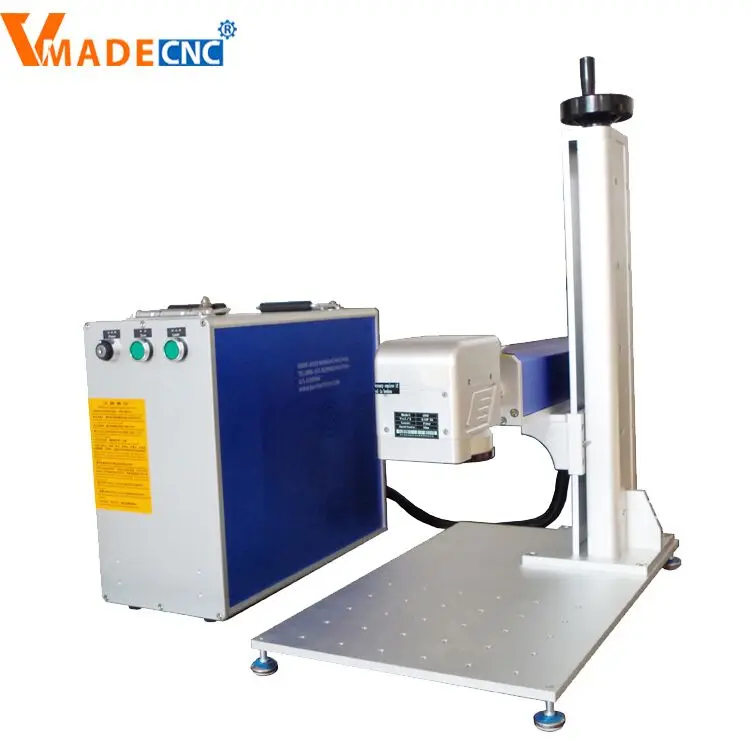

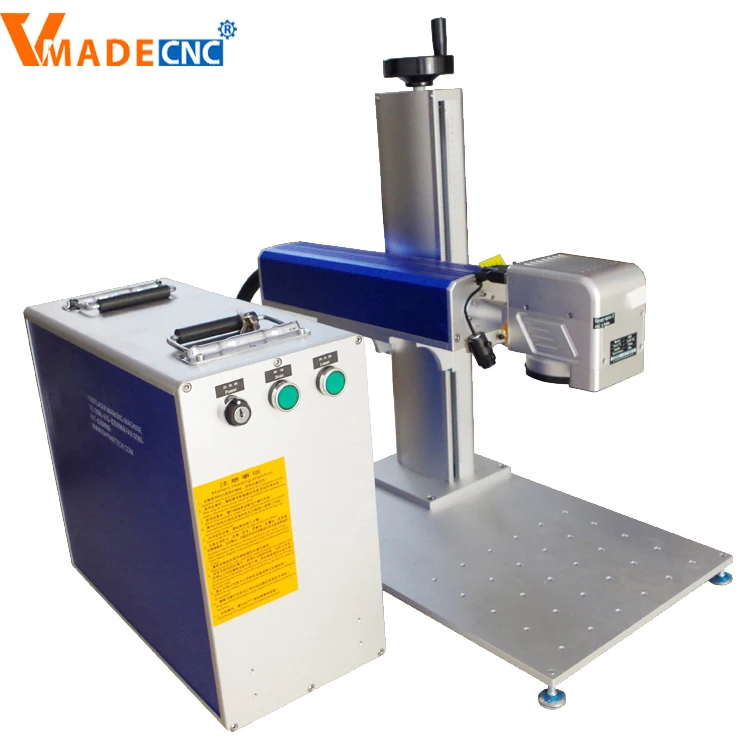

Detailed Images
Technical Parameters | ||||||||
Laser Power | Raycus 20W | Raycus 30W | Raycus 50W | Raycus 100W | ||||
Pulsed fiber laser | P20QB | P30QB | P50QB | P100Q | ||||
Wavelength(nm) | 1060~1085 | 1060~1085 | 1060~1085 | 1060~1085 | ||||
Polarization | Random | Random | Random | Random | ||||
Optical isolator | Yes | Yes | Yes | Yes | ||||
Nominal average output power (W) | ≥20 | ≥30 | ≥50 | ≥100 | ||||
Single pulse energy (mJ) | 1@20kHz | 1@20kHz | 1@20~50kHz | 1@20~100kHz | ||||
Beam quality（M2 ） | <1.5 | <1.5 | <1.5 | ≤1.6 | ||||
Beam Diameter（mm） | 6～8 | 6～8 | 6～8 | 6～8 | ||||
Pulse duration(ns) | <120@20kHz | <120@30kHz | 90-150@50kHz | 50～130@100kHz | ||||
Pulse repetition rate（KHz） | 20 - 60 | 30 - 60 | 50-100 | 20 - 200 | ||||
Output Power Tunability(%) | 10-100 | 10-100 | 10-100 | 10-100 | ||||
Output Fiber Cable length(m) | 2.0 | 2.0 | 2.0 | 2.0 | ||||
Working voltage（VDC） | 24±1 | 24±1 | 24±1 | 24±1 | ||||
Power consumption(W) | 200@20℃ | 300@20℃ | 340@20℃ | 450@20℃ | ||||
Cooling | Forced Air Cooled | Forced Air Cooled | Forced Air Cooled | Forced Air Cooled | ||||
Dimension W×D×H(mm) | 215×286×95 | 215×286×95 | 260×391×120 | 396×360×123 | ||||
Operating temperature(℃) | 0～40 | 0～40 | 0～40 | 0～40 | ||||
Store temperature(℃) | -20～60 | -20～60 | -20～60 | -20～60 | ||||
Operating Humidity(%) | ≤80% | ≤80% | ≤80% | ≤80% | ||||
Marking Format | Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number, frequency, etc. | |||||||
Graphic Format Supported | BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT, ETC. | |||||||

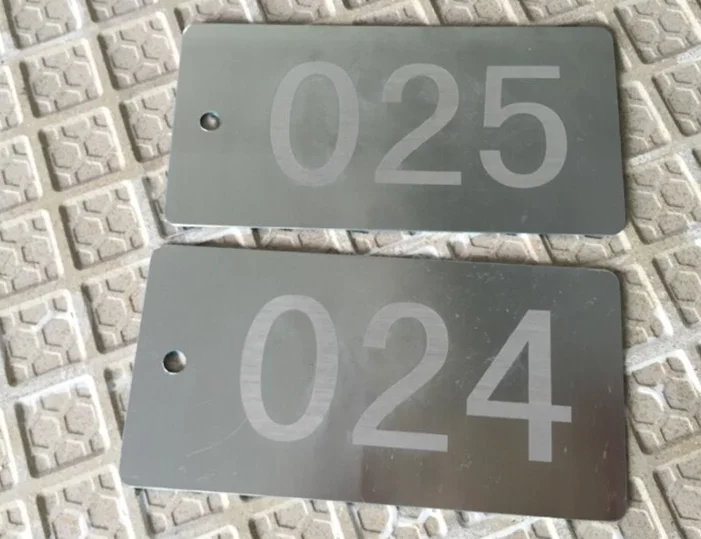

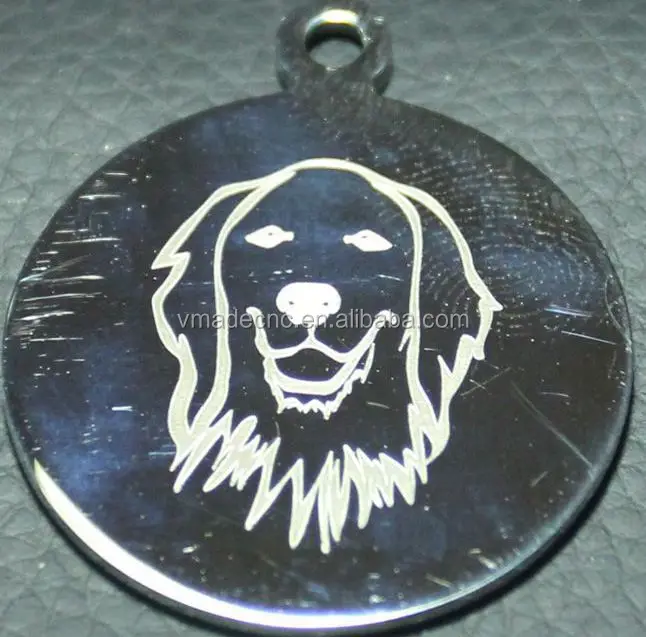

Sample Picture
Packing&Shipping

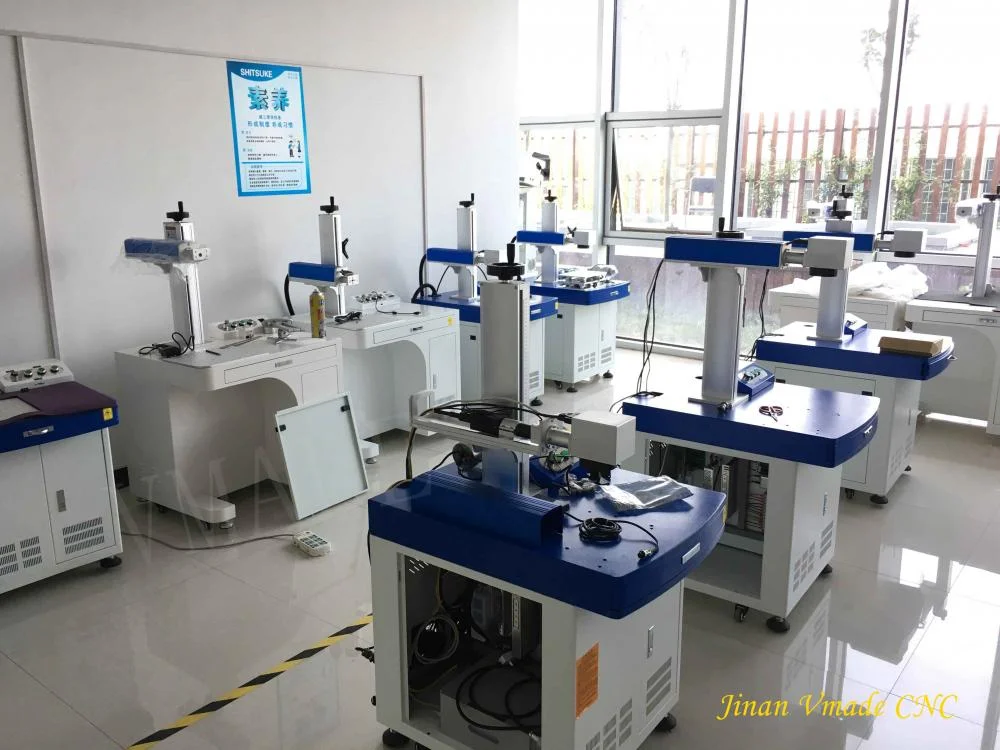

Company Profile
Jinan Vmade CNC Machine Co.,Ltd was established in 2010. Located in hightech zone.It is a professional team which specialized in Optic, Electricity, Mechanics. Vmade keep delicate and attentive attitude on every step and always keep to learn the most advanced technology and create more humanized products to all our customers.
Certifications
