Диодный насос 100 Вт 200 лазерный
- Категория: Laser Equipment Parts >>>
- Поставщик: Sanhe,Laserconn,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.45 $* | 0.84 $* |
| Aug-17-2025 | 0.7 $* | 0.42 $* |
| Jul-17-2025 | 0.63 $* | 0.62 $* |
| Jun-17-2025 | 0.26 $* | 0.98 $* |
| May-17-2025 | 0.27 $* | 0.54 $* |
| Apr-17-2025 | 0.2 $* | 0.12 $* |
| Mar-17-2025 | 0.37 $* | 0.14 $* |
| Feb-17-2025 | 0.27 $* | 0.42 $* |
| Jan-17-2025 | 0.19 $* | 0.18 $* |
Характеристики

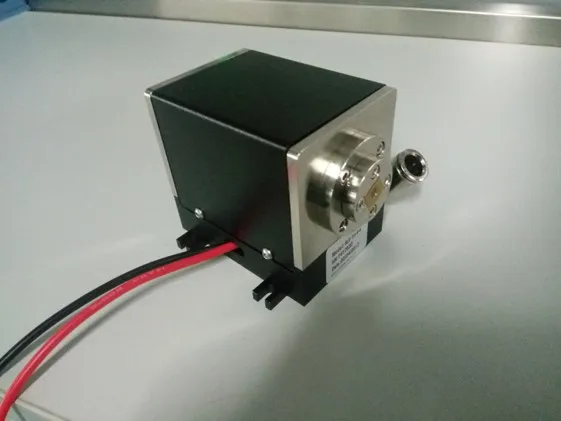

Diode Pump 100W 200W Laser Diode Module
Product Description
Parameters
| Specification | Parameter |
| Stored Energy per Pulse | 60mJ-4000mJ |
| Repetition Rate | 1-1000Hz |
| Pumping Power | 0-27KW |
| Pulse Width | 200-500us |
| Nd:YAG Diameter | 2-15mm |
| Expected Life Time | 10-20G shots |
| Pumping Wavelength | 806+/-3nm |
| Beam Profile | Near-Flat-Top/Gaussian Options |
Dimensions
Module size, pump power and mechanical parts could be customized.
Pump Distribution
Laser Diode Bar

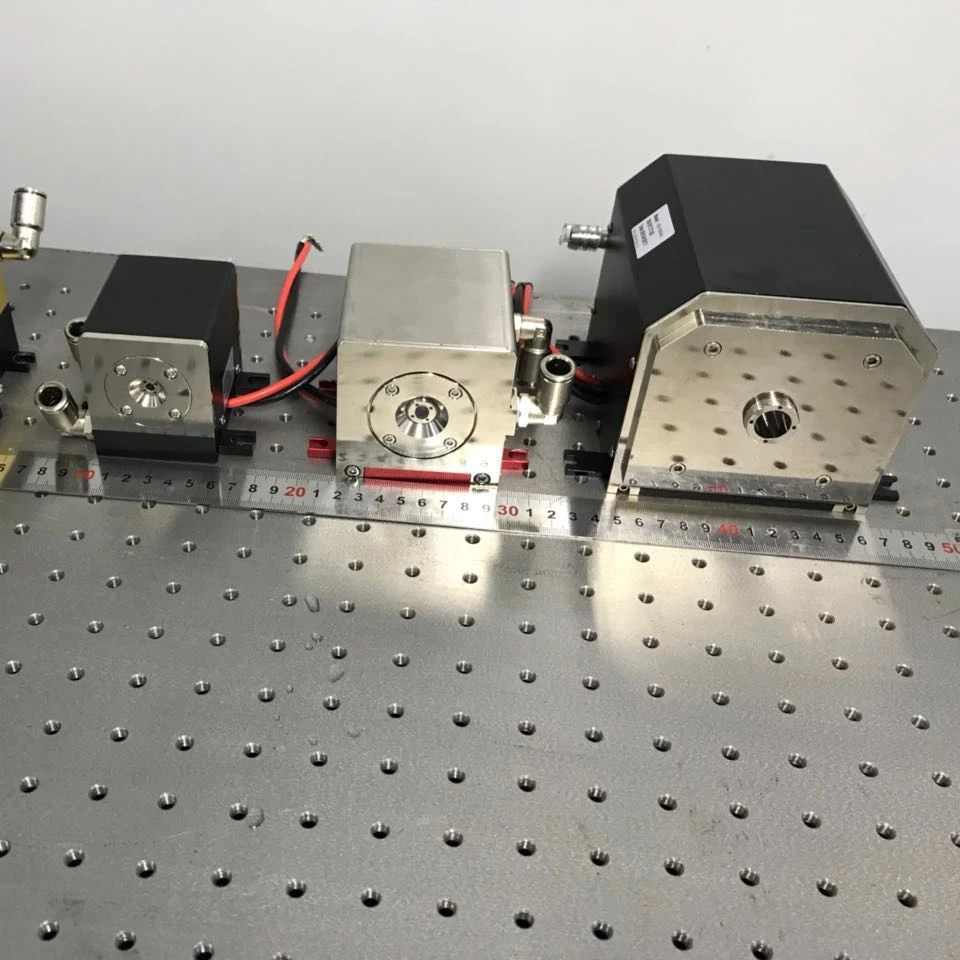

Water-cooled cylindrical gain module
Based on several-year efforts on DPSSL gain module and our VCSEL technology, Laserconn can provide DPSSL gain module with uniform gain distribution, high pumping efficiency and a long life time. We have two types of gain module, namely water-cooled cylindrical gain module and all solid state gain module. We also provide customized gain module.
| Item | Parameter |
| Repetition rate | 1~1000Hz |
| Pump power | 1~27KW |
| Pulse width | 200~300us |
| Rod diameter | 2~15mm |
| Cooling | Water cooling |
| Wavelength | 806nm +/- 3nm |
| Linewidth(FWHM) | 4 nm |
| Size | Can be customized |
