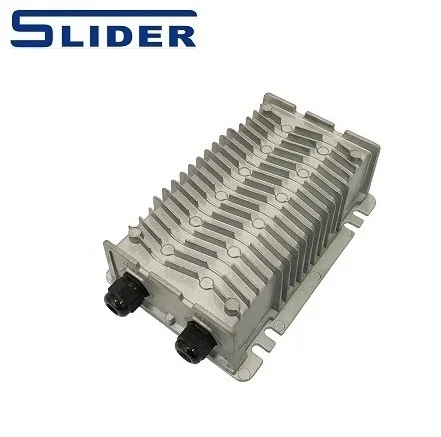

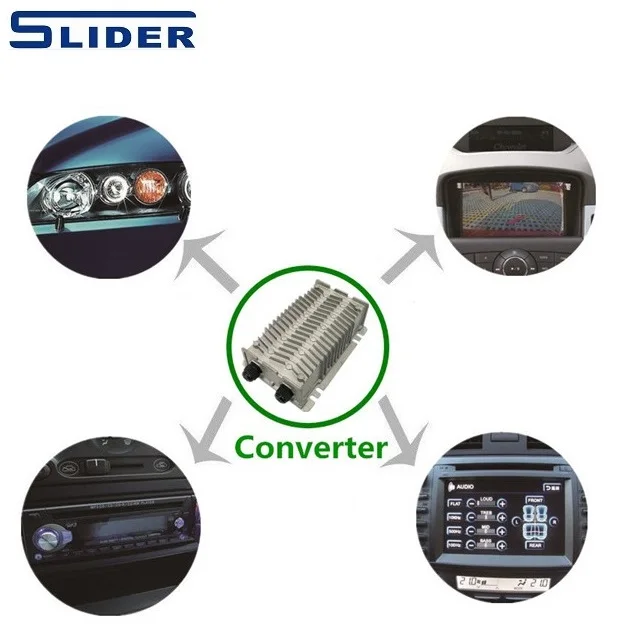

Vehicle Lamp Audio Low-voltage DC Power Supply Step Down Isolated DC to DC Converter 72V 60V 48V to 12V 5V
SPC-500w isolated dc-dc power converter uses the advanced high-frequency inverter technology & isolates the input and output, which guarantees its safety and reliability with the features of small volume, high efficiency, stable output, convenient installation, complete protection, high reliability and long service life, etc.With sustaining the wide range of voltage variations,it can meet the different voltage levels of the electric vehicle.It is ensured to be competent for the vehicles in any harsh environment. Because of the built-in relay, it avoids arcing when the vehicle is turned on or off with the key.
Product Specification
Feature Description
1.stable output voltage,soft start-up technology, avoid overcharge in output voltage when the power is on.
2.Built-in charging circuit, hang the backup battery on output terminal, charge the backup battery in the standard charging mode.
3.full enclosure shell,subject to waterproof insurance in external line, which meets the standardization requirements in automobile industry,waterproof and anti-seismic.
4.Reverse protection: input reverse, if not start-up, the ring will not be damaged.
5.Short circuit protection: stop the output when output is short circuit; automatically recover after the short circuit disappears, and ensure the safety of vehicle wiring harness.
6.Low voltage protection: when the battery voltage is too low, stop the output and avoid the over-discharge of the battery.
7.Over-current output limited function
8.Overheat protection: the output is not stopped after overheat, but the output power will be automatically attenuated to ensure the continuity of power supply for vehicles.
9.No arcing: build-in relay can avoid arcing & it can also be controlled by key switch,down to simple and reliable circuit.
10.Using isolation design: input and output electrical complete isolation to ensure the absolute safety of the load.
Producing Environment
How to estimate your power of the whole on-board electric equipment?
The general selection thinking is not just to add up all electrical power,because they may not work all together.
According to the different attributes of the on-board electronic equipment of pure electric vehicles in the terms of service time, the equipment can be divided into long-term electricity, continuous electricity, short time intermittent electricity and additional electricity equipment, and assigned to different weights.Among them, long - term electrical equipment including combination instrument and battery gives weight 1;Continuous power equipment includes rain wiper, motor, sound system and instrument in lighting gives weight 0.5.The current-using equipment of short time interval gives weight 0.1 including the electric controller, all kinds of signal lights, etc..The weights of the electric vacuum pump, electric pump and motor steering are respectively given weight 0.1, 1 and 0.3 according to the actual situation.If you need,pls put an enquiry from us,then the power consumption analysis will be shown fully & exactly.
Packaging:
Normal package is carton box.It can be chosen with the wooden packing if you need.If to european countries,the wooden box will be fumigated.If container is too high,we will use PE film for packing or pack it according to customers special request.
Packaging Details: 10 pcs a carton
Delivery Detail: 10 to 15 days
Shipping Method: samples will be delivered by express & quantity products will be sent by air or ocean.
SPC-500W-A-0720 Dimension
The dimension is just for your reference.It can be customized or mode with OEM for you.
What will you get from us?
1. high quality products,made by a 15-year professional manufacture of electric vehicle driving system
2.complete after-sale service:as a top supplier from China & extend the market share in overseas.
3.excellent performance: widely used in medium & low-speed electric vehicle,OEM is available here & quality will be guaranteed.
4.any inquiry will be responded asap & the trademessage is on line all days.
If you need the necessary technical support, you can get a packed drive system or a systematic solutions from us,including help of various matching tests before being installed in vehicle.
Fuzhou Slider Electronic Technology Co.,Ltd was founded in 2004, professional in electric vehicle drive system and switching power supply in high-tech manufacturing industry.The main supplies are electric vehicle motor,motor controller, forklift controller, DC - DC converter, electric vehicle chargers, and switching power supply,inverter, etc. All products are widely used to various of electric vehicles,such asautomobiles,golf cart, forklifts, financial electronic,and more.
As a powerful innovation & developing enterprise,SLIDER can meet all you customized needs,such as using in electric boat.
1)What’s your service & warranty?
1. Before installation,it will be detected to ensure it will be matched with your vehicle.
2. The quality will be guaranteed & warranty will be 1 year.
2)Do you supply the other parts of the driver system?
Yes,the whole system can be supplied here & parts will be welcome too.
3)What’s the MOQ?
Before quantity,you can get samples to test first. Just one unit is OK.
4)Is it acceptable to print buyer logo on the product?
Yes,OEM is available.Before production,pls send us your logo design.
5)How do you ship the goods and how long does it take to arrive?
Samples will be shipped by DHL, UPS, FedEx or TNT & it usually takes 3-5 workdays to arrive.
Production order will be sent out by ocean or air.
Thank you for your browsing & you can send an inquiry to get the better service from us.
