Понижающий преобразователь напряжения с 24 В на 12 постоянного тока 3 А 5 выходной адаптер 5X2 1 мм разъем для адаптера вилка камеры
- Категория: >>>
- Поставщик: Shenzhen,Fulree,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.24 $* | 0.21 $* |
| Aug-15-2025 | 0.1 $* | 0.21 $* |
| Jul-15-2025 | 0.90 $* | 0.21 $* |
| Jun-15-2025 | 0.81 $* | 0.57 $* |
| May-15-2025 | 0.27 $* | 0.78 $* |
| Apr-15-2025 | 0.27 $* | 0.95 $* |
| Mar-15-2025 | 0.24 $* | 0.92 $* |
| Feb-15-2025 | 0.12 $* | 0.55 $* |
| Jan-15-2025 | 0.65 $* | 0.19 $* |
Характеристики
24V to 12V DC 3A 5A Step Down Power Converter Output DC 5.5 X 2.1mm Jack Adapter Connector Plug CCTV Camera
Product Description
Product Name | Fulree 24V DC TO 12V DC Converter Module | |
Brand | Fulree | |
Model No. | F35J12V*A3S-DC / F35J12V*A11S-DC | |
Module Properties | non-isolated buck module | |
Rectification | synchronous rectification | |
Input | ||
Input Voltage | DC 24V | |
Input Voltage Range | DC 20-35V | |
Output | ||
Output Voltage | DC 12V | |
Output Current | 3A / 5A Max, auto-adaption | |
Output Power | 36W / 60W Max | |
Conversion Efficiency | 92% | |
Voltage regulation | ±1% | |
Load regulation | ± 2% | |
Ripple (Full load test) | < 100mV | |
No-load current | < 100mA | |
Working Temperature | -20~65℃ | |
Waterproof Rating | non-waterproof for 55*35*22mm / IP68 for 58*40*22mm | |
Protection | Overheat Protection | |
Short circuit Protection | ||
Input/Output Reverse Polarity Protection | No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive | |
Application | GPS Navigation, Monitoring, Electrical appliances, industrial equipment and so on. | |
Certification | CE/RoHS | |
Case Material | Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on | |

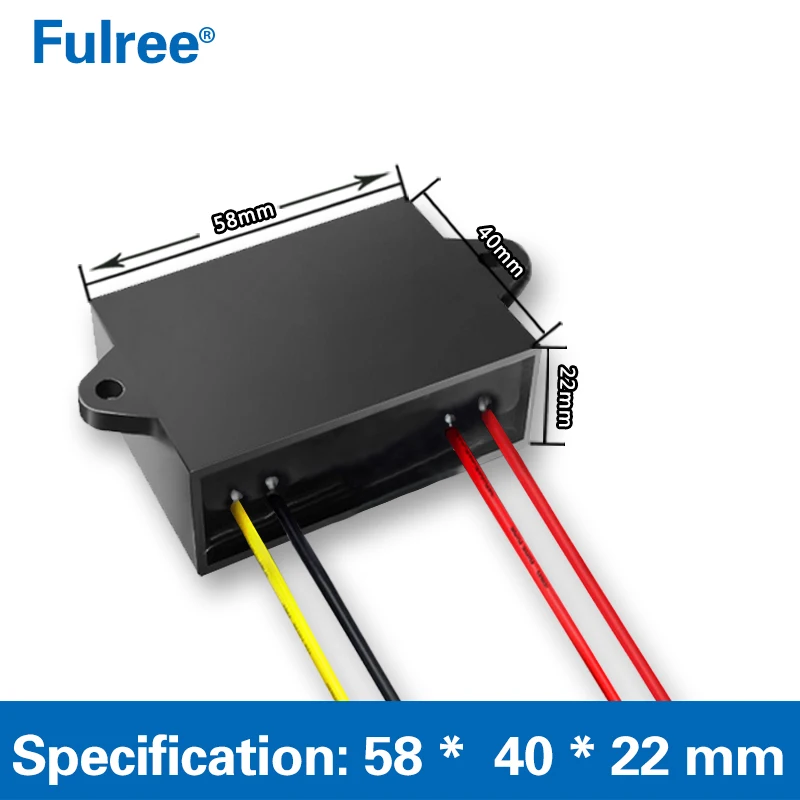

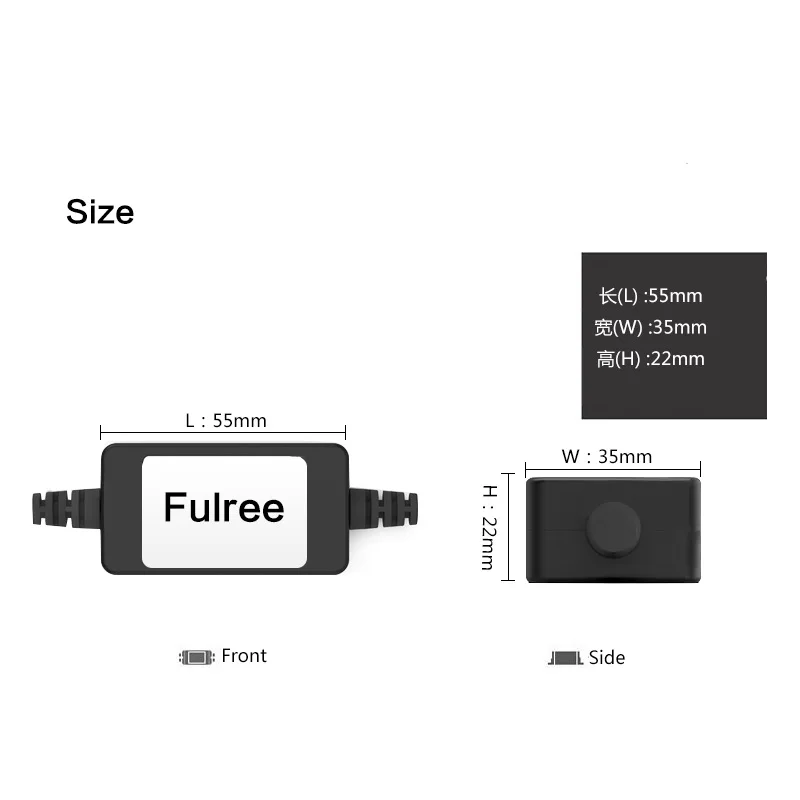

Product Size (L x W x H) | 55*35*22mm / 58*40*22mm | |
Installation Cable Length | Input: 13-14CM / Output:35CM | |
Product Weight | 55*35*22mm---55g / 58*40*22mm---100g | |
Warranty | 12 months, lifetime >20,000 hours | |
Cooling Way | Free air convection | |
Customized Service | ||

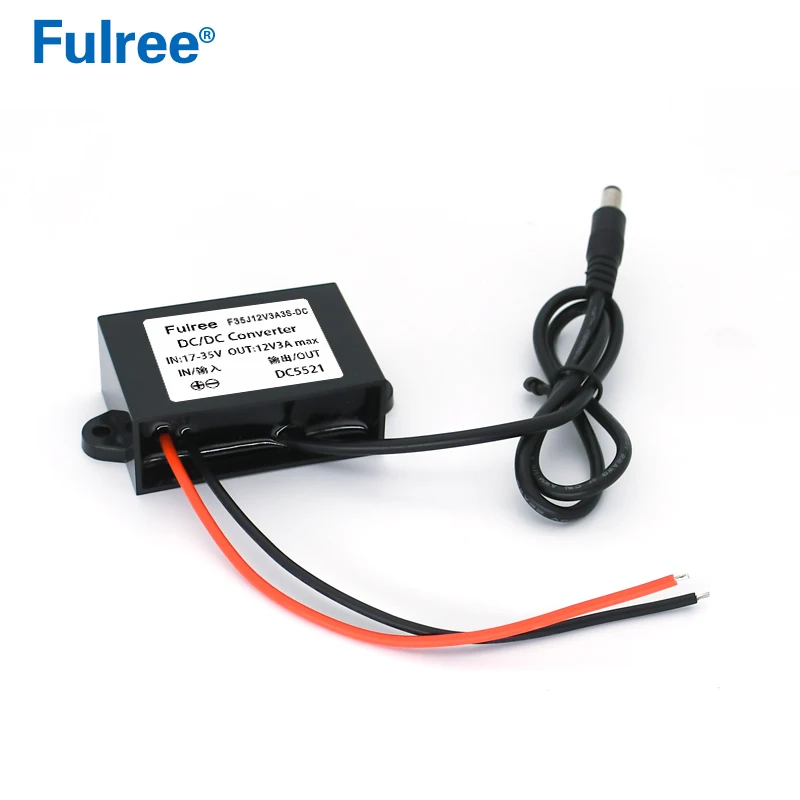

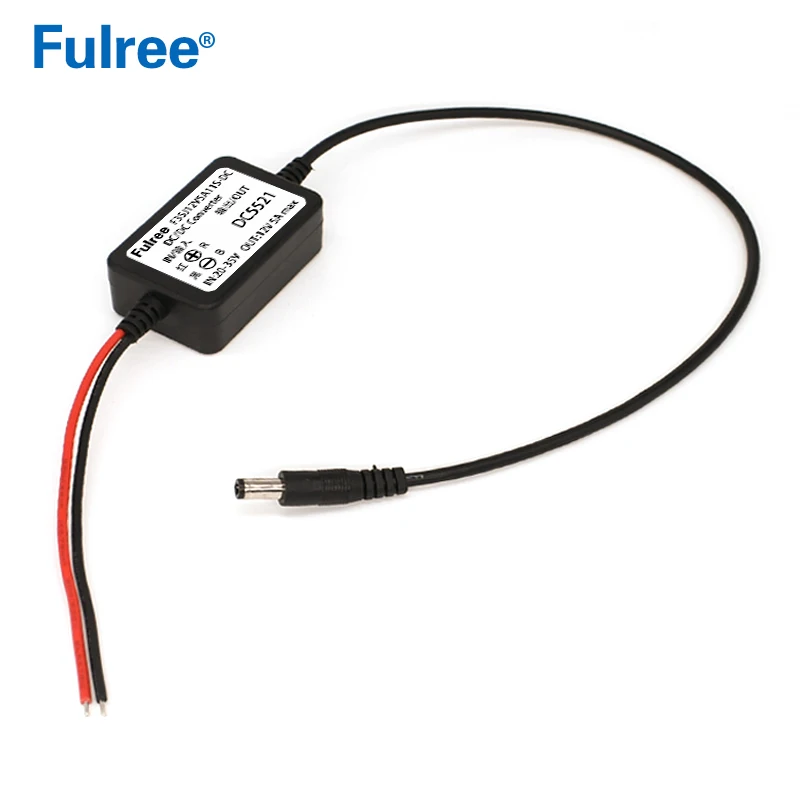

Product Picture
Why Choose Fulree?
Service ......... RMA(24/7 Technical Support), OEM, ODM
Quality...........100% full inspection before delivery, Less than 0.5% of failure rate!
Warranty....... Up to 12 months!
Price..................Competitive Factory Price!
Professional......Produce security DC DC converter for 8 years in China!
Reliable.............One of the largest power supply business manufacturers in China!
Assurance.........Any problem of quality, Fulree would refund the payment!
Payment.............T/T bank wire transfer, Escrow, West Union and Paypal!
Delivery...............Fast! After receive payment 3-15 days for normal small orders!
Privacy …….....Protect your sales area, designs, ideas and all your private information!
Fulree................Your best DC DC Converter Solution Choice! We Design and support!
