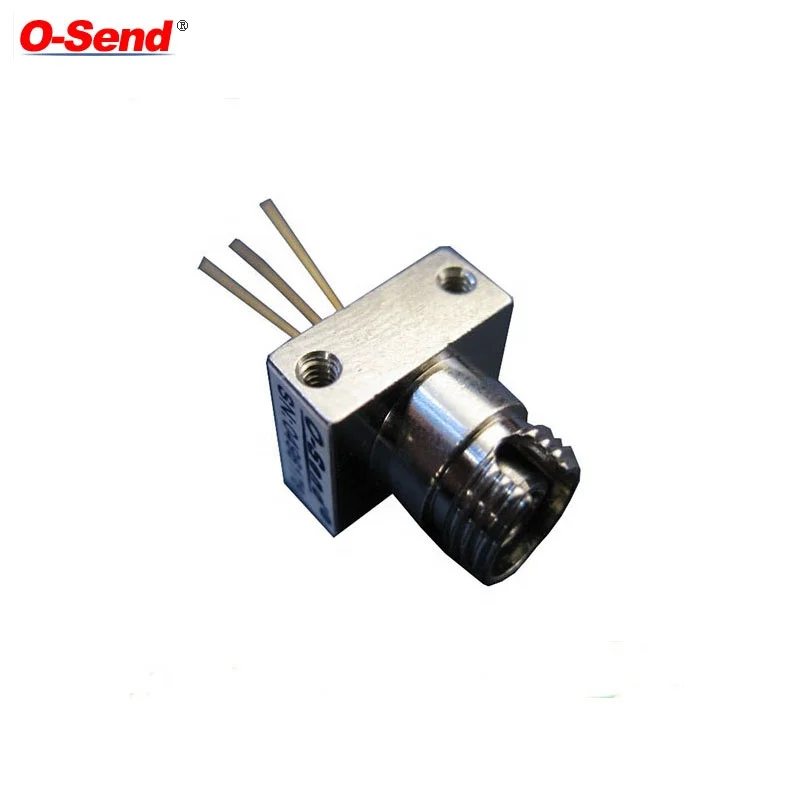

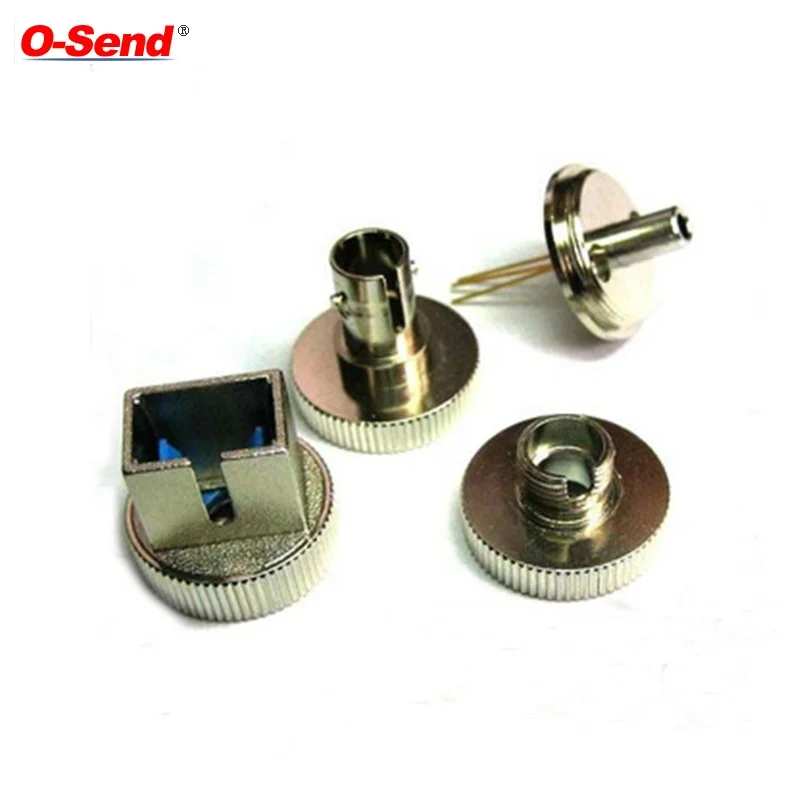

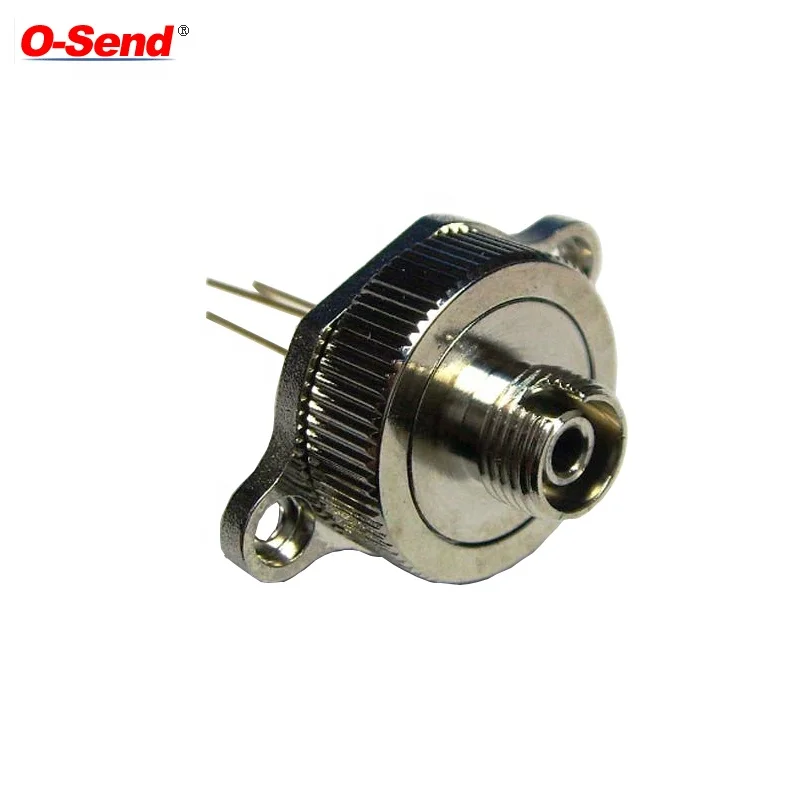

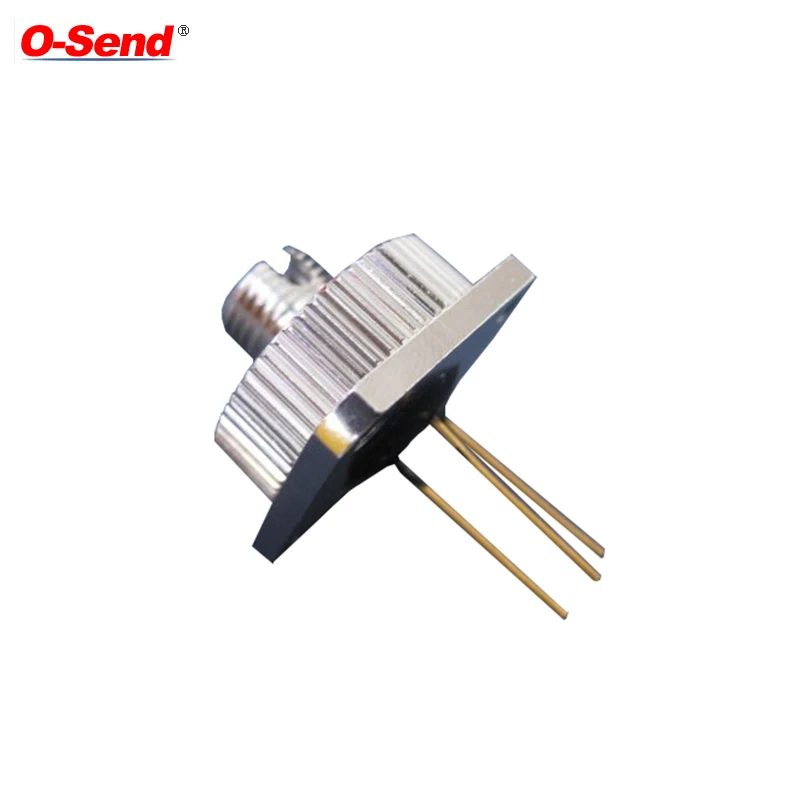

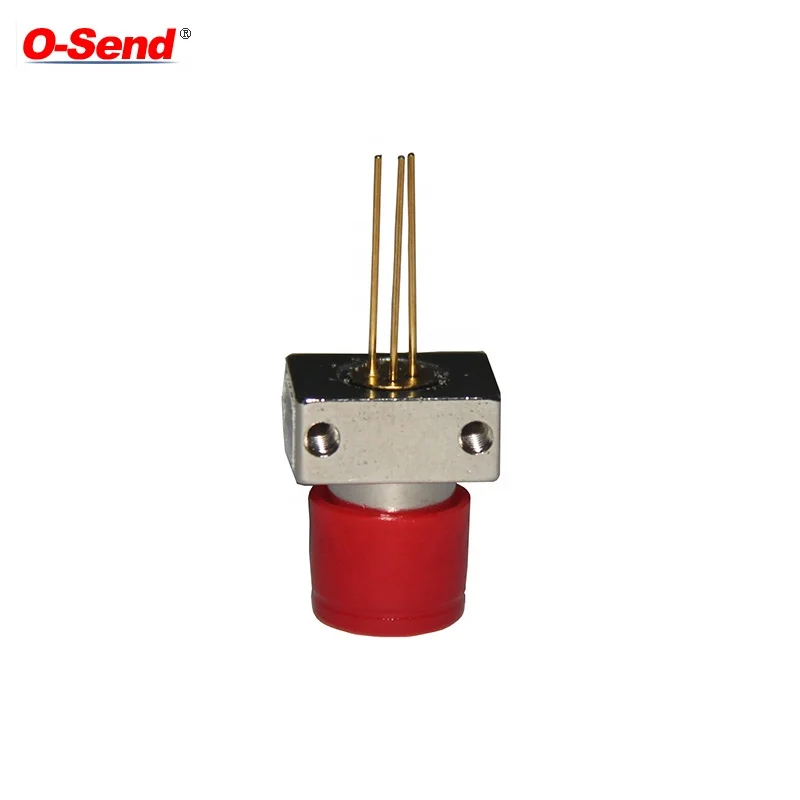

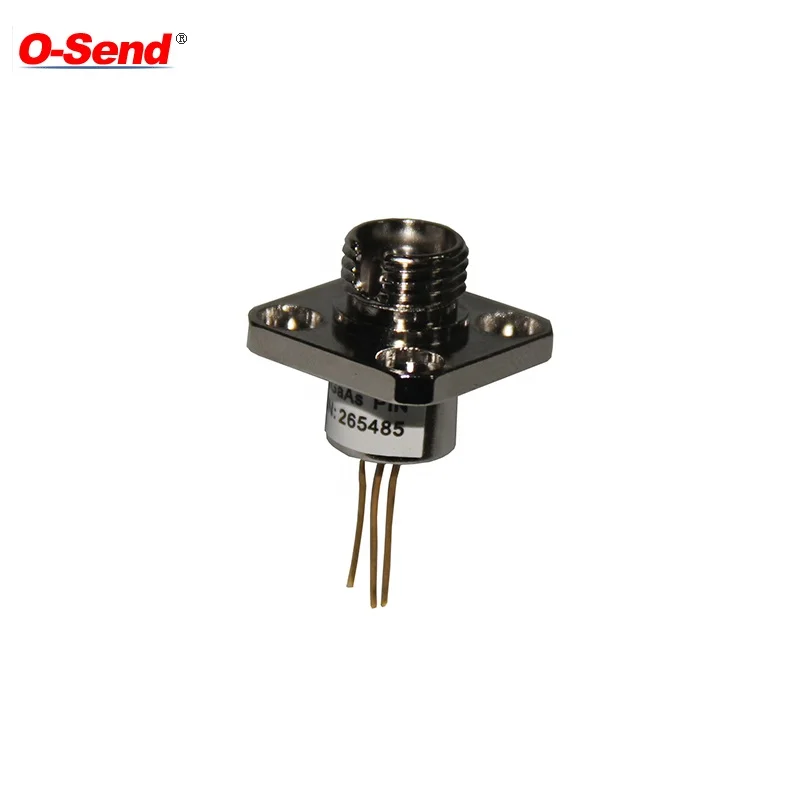

Фотодетектор O-Send/Senset 300um/500um/1000um/2000um PD
- Категория: >>>
- Поставщик: Senset,Opto-Electronics,(Chongqing),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 57.42 $* | 60.74 $* |
| Aug-19-2025 | 57.60 $* | 60.18 $* |
| Jul-19-2025 | 48.76 $* | 50.76 $* |
| Jun-19-2025 | 56.22 $* | 59.16 $* |
| May-19-2025 | 48.57 $* | 50.81 $* |
| Apr-19-2025 | 55.8 $* | 58.31 $* |
| Mar-19-2025 | 54.29 $* | 57.40 $* |
| Feb-19-2025 | 54.11 $* | 57.6 $* |
| Jan-19-2025 | 53.79 $* | 56.59 $* |
Характеристики
Product Description
Product Detail
Features
Small dark current
High linearity
High Accuracy
Applications
Power Meter
Absolute maximum ratings
| Parameter | Symbol | Condition | Ratings | Unit |
| Storage temperature | Tstg | - | -40~+100 | ℃ |
| Operating temperature | Top | - | -40~+85 | ℃ |
| Reverse voltage | VR | CW | 30 | V |
| Soldering time | - | - | 10 | s |
| Slodering Temp | - | - | 260 | ℃ |
Optical&Electrical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit | Remark | Test Condition |
| Wavelength Range | λ | 850 | - | 1700 | nm | - | |
| Power Range | P | -70 | - | 6 | dBm | * | Vr=5V,Rl=50Ω |
| -60 | - | 16 | dBm | ** | |||
| -50 | - | 26 | dBm | *** | |||
| -40 | - | 36 | dBm | **** | |||
| Dark Current | ld | - | 0.1 | 1 | nA | Φ300um | Vr=5V |
| - | - | 3 | nA | Φ500um | Vr=5V | ||
| - | - | 0.5 | nA | Φ1000um | Vr=0V | ||
| Responsivity | R | - | 0.85 | - | A/W | * | Vr=5V,λ=1310nm |
| - | 0.083 | - | A/W | ** | |||
| - | 0.113 | - | A/W | *** | |||
| - | 0.013 | - | A/W | **** | |||
| Accuracy | - | - | ±0.25 | dB | @25℃ | ||
| Capacitance | Ct | - | - | 5 | pF | Φ300um | Vr=5V,f=1MHz |
| - | - | 13 | pF | Φ500um | |||
| - | - | 25 | pF | Φ1000um |
Related Products
dfb 1590nm laser diode 1310/1550nm photodiode Hot SC/APC 1550nm WDM PD 405nm 200mw laser module for CTP
Certifications
Packaging & Shipping
Company Information
Senset Opto-Electronics(Chongqing)Co,Ltd. and specializes in active component
and passove component for telecommunication,data communication,FTTH(G/EPON,PON+EOC,RFoG)and CATV(CMTS)Industries.Product lines include Laser Diode Module(Coaxial/Butterfly/DIP),Photo Diode Module,CWDM module,Optical Transceivers(Bi-di,SFP,SFP+),TO-Can assembly and passive component.
O-Send is the predecessor of Senset,for a better development of our business,O-Send Opto-Electronics(Chongqing)Co,Ltd has changed the its business name to Senset Opto-Electronics(Chongqing)Co,Ltd at 2016.
Senset Opto-Electronics(Chongqing)Co,Ltd.locates in ChaYuan,Chongqing,south west of China,covering an area of about 2500 square meters and with more than 150 staff
