Микропивоварня коническая нержавеющая сталь 500л 5HL 4BBL одна стенка

Part 1

General Description of 500L/4BBL Beer Fermentation Tank

                                  ------ Quality Design for Craft Brewing

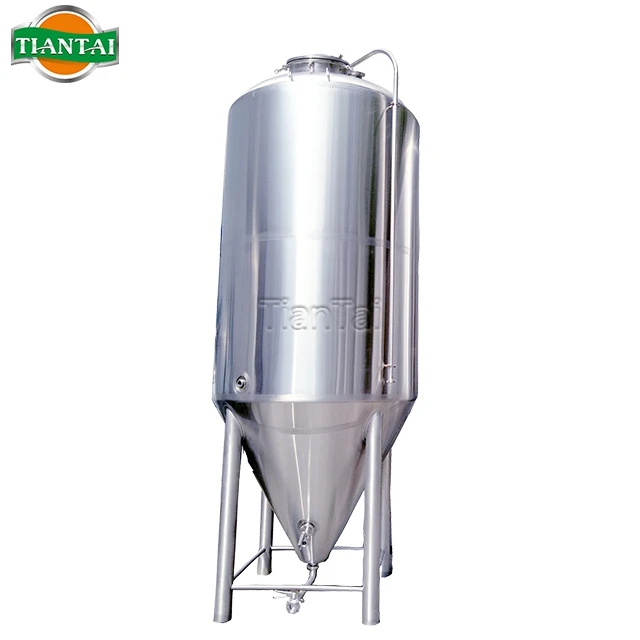

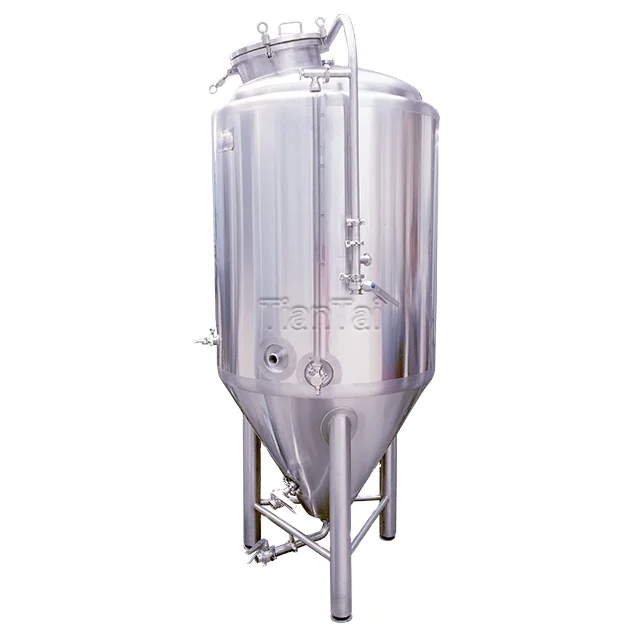

500L 5HL 4BBL Conical Stainless steel single wall top manway pressured cylindroconical fermenters are the most commonly used fermentation systems used today to produce both lagers and ales.

As the name implies, the vessels are vertical cylinders with a conical base (usually 60°cone) and normally, a dished top.

This design allows for easy yeast collection and CIP cleaning.500L 5HL 4BBL Stainless steel double wall glycol jacket top manway beer brewery fermentation tank are very suitable for micro breweries and brewpubs, bars etc. It’s self-cooled with glycol water inlet and outlet, so the temperature of beer during fermentation can be controlled easily. In addition, each beer fermentation tank is equipped with 360°rotated CIP spraying ball.  The tank inner could be cleaned completely. This can ensure the food-grade sanitary of beer production.The 500L 5HL 4BBL  fermenter is usually installed with 500L 5HL 4BBL beer brewing system or 250L/2BBL small beer brewpub equipment.Based on different beer types requirements on output and fermentation cycle, usually 4-20 sets beer fermentation tanks are needed by most of the customers.

--Company certificated by ISO TUV SGS production process inspection, the tanks’ design and quality can be according to GB/CE/PED/ASME standard.

--Local service in EUROPE, AUSTRALIA etc.

--5 Years warranty for tanks.

--0 trade risk verified by more than 1100 breweries.

--19 Years experience design customization.

--Electrical parts CSA/UL certificated available.

--Made of Stainless steel 304, TIG welded by automatic welding machine, the tanks’ quality according to GB/CE/PED/ASME standard.

--Interior polished to 0.2-0.4 μm to ensure no dead corner for bacteria hide in. Totally avoid the sanitary issues.

--Triangle-Arranged holes on glycol jacket for higher cooling efficiency.

--Rotating Racking arm allows beer out separately with yeast.

--All gasket made of EPDM which have a more durable use time.

--Fermentation pressure adjustable, suitable for fermentation both under atmospheric pressure and specific pressure.

--Separated cooling zones on side wall and cone for more accurate temperature control.

--Completely SUS304 legs with strengthening braces to prevent tank deformation.

-- Heavy duty foot pads with adjustable ability, can be applied to uneven or slope ground.

PART 2

 Learn More about 500L/4BBL Beer Fermentation Tank

             ------ Customized Details for  Better Brewing

PART 3

Learn More about TIANTAI

              ------ Your Honest Brewery Equipment Builder!
