Фрезерный станок с ЧПУ УЦИ ZAY7020 ZAY7032 ZAY7040 ZAY7045 ручной бурения фрезерные
- Категория: Drilling Machines >>>
- Поставщик: Shandong,Gsk,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1892.0 $* | 1987.11 $* |
| Aug-16-2025 | 1876.32 $* | 1970.49 $* |
| Jul-16-2025 | 1574.16 $* | 1653.79 $* |
| Jun-16-2025 | 1844.44 $* | 1936.94 $* |
| May-16-2025 | 1606.84 $* | 1686.86 $* |
| Apr-16-2025 | 1813.82 $* | 1904.33 $* |
| Mar-16-2025 | 1797.51 $* | 1887.24 $* |
| Feb-16-2025 | 1781.12 $* | 1870.74 $* |
| Jan-16-2025 | 1765.8 $* | 1853.9 $* |
Характеристики
Milling and drilling machine with dro ZAY7020 Manual drilling milling machines
Products Description

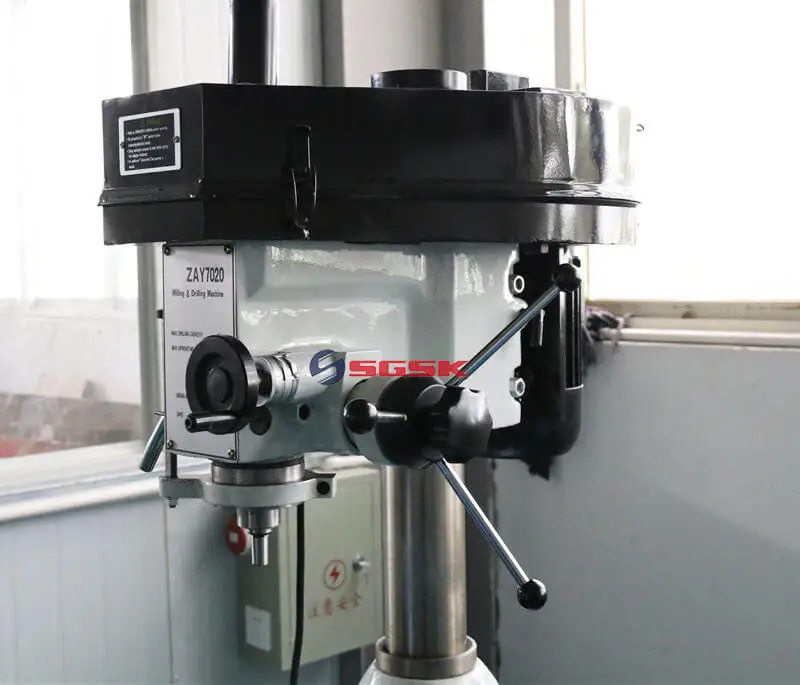

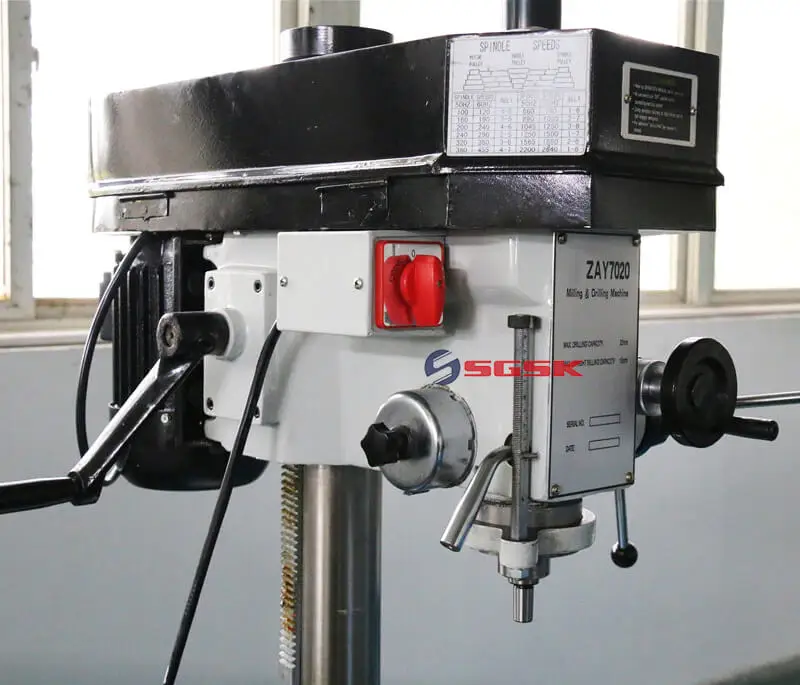

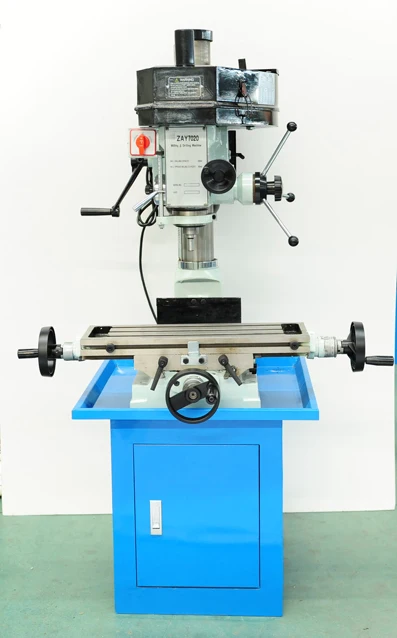

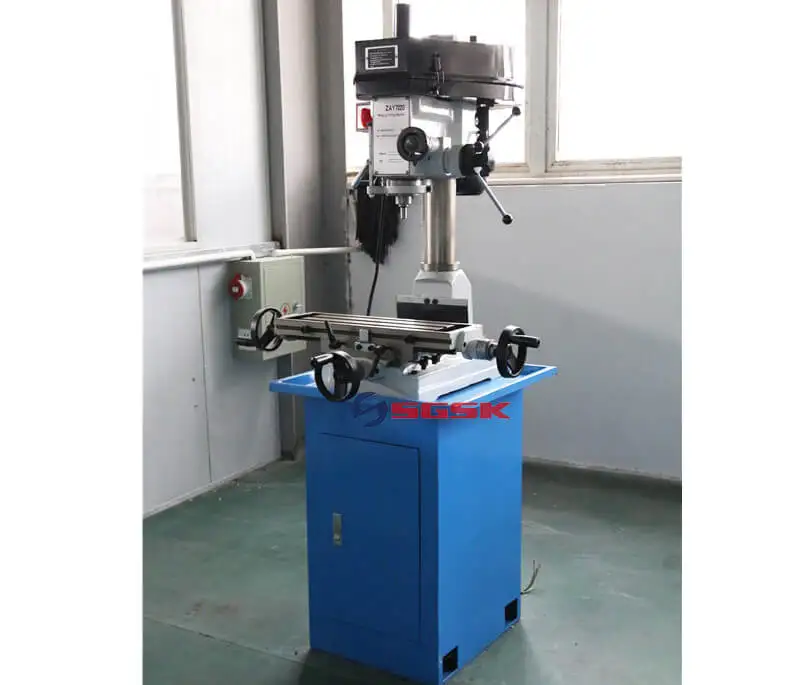

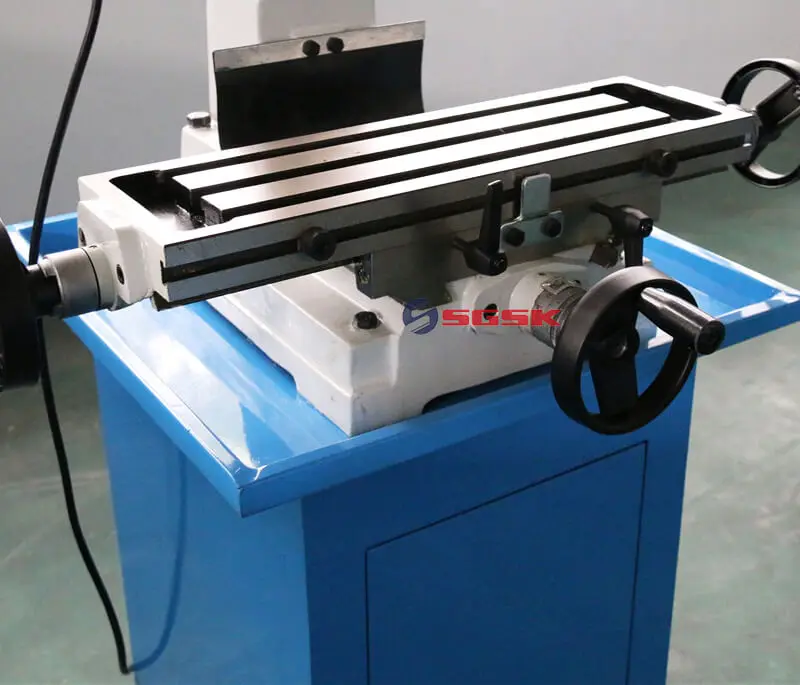

Details Images
Product Paramenters
Features:
driven and round column
Milling, drilling, tapping. Boring and reaming
Headstock swivels 360 horizontally
Micro feed precision
12 steps speed
Adjustable gibs on table precision
Posive spindle lock
Strong rigidity, powerful cutting and precisely positionin
Milling, drilling, tapping. Boring and reaming
Headstock swivels 360 horizontally
Micro feed precision
12 steps speed
Adjustable gibs on table precision
Posive spindle lock
Strong rigidity, powerful cutting and precisely positionin
Product main technical specifications:
Model | ZAY7020 | ZAY7032 | ZAY7040 | ZAY7045 | ||
Drilling capacity | 20mm | 32mm | 40mm | 45mm | ||
Face milling capacity | 63mm | 63mm | 80mm | 80mm | ||
End milling capacity | 20mm | 20mm | 32mm | 32mm | ||
Distance from spindle nose to table | 435mm | 450mm | 450mm | 450mm | ||
Min.distance from spindle axis to column | 181.5mm | 203.5mm | 203.5mm | 203.5mm | ||
Spindle travel | 85mm | 130mm | 130mm | 130mm | ||
Spindle taper | M.T.3 or R8 | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 | ||
Step of spindle speed | 12 | 12 | 12 | 12 | ||
Range of spindle speed | 50Hz | 100-2200 r.p.m | 80-2080 r.p.m | 80-2080 r.p.m | 80-2080 r.p.m | |
60Hz | 120-2640 r.p.m | 100-2500 r.p.m | 100-2500 r.p.m | 100-2500 r.p.m | ||
Swivel angle of headstock (horizontally) | 360° | 360° | 360° | 360° | ||
Table size | 520×160mm | 800×240mm | 800×240mm | 800×240mm | ||
Forward and backward travel of table | 140mm | 175mm | 175mm | 175mm | ||
Left and right travel of table | 290mm | 500mm | 500mm | 500mm | ||
Motor Power | 0.55KW | 0.75KW | 1.1KW | 1.5KW | ||
Net weight/gross weight | 130kg/190kg | 280kg/330kg | 283kg/333kg | 285kg/335kg | ||
Packing size | 620×750×1000mm | 1020×820×1160mm | 1020×820×1160mm | 1020×820×1160 | ||
Recommend Products
Company Profile
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
