Характеристики
Product Description
400m depth water well drilling rig/dth water well drilling rig truck mounted/tractor mounted water well drilling rig for sale
1. water drilling machine The engine uses Guangxi Yuchai 92Kw turbocharged engine;
2, water well rig walking device: travel motor with gearbox, long life and durability;
3, Air water driling machine hydraulic oil pump; parallel gearbox design (patent) oil pump unit separate, power supply is adequately allocated, hydraulic system unique design, maintenance and simple cost;
4, DTH drilling rig power head device; gearbox integrated casting, dual motor power, large torque, durable, low maintenance costs;
5, drilling machine chassis; professional digging chassis, durable, heavy bearing, wide chain plate, less damage to hard roads;
6, water well drilling rig lifting force; patent design composite boom, small arm volume, long stroke, double cylinder lifting, increase tonnage;
7. water drilling rig Each rig is equipped with a limiter for lifting the boom to protect the cylinder and ensure work safety;
8. water well drilling machine Each hydraulic oil pipe is covered with a protective jacket to make the oil pipe have a longer service life
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
400m depth water well drilling rig/dth water well drilling rig truck mounted/tractor mounted water well drilling rig for sale
Pneumatic drill Exploration Well drill rig,water drilling machine 150 Model
The Weight(T)3
Dimensions(mm)4000*1450*2050
The hole diameter(mm)100-219
Drilling Depth(m)150
Once-time advance length(mm)6600
Walking speed(Km/h)0.8
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.45-2.5
Air consumption(m³/min)15-29
Swing speed(rpm)40-65
Swing torque(N.m)2600-4000
Drill pipe diameter(mm)Φ76 Φ89
400m depth water well drilling rig/dth water well drilling rig truck mounted/tractor mounted water well drilling rig for sale
Pneumatic drill Exploration Well drill rig,water drilling machine 180 Model
The Weight(T)4.5
Dimensions(mm)3800*1500*2200
The hole diameter(mm)140-254
Drilling Depth(m)180
Once-time advance length(mm)3400
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-2.5
Air consumption(m³/min)17-31
Swing speed(rpm)40-65
Swing torque(N.m)3200-4600
Drill pipe diameter(mm)Φ76 Φ89
400m depth water well drilling rig/dth water well drilling rig truck mounted/tractor mounted water well drilling rig for sale
Pneumatic drill Exploration Well drill rig,water drilling machine 200 Model
The Weight(T)5.5
Dimensions(mm)1800*1700*2350
The hole diameter(mm)140-305
Drilling Depth(m)200
Once-time advance length(mm)3400
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.0
Air consumption(m³/min)17-30
Swing speed(rpm)50-70
Swing torque(N.m)5000-6500
Drill pipe diameter(mm)Φ76 Φ89 Φ102
400m depth water well drilling rig/dth water well drilling rig truck mounted/tractor mounted water well drilling rig for sale
Pneumatic drill Exploration Well drill rig,water drilling machine 300 Model
The Weight(T)9
Dimensions(mm)5900*2000*2850
The hole diameter(mm)140-325
Drilling Depth(m)300
Once-time advance length(mm)6600
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.3
Air consumption(m³/min)17-35
Swing speed(rpm)55-115
Swing torque(N.m)6200-8500
Drill pipe diameter(mm)Φ89 Φ102
400m depth water well drilling rig/dth water well drilling rig truck mounted/tractor mounted water well drilling rig for sale
Pneumatic drill Exploration Well drill rig,water drilling machine 600 Model
The Weight(T)12
Dimensions(mm)6000*2200*2850
The hole diameter(mm)140-350
Drilling Depth(m)600
Once-time advance length(mm)6600
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.5
Air consumption(m³/min)17-35
Swing speed(rpm)45-115
Swing torque(N.m)8500-1100
Drill pipe diameter(mm)Φ89 Φ102 Φ114
400m depth water well drilling rig/dth water well drilling rig truck mounted/tractor mounted water well drilling rig for sale
Pneumatic drill Exploration Well drill rig,water drilling machine 800 Model
The Weight(T)13
Dimensions(mm)6100*2200*2900
The hole diameter(mm)140-400
Drilling Depth(m)700
Once-time advance length(mm)6600
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.5
Air consumption(m³/min)17-42
Swing speed(rpm)55-120
Swing torque(N.m)8850-13500
Drill pipe diameter(mm) Φ102 Φ108 Φ114
400m depth water well drilling rig/dth water well drilling rig truck mounted/tractor mounted water well drilling rig for sale

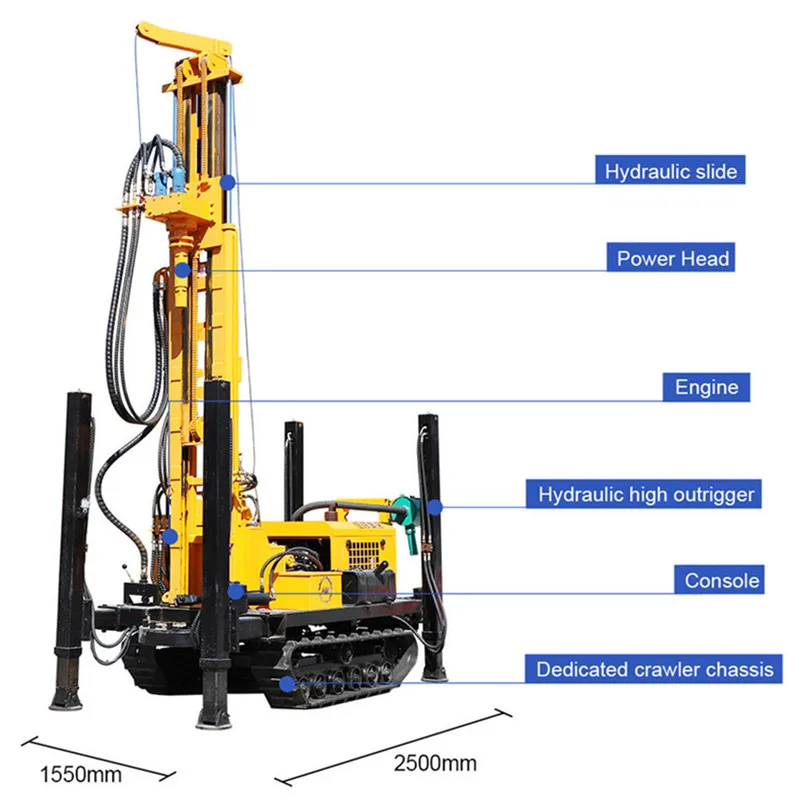

Detailed Images
400m depth water well drilling rig/dth water well drilling rig truck mounted/tractor mounted water well drilling rig for sale
400m depth water well drilling rig/dth water well drilling rig truck mounted/tractor mounted water well drilling rig for sale
Packing & Delivery
400m depth water well drilling rig/dth water well drilling rig truck mounted/tractor mounted water well drilling rig for sale
400m depth water well drilling rig/dth water well drilling rig truck mounted/tractor mounted water well drilling rig for sale
Certifications
400m depth water well drilling rig/dth water well drilling rig truck mounted/tractor mounted water well drilling rig for sale
400m depth water well drilling rig/dth water well drilling rig truck mounted/tractor mounted water well drilling rig for sale
Our Company
400m depth water well drilling rig/dth water well drilling rig truck mounted/tractor mounted water well drilling rig for sale
400m depth water well drilling rig/dth water well drilling rig truck mounted/tractor mounted water well drilling rig for sale
Client Vist
400m depth water well drilling rig/dth water well drilling rig truck mounted/tractor mounted water well drilling rig for sale
400m depth water well drilling rig/dth water well drilling rig truck mounted/tractor mounted water well drilling rig for sale
