Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
Машина для выдувания бутылок из ПЭТ 30 л и
- Категория: Stretch Blow Moulding Machines >>>
- Поставщик: Zhangjiagang,City,AK,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.39 $* | 0.56 $* |
| Aug-18-2025 | 0.36 $* | 0.44 $* |
| Jul-18-2025 | 0.5 $* | 0.18 $* |
| Jun-18-2025 | 0.7 $* | 0.35 $* |
| May-18-2025 | 0.35 $* | 0.43 $* |
| Apr-18-2025 | 0.54 $* | 0.49 $* |
| Mar-18-2025 | 0.67 $* | 0.46 $* |
| Feb-18-2025 | 0.0 $* | 0.97 $* |
| Jan-18-2025 | 0.6 $* | 0.78 $* |
Характеристики

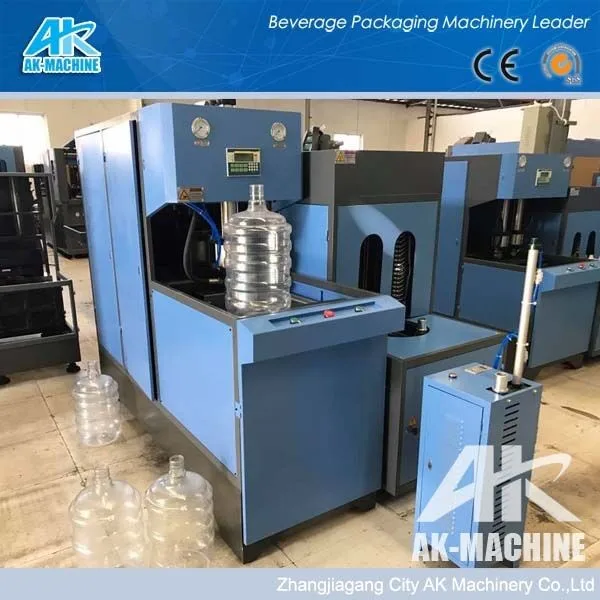

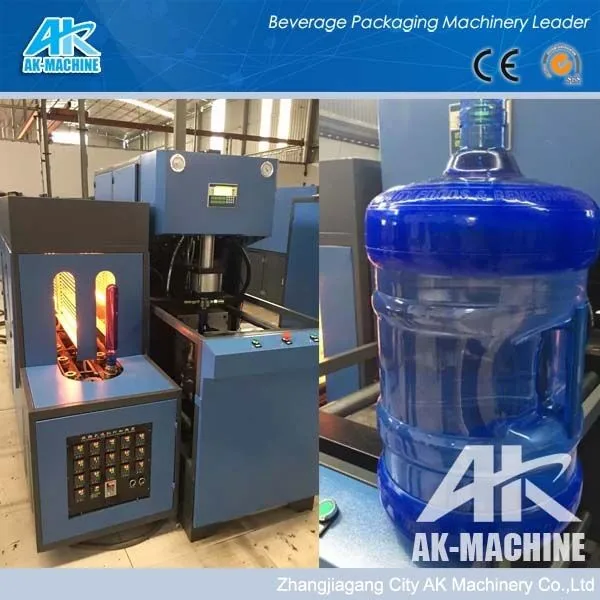

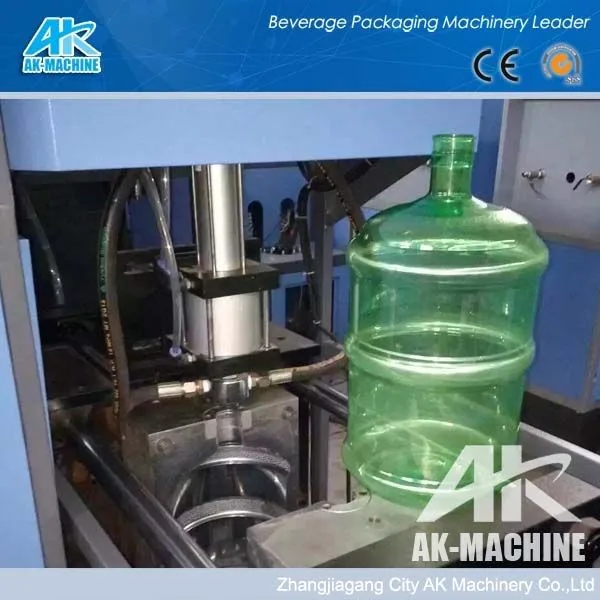

30L and 20L beer keg pet bottle blowing machine price
5 Gallon Blower
Features
1. Special design for PET Gallon Bottle up to 6 Gallon
2. Produce wide mouth jar up to 25 liter with neck size up to 200mm.
3. Using Infrared reheat units to achieve uniform heating throughout the wall of preform.
4. Adopt special designed preform heating system to ensure the optimal heating effect for 730g thick-wall preform.
5. Special designed fan cooling system in the heating channels to keep the oven with constant temperture and ensure the preform can be heated completely.
6. Water cooling system ensures the quality of preform neck.
7. Up to 90 bottles/hour using one-cavity mold for 5-gallon bottle.
8. Use advanced PLC control system with counting function and time-control precision to 0.01second, and a use-friendly panel.
9. Equipped with special designed air storage units.
10.Simple installation & startup adjustment.
Technical Parameter
TYPE | ITEM | UNIT | AK-31G |
Container | Product material | / | PET/PC/PE |
Container volume | L | 10-25 (1-cavity) | |
Theoretic output | Psc/hr | 5Gallon: 80 | |
Preform length | M | 15-460 | |
Preform inner diameter | mm | 15-200 | |
Molding | Max mold plate dimendion (L×W) | mm | 420×500 |
Max mold thickness | mm | 400 | |
Clamping force | KN | 100 | |
Mold opening stroke | mm | 330 | |
Low pressure compressor | m³/Mpa KW | ≥0.8/1.25 7.5 |
|
Main machine electricity | Power | M | 15 |
Voltage / frequency | V/Hz | 380-240-110/50-60(3 phase) | |
Machine size and weight | Main machine | m | 1.55×0.82×2.00 |
Main machine weight | T | 1 | |
Heater (L×W×H) | T | 2.42×0.65×1.60 | |
Heater weight | T | 0.38 |
Company Information
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 20-30 days,if complete production line it is 45-60 days.
Q: What is your terms of payment ?
A: Payment ≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, balance before shippment.
